NEW LISTING
11/30/2021
(Click on above thumbnails to enlarge photos)
warranty
COMPLETELY
SERVICED / REFURBISHED 18+ HOURS
ALL TUBE (YES, EVEN THE RECTIFIER IS TUBE)
NEWCOMB
TR-1625M
CLASSROOM / SELF-CONTAINED
TURNTABLE / PHONOGRAPH / PA SYSTEM / GUITAR AMP
DUAL 6V6 TUBES (just like a Fender Deluxe Reverb!)
PLAYS 33, 45 78 & 16 RPM!
MADE
IN THE USA
#...4499
Circa 1974
for sale
Our
technician has completely gone through and 'Certified' this unit.
As this is an 'all tube'
unit, prior to being powered up, we did an internal inspection on it.
Then we pulled all the tubes and individually tested them. We found that
one of the 6V6 output tube had no heater response. We also saw that the
multi-element, electrolytic, 'can' capacitor had visible leakage. The AC
mains fuse was blown / open. The tone-arm was tilted laterally in it's
mounting as well. 'Scratch Filter' switch was physically deteriorated /
broken thus in-operable.
ü
We sourced and replaced the
multi-element, 'can' electrolytic capacitor with another (American made,
OEM style). One of the replacements values was not correct, so we also
installed another electrolytic capacitor in it's place. We also replaced
the one other electrolytic capacitor in the unit. All the new
replacements were checked for ESR, Leakage (up to 450 Volts on our Heathkit IR-11) each element & actual capacitance. All performed above
and beyond their specs prior to install.
ü
All controls / switches were
flooded with solvent and are now clean and quiet.
ü
Unit was gradually powered
up on a Vari-Ac, variable transformer up to standard 117VAC. No
excessive current draw was observed during the process.
ü
Upon powering up, we also
discovered that the two pilot lamps were out and were both replaced with
new bulbs #T47 / 25-020 6.3V / 150mA
ü
Both original, NEON 'Strobe'
lamps working
ü
Again, all tubes (ALL
AMERICAN, NO Chinese cheeeeese tubes!) were tested and one of the 6V6 output tubes were
replaced (with another old stock, American tube we had in our stash).
ü
The turntable drive and speed adjustment mechanism
was disassembled, cleaned & lubricated.
ü
The idler drive wheel was removed and resurfaced on
the vertical lathe, then re-conditioned with Rubber Re-Nue.
ü
Center carrier bearing and platter spindle cleaned and re-lubed.
ü
Thrust pad inspected and re-installed.
ü
New rubber bushing installed on
tone-arm mounting / bushing to 'true' it level.
ü
We sourced and replaced
a correctly sized DPDT
switch for the 'Scratch Filter' function.
ü
Platter mat still adhered fine with no warping
ü
Platter bushing in good shape with NO run-out (wobble)
ü
Currently
has LP / 45 RPM needle only installed. The 78 RPM needle could be
replaced but as few folks will need to play "78's", we didn't feel
the added expense to the final price to replace it was 'monetarily
practical'. If you wish to purchase it, AND cover the additional
expenses, we can order and install the additional stylus post
purchase.
ü
Unit was cosmetically detailed overall. Speaker baffle removed to allow
full cleanup of cabinet. (metal speaker grill does have an area of light
corrosion on it. We improved it with a rubbing with Scotchbrite.
ü
AC cord still supple with not cracking, stiffness, splitting or goo.
ü
Original 12", 'dual cone' speaker in great shape with no holes or tears.
ü
Turntable holds speed well. All functions test and
phonograph looks great! As a Guitar amp, IT'S A
BLAST.
ü
Overall, the unit looks
great. A few minor 'battle scars' scrapes here and there, but
nothing at all distracting. The metal speaker grill has a bit of a
discolored / grayish area (see photos above).
Total tech time
17+
hours!
__________________________________

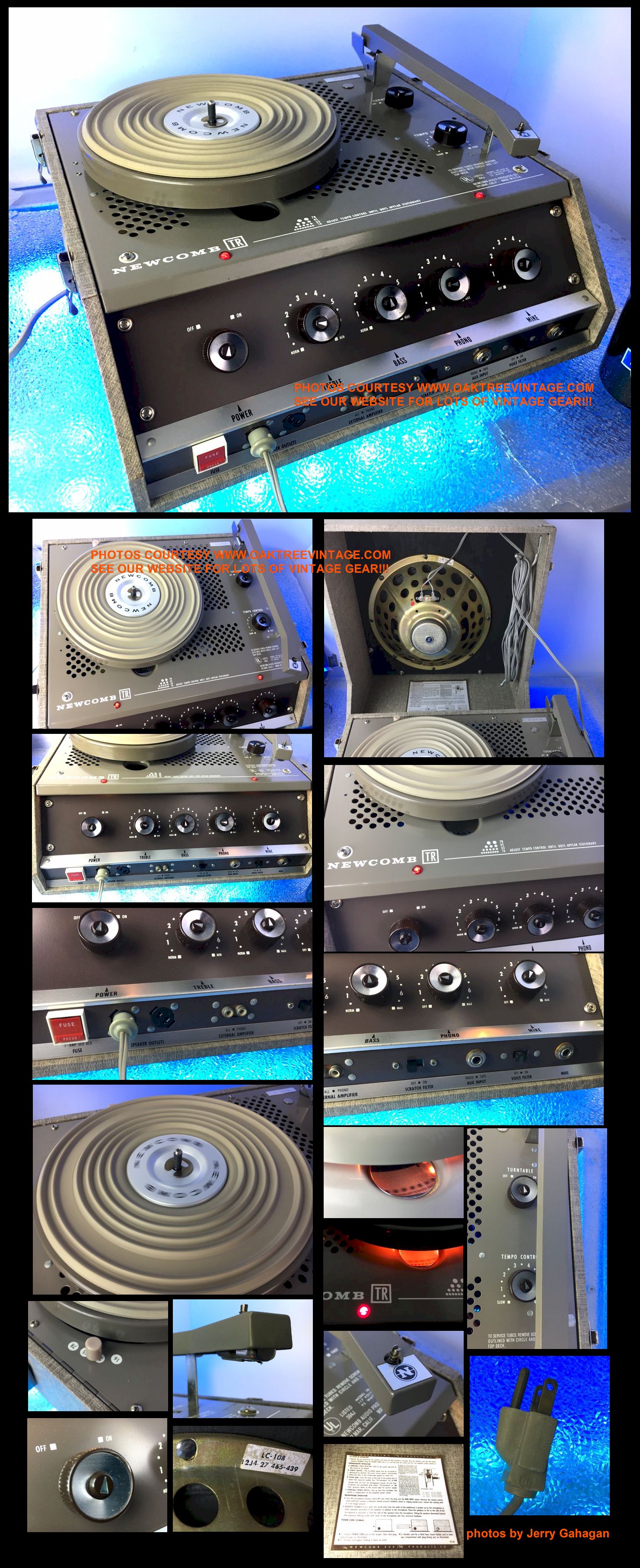

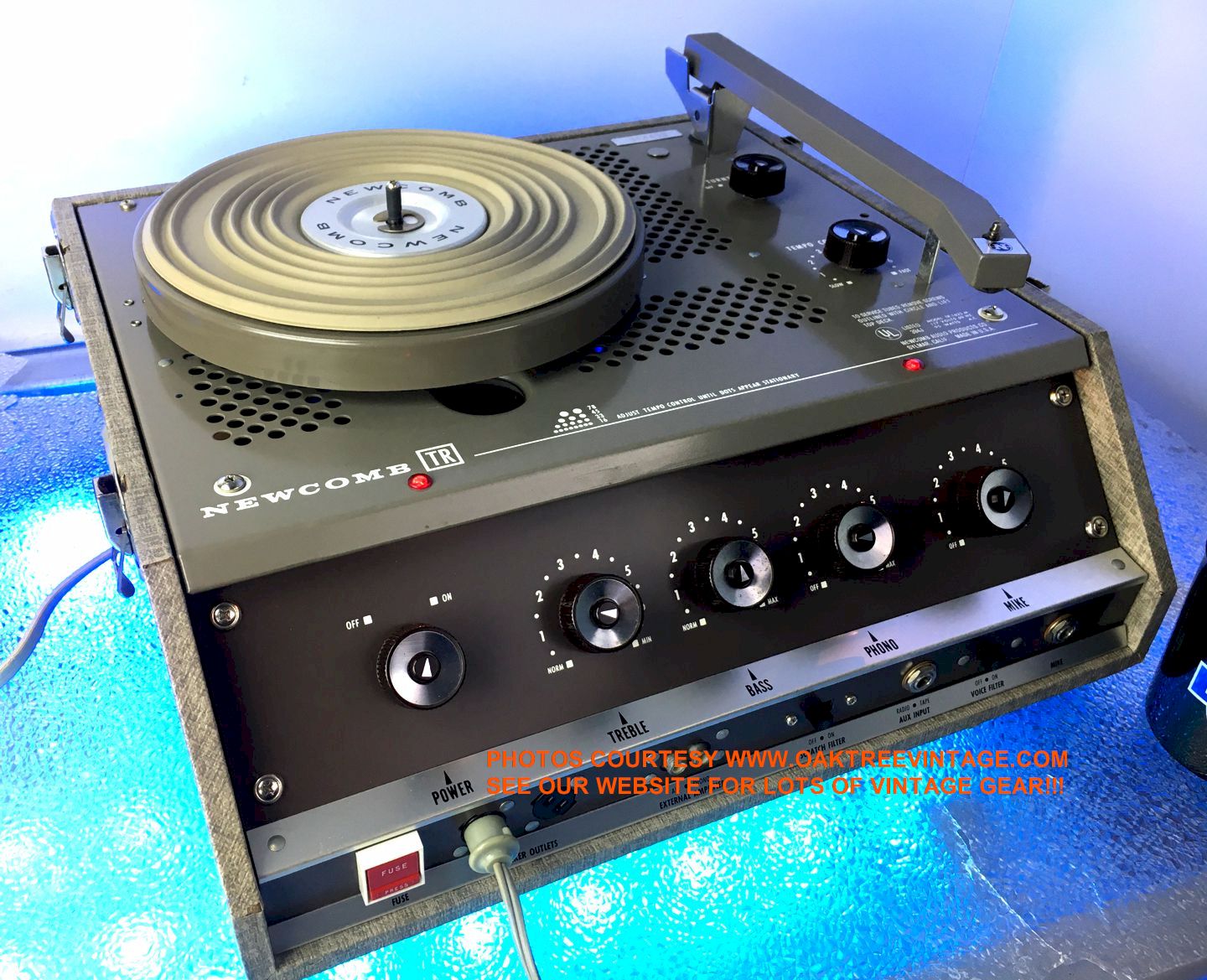

Vintage Newcomb TR-1625M, "ALL
TUBE" record player / phonograph.
Great for just playing records in an 'old school'
way, calling Square Dances as it has a large speaker, 12" and has
an input for a microphone. Can also be used as a PA,
or a Guitar / Harp amp or in any combination of those ways. Plays
16, 33, 45 & 78 RPM records (you will need to source
a 78 needle if you want to play the 'old, original' 78's)
Newcomb TR-1625M
Features:
- Vintage Build quality
- 'Point-to-Point' internal circuit design (no circuit boards)
- Dual 6V6 output amplifier (same as Fender Deluxe Reverb, Gibson BR-6
and a plethora of other Amps over the past 7 decades)
- All AMERICAN Tube electronics (Phono-Preamp, Mic Preamp, Tone amp,
Power Amp and even the power supply rectifier {5Y3}).
( Tube compliment; 1x 5Y3GT, 1x 6AN8, 1x 12AX7, 1x 6AV6 & 2x 6V6GT)
- 12", Oxford speaker in cabinet / lid
- Rim Drive platter
-
Neon lamp, Strobe monitored Pitch
-
Pitch
(Tempo) control via 'eddy brake' system just like in the famous, and
highly sought after (and valuable) Garrard 301
- Separate Bass and Treble (interestingly, by design, the 'Treble'
control operates in reverse of most others, meaning that the more
'clockwise' you turn it, the less treble you get. The "Bass" control
works in the normal 'clockwise' direction and increases)
- AUX / Radio input is level / volume controlled via 'Phono' level
control pot (connecting to the 1/4" AUX input, defeats the Phono
cartridge input signal)
- Microphone Input (also the place to plug in a guitar)
- Separate Volume level controls for the Phono and the Mic / Guitar
input
- Separate Power switch for platter motor
- Dual speaker output jacks (Cinch Jones, 2-pin connectors. Extra one
included).
- Selectable speaker impedance selector for the output transformer
(Located under the chassis to be switched when connecting a second
speaker or using a speaker of a different impedance to the original).
- Turntable can be powered off separately from the amplifier
- Dual Line outputs for just the phono or the phono and anything
connected to the mic and / or AUX inputs
- Scratch filter removes high frequency from the turntable.
- Warm-glo, incandescent lamps illuminate the fact plate (looks
great in darker environs)
- GE VR II, magnetic cartridge installed with selectable needle
(currently only one stylus / needle installed. Undetermined which, but
Seems to perform well and sound fine on either LP's / 45's or 78's.)
- Externally located, AC Mains fuse
- Original 3-Prong, Grounded AC plug still intact
- Schematic located inside chassis
Newcomb TR-1625M
Tube compliment:
-
Firstly, ALL tubes are American, Vintage tubes (NO chinese rubbish /
copy / fake tubes)
TUBES ARE:
(2) 6V6GT
(1) 6AN8
(1) 12AX7
(1) 6AV6
(1) 5Y3GT
This is a "stand alone" unit with it's own built-in,
all tube amp and big 12"
speaker so no need to connect to another system to use. This thing GETS
LOUD! It does, however have an "Aux Out" so you can connect it to
another stereo / sound system,
mixing console or computer sound card. It is compatible with all
Stereo / Mono albums / records. Features Separate Bass & Treble,
Balance, volume and Microphone Volume, and speed adjustment controls.
1/4" Microphone input as well as a RCA" Aux Input. Dual Speaker
jacks. Feet have built in suspension to reduce noise / rumble from floor
noise. Unit is UL listed and has original 3-prong, grounded AC cord
intact for safety. Runs great. Following the
extensive tech work, this unit is now ready to use.
So there's a lot of talk on the interweb of this unit making a 'good
tube guitar amp'. It actually makes a 'GREAT' tube guitar amp.
Realize it's got 2x 6V6 output tubes (same as in the highly sought
after, Fender Deluxe) and a 12AX7 in the pre-amp. I played it
extensively at multiple volume levels with both it's internal
speaker and with an extension I have around the shop. The 'Amp'
sounds great. If you're going to use it for guitar or harp (I also
tried it with a crystal mic and harp) I would change the speaker.
It's got it's full-range, Dual-Cone which isn't designed for guitar.
Something like a Jensen, C-12R would work well.

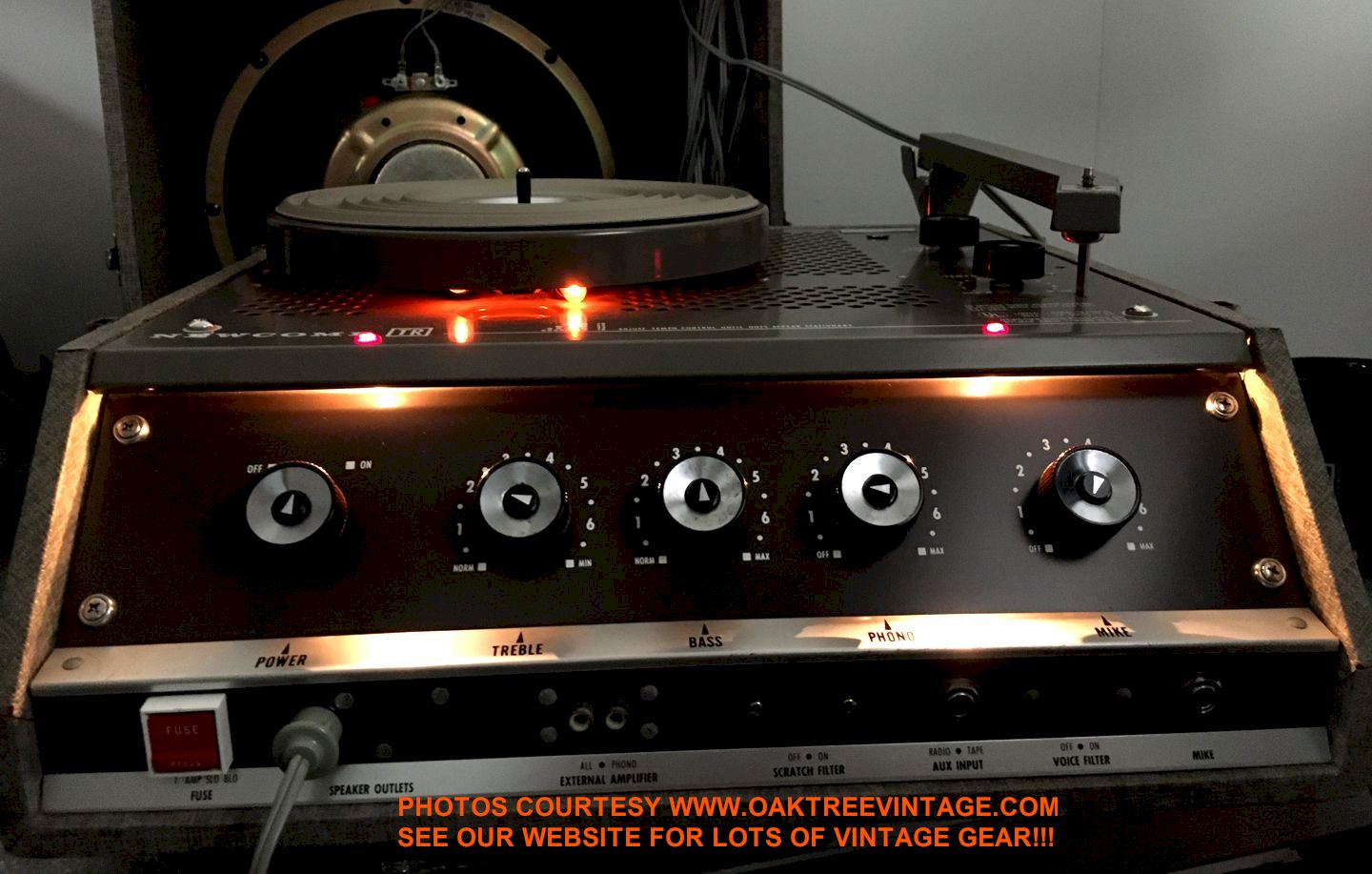

This unit looks incredible in the dark as well. Very elegant, but
subtly lit face when powered up.
Tone-arm is missing it's 'lift handle' (broken off). Does have a
stylus installed, but unable to identify which it is. Seems to
perform well and sound fine on either LP's / 45's or 78's.
Looks good, works and sounds GREAT! Includes our standard 30
day limited warranty.
Also comes with spare (Cinch Jones) speaker plug
/ connector if you want to connect a different / additional speaker
down the as an alternative.
Measures 17.5" wide
x 16" deep x 14" tall and weighs
40 lbs unpacked.
NEWCOMB
TR-1625M CLASS-ROOM /
SQUARE DANCE / STUDIO RECORD PLAYER / PA / GUITAR AMP
Cond. 8.5
$839.
(Cons.)
R.R.
|
NEW LISTING 11/16/2022
(Click
on above thumbnails to enlarge photos)
warranty
FULLY
SERVICED / REFURBISHED / RESTORED
HAMILTON 930
WITH BRAND NEW CARTRIDGE / NEEDLE INSTALLED
4-SPEED
WITH FULL SIZED MOTOR
CLASSROOM / SELF-CONTAINED
TURNTABLE / PHONOGRAPH
PLAYS 33, 45 78 & 16 RPM!
MADE IN THE USA
(not the 'plastic', Chinese cheeeeeese versions of more recent years)
for sale
ü
Our technician has completely gone through and 'Certified' this unit.
ü
We have completely
gone through it cleaning inside and out, disassembled & lubricated main
mechanism.
ü
Disassembled 'Speed
Change' mechanism, cleaned and re-assembled w/ proper lube
ü
Removed platter
spindle bearing, cleaned and re-assembled w/ proper lube
ü Re-surfaced
idler drive wheel.
ü
Power Supply
voltages checked and all measured within spec
ü All
potentiometers / controls cleaned
ü Turntable
holds speed well and is 99% accurate @ +1.0%

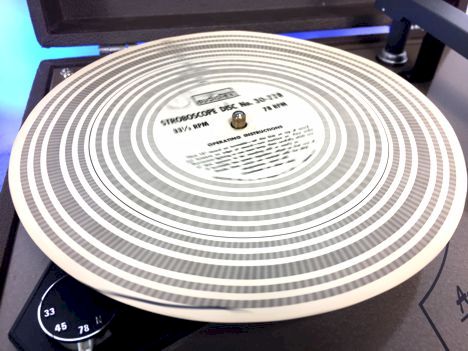

@ 33 1/3 and 45 RPM (checked with our shop
strobe disc). (also checked for excessive flutter)
ü Replaced
rotating cartridge holder, so now has handle for selecting LP / 45 or 78
stylus (many of these are broken off. We happened to have an NOS part in
stock and the tech installed it).
ü
NEW #89
Cartridge with Both 78 and LP stylus's.
ü Built-in
45 adaptor included. All functions test and phonograph looks great!
__________________________________

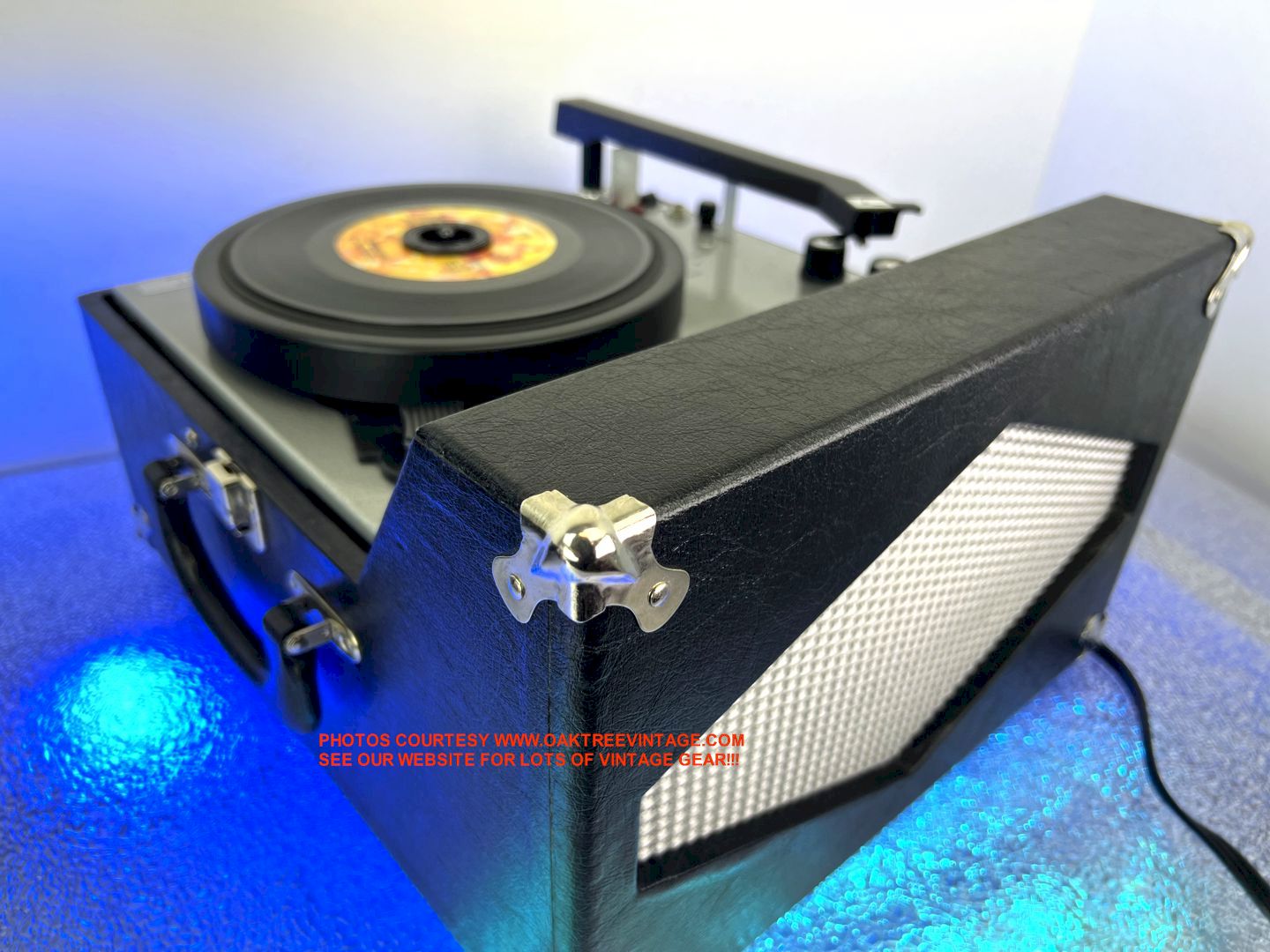

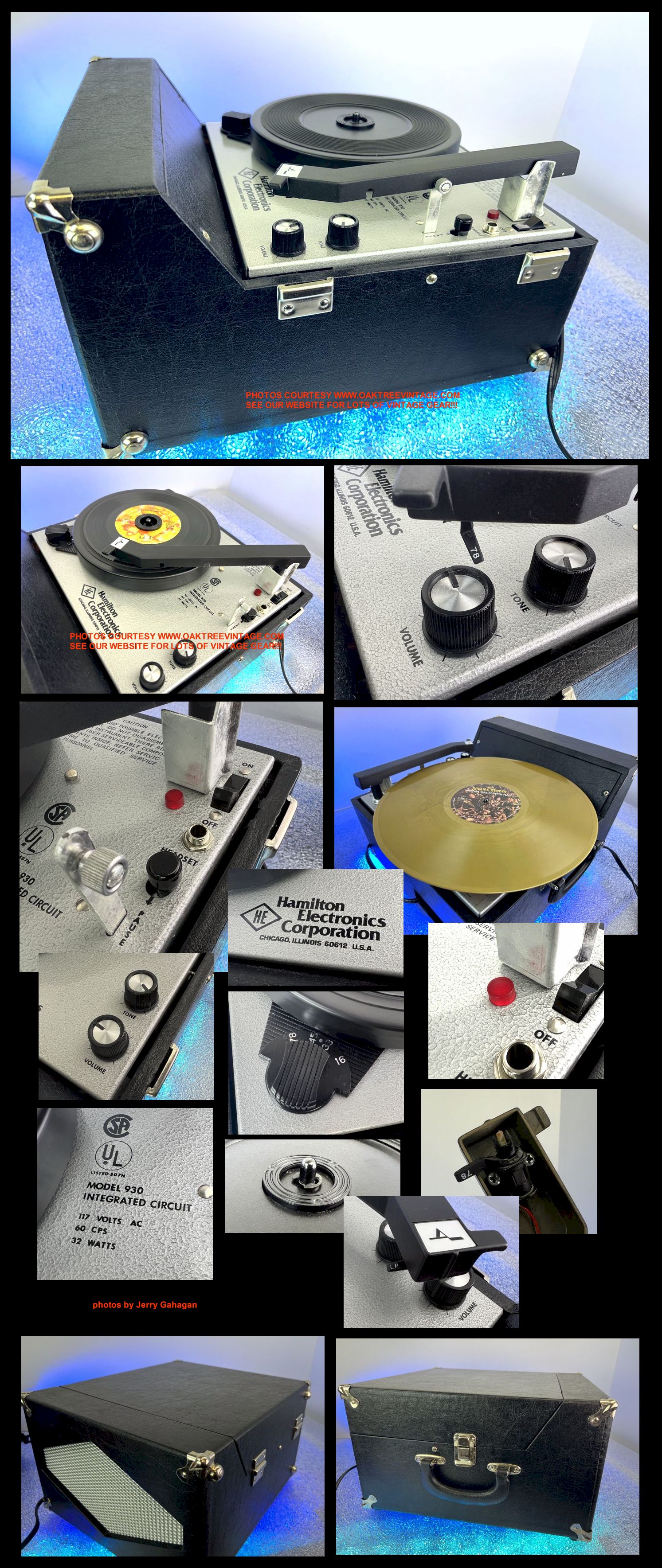

Pre-owned Hamilton, 930 "School style" record
player / phonograph.
Plays 16, 33, 45 & 78 RPM records.
This is a "stand alone" unit with it's own built-in amp and speaker so
no need to connect to another system to use. Also has
a 1/4" headphone jack (mono). Also even though it is a "Mono"
system the cartridge / stylus is compatible with all stereo albums /
records. Features Function, Tone and volume controls. Also features a
'Pause' function. Original feet still intact.
Utilizes common 'Astatic' style cartridge / stylus / needle. 'Power /
Pilot' light working fine. The Hamilton 930 also
features a 'suspended plinth' for damping environmental vibrations and
influences instead of just 'spongy feet'.
So a couple of notes about this unit. While these
'school phonographs' aren't known for their 'Hi-Fidelity', this one is
'stronger and clearer' sounding than about any we've ever had. Don't

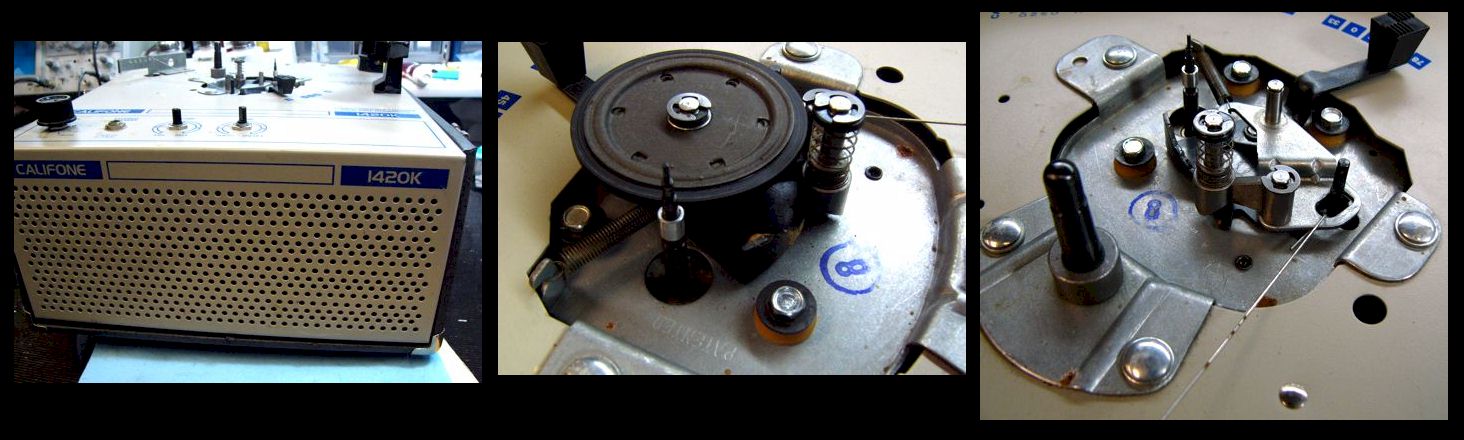

know why, it just is overall. Secondly, we recently discovered that some
of the 'old school looking', but obviously 'later' Califones have

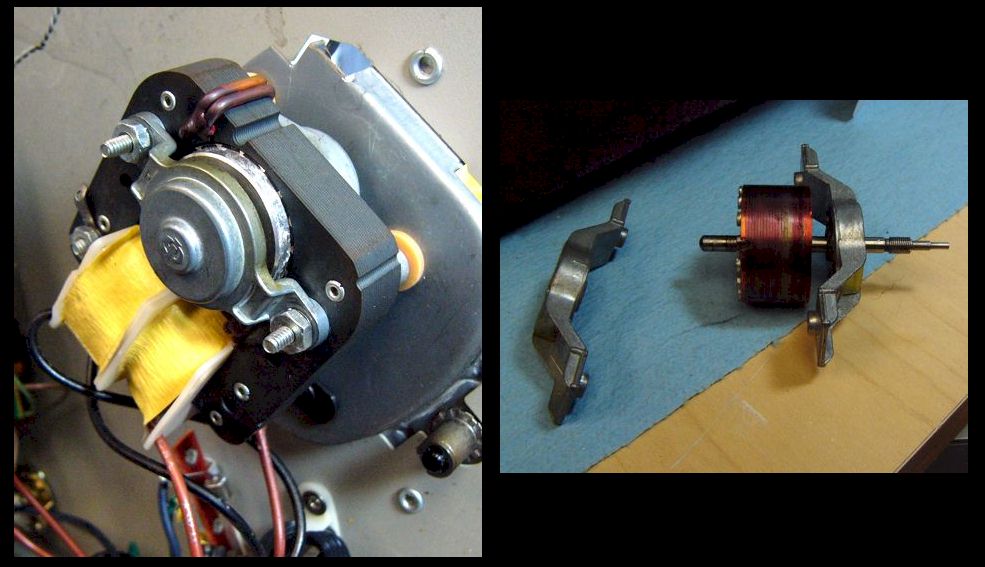

actually switched to a much less robust drive motor (from a proper
'shaded pole, AC powered' motor, to a very anemic / small DC, powered
motor. "Small" as in smaller than most cassette deck motors!!!), without
necessarily changing their model number. This Hamilton 930 still has a
proper, heavy duty, Shaded Pole, AC motor inside!
Unit is UL listed and has original 3-prong, grounded AC cord intact for
safety. This table is ready to use and looks NEAR
NEW. Really pretty much not a mark on it. Operating instructions
inside lid. Measures 15" wide x 13" deep x 9.5" tall and weighs 18 lbs
unpacked.
Includes our standard 30 day limited warranty.
HAMILTON 930 CLASSROOM PHONOGRAPH
Cond. 8.5+++
$359.
(Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
NEW
LISTING
11/2018
(Click on above thumbnails to enlarge photos)
warranty
FULLY SERVICED / REFURBISHED / RESTORED
AUDIO PLUS AV-15TX
3-SPEED
CLASSROOM / SELF-CONTAINED
TURNTABLE / PHONOGRAPH
PLAYS
33, 45 & 78 RPM!
MADE
IN THE USA
for sale
ü
Our technician has completely gone through and 'Certified' this unit.
ü
We have completely gone through it cleaning inside and out, disassembled
& lubricated main mechanism.
ü
Re-surfaced idler drive wheel.
ü
Disassembled motor, cleaned motor bushings /
axles and re-lubed.
ü
Turntable holds speed well
and is 97% accurate @ +3.0%
@ 33 1/3 RPM (checked with our shop
strobe disc).
ü
Both
78 and LP stylus's are in good condition.
ü
Built-in 45 adaptor included. All
functions test and phonograph looks great!
(Technicians note that the mechanism is 'BSR
built'. BSR is known for building the bulk of OEM turntables and
they generally run forever with normal maintenance)
__________________________________
Used
Audio Plus "School style" record player / phonograph.
Plays 33, & 45 & 78 RPM records.
This is a "stand alone" unit with it's own built-in amp and speaker so
no need to connect to another system to use. It does, however have an
external speaker jack if you wish to connect a larger extension speaker.
Also even though it is a "Mono" system the cartridge / stylus is
compatible with all stereo albums / records. Features Function, Tone and
volume controls. Also features a 'Pause'
function. Unit is UL listed and has original 3-prong, grounded AC cord
intact for safety. This table is ready to use and looks nice.
Includes our standard 30 day limited warranty.
Measures 13.5" wide x 13" deep x
8.5" tall and weighs 14
lbs unpacked.
AUDIO PLUS AV-15TX CLASSROOM PHONOGRAPH
Cond. 8.5
$349.
(Cons.) C.B.S.
(Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
NEW
LISTING
11/2018
(Click on above thumbnails to enlarge photos)
warranty
FULLY SERVICED / REFURBISHED / RESTORED
CALIFONE 1420K
4-SPEED
CLASSROOM / SELF-CONTAINED
TURNTABLE / PHONOGRAPH
PLAYS
33, 45 78 & 16 RPM!
MADE
IN THE USA
SOLD 10/6/2021
SHIPPING TO BURTON IN OREGON
ü
Our technician has completely gone through and 'Certified' this unit.
ü
We have completely gone through it cleaning inside and out, disassembled
& lubricated main mechanism.
ü
Re-surfaced idler drive wheel.
ü
Disassembled motor, cleaned motor bushings / axles
and re-lubed.
ü
Turntable holds speed well
and is 98% accurate @ +2.0%
@ 33 1/3 RPM (checked with our shop
strobe disc).
ü
Replaced tone-arm 'cue' light
ü
Both
78 and LP stylus's are in good condition.
ü
Built-in 45 adaptor included. All
functions test and phonograph looks great!
__________________________________
Used
Califone "School style" record player / phonograph.
Plays 16, 33, 45 & 78 RPM records.
This is a "stand alone" unit with it's own built-in amp and speaker so
no need to connect to another system to use. It does, however have an
external speaker jack if you wish to connect a larger extension speaker.
Also even though it is a "Mono" system the cartridge / stylus is
compatible with all stereo albums / records. Features Function, Tone and
volume controls. Also features a 'Pause'
function. Feet have built in suspension to reduce noise / rumble from
floor noise. Utilizes common 'Astatic' style
cartridge / stylus / needle. Tone-Arm 'Cuing / Power / Pilot' light
working fine. Unit is UL listed and has original 3-prong, grounded AC
cord intact for safety. This table is ready to use and looks nice.
Includes our standard 30 day limited warranty. Measures 15" wide x 13"
deep x 9.5" tall and weighs 18 lbs unpacked.
CALIFONE 1420K CLASSROOM PHONOGRAPH
Cond. 8.5
SOLD 10/6/2021
SHIPPING TO BURTON IN OREGON
(Cons.) C.B.S.
(Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
NEW
LISTING
11/2018
(Click on above thumbnails to enlarge photos)
warranty
FULLY SERVICED / REFURBISHED / RESTORED
AUDIOTRONICS 312T
4-SPEED
CLASSROOM / SELF-CONTAINED
TURNTABLE / PHONOGRAPH
PLAYS
33, 45 78 & 16 RPM!
MADE
IN THE USA
SOLD 2/28/19
SHIPPING TO JENNY IN CALIFORNIA
ü
Our technician has completely gone through and 'Certified' this unit.
ü
We have completely gone through it cleaning inside and out, disassembled
& lubricated main mechanism.
ü
Re-surfaced idler drive wheel.
ü
Disassembled motor, cleaned motor bushings /
axles and re-lubed.
ü
Turntable holds speed well
and is 99.5% accurate
@ +.5%
@ 33 1/3 RPM
(checked with our shop
strobe disc).
ü
Original Ceramic cartridge still intact with excellent condition
stylus (needle).
ü
Both
78 and LP stylus's are in good condition.
ü
Built-in 45 adaptor included. All
functions test and phonograph looks great!
__________________________________

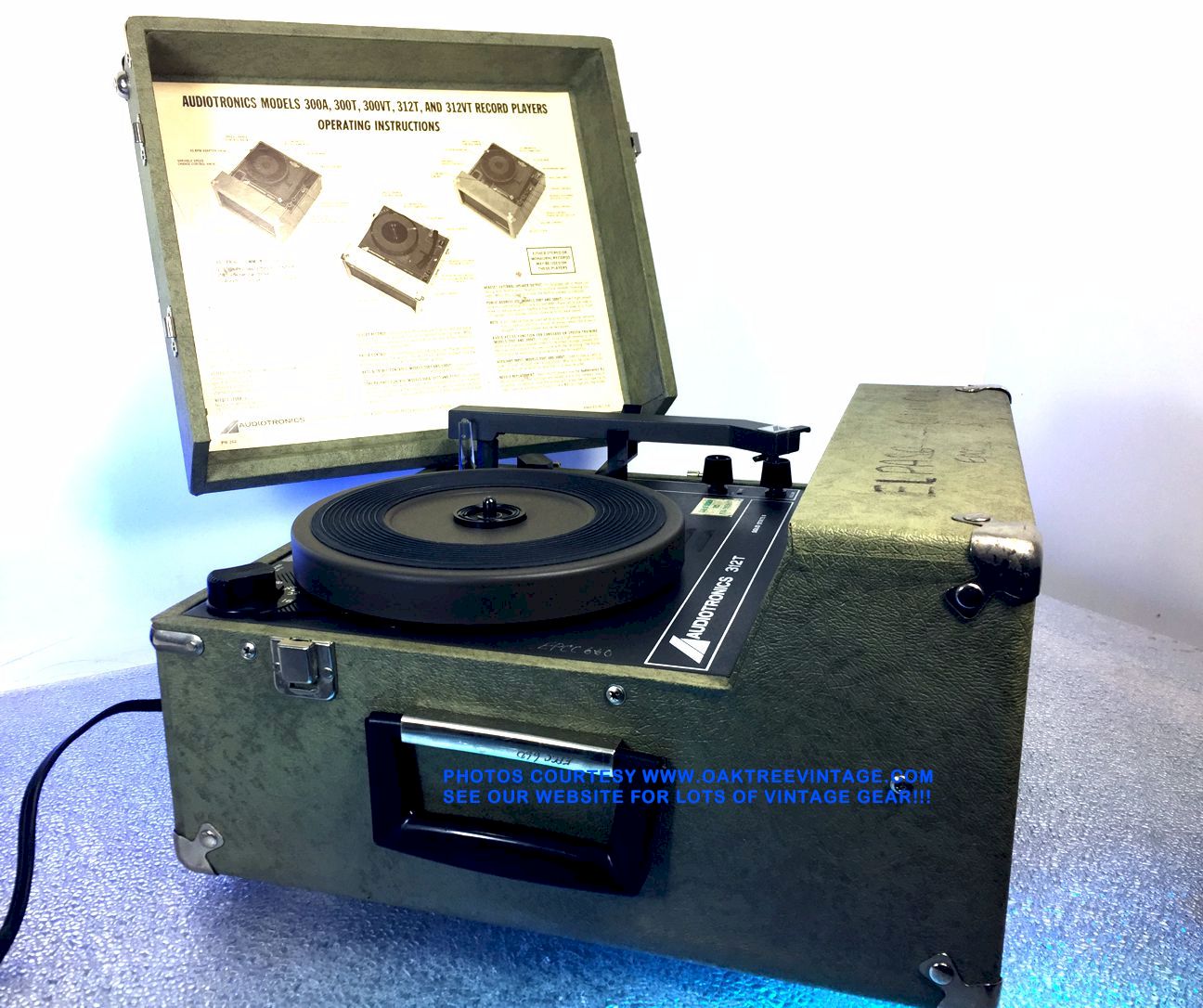

Refurbished / Restored Audiotronics 312T "School style" record
player / phonograph.
Plays 16, 33, 45 &
78 RPM records.
Turntable holds speed well at +.5%! Probably the closest to perfect
speed we have ever had a self contained table run.
This is a "stand alone" unit with it's own built-in amp and speaker so no
need to connect to another system to use. It does, however have an
external speaker jack if you wish to connect a larger extension
speaker. Also even though it is a "Mono" system the cartridge /
stylus is compatible with all stereo albums / records. Features
Function, Tone and volume controls. Feet have built in suspension to

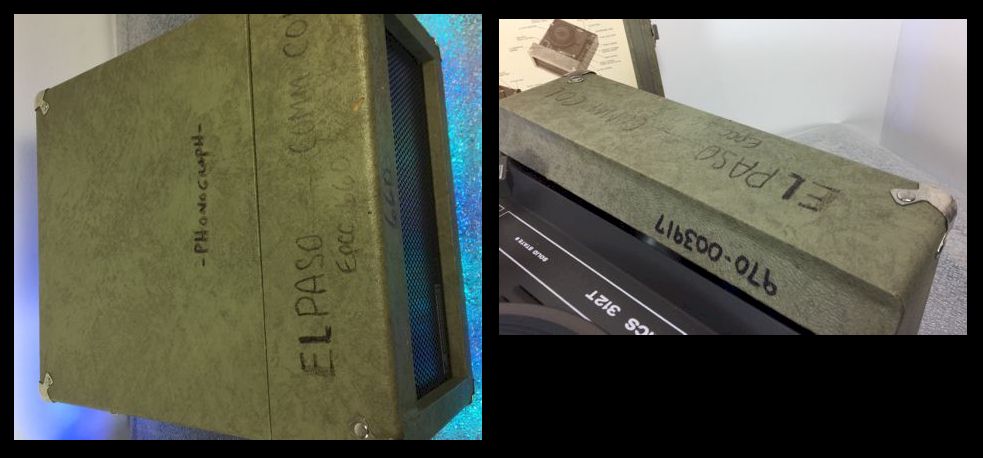

reduce noise / rumble from floor noise. Cosmetically the unit used to belong to El Paso County, so there's a
lot of old id stickers / engraving / stenciling on the unit, that is
fairly 'permanent'. Unit is UL listed and has original
3-prong, grounded AC cord intact for safety. This table is ready to
use and looks nice. Includes our standard 30 day limited warranty.
Measures 15" wide x 13" deep x 9.5" tall and weighs 18 lbs unpacked.
AUDIOTRONICS 312T
Cond.
8 (due to additional 'art work')
SOLD 2/28/19
SHIPPING TO JENNY IN CALIFORNIA
(Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
NEW
LISTING
11/2018
(Click on above thumbnails to enlarge photos)
warranty
FULLY SERVICED / REFURBISHED / RESTORED
AUDIO PLUS AV-15TX
3-SPEED
CLASSROOM / SELF-CONTAINED
TURNTABLE / PHONOGRAPH
PLAYS
33, 45 & 78 RPM!
MADE
IN THE USA
SOLD 5/7/20
SHIPPING TO MICHAEL IN CALIFORNIA
ü
Our technician has completely gone through and 'Certified' this unit.
ü
We have completely gone through it cleaning inside and out, disassembled
& lubricated main mechanism.
ü
Re-surfaced idler drive wheel.
ü

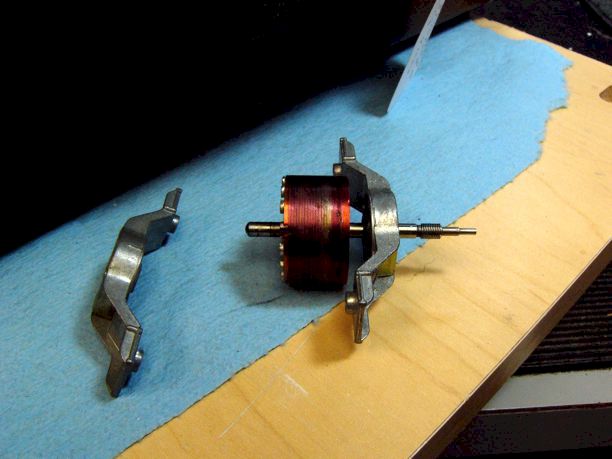

Disassembled motor, cleaned motor bushings /
axles and re-lubed.
ü
Turntable holds speed well
and is 98% accurate @ +2.0%
@ 33 1/3 RPM (checked with our shop
strobe disc).
ü
Both
78 and LP stylus's are in good condition.
ü
Built-in 45 adaptor included. All
functions test and phonograph looks great!
(Technicians note that the mechanism is 'BSR
built'. BSR is known for building the bulk of OEM turntables and
they generally run forever with normal maintenance)
__________________________________
Used
Audio Plus "School style" record player / phonograph.
Plays 33, & 45 & 78 RPM records.
This is a "stand alone" unit with it's own built-in amp and speaker so
no need to connect to another system to use. It does, however have an
external speaker jack if you wish to connect a larger extension speaker.
Also even though it is a "Mono" system the cartridge / stylus is
compatible with all stereo albums / records. Features Function, Tone and
volume controls. Also features a 'Pause'
function. Unit is UL listed and has original 3-prong, grounded AC cord
intact for safety. This table is ready to use and looks nice.
Includes our standard 30 day limited warranty.
Measures 13.5" wide x 13" deep x
8.5" tall and weighs 14
lbs unpacked.
AUDIO PLUS AV-15TX CLASSROOM PHONOGRAPH
Cond. 8.5
SOLD 5/7/20
SHIPPING TO MICHAEL IN CALIFORNIA
(Cons.) C.B.S.
(Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
WARRANTY.
ITEMS WITH THIS SYMBOL FEATURE A 30 day LIMITED WARRANTY.
