We fully test each projector offered for sale. We
use film that is in good shape, with sprocket holes that are not worn.
Each projector is checked for belt / drive condition, frame sync, lamp(s)
condition, switching condition, focus, Sound quality (where applicable),
AC safety, excess transport noise and overall function. Each is cleaned
and lubed where necessary. Projector should be "ready to go"
when you receive it, however film projectors are complicated machines and
film can be very fragile, especially older film (and most of it is). Always
check your films sprocket holes for quality. Worn sprocket holes will
cause problems when playing back. The problems may only last a frame or
can last seconds. Also double check the loading and always go slow as that
is when most problems happen. While our projectors are warranted for their
basic function, we cannot guarantee that you will always get glitch free
viewing and that films will not break and be "eaten", especially
during the loading process. I doesn't
happen often, in fact rarely, but we all remember watching school films
and the teacher having to stop and splice, rewind or further adjust the
film and projector to continue.
|
NEW
ADDITION
11/20/09
(click on
above thumbnails to enlarge photos)
warranty

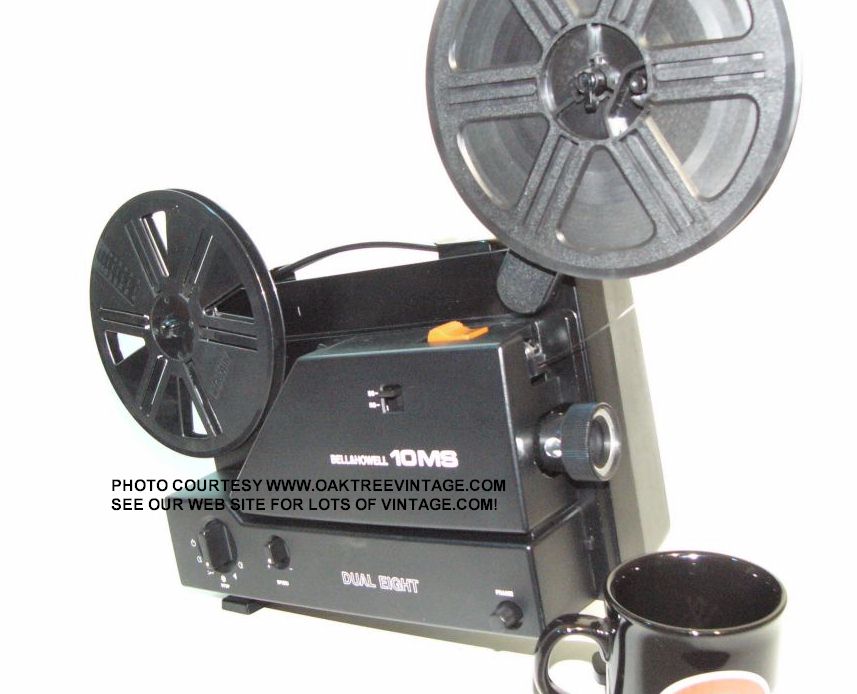

BELL & HOWELL / B&H MODEL
10MS DUAL 8mm SUPER / REGULAR
8mm
SILENT FILM
PROJECTOR
#...6091
WITH ZOOM LENS
&
VARIABLE SPEED!
GREAT FOR FILM TRANSFER
BUSINESS. MADE IN JAPAN
SOLD 12/16/09
|
NEW
ADDITION
6/11/10
(click on
above thumbnails to enlarge photos)
warranty
BELL & HOWELL / B&H SUPER / REGULAR
8mm SILENT FILM PROJECTOR MODEL
10MS #...0918 DUAL 8mm WITH ZOOM LENS & VARIABLE SPEED! GREAT FOR FILM TRANSFER
BUSINESS. MADE IN JAPAN
SOLD 06/12/10
|
NEW ADDITION
5/15/12
(click
on above thumbnails to enlarge photos)
warranty

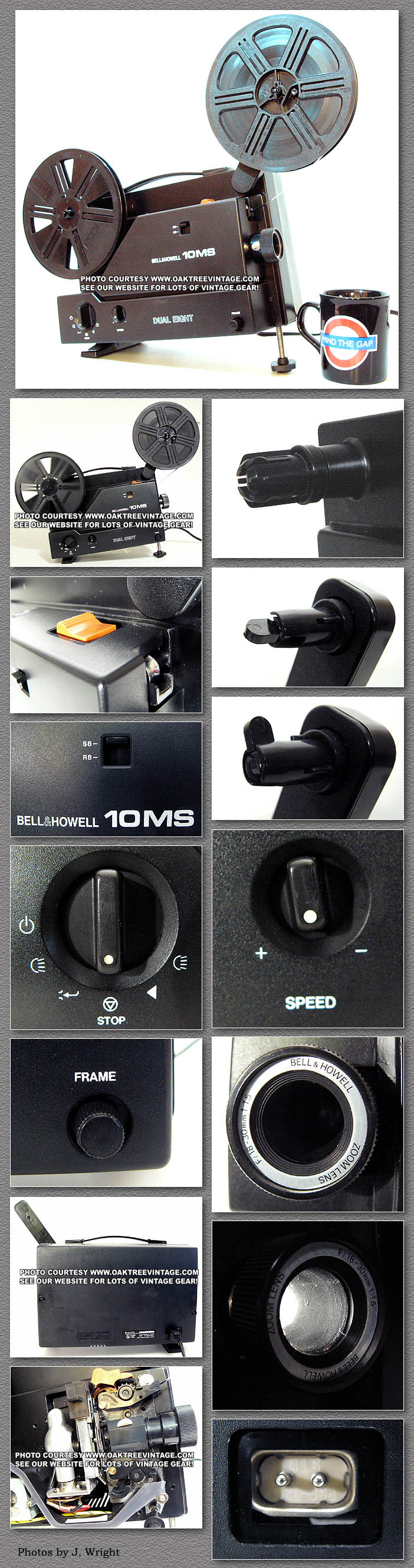

BELL & HOWELL / B&H
SUPER / REGULAR
8mm FILM
PROJECTOR MODEL 10MS #...568Z DUAL 8mm WITH ZOOM LENS & VARIABLE SPEED! GREAT FOR FILM TRANSFER
BUSINESS.
MADE IN JAPAN
SOLD 8/14/12 SHIPPED TO CALIFORNIA
We have
completely checked through this unit! Internal mechanism was cleaned of old
lube and re-lubed with silicon gel and a new main drive belt was installed.
Both hub mechanisms checked for proper function. We also cleaned the speed
control filament and adjusted it for a 'wider-range' of speed, than stock,
both for 'faster' and 'slower' end points. Film gate cleaned as well as film
track. Then checked out all functions and made any necessary adjustments and
extensively tested with both Super 8 and Regular 8mm film.
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
This unit is ready to
use. Looks NEW and works well. Uses detachable AC cord that is included. It
would make a great tool for anyone involved in film to video transfer
business as it can provide flicker-free images in both Regular 8mm and
Super-8mm formats. Comes with Plastic take-up reel and
NEW projection lamp
already installed. Also includes our standard 30 day limited
warranty (excluding lamps / bulbs). Measures 12" long x 6.5" deep x 11" tall
(with film arms folded) and weighs 7 lbs unpacked. Film in photos not
included. B&H 10MS VARIABLE SPEED 8MM FILM / MOVIE PROJECTOR Cond.
8.5
SOLD 8/14/12 SHIPPED TO CALIFORNIA
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
NEW ADDITION
(click on above thumbnails to enlarge

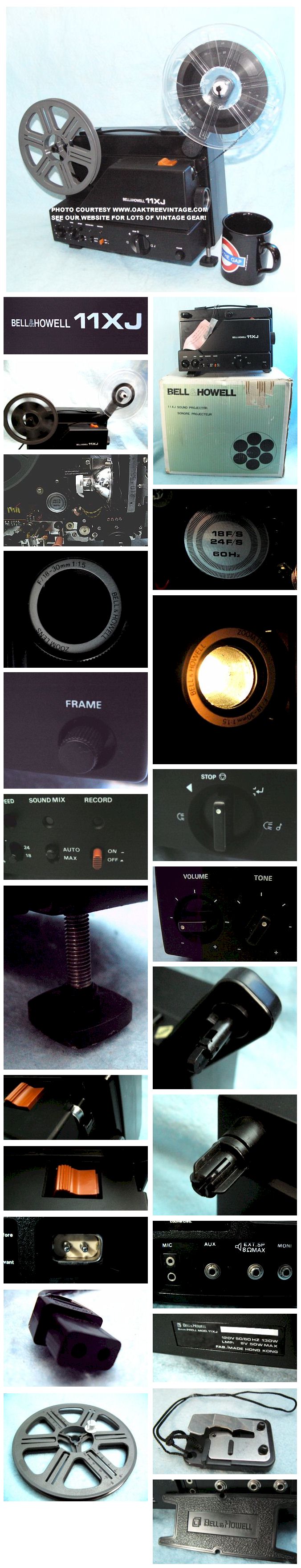

photos) B&H BELL & HOWELL 11XJ SUPER 8mm MAGNETIC
SOUND / FILM PROJECTOR
SOLD 8/3/05
|
NEW ADDITION
(click on above thumbnails to enlarge
photos) B&H BELL & HOWELL 11XJ SUPER 8mm MAGNETIC
SOUND / FILM PROJECTOR SOLD 10/6/05
|
NEW
ADDITION 9/11/13
2/7/12
(click
on above thumbnails to enlarge photos)
warranty

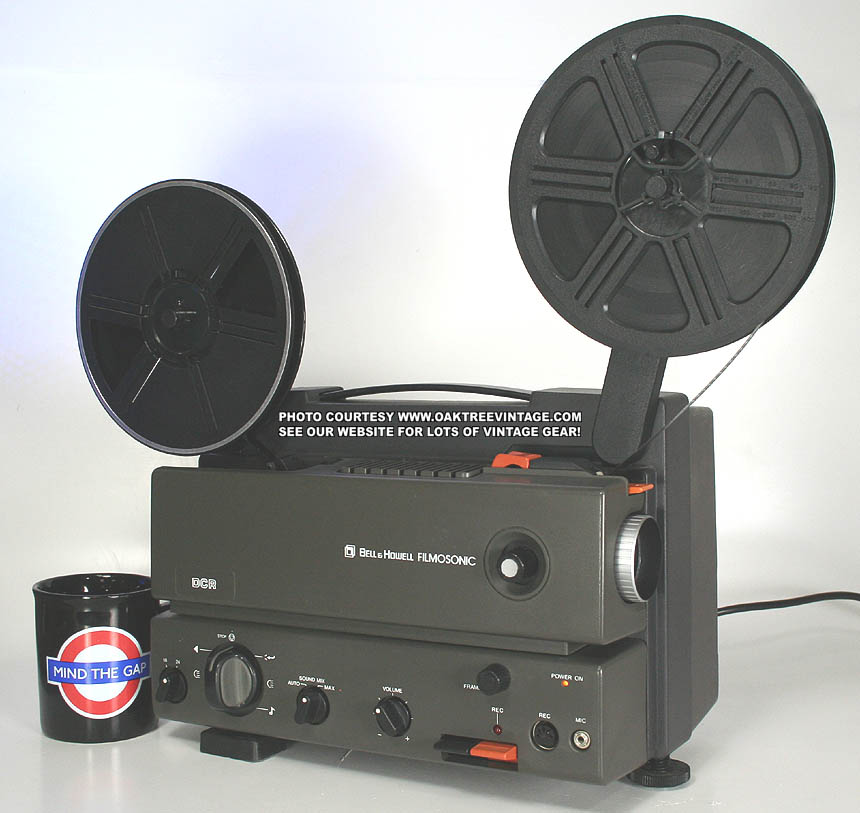

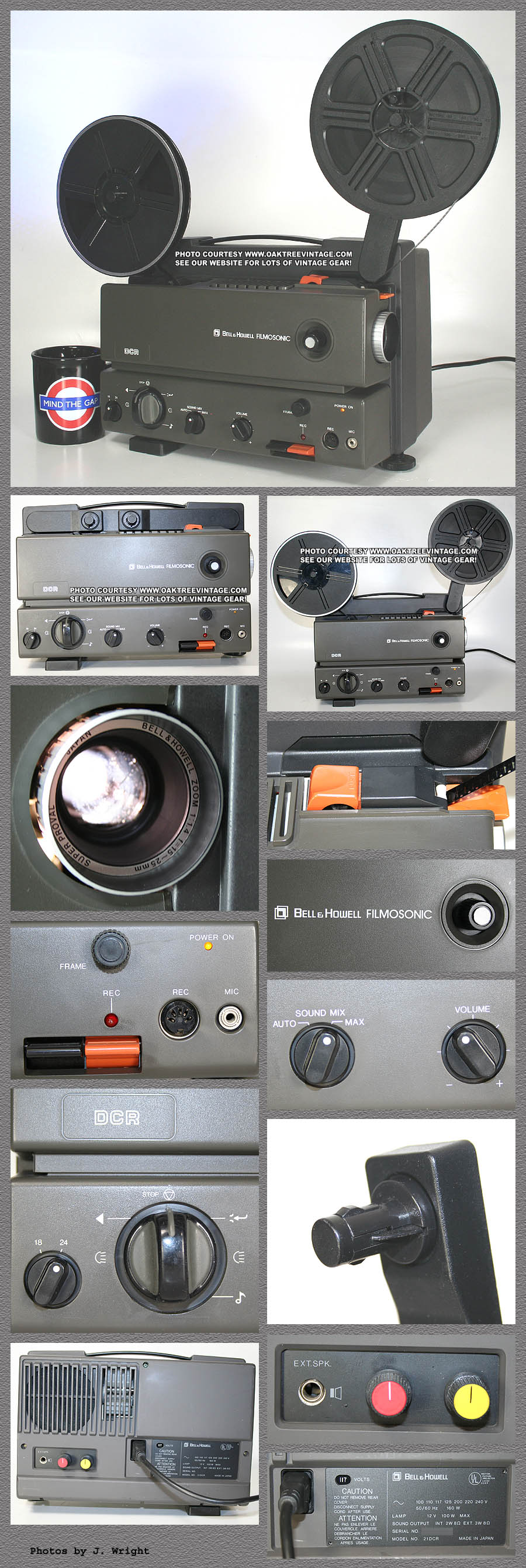

B&H / BELL & HOWELL SUPER-8mm SOUND MAGNETIC SOUND / FILM
/ MOVIE PROJECTOR 21DCR WITH ZOOM &
MODIFIED FOR VARIABLE SPEED!!! MADE IN JAPAN Circa 1979-81
SOLD 8/1/16 SHIPPED TO VIRGINIA We have
completely checked through this unit! Cleaned inside and out. Internal
worm gear, main drive mechanism was completely cleaned of old lube and
re-lubed with silicon gel, as well as both nylon gears. A fresh, new
main drive belt was installed. Reel hub drive belt reconditioned and has
great tension. We then modified it by adding 'external' variable
Speed controls to eliminate 'flicker' / strobe effect when doing film to
video transfers. Film gate cleaned as well as track. We also, very
importantly, cleaned the internal 'record' switch to eliminate playback
static. Auto-load mechanism works well when used correctly. Lens is
clean with no cloudiness, fungus or loose elements. We then checked out
all functions and made any necessary adjustments and extensively tested
Super 8 sound film. Unit loads, runs both forward and reverse very smoothly with great
precision. No clunky-ness. Great for doing film to video transfers since
it has a nice, sharp lens and variable speed. B&H, 21DCR film projector. A Super-8mm, magnetic sound movie projector
that we've modified for variable speed! (See
above photo)
Features:
-
Super 8mm Sound...
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?

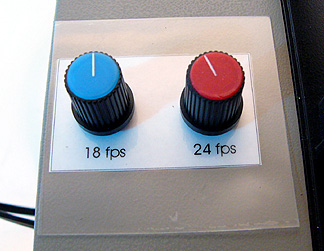

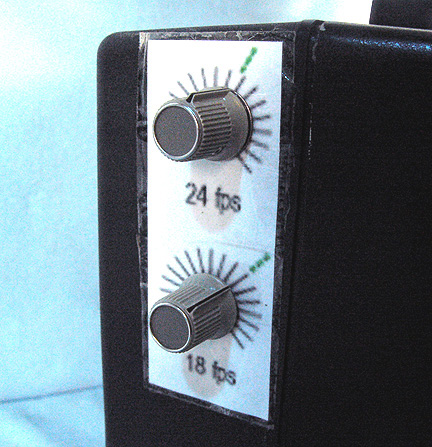

Will
allow projections speed of either 18 or 24 frames per second, but we
have modified it and installed "speed control" pots on each of the
projection speeds, for "flicker-free" film to video transfers. Again, we have done all of the above mentioned
refurbishment work and completely checked out all functions. Utilizes an EFP, MR-16 12V/ 100W projection lamp / bulb. This unit is ready to go.
Looks and works great! Comes with take-up reel and a spare projection
lamp. Includes our standard 30 day limited warranty (excluding lamps /
bulbs). Measures 12" long x 8" deep x 10"
tall and weighs 20 lbs unpacked. Film and reels in photos not included.
B&H 21DCR SUPER-8 W/ SOUND FILM PROJECTOR Cond.
8.5
(C) J. M.
SOLD 8/1/16 SHIPPED TO VIRGINIA
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
NEW
ADDITION 3/15/05 (click on above thumbnails to enlarge photos)
B&H

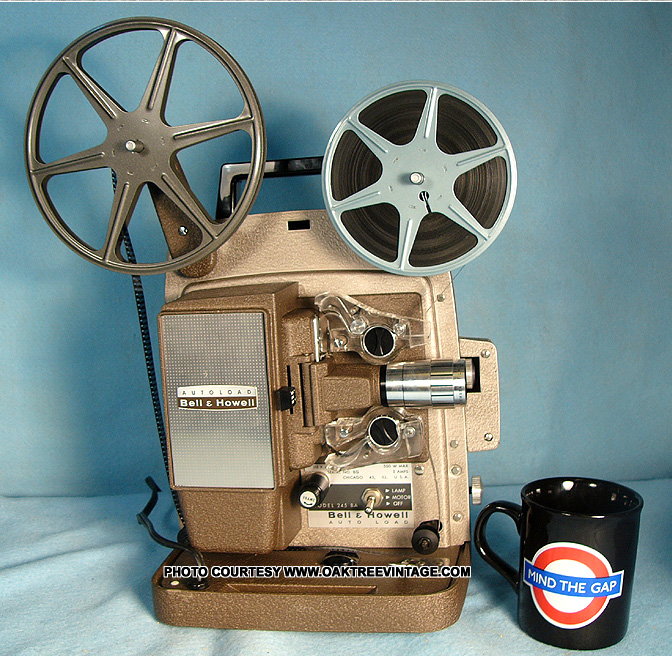

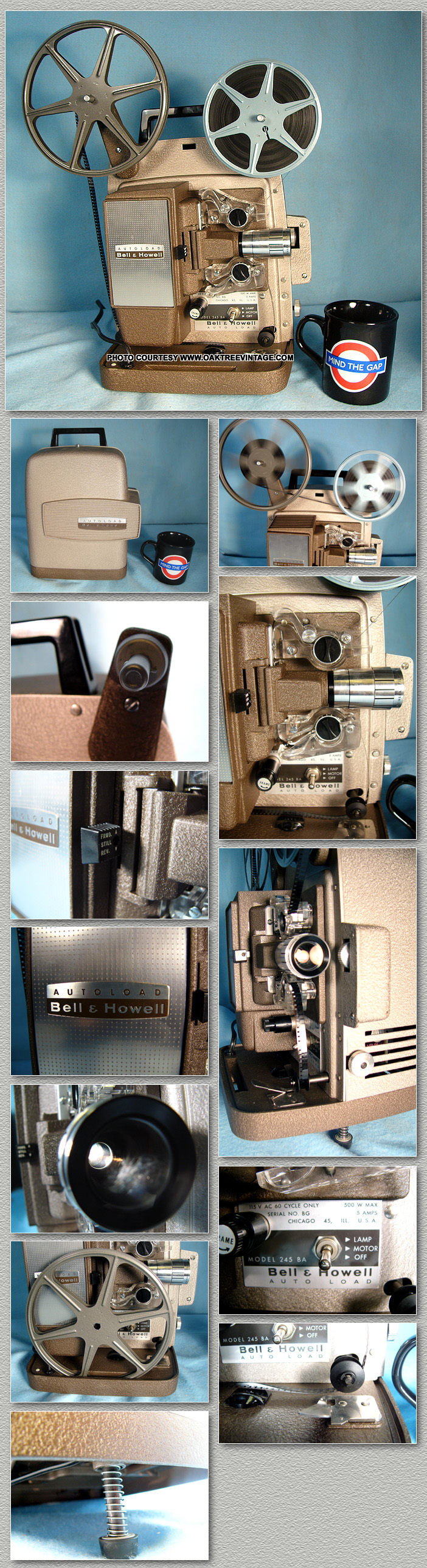

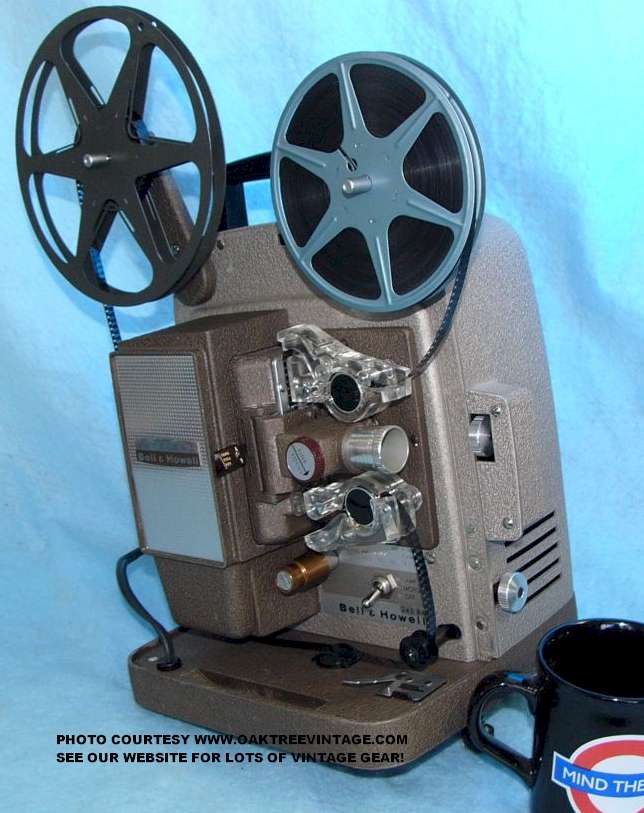

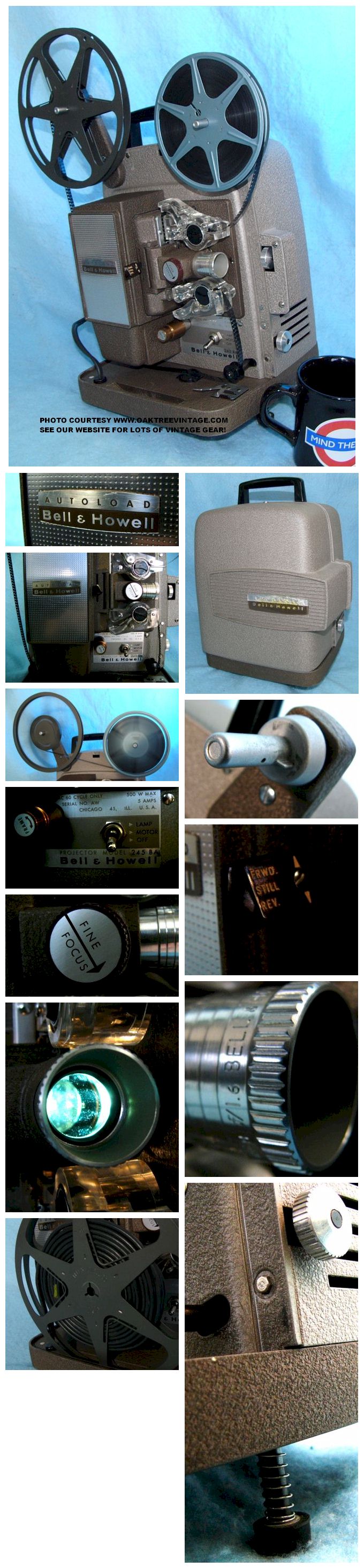

BELL & HOWELL Model 245 BA
245BA STANDARD 8mm SILENT FILM PROJECTOR
SOLD 3/30/05
|
NEW ADDITION
2/5/07 (click on above thumbnails to enlarge photos)
warranty
B&H
BELL & HOWELL Model 245 BA
245BA STANDARD 8mm SILENT FILM PROJECTOR HOLD 3/14/07
|
NEW
ADDITION
7/11/12
(click
on above thumbnails to enlarge photos)
warranty

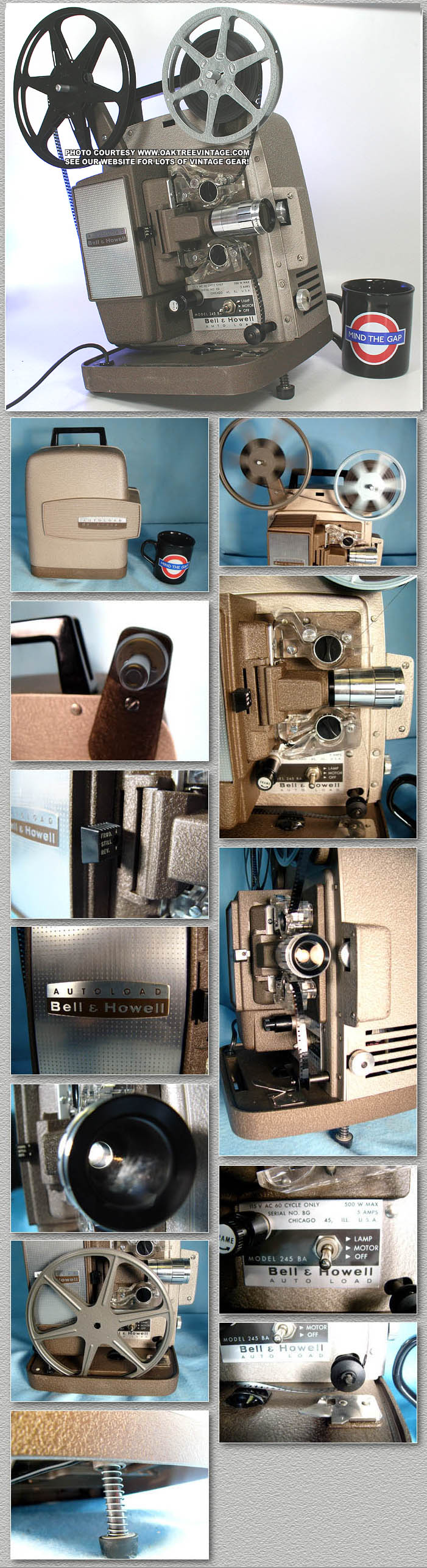

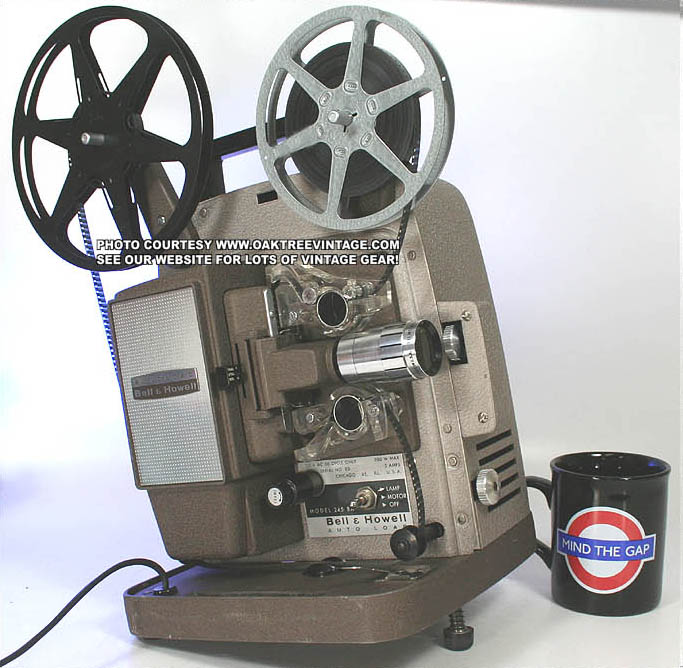

B&H / BELL & HOWELL
STANDARD / REGULAR 8mm SILENT FILM PROJECTOR Model 245 BA 245BA WITH ZOOM LENS
SOLD 10/20/12 SHIPPED TO FLORIDA
We have
completely gone through this unit! Majority of internal 'drive'
mechanism was disassembled, cleaned of old lube and re-lubed and a new
main drive belt installed. To be specific, we removed all 'non-clutch'
gears, cleaned and re-lubed, both main 'drive rollers' and their
associated bracket assembly, removed, cleaned and re-lubed. While the
rollers were removed, we reconditioned the rubber tires. We cleaned and
lubricated the 'shutter assembly', the 'shuttle' and it's 'drive cam and
pinion' and cleaned the 'shutter flywheel' for improved traction with
the drive wheels. Both arm / hub mechanisms disassembled, gears cleaned
of old lube and re-lubricated. Lens track mechanism cleaned.
Lens is in great, and clear condition with no
scratches, fogging, or internal mold. Lens cleaned front and back
as well. We also cleaned and checked the eccentric framer mechanism.
Film gate cleaned as well as film track. Following mechanical work,
entire unit was cosmetically detailed inside and out...
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
...Again,
We have completely checked out all functions and
made any necessary adjustments and lubed drive assembly where
applicable. New main drive belt installed. This unit is ready to go.
Looks and works great! Great projector for previewing
films and organizing them, prior to sending out to be transferred to another
format, or for simply viewing your 'regular-8' movies. Comes with metal take-up reel, and
a spare projection lamp. Also includes our
standard 30 day limited warranty (excluding lamps / bulbs). Measures
9.5" wide x 9" deep x 13" tall (with film arms folded) and weighs 12 lbs
unpacked.
Film shown in photos not
included. B&H 245BA 8mm MOVIE PROJECTOR Cond. 9
SOLD 10/20/12 SHIPPED TO FLORIDA
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
Need your 8mm movie-film projector
repaired? Try this page...
|
NEW ADDITION 1/30/05 (click on above thumbnails to enlarge photos)
B&H

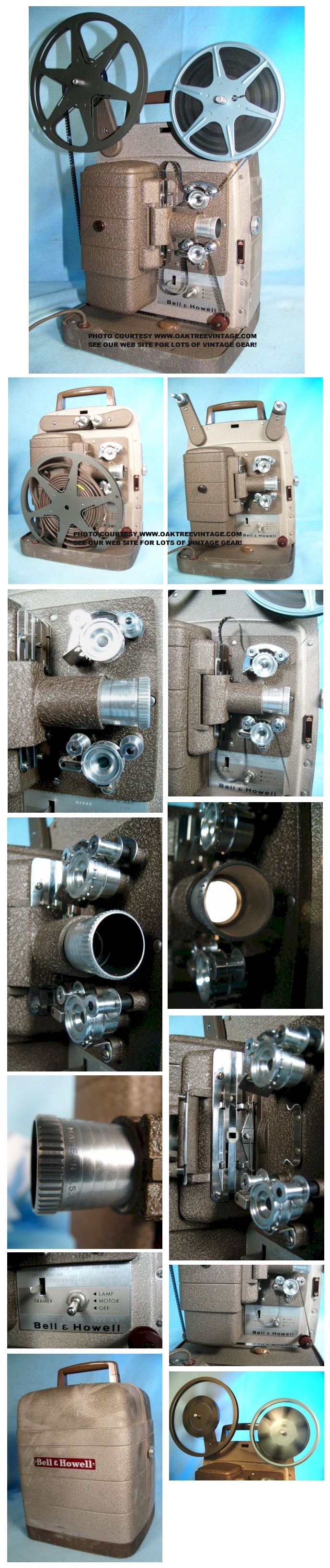

BELL & HOWELL Model 253 AX STANDARD 8mm SILENT FILM PROJECTOR
SOLD 3/3/05
|
NEW LISTING
12/14/17
(click on above thumbnails to enlarge photos)
warranty

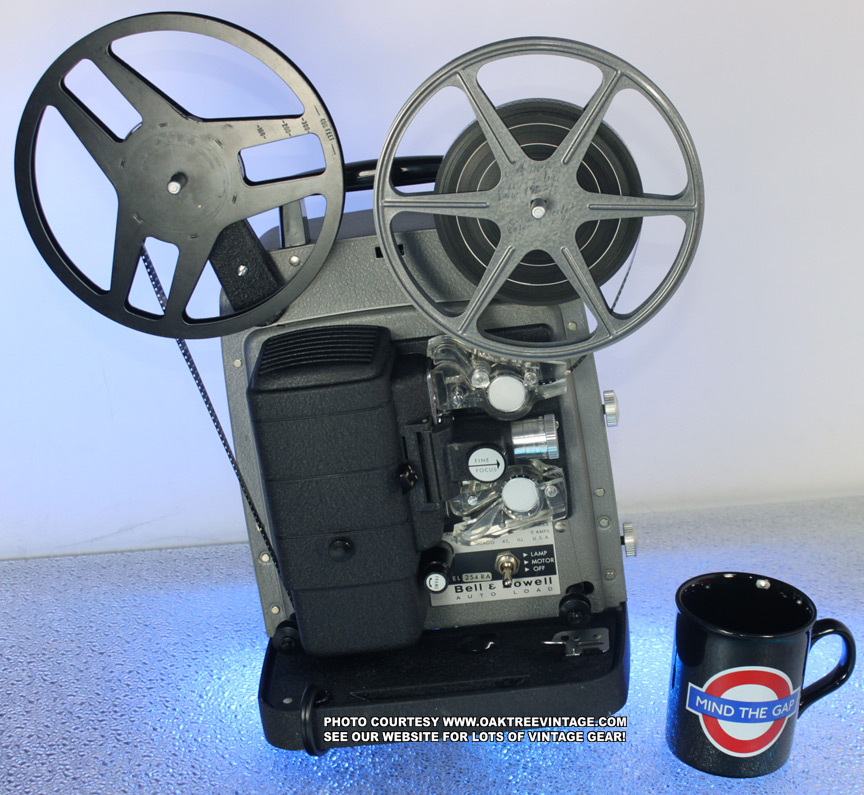

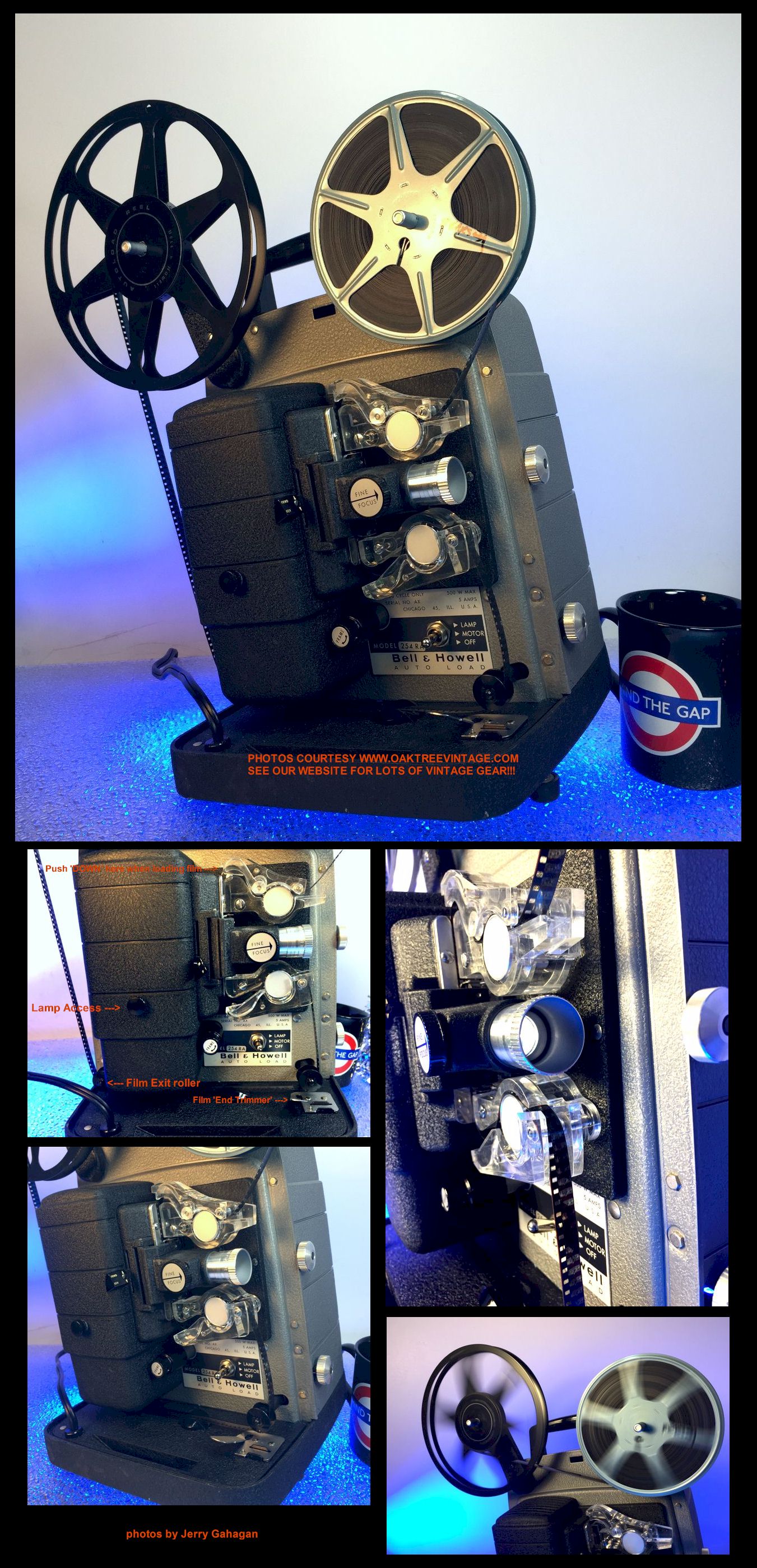

SERVICED / REFURBISHED AND READY TO GO B&H /

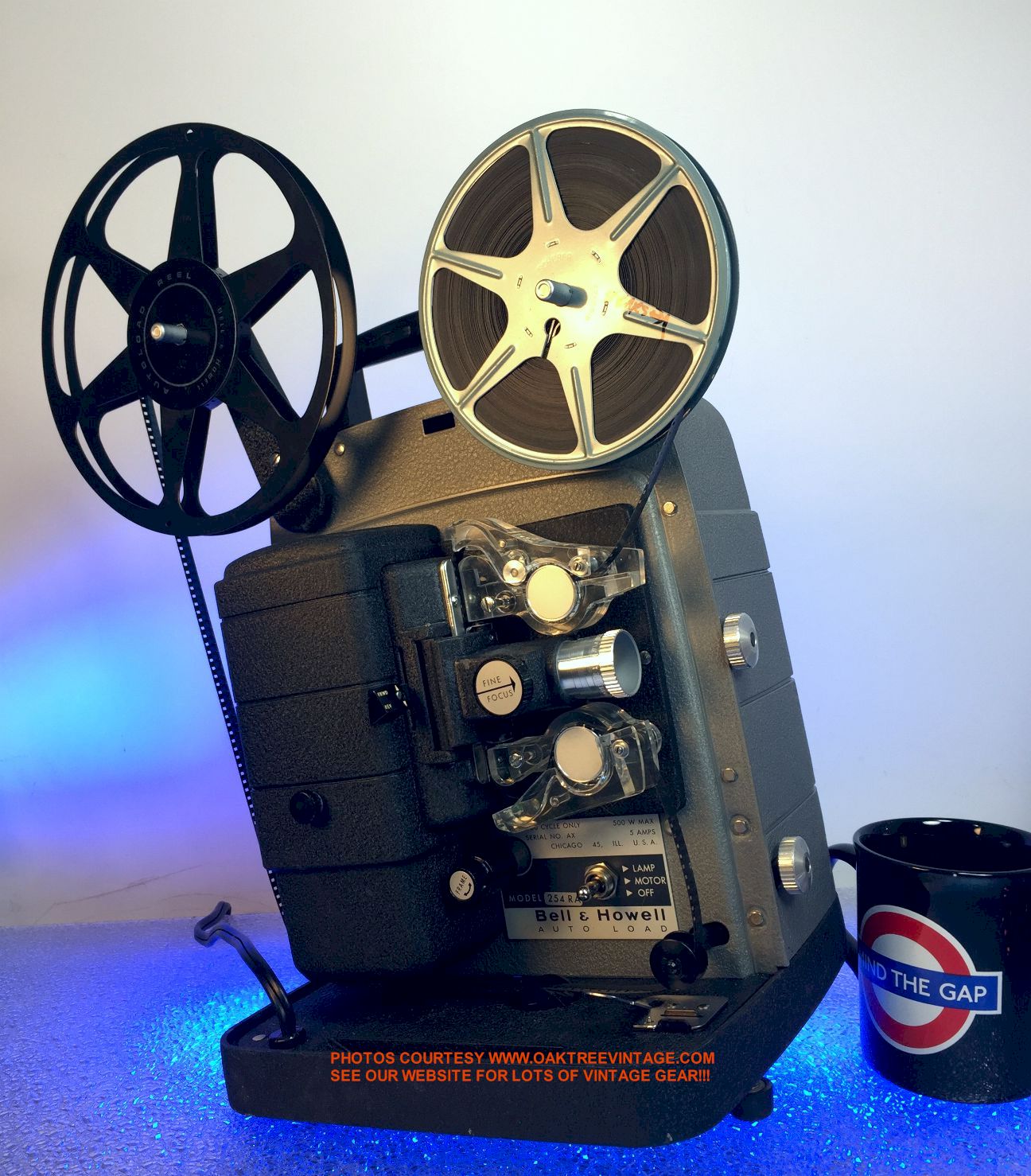

BELL & HOWELL 254RA STANDARD / REGULAR 8mm
SILENT FILM PROJECTOR 'VERY SHARP FOCUSING LENS!'
#...9768
MADE IN AMERICA
for sale
SOLD
4/5/18
SHIPPED TO BRIAN IN FLORIDA
ü
Our technician has completely gone through and 'Certified' this
unit.
ü We
have
completely and extensively gone through the
mechanicals and electrics
of this projector.
ü It
was disassembled internally for restoration including the drive
motor for re-lubing.
ü Main
drive belt replaced with new.

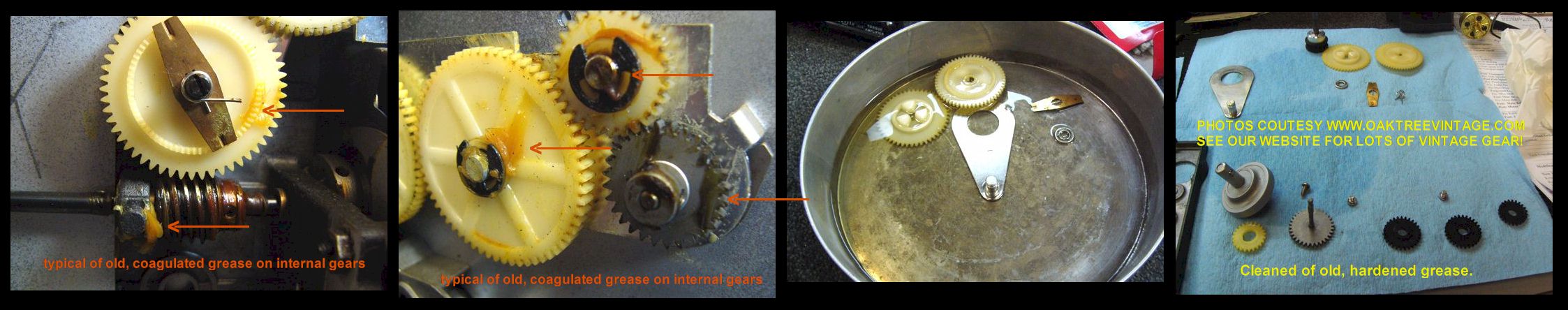

ü The main drive worm / cog gears cleaned and re-lubed.
ü We removed
all 'non-clutch' gears, cleaned and re-lubed, both main 'drive rollers'
and their associated bracket assembly, removed, cleaned and re-lubed.
ü While the rollers were removed, we
reconditioned the rubber tires.
ü We cleaned and lubricated the 'shutter
assembly', the 'shuttle' and it's 'drive cam and pinion' and cleaned the
'shutter flywheel' for improved traction with the drive wheels.
ü Both arm / hub mechanisms
disassembled, gears cleaned of old lube and re-lubricated.
ü Lens track mechanism cleaned. Lens is
in great, and clear condition with no scratches, fogging, or internal
mold. Lens cleaned front and back as well.
ü We also cleaned and checked the
eccentric framer mechanism.
ü Film gate cleaned as well as film
track.
ü Following mechanical work, entire unit
was cosmetically detailed inside and out.
VERY WELL BUILT B&H
254RA Regular 8mm
movie film / cine projector.
Following about 6.5
hours of tech time, it now
projects
smoothly
and is very quiet running.
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
Utilizes model DFC /
DFN / DFA / DJL 125 volt, 150 watt projection lamp. Front adjustment
foot allows for ~1.5" of height angle adjustment. Very well built all
metal construction. We have completely checked out all functions and
made any necessary adjustments and lubed drive assembly where
applicable. New main drive belt installed. This unit is ready to go.
Looks and works great! Great projector for previewing films and
organizing them, prior to sending out to be transferred to another
format, or for simply viewing your 'regular-8' movies.
We actually sent a very similar model to this to the
University of Florida Library for their 'Archive' department.
Comes with metal take-up reel,
lid / front cover
and a spare projection lamp.
Also includes our standard 30 day limited warranty (excluding lamps
/ bulbs). Measures 9.5" wide x 9" deep x 13" tall (with film arms
folded) and weighs 12 lbs unpacked. Film shown in photos not
included. B&H
254RA 8mm MOVIE PROJECTOR Cond.
8.5
SOLD
4/5/18
SHIPPED TO BRIAN IN FLORIDA (Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
(click on above thumbnails to enlarge photos)
warranty
B&H

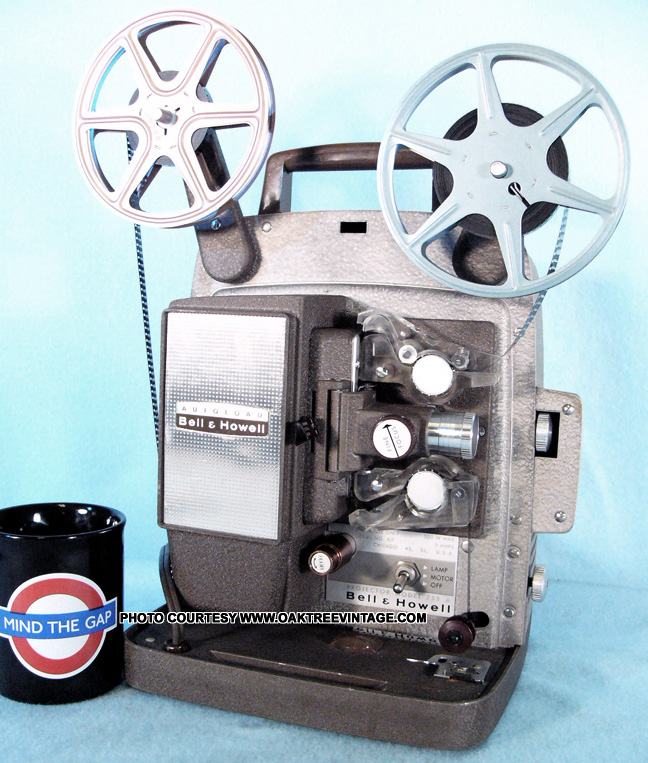

BELL & HOWELL Model 255A AX STANDARD 8mm SILENT FILM PROJECTOR
SOLD 12/06
|
B&H /
BELL & HOWELL 254RA
|
NEW ADDITION
8/13/08
(click on above
thumbnails to enlarge photos)
warranty
*

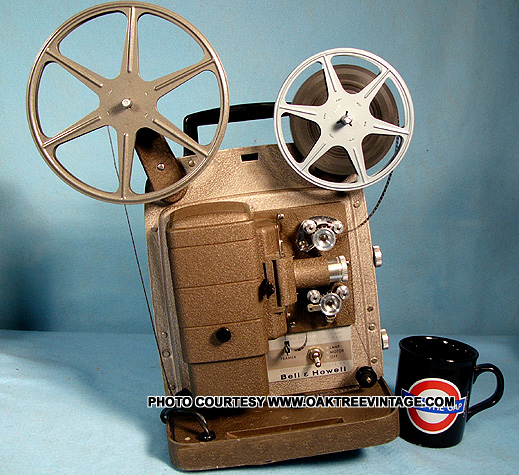

B&H BELL & HOWELL Model 254 RS STANDARD 8mm SILENT FILM PROJECTOR
SOLD 9/7/08
|
|
NEW ADDITION 1/7/05 (click on above thumbnails to enlarge photos)

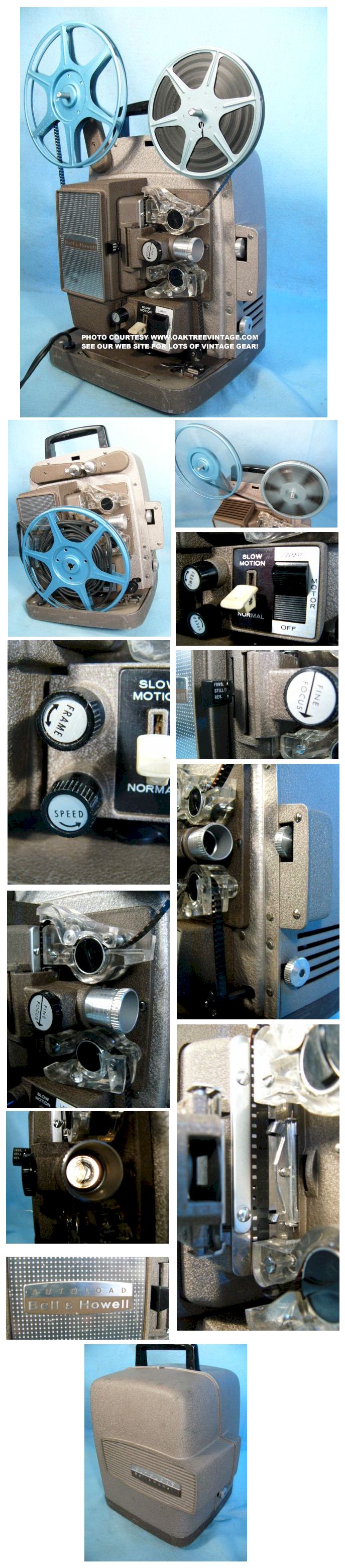

B&H

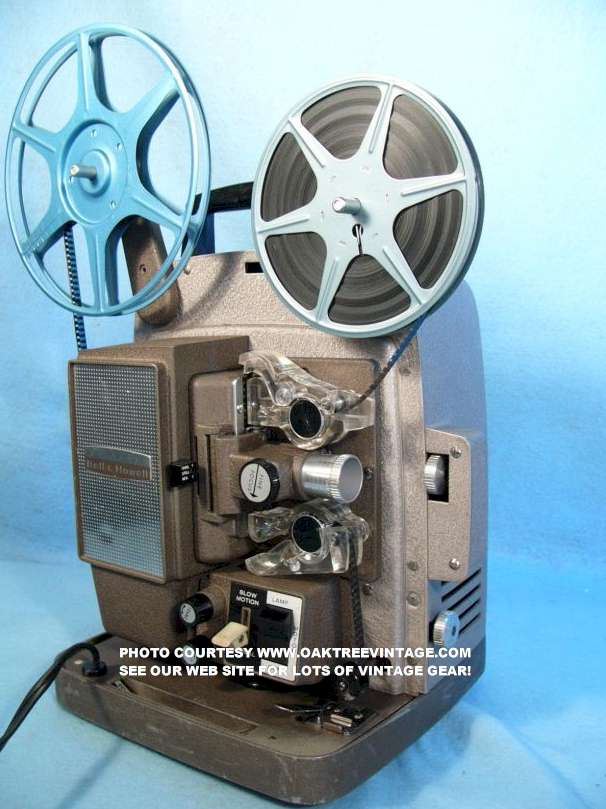

BELL & HOWELL Model 266A STANDARD 8mm SILENT FILM PROJECTOR
SOLD 1/31/05
|
|
|
NEW
ADDITION
6/18/10
(click on
above thumbnails to enlarge photos)
warranty
B&H /

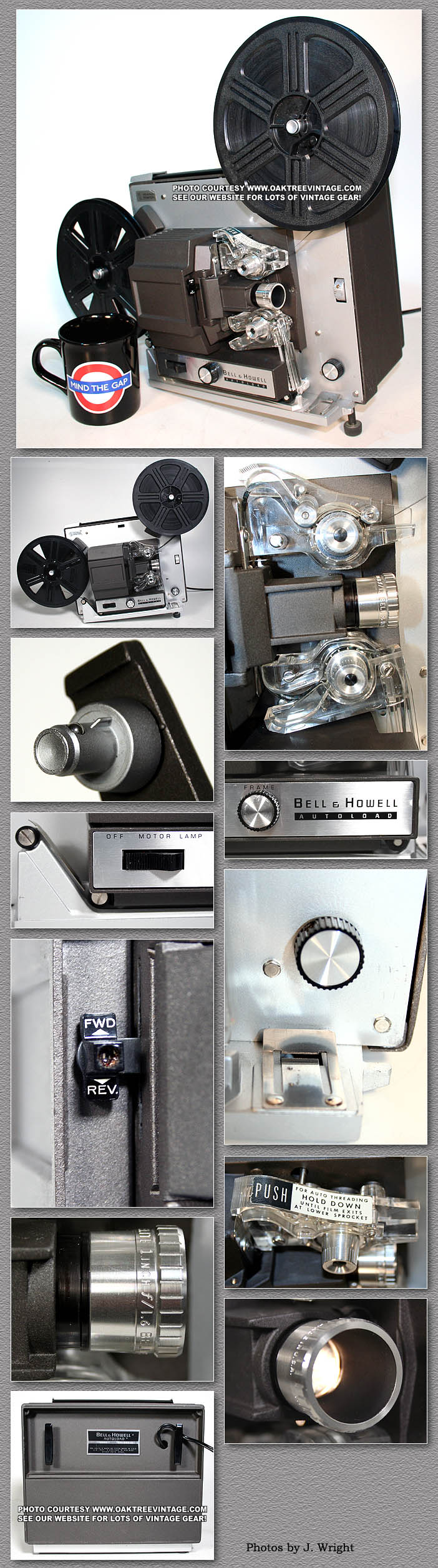

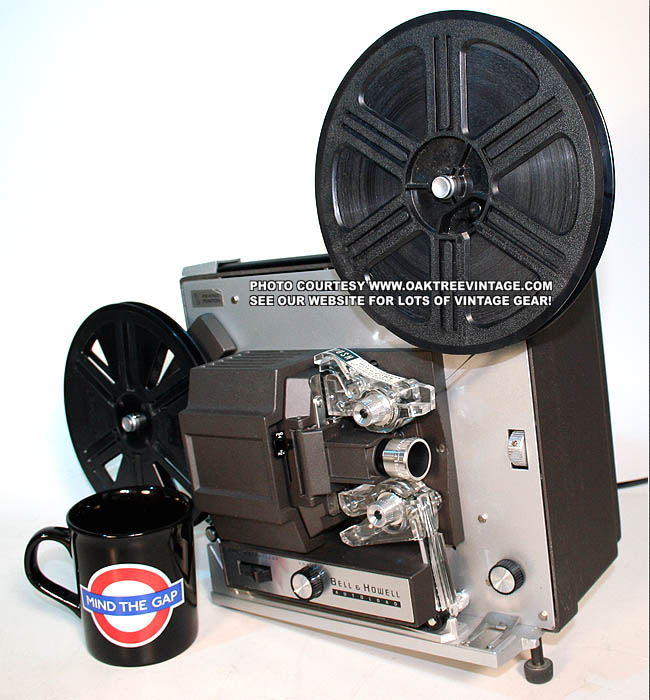

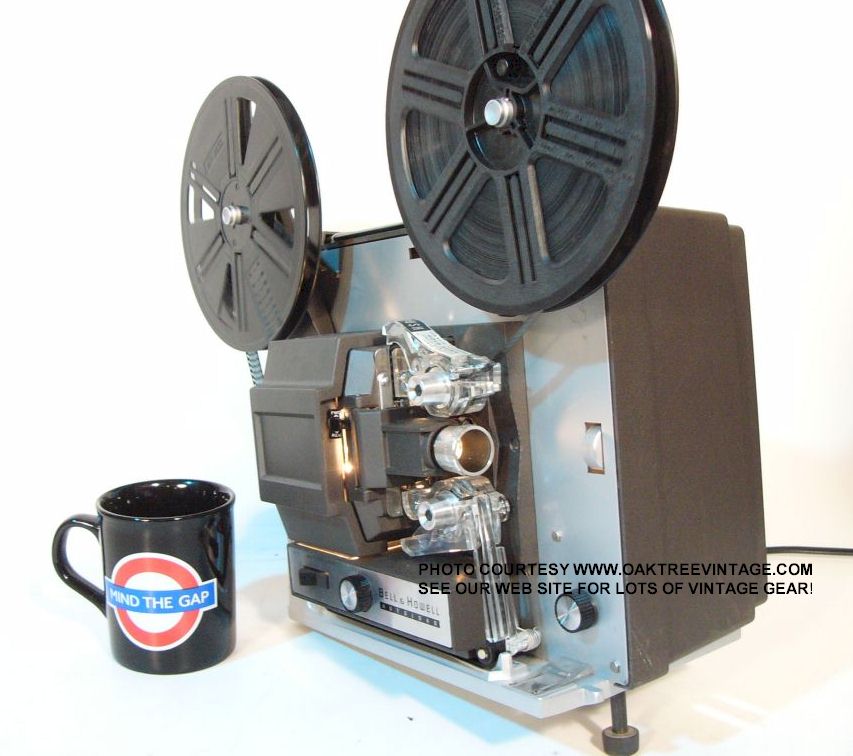

BELL & HOWELL SUPER-8 8mm SILENT FILM PROJECTOR W/ AUTO LOAD 356A #...3310 Made in USA SOLD 12/22/10
|
NEW ADDITION
12/21/08
(click on above
thumbnails to enlarge photos)
warranty

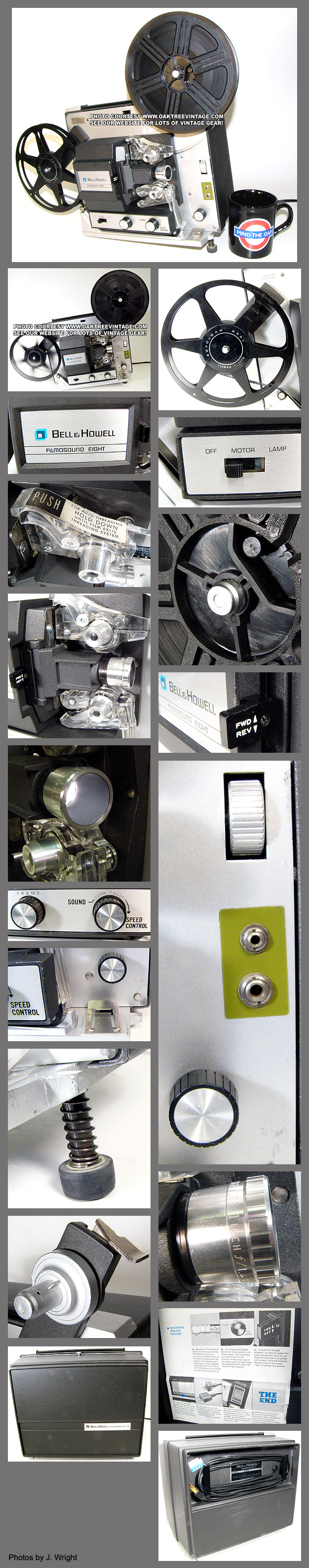

B&H / BELL &
HOWELL 358S #...1945 VARIABLE SPEED SUPER 8mm
*SILENT
FILM PROJECTOR W/ AUTO LOADING
Made in USA
SOLD 12/30/08
|
|
NEW
ADDITION 3/9/11
(click
on above thumbnails to enlarge photos)
warranty

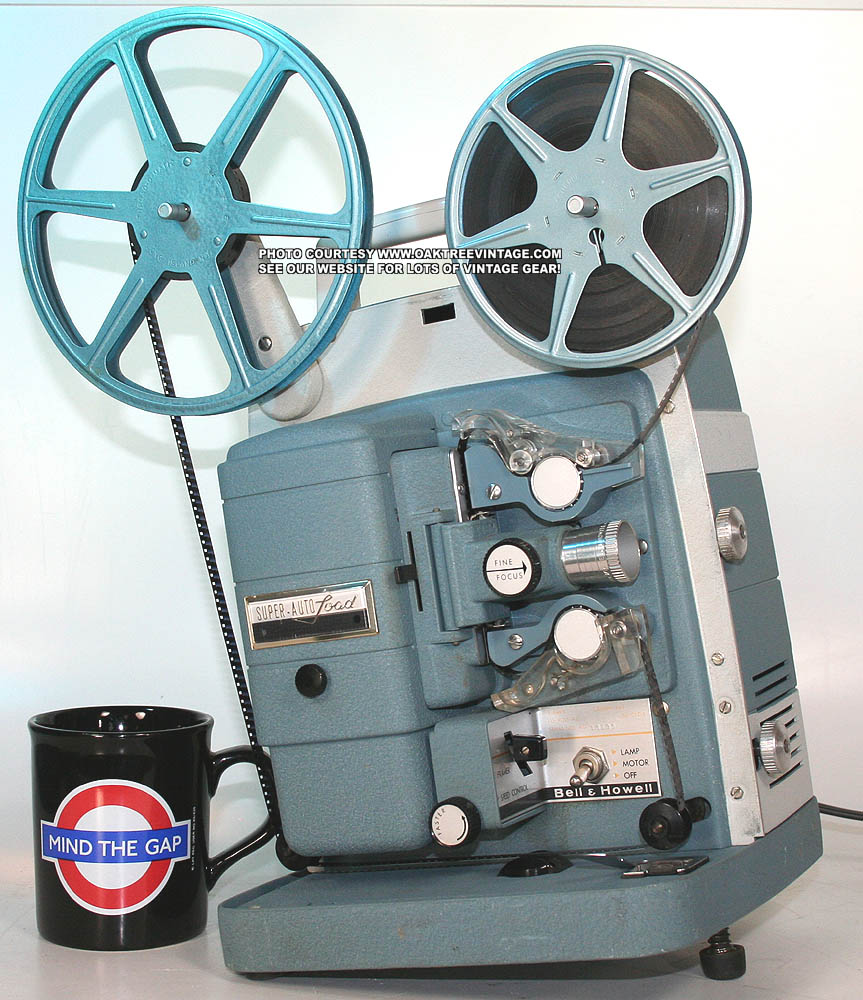

B&H BELL &
HOWELL 8mm FILM
PROJECTOR SILENT B&H

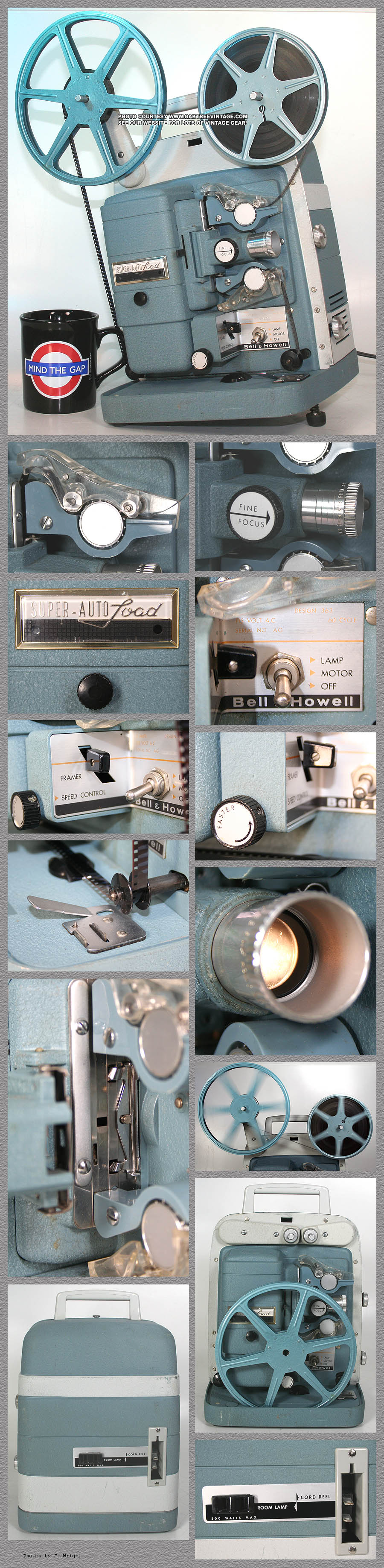

363 #...8133 VARIABLE SPEED STANDARD 8mm
AUTO LOADING Made in USA SOLD 4/25/11
|
|
|
NEW ADDITION
09/26/08
(click on above thumbnails to enlarge photos)
warranty
B&H BELL & HOWELL
SILENT FILM
PROJECTOR
MODEL 380A #...3515 VARIABLE SPEED
STANDARD
8mm W/ ZOOM LENS & AUTO LOADING
Made in
USA SOLD 12/7/08
|
|
|
NEW ADDITION 1/7/05 (click on above thumbnails to enlarge photos)
B&H BELL & HOWELL 456A
456 A
SUPER / STANDARD 8mm SILENT FILM PROJECTOR
SOLD 1/10/05
(Upper photos of a previous 456XP model.
Details of 456A model differences shown in lower left set of photos above)
|
NEW ADDITION
1/4/09
(click on above
thumbnails to enlarge photos)
warranty
B&H / BELL &
HOWELL
456A
456 A #...9368
DUAL 8 (SUPER 8mm and Regular 8mm SILENT
FILM PROJECTOR W/ ZOOM LENS
Made in USA

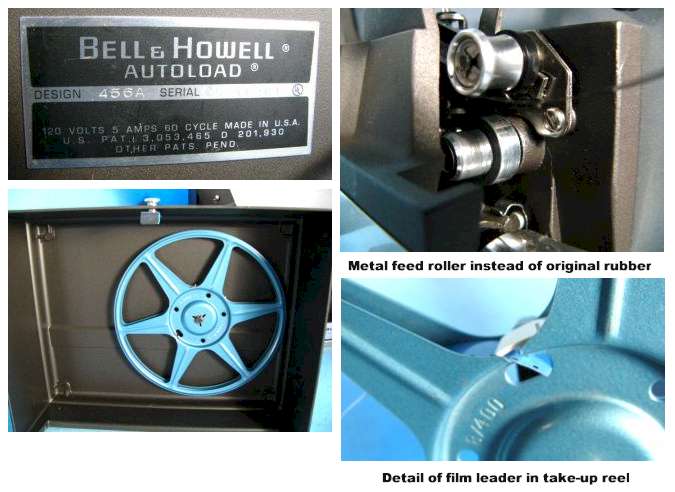

(Upper photos of a previous 456XP model.
Details of 456A model differences shown in lower left set of photos above)
SOLD 1/9/09
|

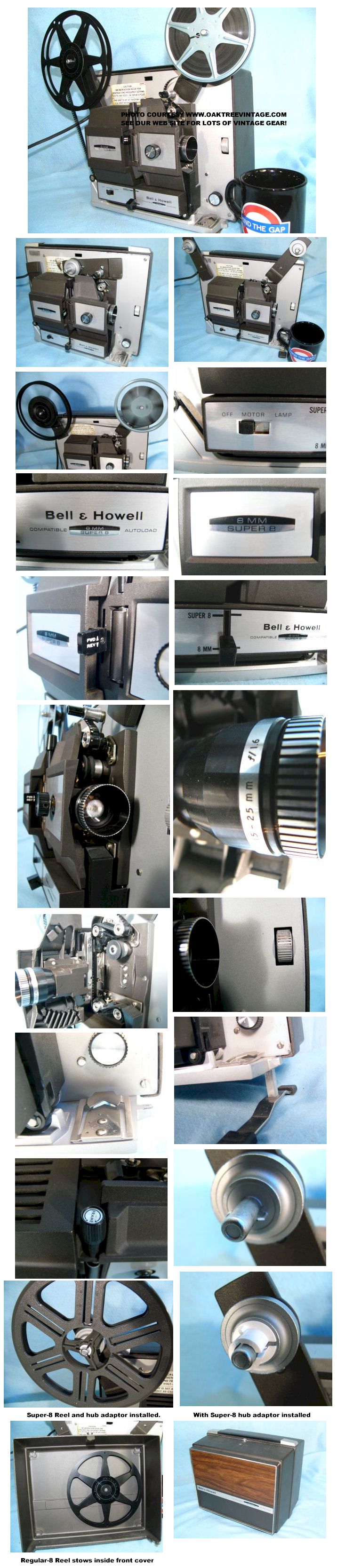

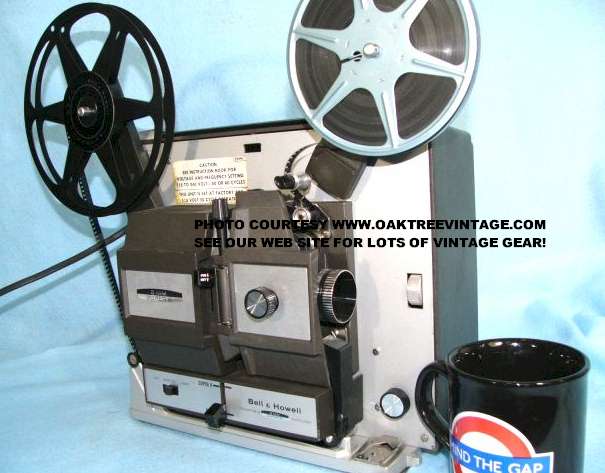

NEW ADDITION 11/5/04 (click on above thumbnails to enlarge photos)
B&H BELL & HOWELL
456 XP 456XP
SUPER / STANDARD 8mm SILENT FILM PROJECTOR
SOLD
11/20/04

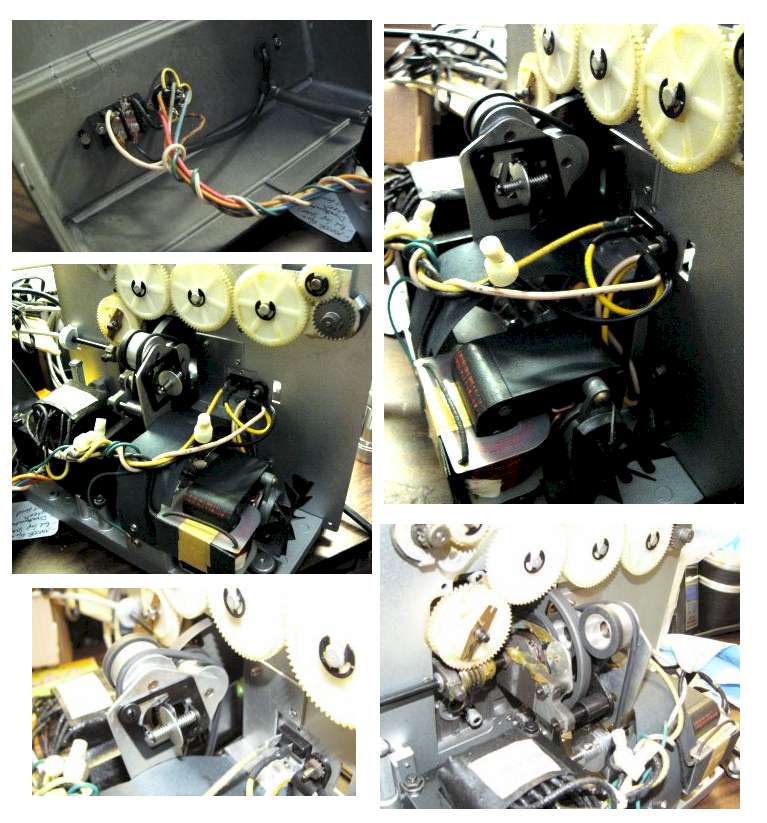

B&H 456XP INTERNALS
|
|
|
|
NEW ADDITION
4/29/09
(click on above
thumbnails to enlarge photos)
warranty

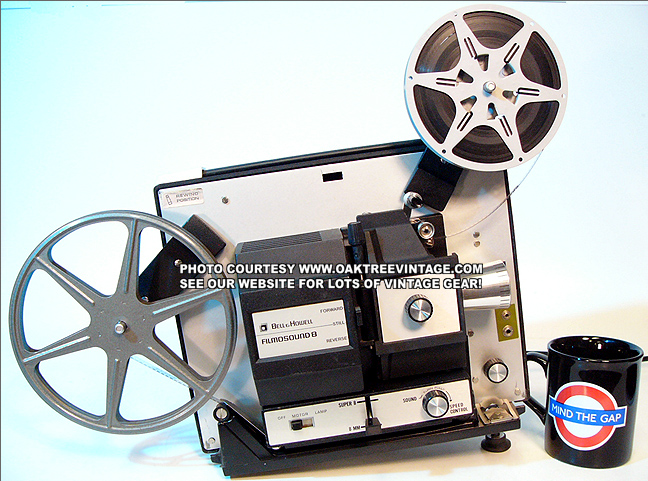

B&H / BELL &

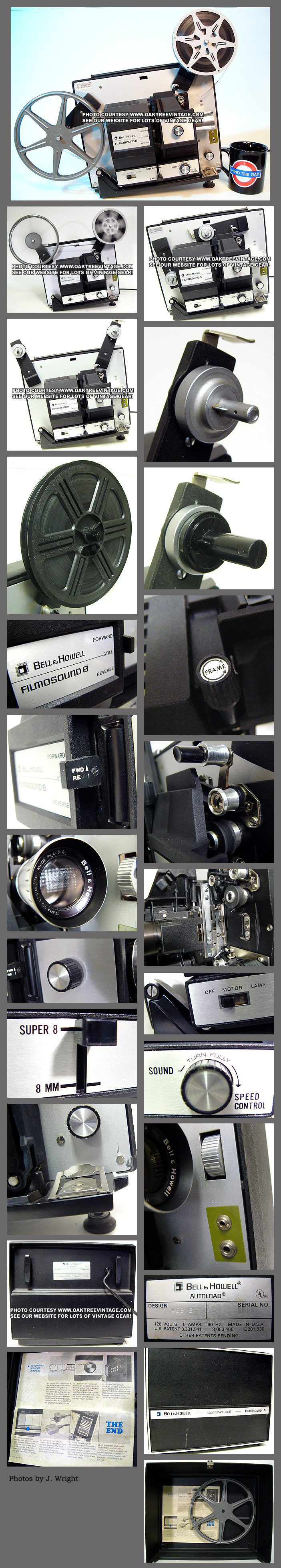

HOWELL FILM PROJECTOR 458B #...1188
VARIABLE SPEED DUAL 8mm W/ AUTO LOADING
& ZOOM LENS (FILM-O-SOUND COMPATIBLE)
Made in USA
SOLD 9/5/09
|
NEW LISTING 12/21/10 (click on
above thumbnails to enlarge photos)
warranty

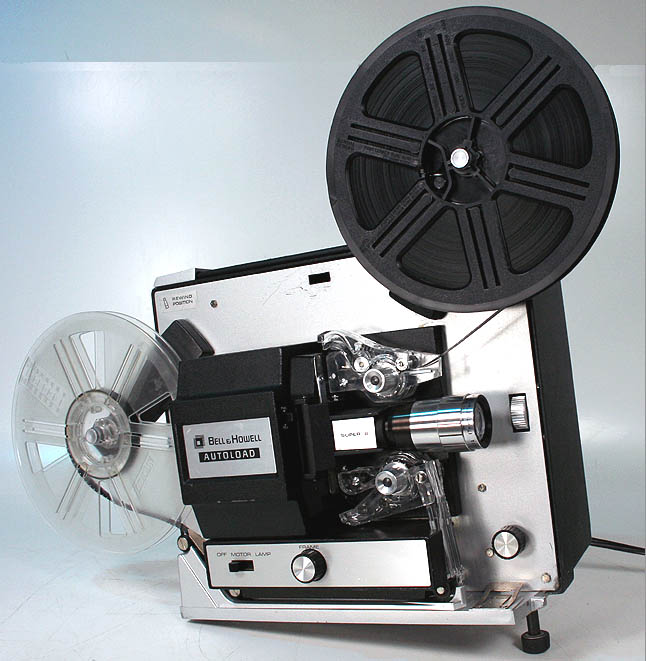

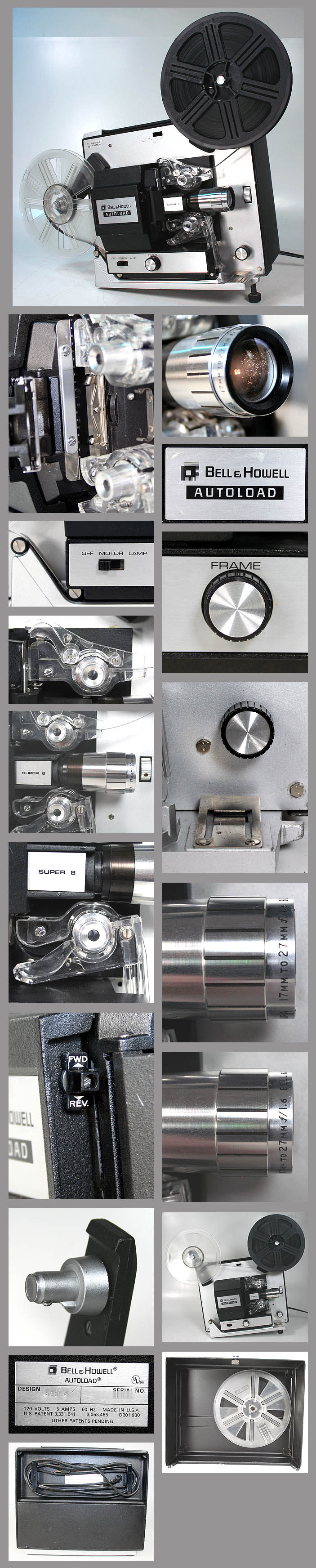

B&H BELL & HOWELL 461A #...6316 SUPER 8mm SILENT FILM PROJECTOR W/ AUTO LOADING AND ZOOM LENS Made in USA
SOLD 12/1/11
We completely disassembled, cleaned and re-lubed the internal drive
assembly gears as well the all gears in both film reel arms. Main drive
belt replaced and internal drive wheels reconditioned for trouble-free
service. Internal axle bearings cleaned and re-lubed as well as both
drive motor bushings. Film gate cleaned. Entire projector has been
cleaned inside and out! The 461A's internal drive mechanisms are
primarily, trouble-free gears, all of which have been cleaned and
re-lubed. Film fast wind clutches disassembled, re-lubed and adjusted
and work well (with only issue being in 'rarely used' Fast Forward /
Fast Wind mode as at the end it slows to a crawl and will need a few
rev's of manual assistance. More commonly used 'Fast Rewind' works
fine!). Runs and works well...
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
...Comes with take-up reel that stores
in front cover and a NEW projection lamp. Also includes our standard 30
day limited warranty (excluding lamps / bulbs). Measures 11.25" long x
8.5" deep x 11" tall (with film arms folded) and weighs 19 lbs unpacked.
Film shown in
photos not included. BELL & HOWELL 461A Cond. 9
SOLD 12/1/11
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
NEW
LISTING 1/3/17 (click
on above thumbnails to enlarge photos)

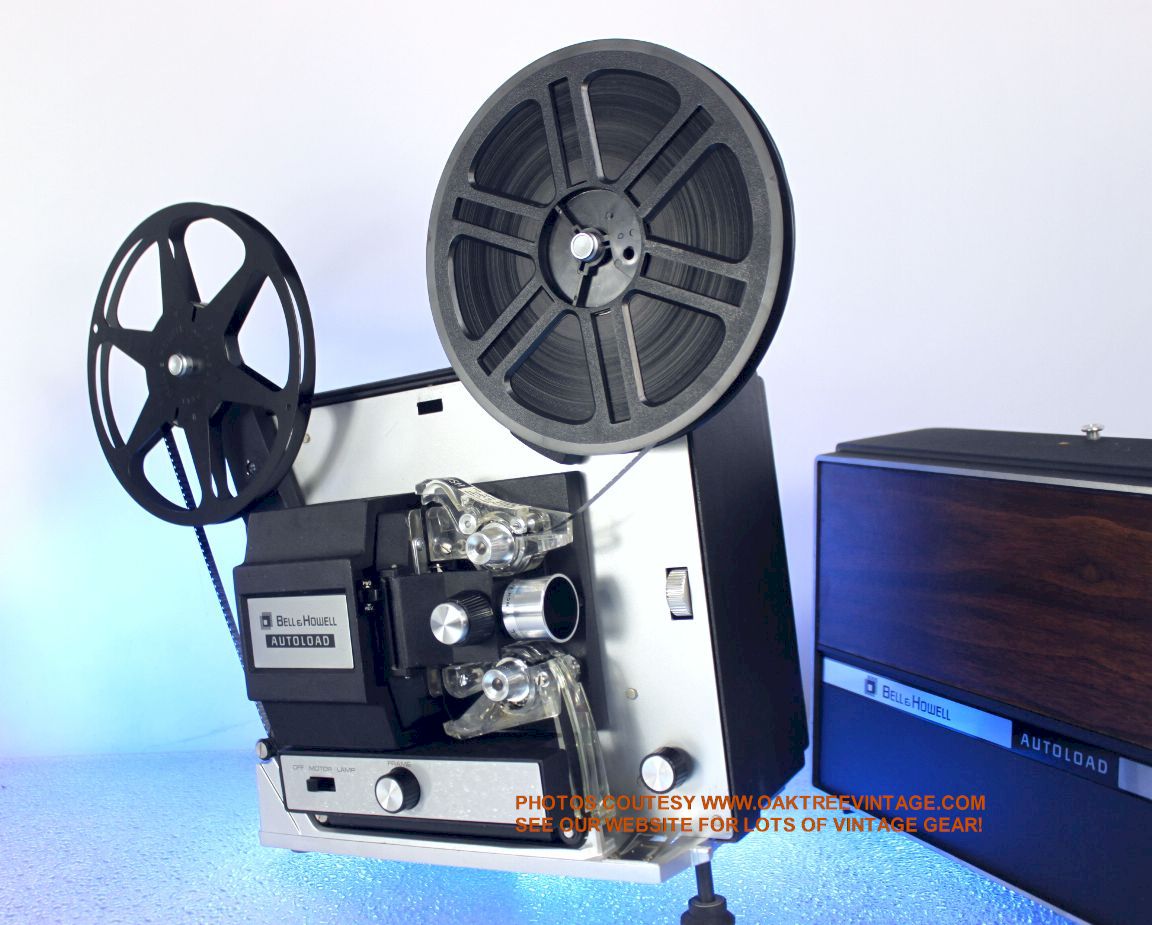

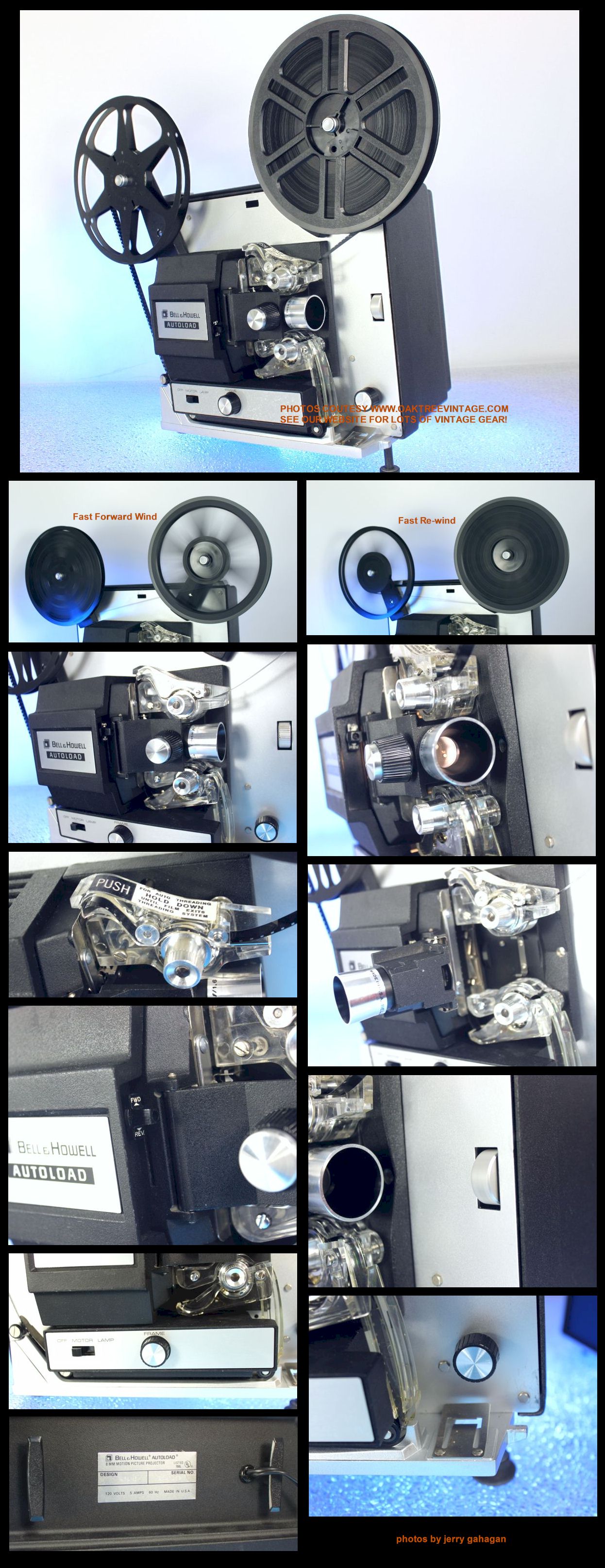

warranty B&H BELL & HOWELL 461B #...8052 SUPER 8mm SILENT FILM PROJECTOR W/ AUTO LOADING
MADE IN AMERICA
SOLD 9/5/17
SHIPPED
TO MASSACHUSETTS
We
completely disassembled, cleaned and re-lubed the internal drive
assembly gears as well the all gears in both film reel arms.
Main drive belt replaced and internal drive wheels reconditioned for
trouble-free service. Internal axle bearings cleaned and re-lubed as
well as both drive motor bushings.
Film gate cleaned. Entire projector has been cleaned inside and out! The
461B's internal drive mechanisms are primarily, trouble-free gears, all
of which have been cleaned and re-lubed.
Film fast wind clutches disassembled, re-lubed and adjusted and work
well. Runs and works well. B&H 461B
Features:
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT? B&H 461B Silent Super-8mm movie film / cine projector.
(Sometimes referred to as 'Reel to Reel Film' projectors).
...
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
Utilizes model DJL / DFN /
DFC / DFG / DFA 120 volt, 150 watt projection lamp. Front adjustment
foot allows for ~1.5" of height angle adjustment. Built-in film trimmer.
Very well built all metal construction. Looks well cared for and all
works great! Comes with take-up reel that stores in front cover and a
NEW projection lamp. Also includes our standard 30 day limited warranty
(excluding lamps / bulbs). Measures 11.25" long x 8.5" deep x 11" tall
(with film arms folded) and weighs 19 lbs unpacked. Film shown in
photos not included. BELL & HOWELL 461B Cond. 9
SOLD 9/5/17 SHIPPED TO MASSACHUSETTS
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
NEW ADDITION
9/08/08
(click on above
thumbnails to enlarge photos)
warranty

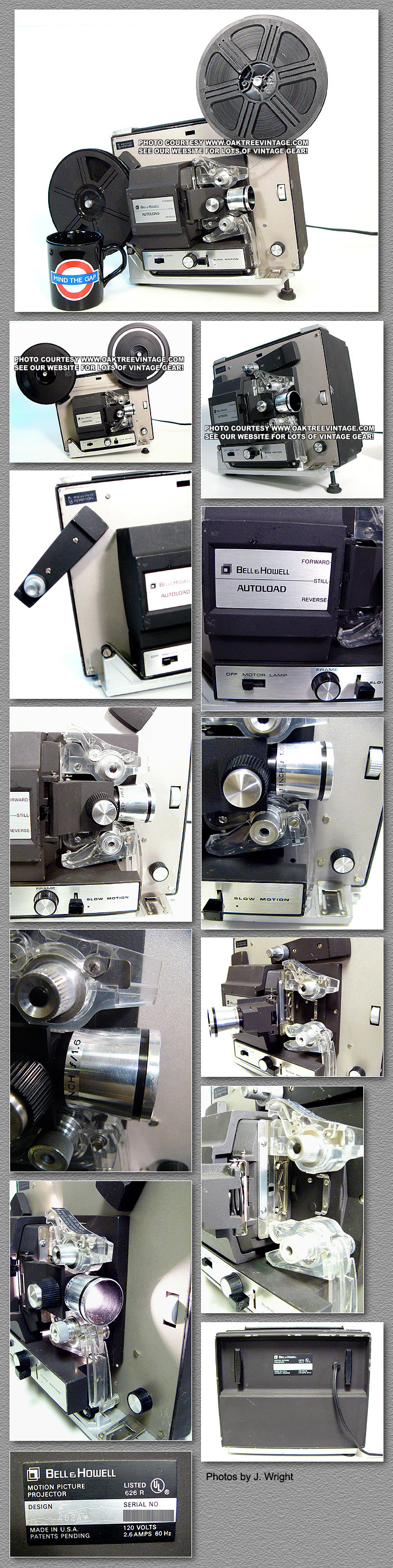

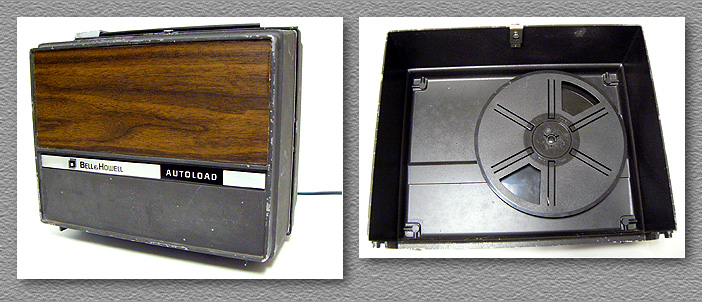

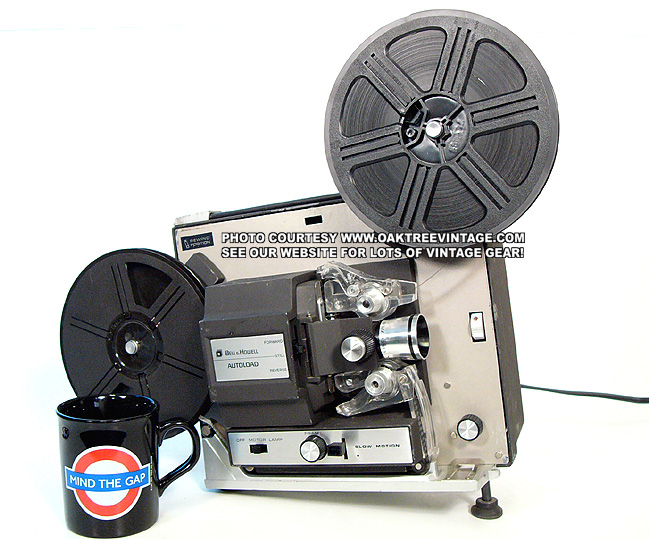

B&H BELL & HOWELL 462A SUPER 8mm SILENT FILM PROJECTOR W/ AUTO LOADING
SOLD 9/18/08 To University of Central Florida
|
NEW ADDITION
12/12/08
(click on above
thumbnails to enlarge photos)
warranty
B&H BELL &
HOWELL 462A #...3639
SUPER 8mm
SILENT FILM
PROJECTOR
W/ AUTO LOADING
AND ZOOM LENS
Made in USA SOLD 12/13/08
|
NEW ADDITION
3/23/09
(click on above
thumbnails to enlarge photos)
warranty
B&H BELL &
HOWELL 462A #...3639
SUPER 8mm
SILENT FILM
PROJECTOR
W/ AUTO LOADING
AND ZOOM LENS
Made in USA SOLD
3/23/09
|
B&H
/ BELL & HOWELL 466A
|
NEW
LISTING 1/3/17 (click
on above thumbnails to enlarge photos)

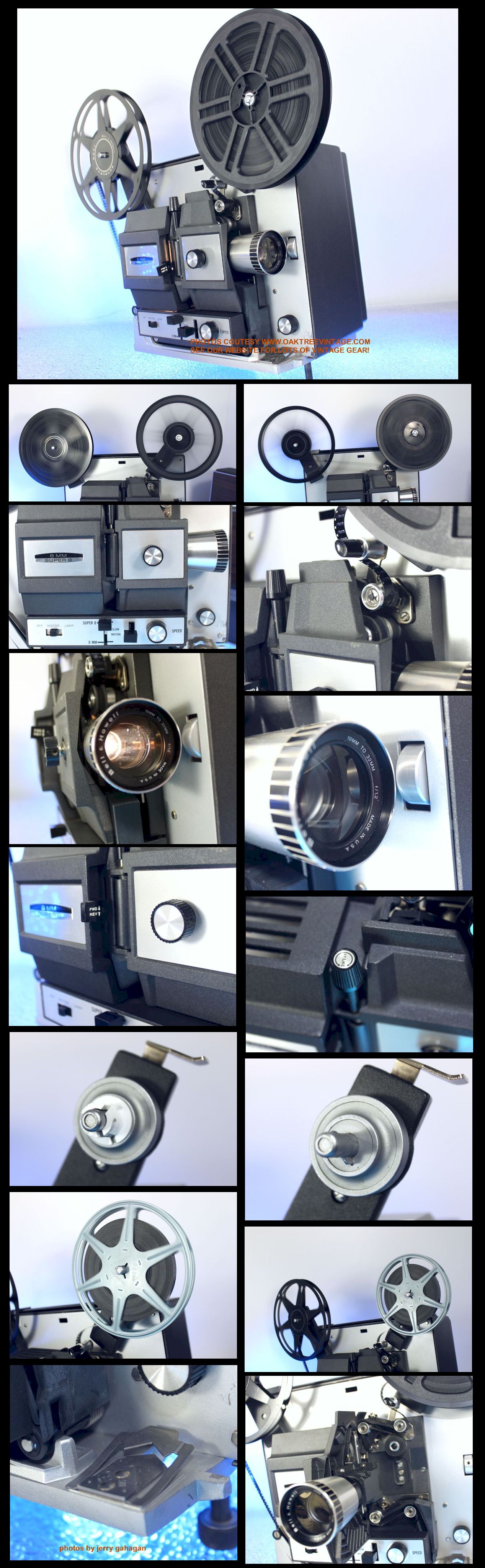

warranty B&H

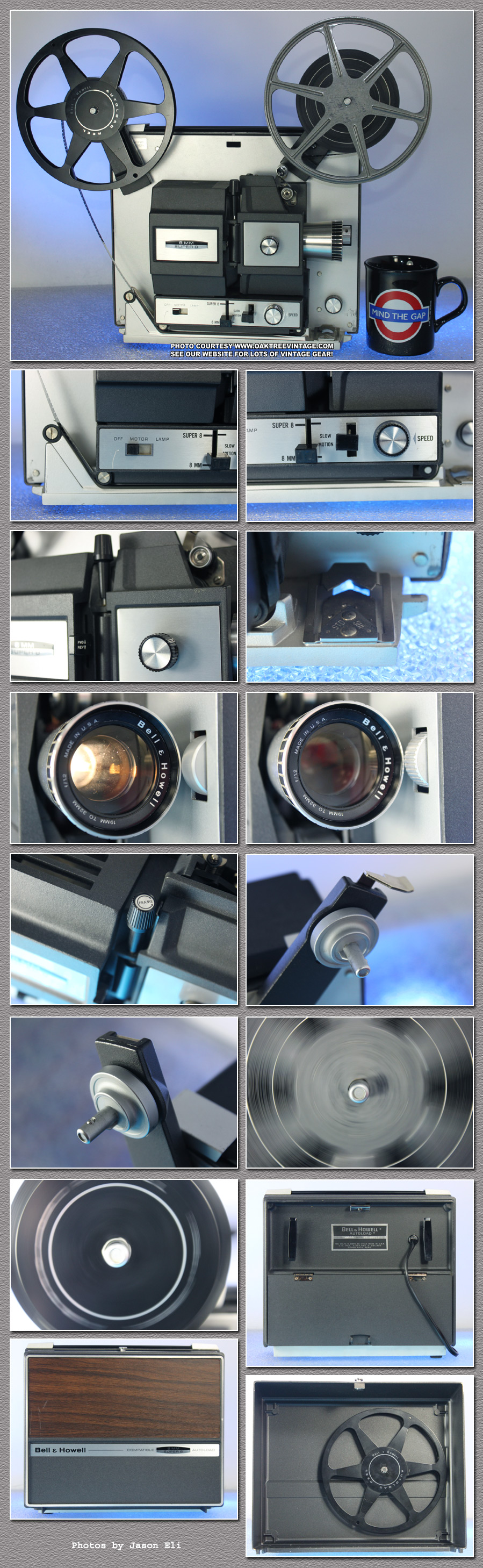

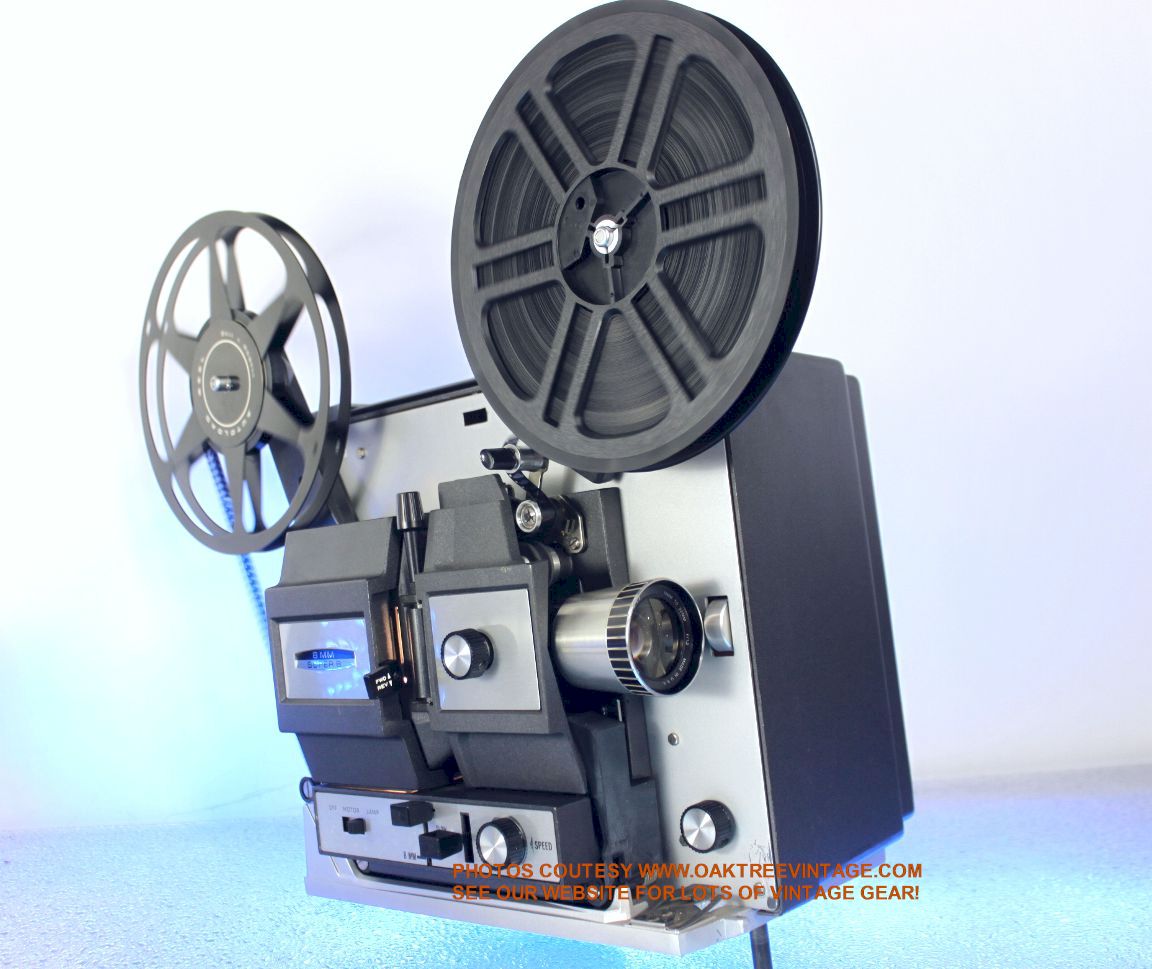

/ BELL & HOWELL 466A #...0716
DUAL-8mm (REGULAR 8mm / SUPER 8mm)
VARIABLE SPEED! SILENT FILM PROJECTOR W/ AUTO LOADING & ZOOM LENS
MADE IN USA
SOLD 4/27/17 SHIPPED TO SOUTH DAKOTA
We
completely disassembled, cleaned and re-lubed the internal drive
assembly gears as well the all gears in both film reel arms.
Main drive belt replaced and internal drive wheels reconditioned for
trouble-free service. Internal axle bearings cleaned and re-lubed as
well as both drive motor bushings.
Film gate cleaned. Entire projector has been cleaned inside and out! The
B&H 466A's internal drive mechanisms are primarily, trouble-free gears,
all of which have been cleaned and re-lubed.
Film fast wind clutches disassembled, re-lubed and adjusted and work
well. Runs and works well. B&H 466A Features:
-
Dual 8mm Projector (plays
regular 8mm or Super 8mm movies) - VARI...
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
Comes with take-up reel that stores in front cover and a
NEW projection lamp. Also includes our standard 30 day limited warranty
(excluding lamps / bulbs). Measures 11.25" long x 8.5" deep x 11" tall
(with film arms folded) and weighs 19 lbs unpacked. Film shown in
photos not included. BELL & HOWELL 466A Cond. 9 SOLD 4/27/17 SHIPPED TO SOUTH DAKOTA
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|
NEW ADDITION
4/14/06 (click on above thumbnails to enlarge photos)
warranty

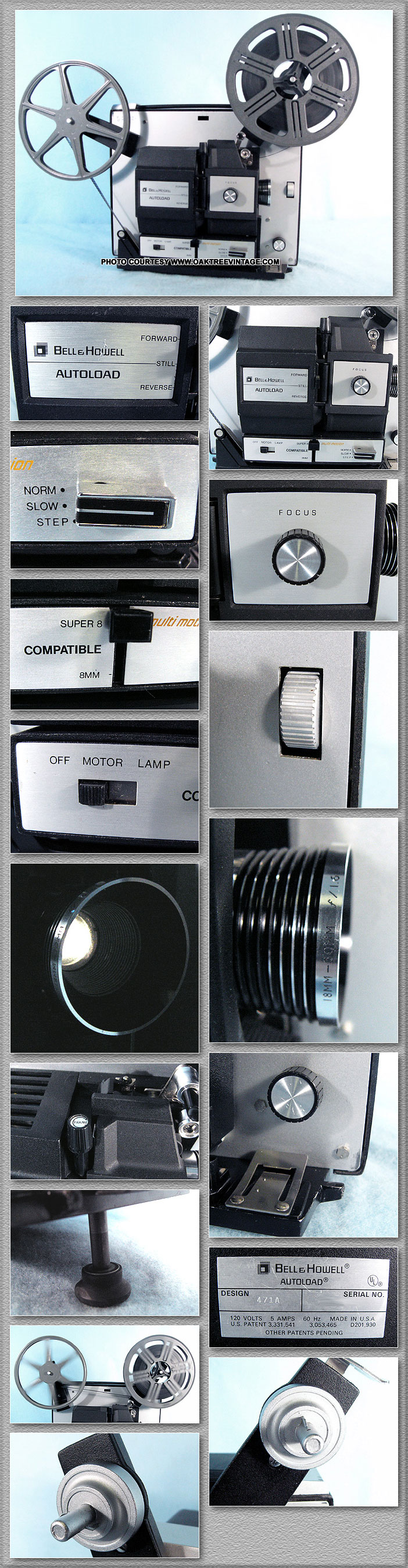

B&H BELL & HOWELL 471A 3-SPEED! DUAL-8
PLAYS STANDARD & SUPER 8mm SILENT FILM PROJECTOR SOLD 6/23/06
|
|
|
|
|
|
NEW ADDITION
11/13/07
(click on above thumbnails to enlarge photos)
warranty

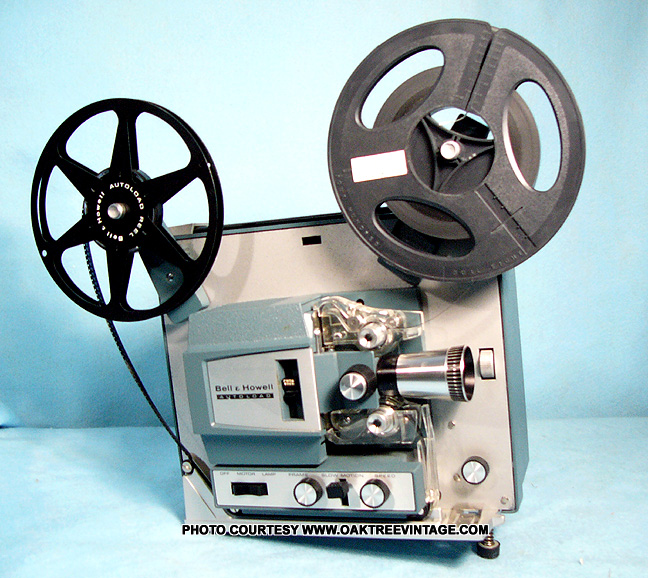

B&H BELL & HOWELL 482
VARIABLE SPEED SUPER 8mm
SILENT FILM PROJECTOR SOLD 12/18/07
|
NEW ADDITION
4/25/05 (click on above thumbnails to enlarge photos)
B&H BELL & HOWELL 487A DUAL-8
PLAYS STANDARD & SUPER 8mm SILENT FILM PROJECTOR SOLD
4/25/05
|
NEW ADDITION
2/3/06 (click on above thumbnails to enlarge photos)
warranty
B&H BELL & HOWELL 487A DUAL-8
PLAYS STANDARD & SUPER 8mm SILENT FILM PROJECTOR SOLD 3/6/06
|
|
NEW ADDITION
(click on above thumbnails to enlarge
photos)
warranty

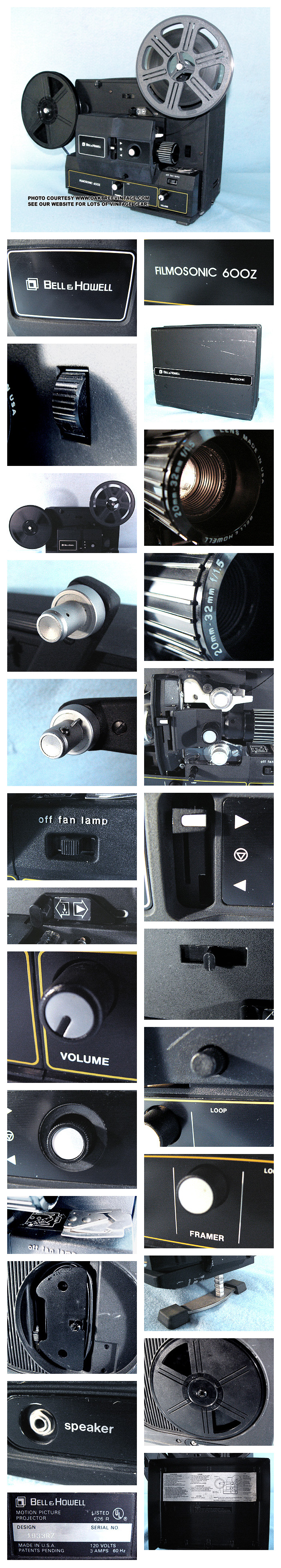

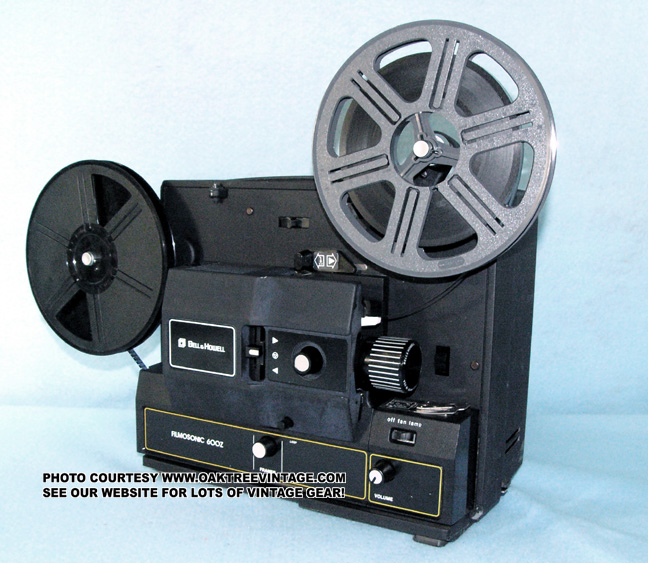

BELL & HOWELL "FILMSONIC"
600Z SUPER 8mm MAGNETIC
SOUND / FILM PROJECTOR SOLD 7/18/06
|
|
|
|
|
NEW ADDITION 10/9/04
(click on above thumbnails to enlarge photos)
B&H BELL & HOWELL 1623 SUPER / STANDARD 8mm SILENT FILM
PROJECTOR SOLD 10/19/04
|
NEW
ADDITION 3/9/11
(click
on above thumbnails to enlarge photos)
warranty
B&H
BELL & HOWELL DUAL-8
FILM
PROJECTOR SUPER-8mm & REGULAR 8mm SILENT B&H 1623 #...8133
AUTO LOADING GREAT 'PREVIEW' PROJECTOR Made in USA SOLD 4/6/11
|
|
NEW ADDITION
(click on above thumbnails to enlarge
photos)
warranty

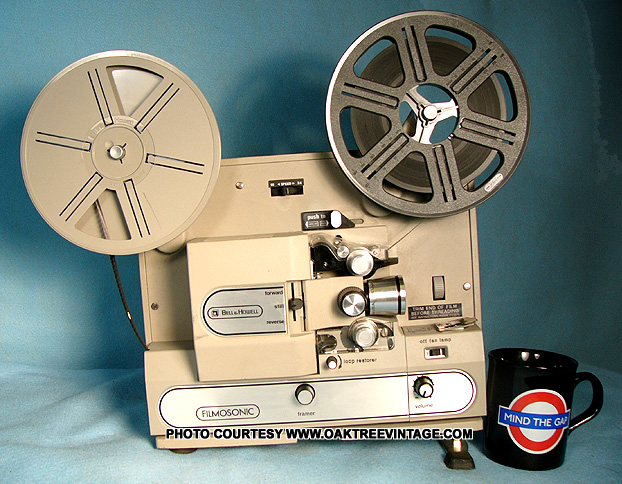

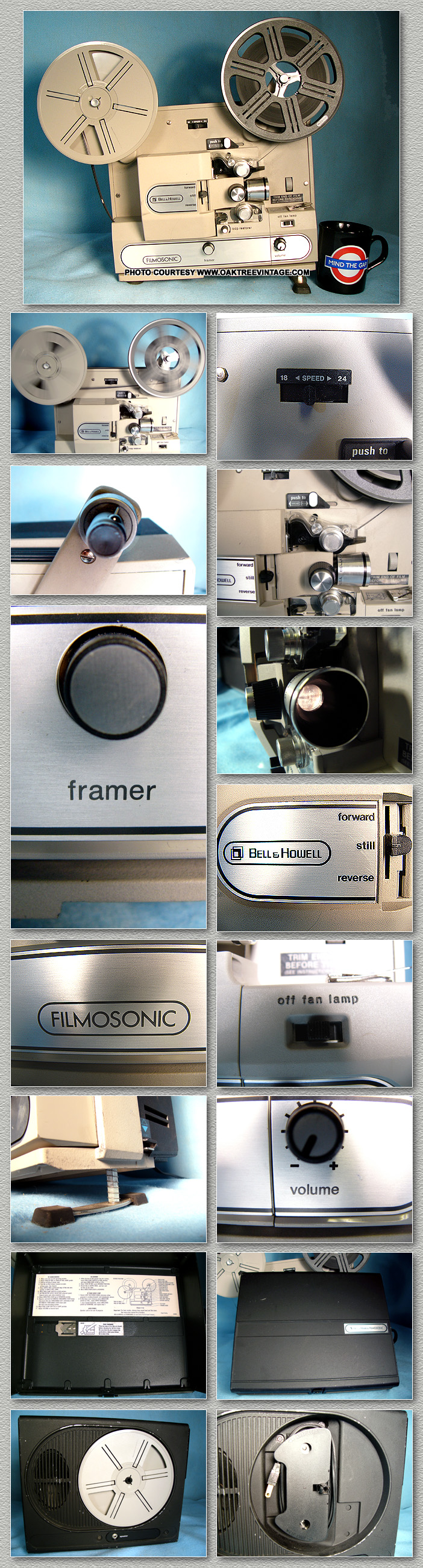

BELL & HOWELL "FILMOSONIC" 1733B / 626R
SUPER-8mm MAGNETIC SOUND / FILM / MOVIE AUTO-LOADING PROJECTOR
SOLD 6/25/07
|
|
|
(click on above thumbnails to enlarge photos)

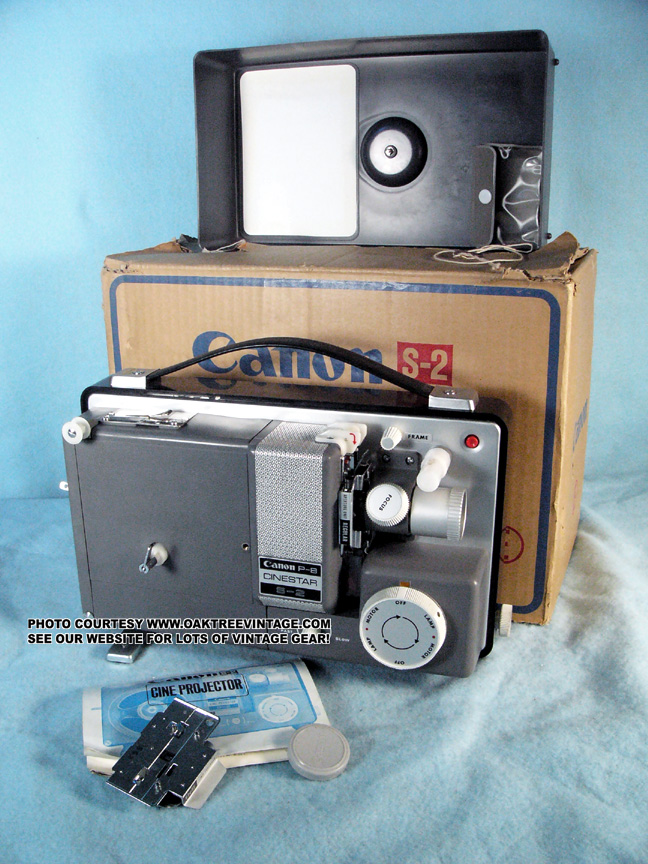

CANON "CINESTAR" MODEL S-2
DUAL-8
PLAYS STANDARD & SUPER 8mm FILM
PROJECTOR SOLD 1/29/08
Selling As-Is for restoration, repair or
parts. Typical of "running-eb_y" units. Not up to our standards.
Lamp and motor works and spindles turn. European power cord with a US
adaptor that works fine. Seems complicated to use. Was not worth our time
to research. Might be a fine projector, but we have "bigger fish to fry".
Comes with both Regular-8 and Super-8 frame inserts and operations manual. AS-IS
$45.* SOLD 1/29/08
*Price will increase
following any additional work / research / testing.
|
|
|
NEW ADDITION 10/10/04
(click on above thumbnails to enlarge photos) CHINON MODEL 727 SUPER / STANDARD 8mm SILENT FILM
PROJECTOR SOLD 10/22/04
|
NEW ADDITION 12/10/04
(click on above thumbnails to enlarge photos) CHINON MODEL 727 SUPER / STANDARD DUAL 8mm SILENT FILM
PROJECTOR
SOLD 12/23/04
|
NEW ADDITION 2/1/09
(click on above thumbnails to enlarge photos)
warranty
CHINON MODEL
727 DUAL 8mm SUPER /
REGULAR 8mm SILENT FILM
PROJECTOR #...4425
WITH ZOOM LENS & VARIABLE SPEED! GREAT FOR FILM TRANSFER BUSINESS. MADE IN JAPAN SOLD 2/16/09
|
NEW ADDITION 2/1/09
(click on above thumbnails to enlarge photos)
warranty
CHINON MODEL
727 DUAL 8mm SUPER /
REGULAR 8mm SILENT FILM
PROJECTOR #...1384
WITH ZOOM LENS & VARIABLE SPEED! GREAT FOR FILM TRANSFER BUSINESS. MADE IN JAPAN
SOLD 3/25/09 To University of Central Florida
*
Again only issue is with last few feet of rewind on
larger reels.
|
|
|
NEW ADDITION 11/22/05
(click on above thumbnails to enlarge

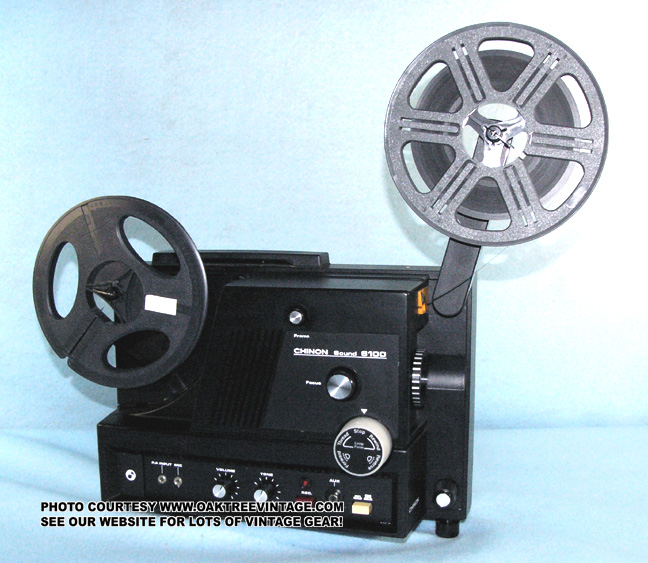

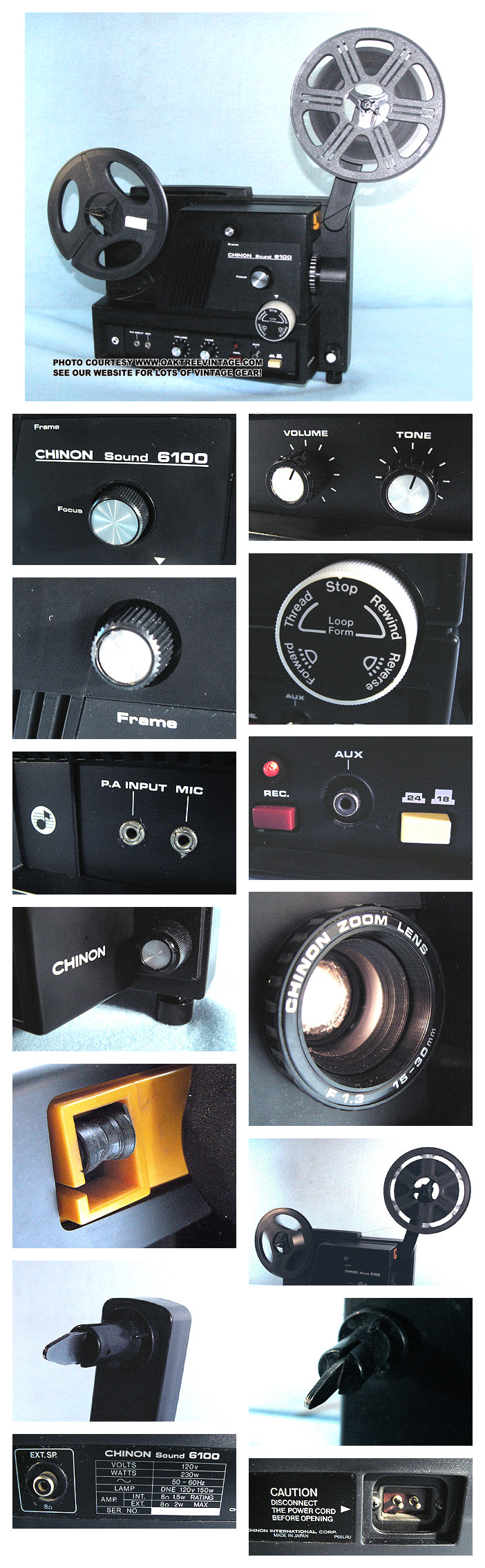

photos) CHINON SOUND 6100
SUPER 8mm PROJECTOR SOLD 1/24/06
|
NEW ADDITION
(click on above thumbnails to enlarge

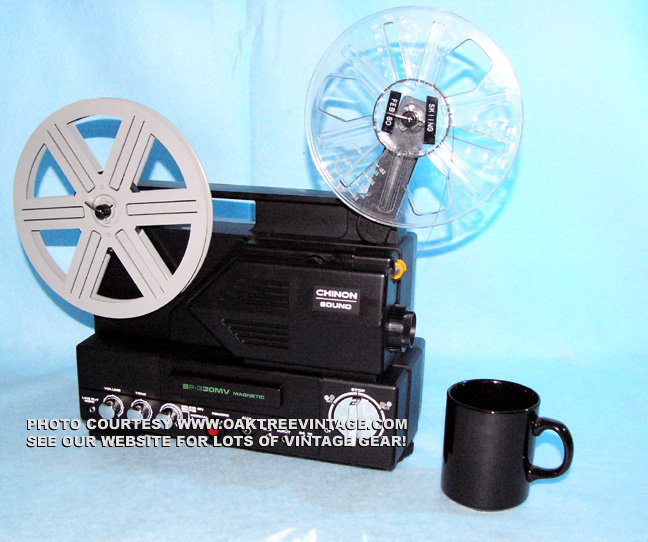

photos) CHINON SP-330MV SUPER 8mm MAGNETIC
SOUND / FILM PROJECTOR SOLD 12/28/05
|
NEW ADDITION (click on above thumbnails to enlarge
photos) CHINON SP-330MV SUPER 8mm MAGNETIC
SOUND / FILM PROJECTOR
SOLD
12/24/05
|
NEW ADDITION
08/06/08
(click on above thumbnails to enlarge photos)
warranty
CHINON MODEL
2500GL DUAL 8mm SUPER /
REGULAR 8mm SILENT FILM
PROJECTOR W/
VARIABLE SPEED! GREAT FOR FILM TRANSFER BUSINESS. MADE IN JAPAN
SOLD 9/18/08 To University of Central Florida
|
NEW ADDITION
4/9/05 (click on above thumbnails to enlarge photos)

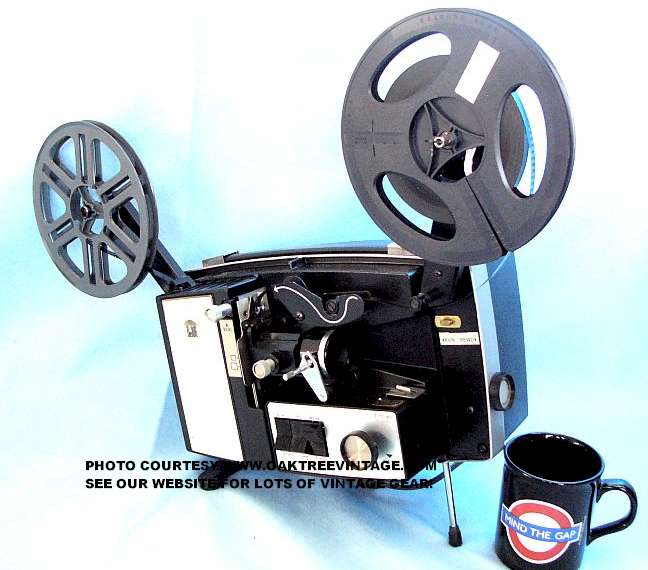

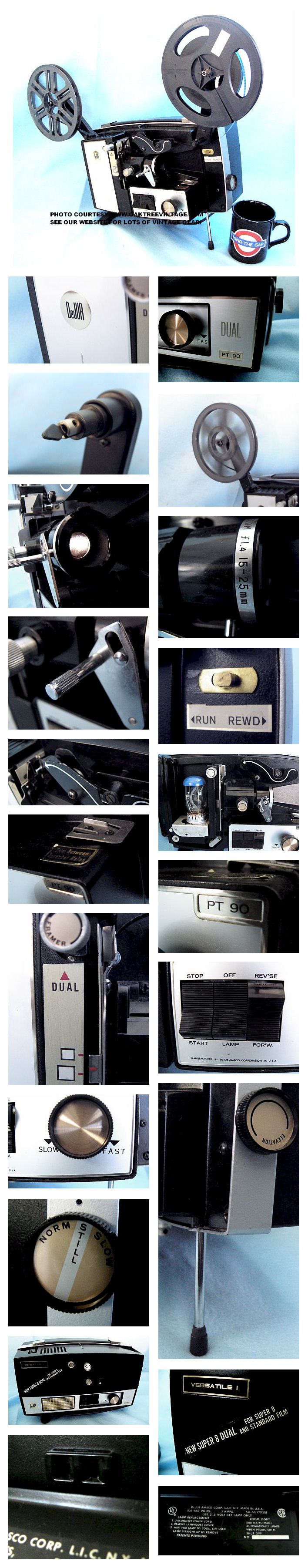

DeJUR DUAL EIGHT Model
PT90 SUPER / STANDARD DUAL
8mm SILENT FILM PROJECTOR SOLD
5/24/05
|
|
NEW LISTING
5/15/18
(Click on above thumbnails to enlarge photos)
warranty

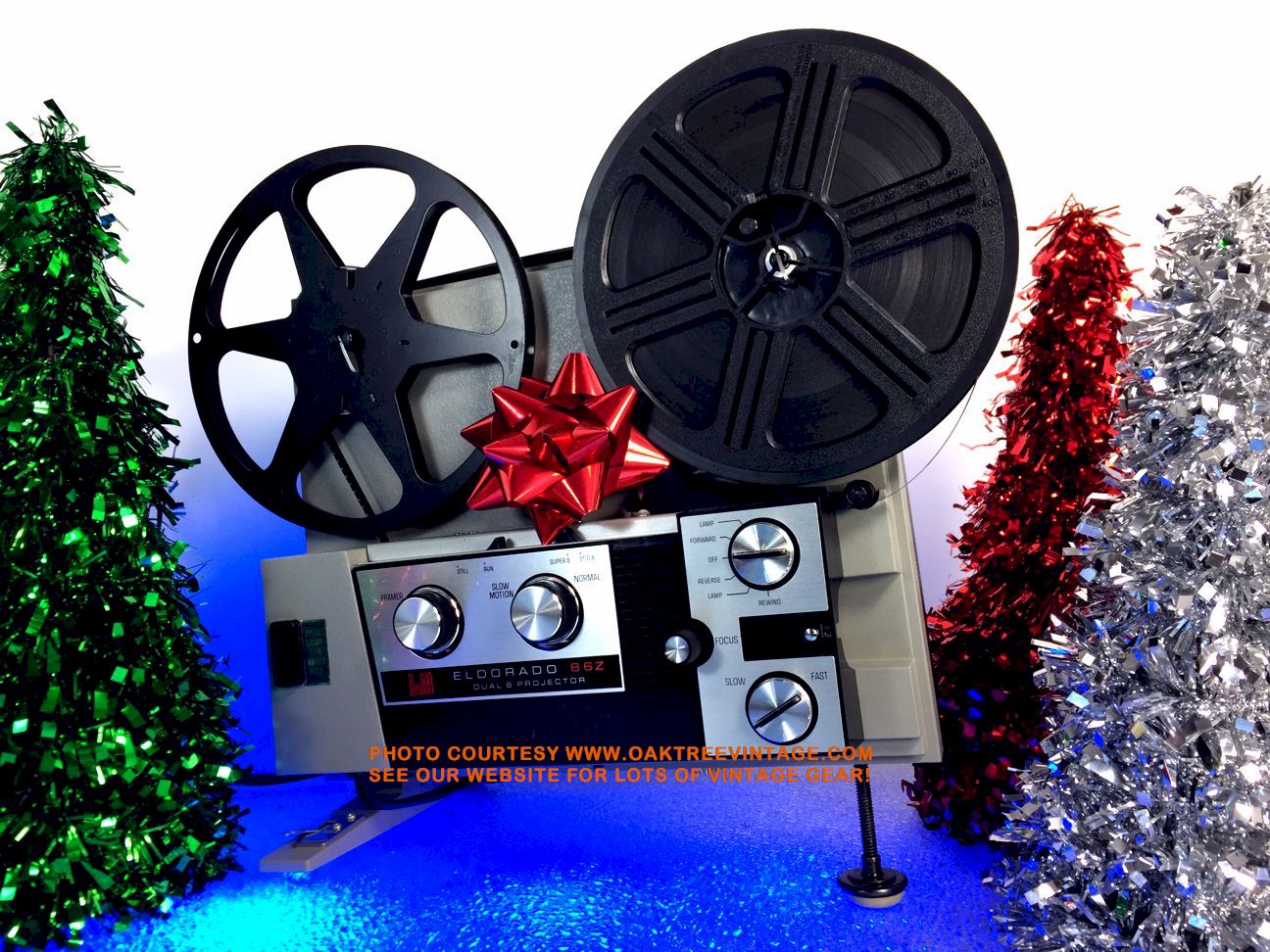

FULLY SERVICED / REFURBISHED AND
READY TO GO DUAL
8mm (SUPER & REGULAR 8mm) SILENT FILM PROJECTOR DeJUR 'ELDORADO' 86Z (GAF BUILT)
#...2096 WITH ZOOM LENS! VARIABLE SPEED!
*GREAT 'BULB ECONOMY'* GREAT FOR FILM TO DVD / COMPUTER TRANSFERS & MEDIA TRANSFER BUSINESS MADE IN
AMERICA
|
NEW LISTING
3/3/18
(Click on above thumbnails to enlarge photos)
warranty
DUAL
8mm (SUPER & REGULAR 8mm) SILENT FILM PROJECTOR
DeJUR / AMSCO (GAF BUILT) 86Z WITH ZOOM LENS! VARIABLE SPEED!
*GREAT 'BULB ECONOMY'* GREAT FOR FILM TO DVD / COMPUTER TRANSFERS & MEDIA TRANSFER BUSINESS MADE IN
AMERICA
SOLD 4/21/18 SHIPPING TO TEXAS
ü
Our technician has completely gone through and 'Certified' this
unit.
ü We
have
completely and extensively gone through the
mechanicals of this projector.
ü It
was disassembled internally for restoration including
all the drive
for cleaning and re-lubing
prior to disassembly.
ü 3
Belts replaced: Main
drive belt from motor, The 'serpentine'
hub drive belt, and the cooling fan belt for trouble-free
service.
ü Both
hub mechanisms checked for proper function. All 'idler
pulleys and wheels' removed,
cleaned and re-lubed.
ü Rewind
hub tire
reconditioned.
ü Lens
track mechanism cleaned and re-lubed with silicone gel lube
(note, by design, the 'focus' knob has what seems like 'excessive'
play, but that's to allow motion and removal of lens.)
ü Lens
cleaned front and back as well.
ü 'Shuttle'
mechanism and associated cam cleaned and re-lubed, as well as the
eccentric framer mechanism.
ü Film
gate cleaned as well as film track.
ü Take-Up
reel clutch tension adjusted to not allow film to 'spill' during PB,
but to allow Re-Wind, you'll want to have your left hand ready as a 'reel brake' if you
stop rewinding 'mid-stream'.
ü Variable
speed control knob allows FULL range of
'Rheostat'
ü Following
mechanical work, entire unit was cosmetically detailed inside and out.
ü Then
checked out all functions and made any necessary adjustments and
extensively tested with both Super 8 and Regular 8mm film. ____________________________
Freshly refurbished / fully serviced,
DeJur (GAF) 86Z,
Dual 8mm Film / movie / cine
projector with variable speed control built-in.
Following about 5.5 hours of tech time, it's...
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
DeJur 86Z Features:
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
Utilizes model
EJV 21Volt / 50 Watt projection
lamp
which has great 'economy' for two reasons. Firstly it has an average
rated lifespan of 40 hours, vs the typical 4-20 on most other
projector lamps. Secondly, it can typically be found for one half,
to one third the price of most other projector lamps. If you're a
'media transfer business', over time, this is a BIG DEAL!!!
Front adjustment foot allows for
~2.5" of height angle adjustment.
Again, following the above mentioned service,
this unit is ready to put to work. Looks great and works well. It would make a
great tool for anyone involved
in film to video transfer business as it can provide flicker-free images
in both Regular 8mm and Super-8mm formats. Comes with take-up reel,
lid / front cover
and an EXTRA "EVJ" projection lamp / bulb. Also includes our standard
30 day limited warranty (excluding lamps / bulbs). Measures 12.5" long x
7" deep x 11.5" tall (when un-folded) and weighs
~15 lbs unpacked. Film
in photos not included. DeJur / GAF 'DUAL 8MM' FILM PROJECTOR
Cond.
8.5
SOLD 4/21/18 SHIPPING TO TEXAS
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|
|
|
|

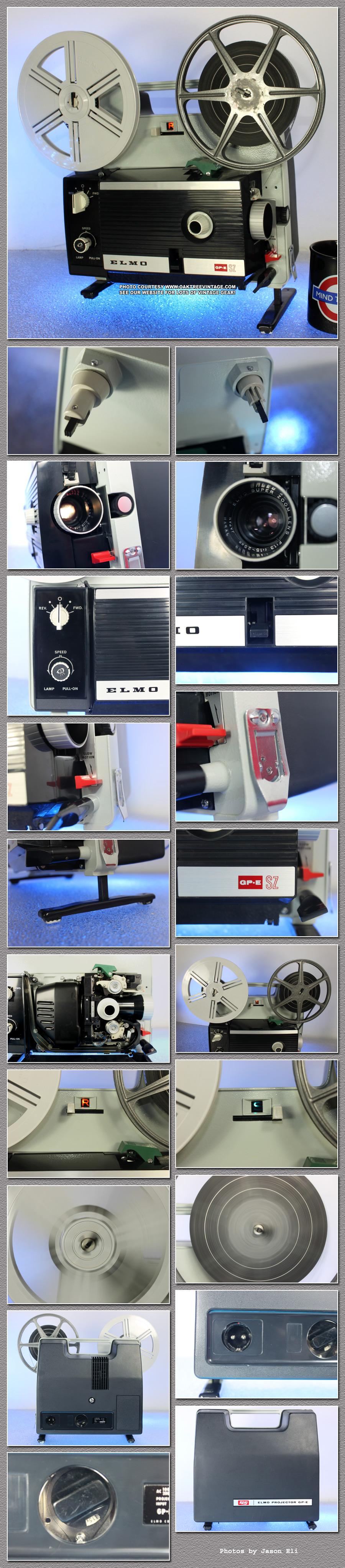

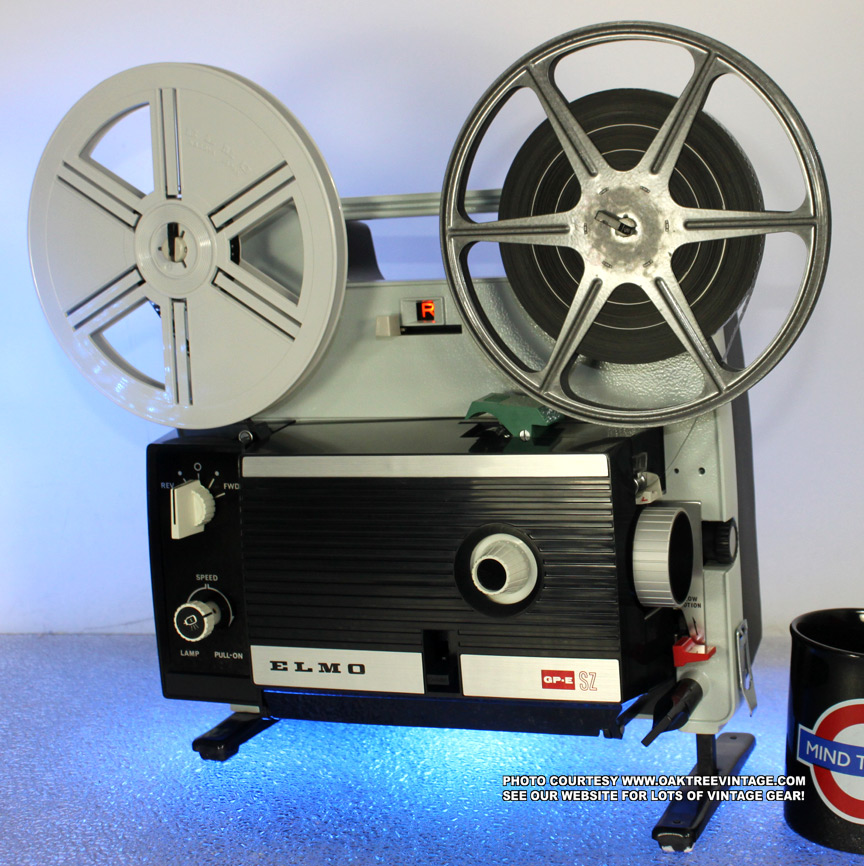

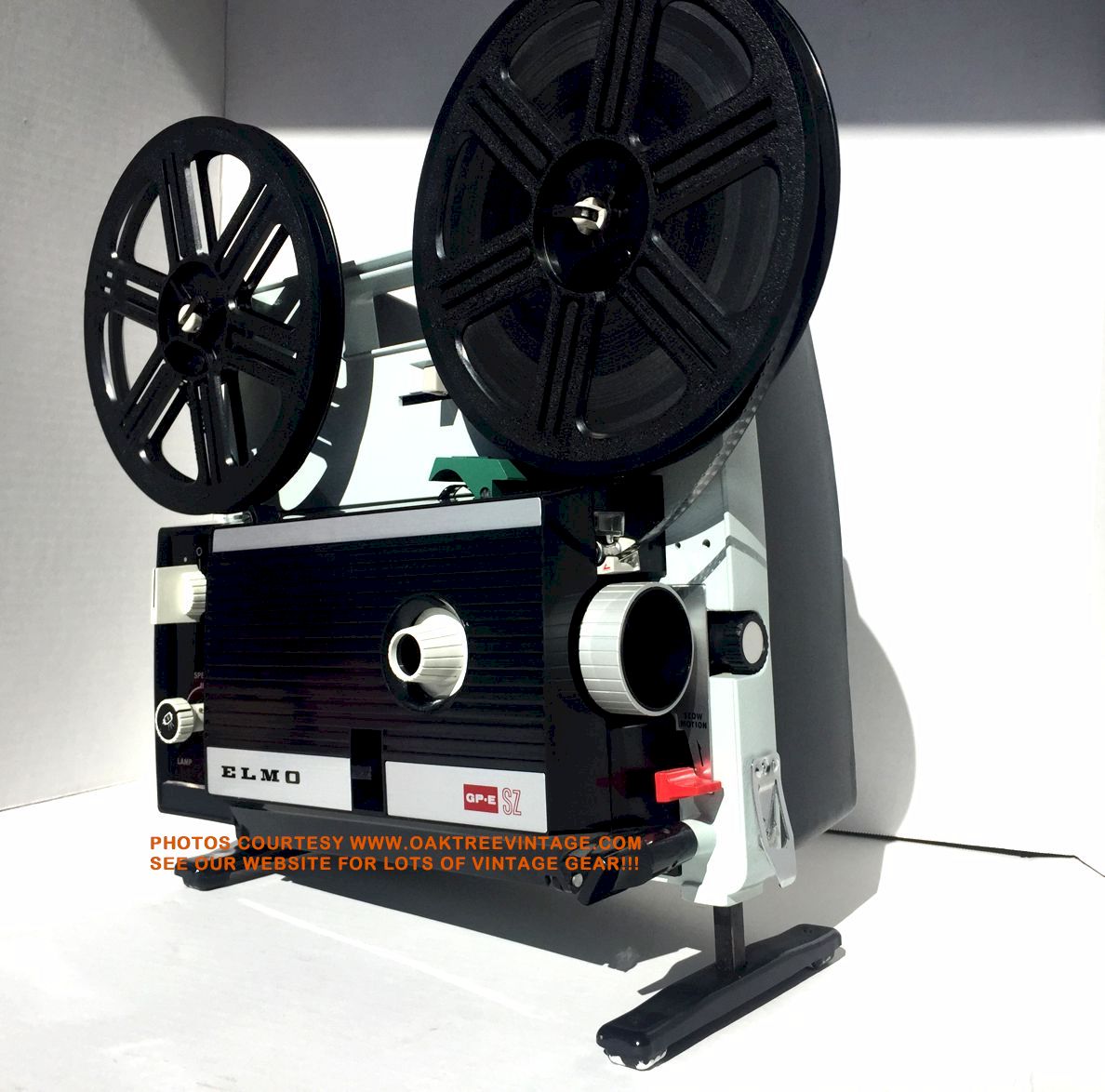

ELMO GP-E
|
NEW LISTING
3/4/18
(Click on above thumbnails to enlarge photos)
warranty DUAL
8mm (SUPER & REGULAR 8mm) SILENT FILM PROJECTOR
ELMO GP-E #...3071 WITH ZOOM LENS! VARIABLE SPEED!
*GREAT 'BULB ECONOMY'* GREAT FOR FILM TO DVD / COMPUTER TRANSFERS & MEDIA TRANSFER BUSINESS
SOLD 7/16/18 SHIPPING TO JIM IN SOUTH DAKOTA
ü
Our technician has completely gone through and 'Certified' this
unit.
ü We
have
completely and extensively gone through the
mechanicals of this projector.
ü It
was disassembled internally for restoration including
all the drive
for cleaning and re-lubing
prior to disassembly.
ü 3
Belts reconditioned for trouble-free
service.
ü Both
hub mechanisms checked for proper function. All idler
pulleys and wheels
cleaned and re-lubed.
ü Shutter
hub tire
reconditioned.
ü Lens
track mechanism cleaned and re-lubed with silicone gel lube
ü Lens
cleaned front and back as well.
ü 'Shuttle'
mechanism and associated cam cleaned and re-lubed, as well as the
eccentric framer mechanism.
ü Film
gate cleaned as well as film track.
ü Clutch tension adjusted
on both reel hubs.
ü Variable
speed 'Rheostat' control clean and 'linear' in it's speed increments
ü Following
mechanical work, entire unit was cosmetically detailed inside and out.
ü Then
checked out all functions and made any necessary adjustments and
extensively tested with both Super 8 and Regular 8mm film. ____________________________
Freshly refurbished,
/ Fully serviced, Elmo GP-E, Dual 8mm Film / movie / cine
projector with...
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
Following about 6.5
hours of tech time, it now
projects
smoothly
and is very quiet running.
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
ELMO GP-E Features:
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
Utilizes model *EJM*
21Volt / 50 Watt projection
lamp
which has great 'economy' for two reasons. Firstly...
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
Comes with Elmo GP-E projector 'pdf download'
copy of owners / users manual, take-up reel, lid / front cover and an
EXTRA "EJV" projection lamp / bulb, as well as it's original box and
packing. Also includes our standard 30 day limited warranty (excluding lamps / bulbs). Measures
~14" long x
~10" deep x ~13" tall (when un-folded) and weighs
~15 lbs unpacked. Film
in photos not included. ELMO GP-E 'DUAL 8MM' FILM PROJECTOR
Cond.
8.5++ SOLD 7/16/18 SHIPPING TO JIM IN SOUTH DAKOTA
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
NEW ADDITION 9/28/04

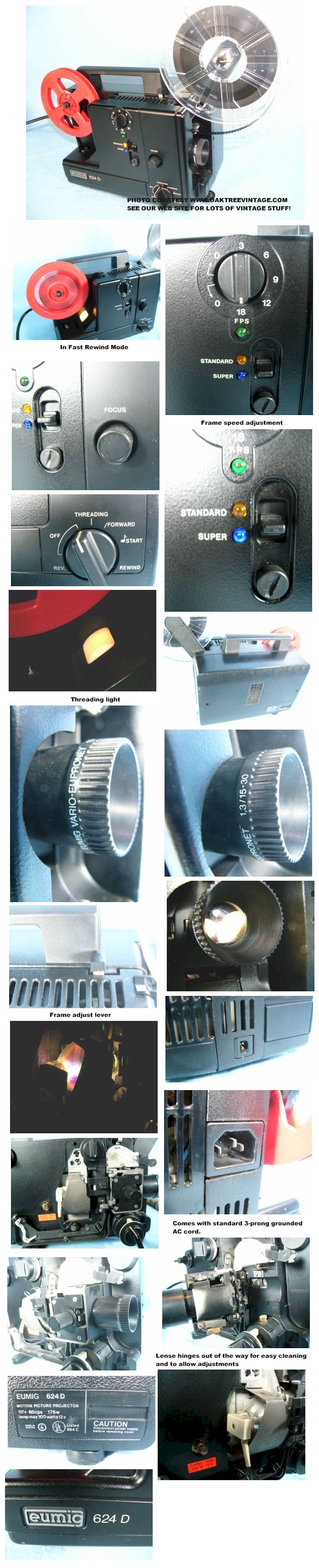

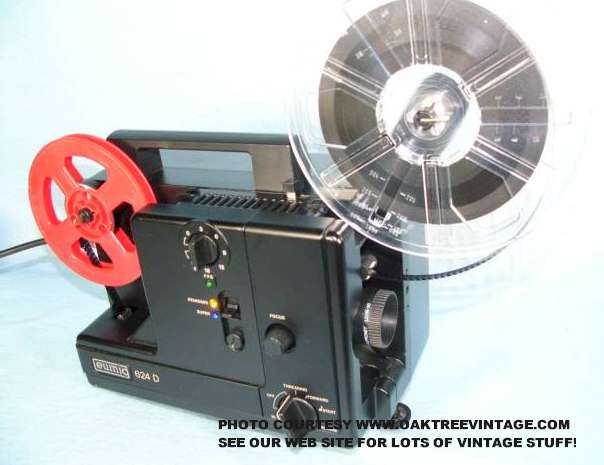

(click on above thumbnails to enlarge photos) EUMIG 624-D 624D SILENT FILM
PROJECTOR SOLD 9/29/04
|
NEW ADDITION
08/28/08
(click on above thumbnails to enlarge photos)
warranty

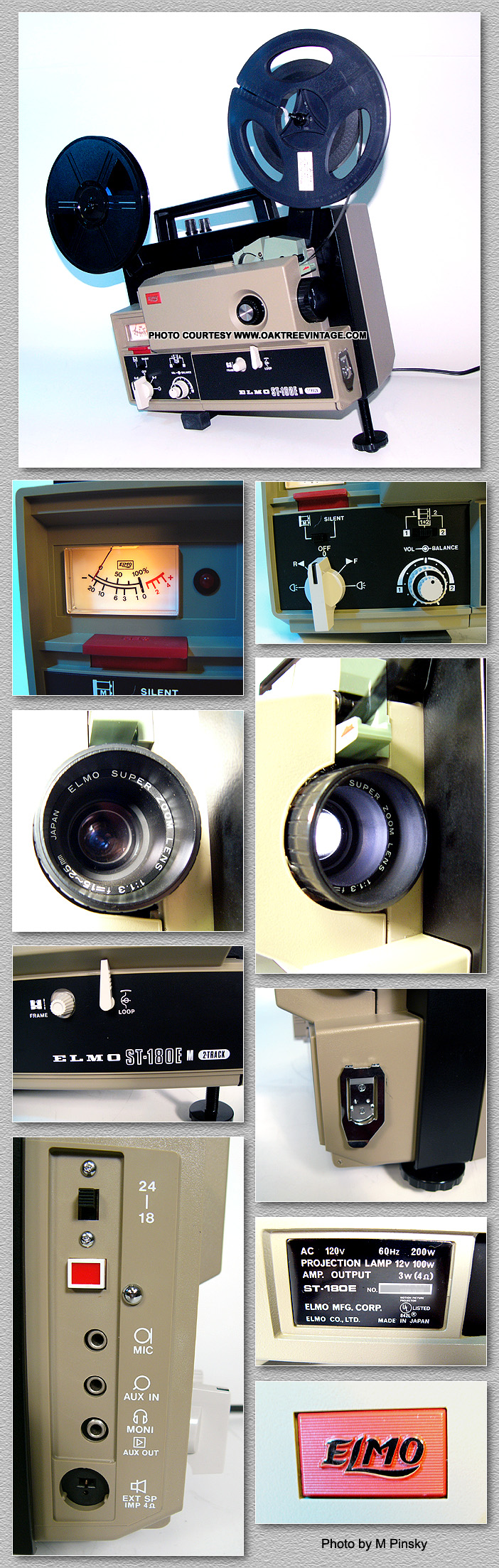

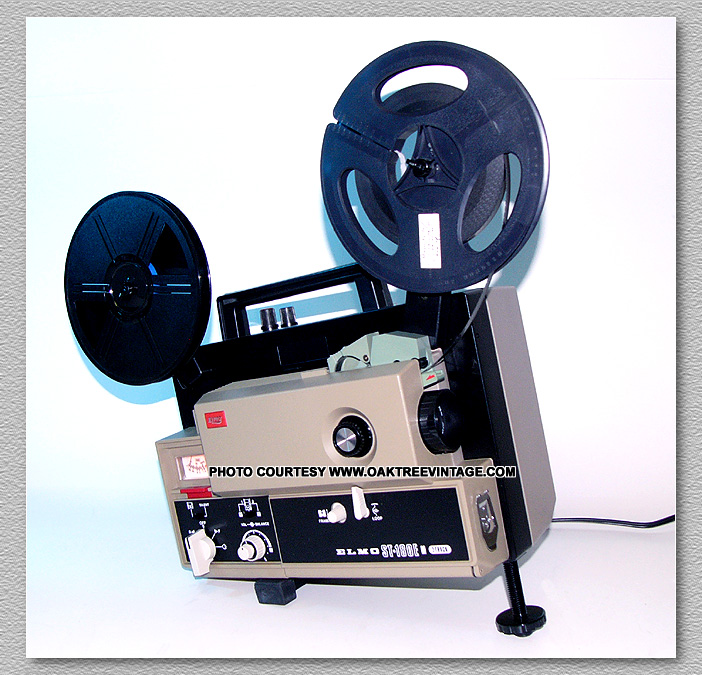

ELMO
ST-180E M SUPER-8mm SOUND MAGNETIC, 2-CHANNEL SOUND / FILM /
MOVIE PROJECTOR WITH ZOOM &
MODIFIED
FOR VARIABLE SPEED!!!
MADE IN JAPAN
SOLD 8/30/08
|
NEW LISTING 3/1/06
(click on above thumbnails to enlarge
photos)
warranty

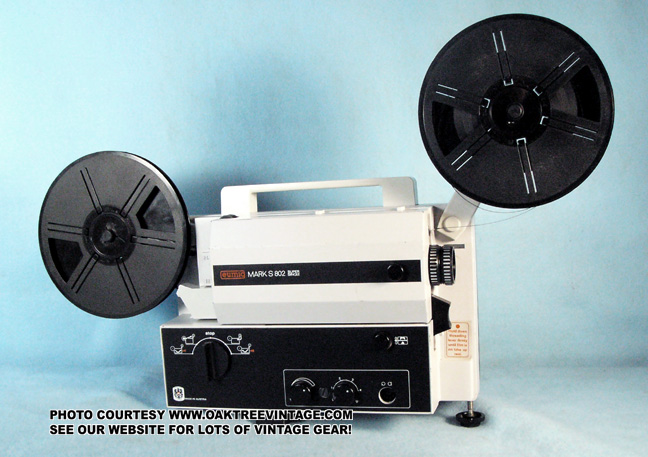

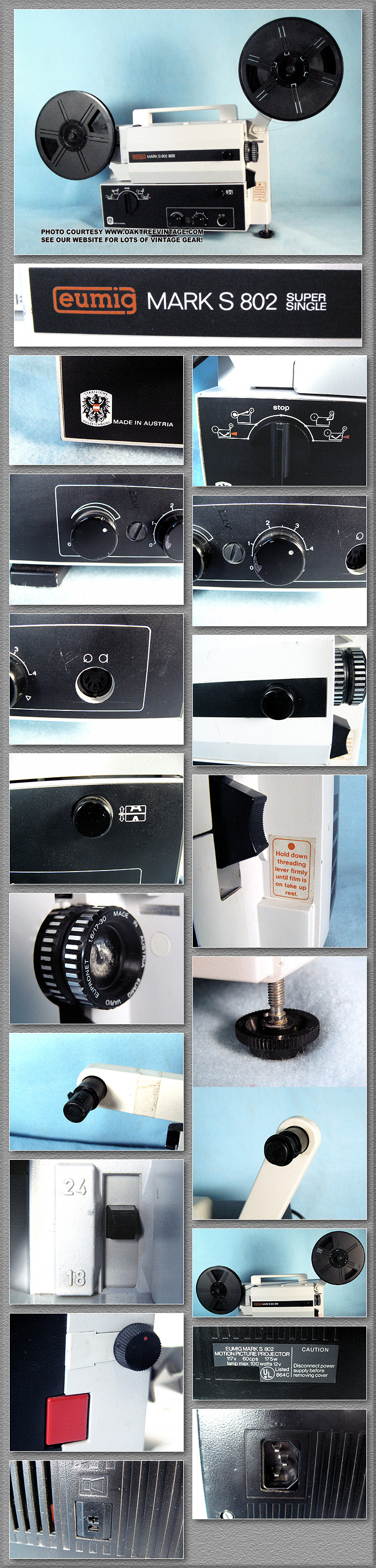

EUMIG MARK S 802 PROJECTOR
SOLD 3/15/06
|
(click on above thumbnails to enlarge

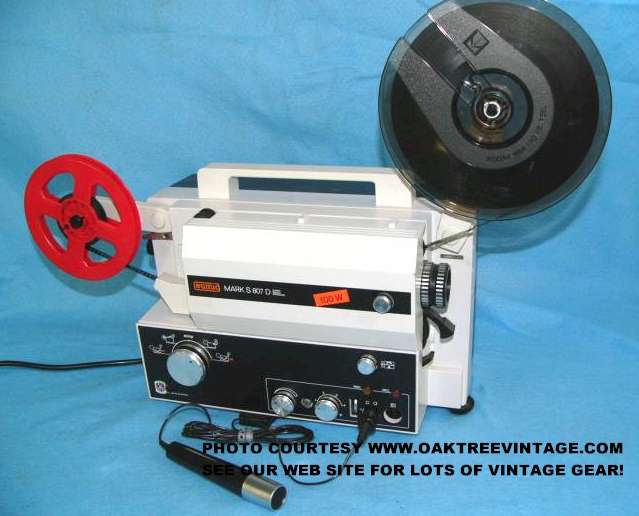

photos) EUMIG MARK S 807 D PROJECTOR
SOLD 8/16/04
|
NEW ADDITION 2/8/06 (click on above thumbnails to enlarge photos)
warranty
GAF
Model ANSCOVISION 88
SOLD 4/5/06
|

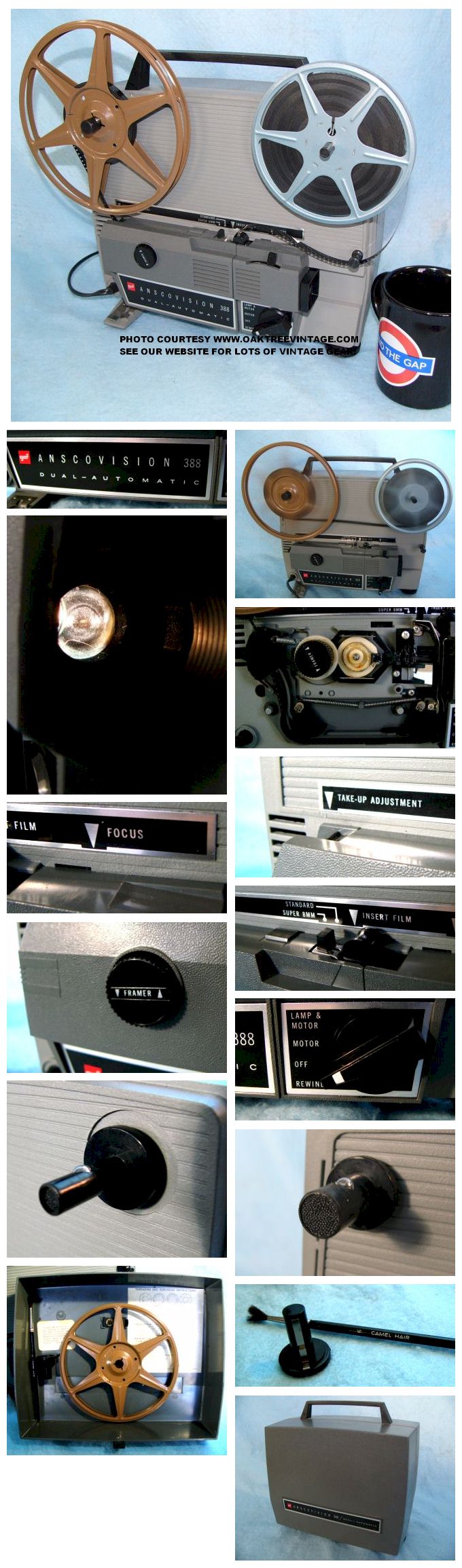

NEW ADDITION (click on above thumbnails to enlarge photos)

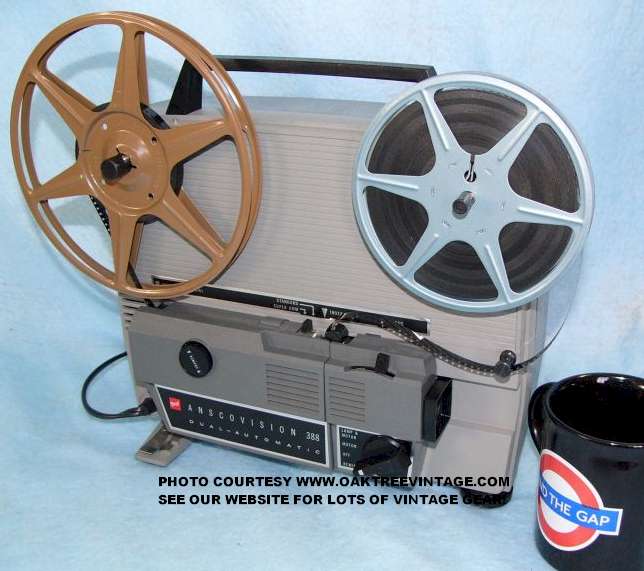

GAF Model
ANSCOVISION 388
SOLD 4/13/05
|
|

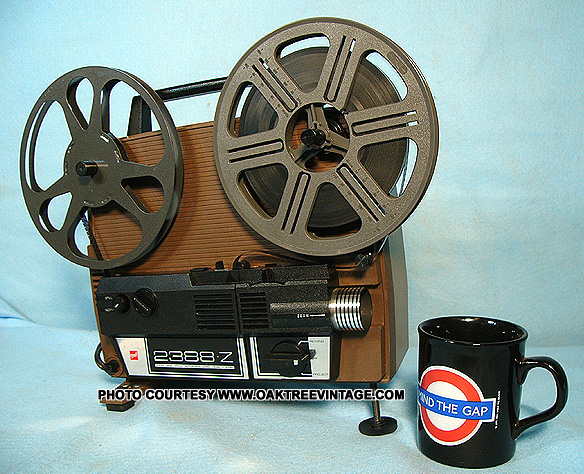

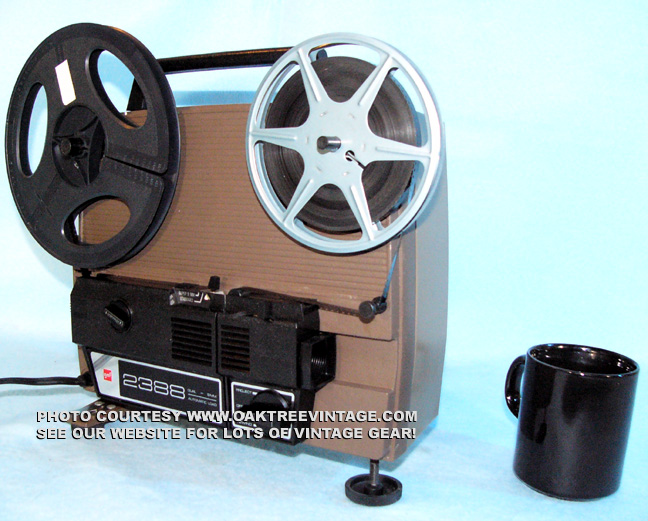

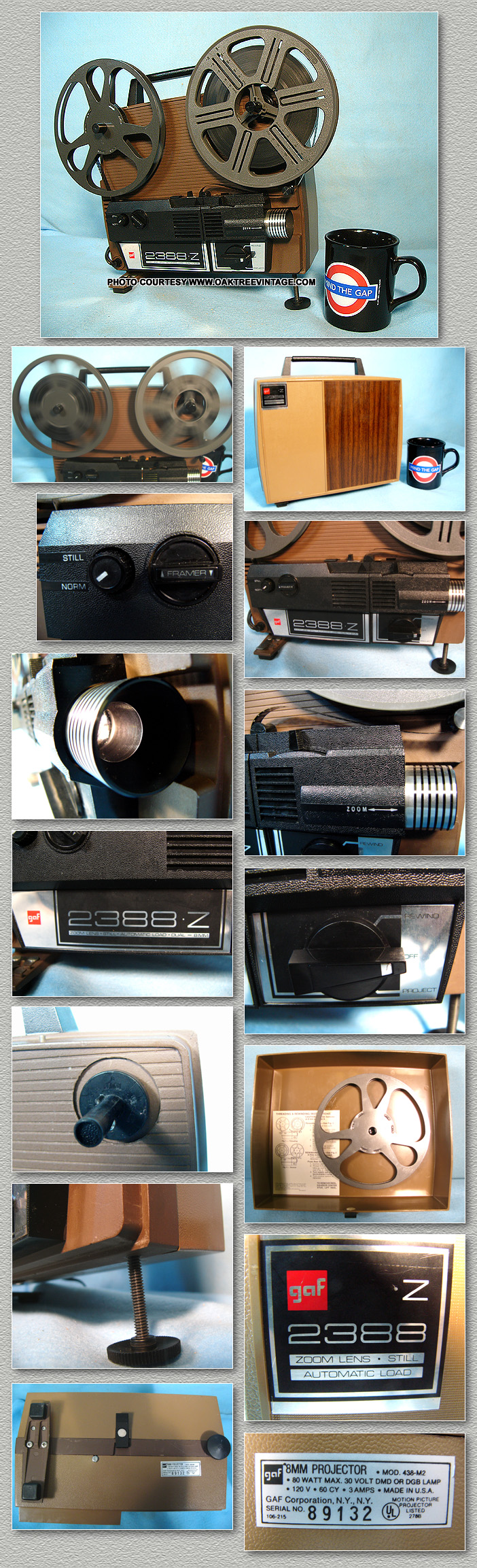

(above collage photos to right are of the GAF 2388Z.
Same machine branded with Wards 805.)
NEW ADDITION
(click on above thumbnails to enlarge photos)
warranty

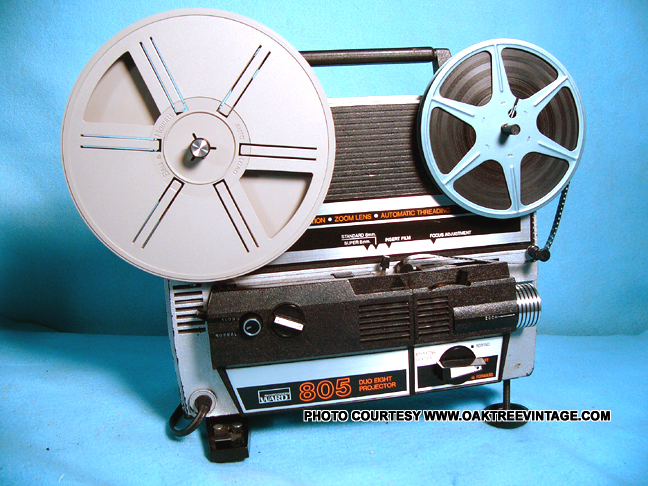

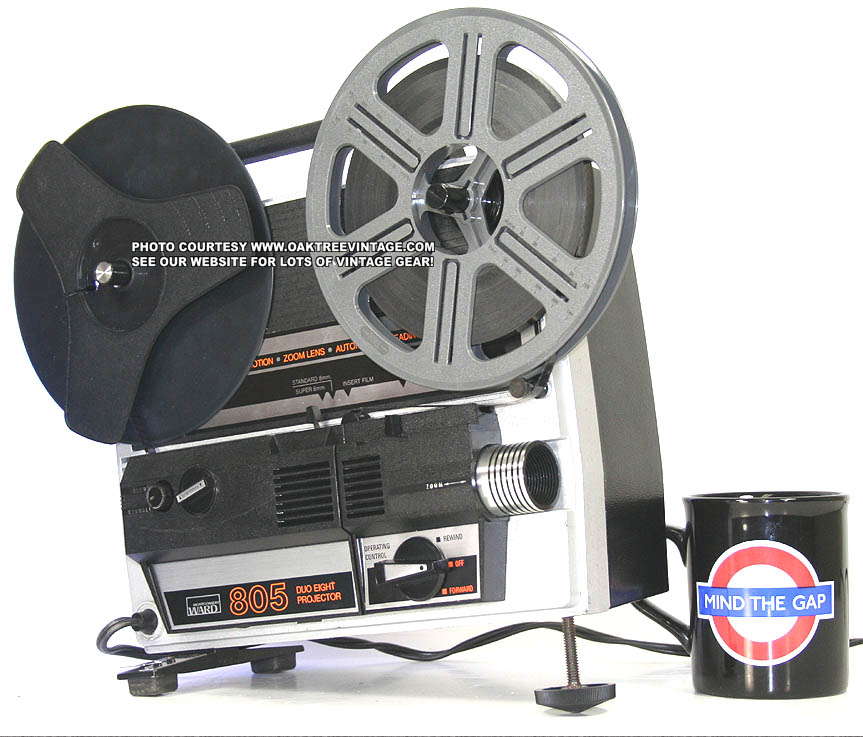

WARDS /
GAF Model
805 (GAF model 2388Z built for Wards) DUAL-8
PLAYS STANDARD & SUPER 8mm SILENT FILM PROJECTOR
SOLD
11/2/07
(above collage
photos to right are of the GAF 2388Z. Same machine branded with Wards 805.)
|
NEW ADDITION
5/19/07 (click on above thumbnails to enlarge photos)
warranty

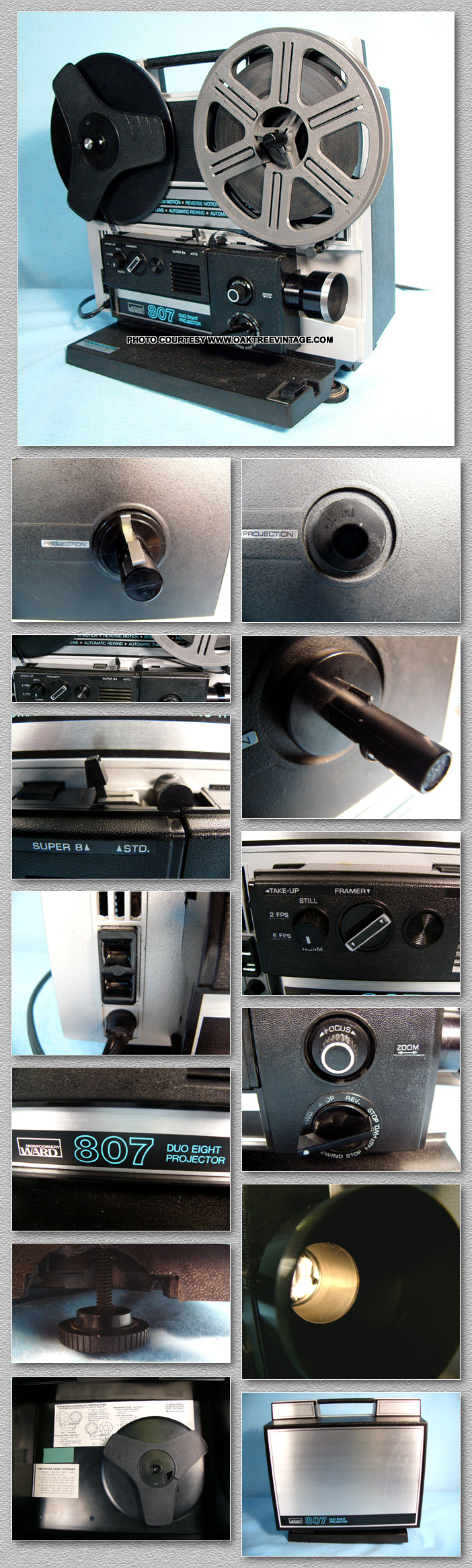

GAF

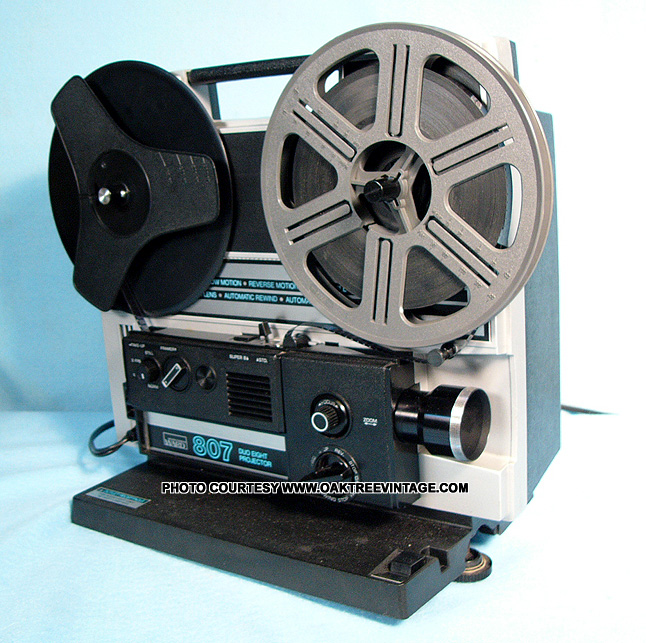

/ WARDS Model 807 FILM PROJECTOR SOLD 5/22/07
|
NEW ADDITION 12/6/07 (click on above thumbnails to enlarge photos)
warranty

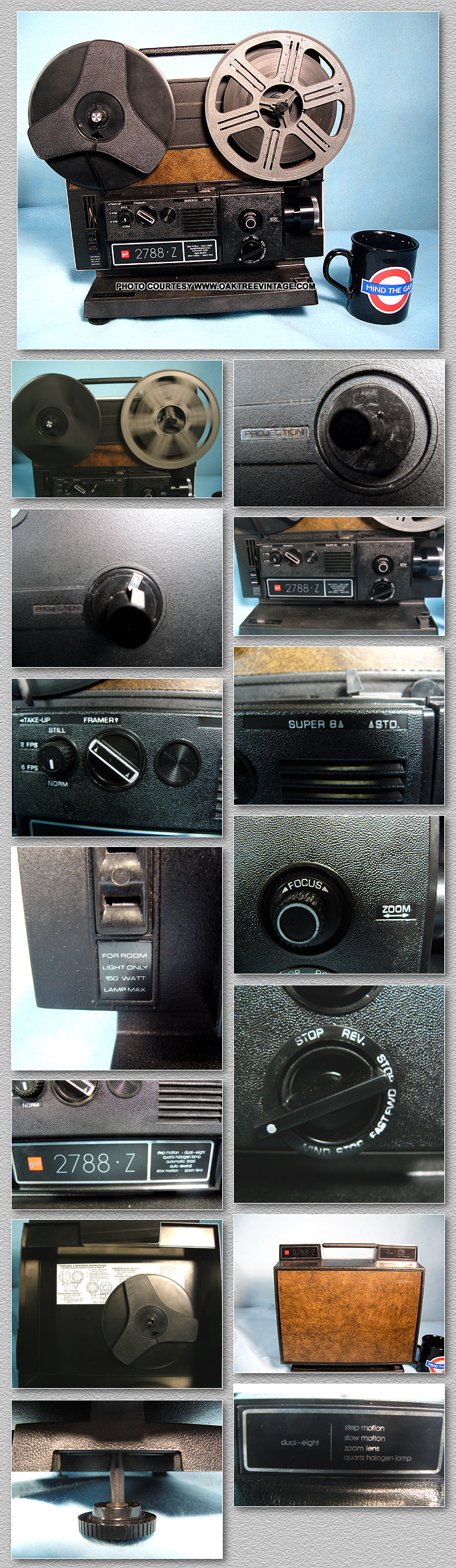

WARDS /
GAF Model

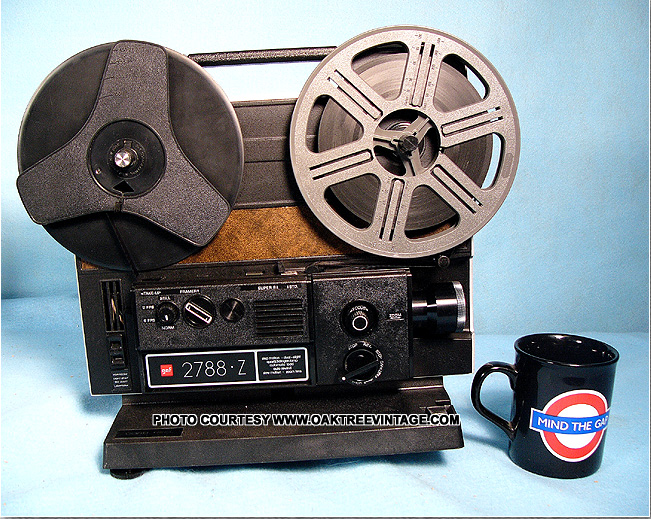

807 (GAF model 2788Z built for Wards) DUAL-8
PLAYS STANDARD & SUPER 8mm SILENT FILM PROJECTOR SOLD 1/2/08
|
(click on above thumbnails to enlarge photos)
warranty
GAF

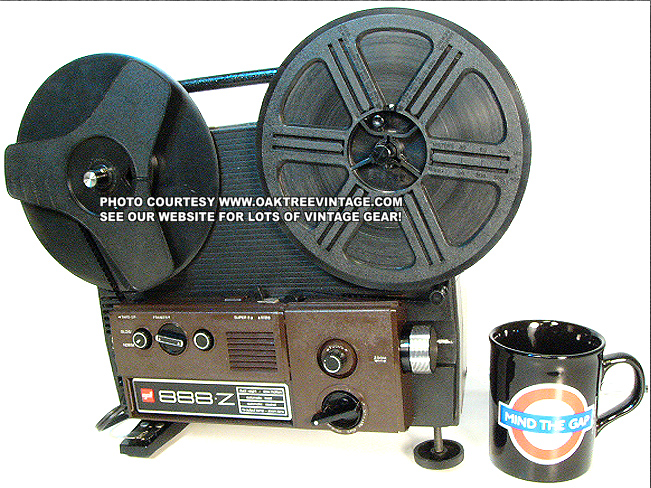

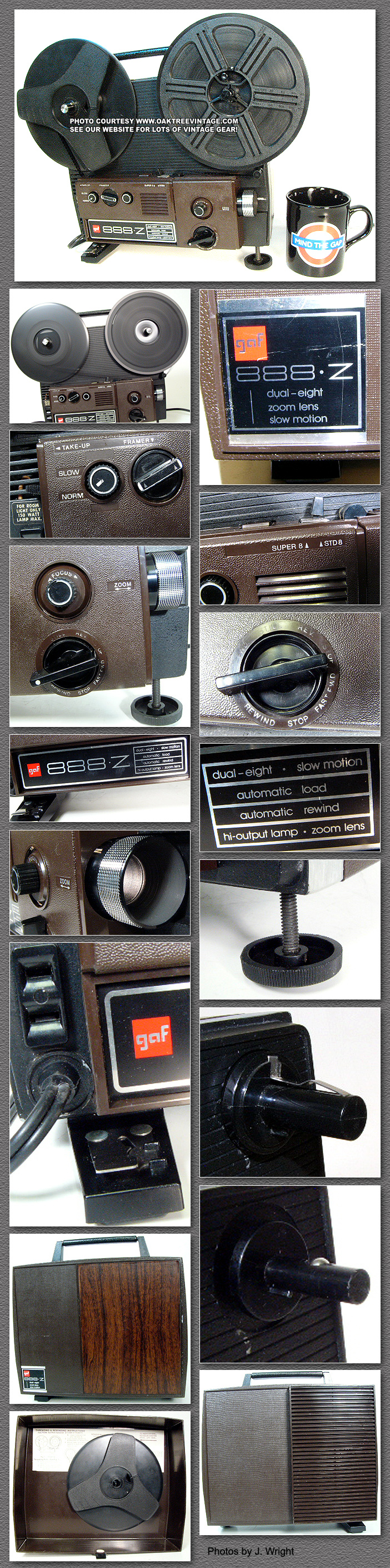

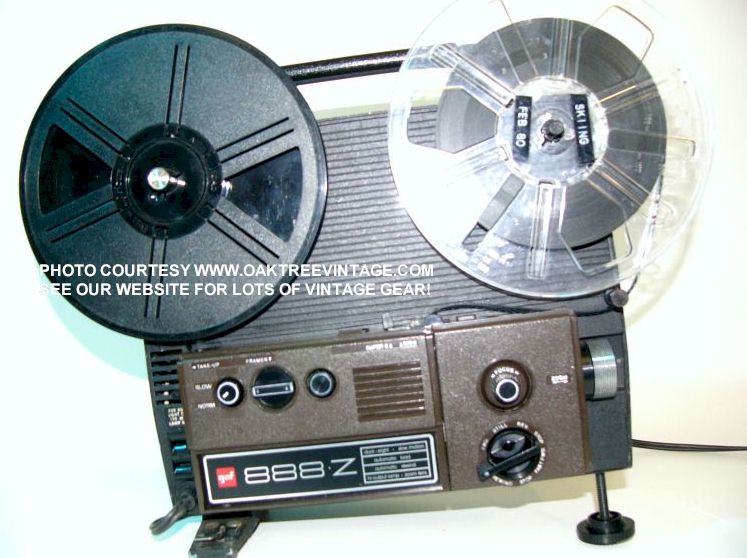

888Z / 438-M5Z #1611 DUAL-8
PLAYS STANDARD & SUPER 8mm SILENT FILM PROJECTOR
SOLD
|
(above collage
photos are of the GAF 2388Z. Same machine labeled for a different
market.)
NEW ADDITION
08/06/08
(click on above thumbnails to enlarge photos)
warranty
GAF
888Z / 438-M5Z #1611 DUAL-8
PLAYS STANDARD & SUPER 8mm SILENT FILM PROJECTOR
SOLD 8/29/08 WITH ZOOM LENS
|
NEW ADDITION
11/22/08
(click on above thumbnails to enlarge photos)
warranty
GAF
888Z / 438-M5Z DUAL-8
PLAYS STANDARD & SUPER 8mm SILENT FILM PROJECTOR
WITH ZOOM LENS MADE IN
USA
SOLD 11/22/08
If variable speed is needed, this projector could be used with our
Vari-Ac, shown above.
|
NEW ADDITION

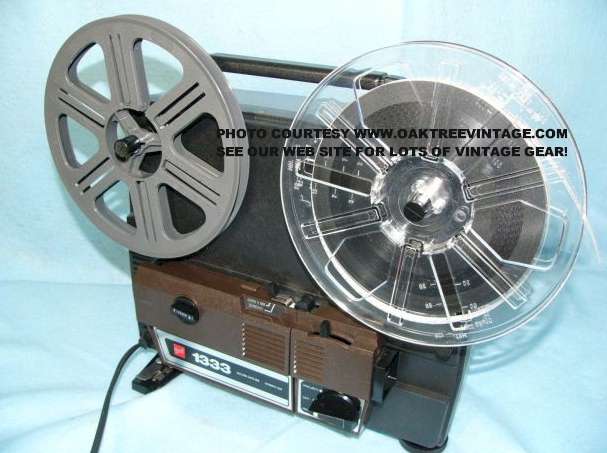

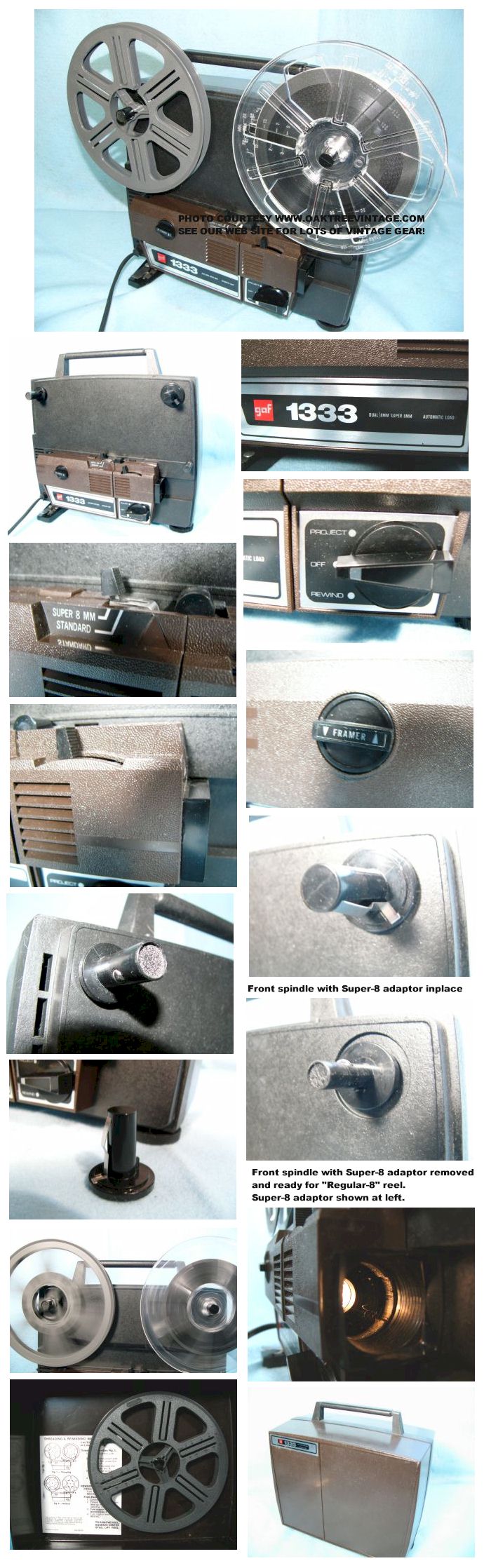

(click on above thumbnails to enlarge photos) GAF 1333 SUPER / STANDARD DUAL 8mm SILENT FILM
PROJECTOR
SOLD 2/17/05
|
NEW
ADDITION 2/18/09
(click on
above thumbnails to enlarge photos) GAF SUPER / STANDARD DUAL 8mm SILENT FILM
PROJECTOR MODEL
1333 #...3352
SOLD
2/20/09
|
NEW LISTING
3/14/18
(Click on above thumbnails to enlarge photos)
warranty
SERVICED / REFURBISHED AND READY TO GO GAF
DUAL 8mm FILM / MOVIE PROJECTOR

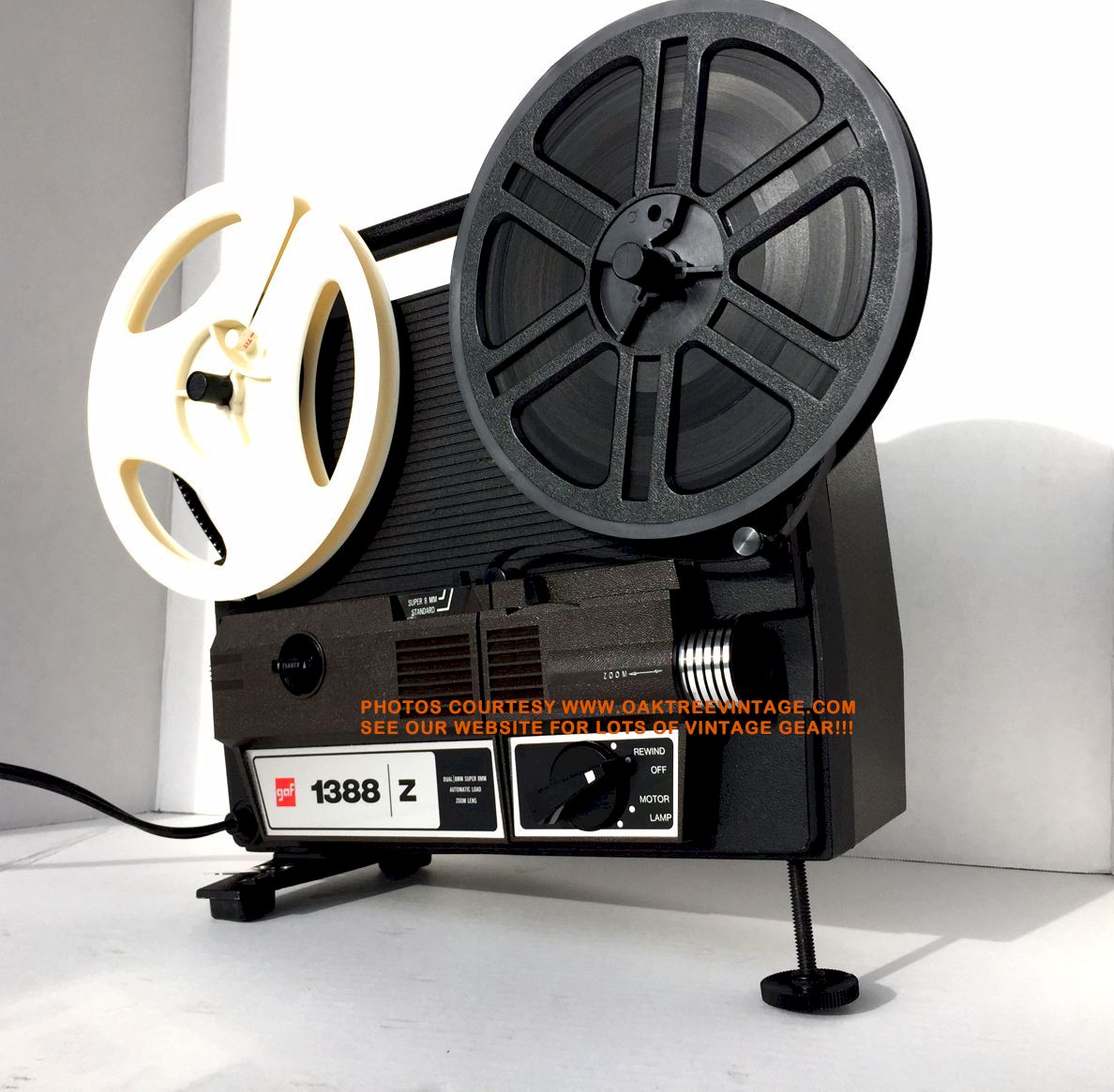

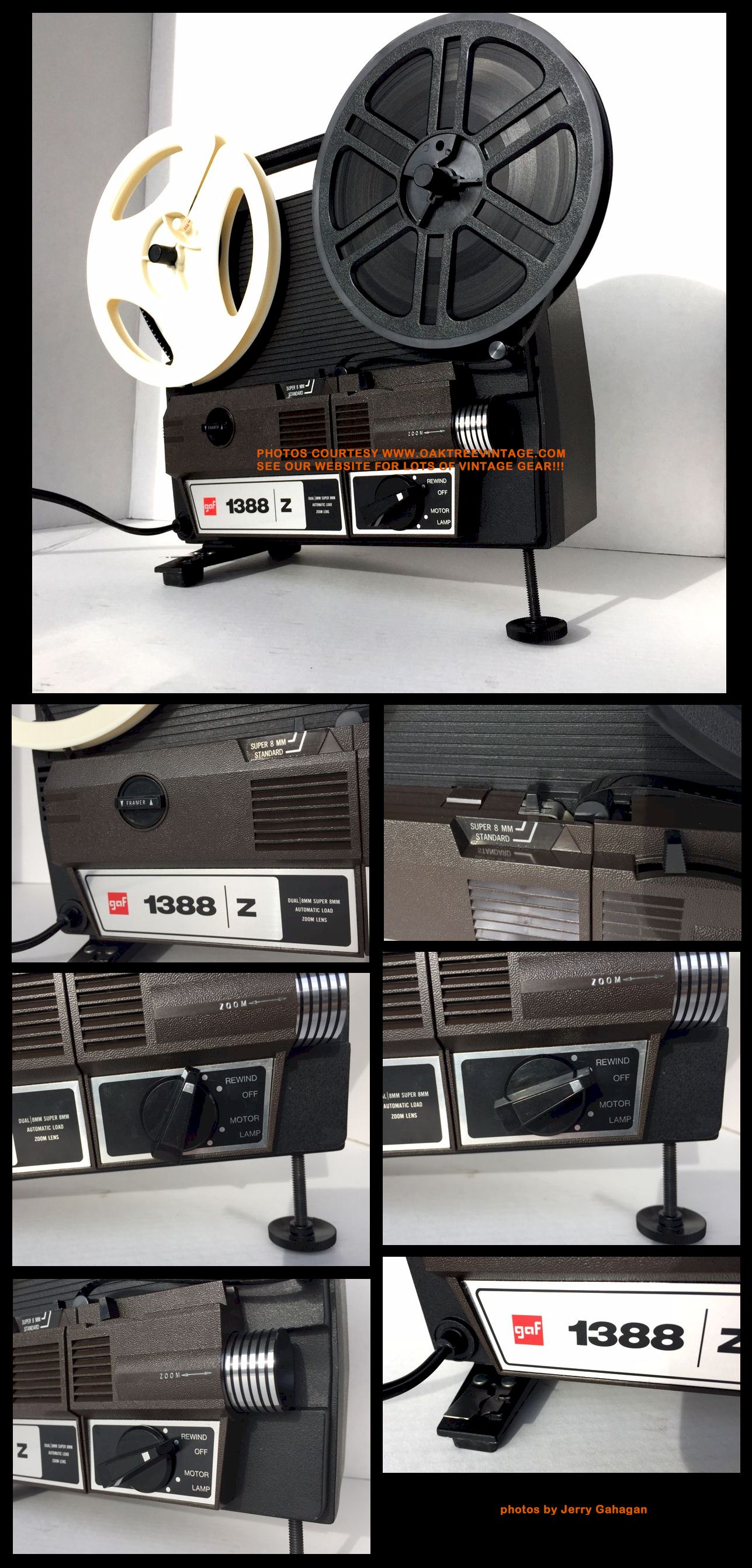

GAF 1388Z PLAYS STANDARD & SUPER 8mm
WITH
'FILM LOADED' REWIND AND ZOOM LENS SILENT FILM PROJECTOR
MADE IN AMERICA
SOLD 5/4/18 SHIPPING TO JUNE IN MONTANA
ü
Our technician has completely gone through and 'Certified' this
unit.
ü We
have
completely and extensively gone through the
mechanicals of this projector.
ü It
was disassembled internally for restoration including
all the drive
for cleaning and re-lubing
prior to disassembly.
ü Main
drive belt in perfect shape, and 'serpentine'
hub drive belt reconditioned for trouble-free
service.
ü Both
hub mechanisms checked for proper function. All 'free wheels' removed,
cleaned and re-lubed.
ü Rear
and Front hub tires
reconditioned.
ü Lens
track mechanism cleaned and re-lubed with silicone gel lube.
ü Lens
cleaned front and back as well.
ü 'Shuttle'
mechanism and associated cam cleaned and re-lubed, as well as the
eccentric framer mechanism.
ü Film
gate cleaned as well as film track.
ü Take-Up
reel clutch tension adjusted to not allow film to 'spill' during PB, but
TO allow Fast Re-Wind while film is still loaded thru film track.
ü Following
mechanical work, entire unit was cosmetically detailed inside and out.
ü Then
checked out all functions and made any necessary adjustments and
extensively tested with both Super 8 and Regular 8mm film. ____________________________
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
GAF 1388Z Projector Features:
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
- No expensive, difficult to adjust cloth belt drive system like the
more complicated GAF built projectors from this period. That is a HUGE
plus with the "Forward Only" GAF designs (again from this period).
This unit is ready to go. Looks and works great! Comes with take-up
reel,
lid / front cover,
1 reel hub adaptor for your Super 8mm reels, if you use them.
Includes an extra / spare projector bulb / lamp.
Also includes our standard 30 day limited warranty (excluding lamps /
bulbs). Measures 11" long x 6.5" deep x 9" tall and weighs 10 lbs
unpacked. Film shown in
photos not included. GAF 1388Z DUAL 8MM FILM PROJECTOR Cond. 8.5
$369.
SOLD 5/4/18 SHIPPING TO JUNE IN MONTANA
(Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|
NEW ADDITION 6/10/05 (click on above thumbnails to enlarge photos)

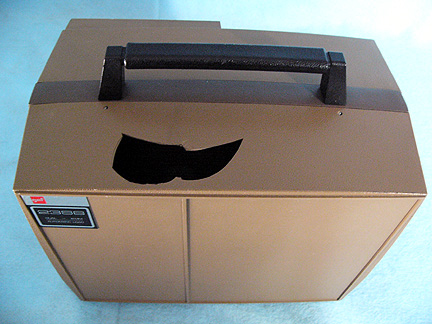

GAF Model
ANSCOVISION 2388 DUAL-8
PLAYS STANDARD & SUPER 8mm SILENT FILM PROJECTOR
SOLD 6/28/05
|
NEW ADDITION
(click on above thumbnails to enlarge photos)
warranty
GAF
Model 2388Z DUAL-8
PLAYS STANDARD & SUPER 8mm SILENT FILM PROJECTOR SOLD 4/2/07
|

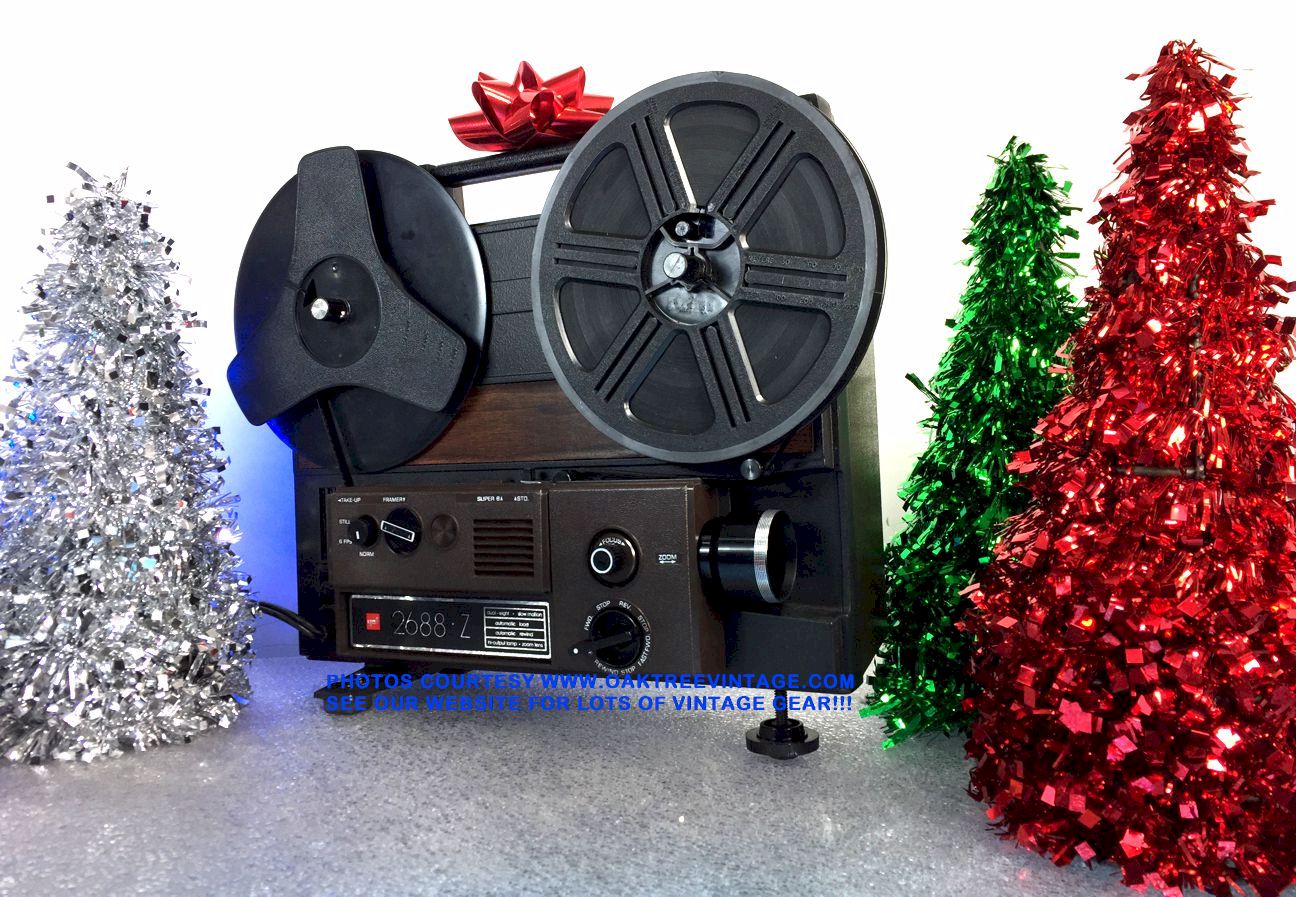

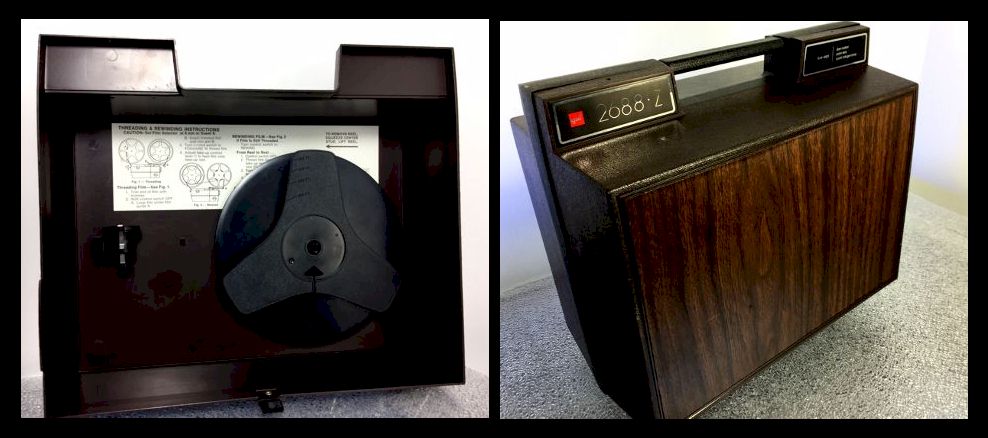

GAF 2688Z ARCHIVED
PHOTOS
|
|
|
NEW ADDITION
2/5/07 (click on above thumbnails to enlarge photos)
warranty
GAF
Model ANSCOVISION 2788Z DUAL-8
PLAYS STANDARD & SUPER 8mm SILENT FILM PROJECTOR
WITH ZOOM LENS
SOLD 2/7/07
|
NEW ADDITION
(click on above thumbnails to enlarge
photos)
warranty

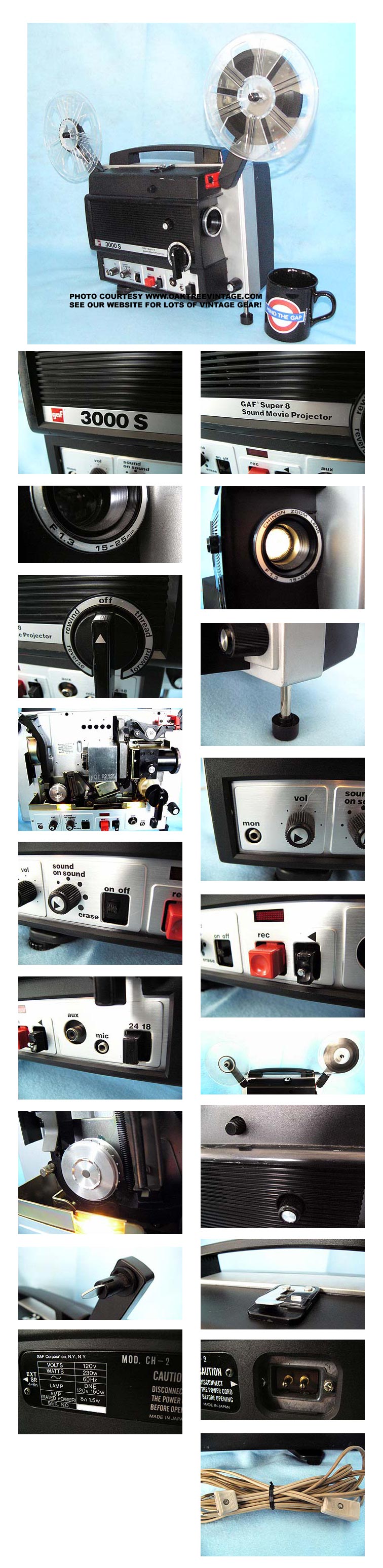

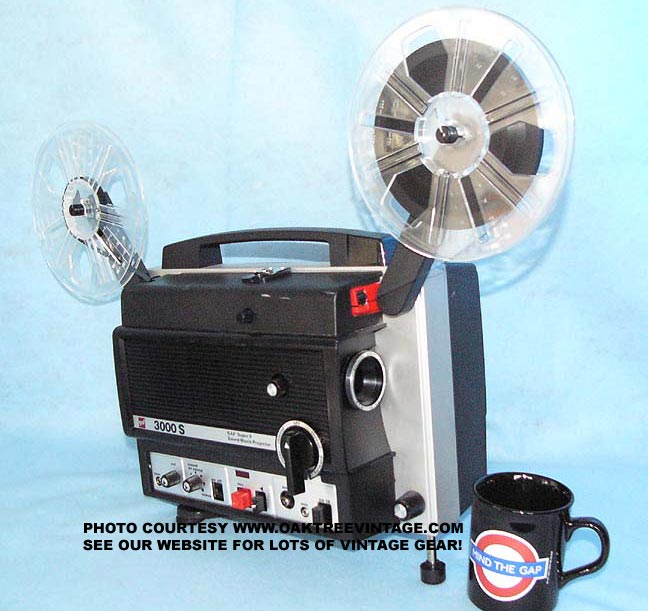

GAF 3000 S / CH-2 SUPER 8mm MAGNETIC
SOUND / FILM PROJECTOR WITH ZOOM SOLD 2/25/06
|
|
|
NEW ADDITION
11/13/07
(click on above thumbnails to enlarge photos)
GAF / EMDEKO EM-7000
DUAL-8
PLAYS STANDARD & SUPER 8mm SILENT FILM PROJECTOR
Made in USA
SOLD
11/26/07
|
NEW ADDITION 11/22/05
(click on above thumbnails to enlarge

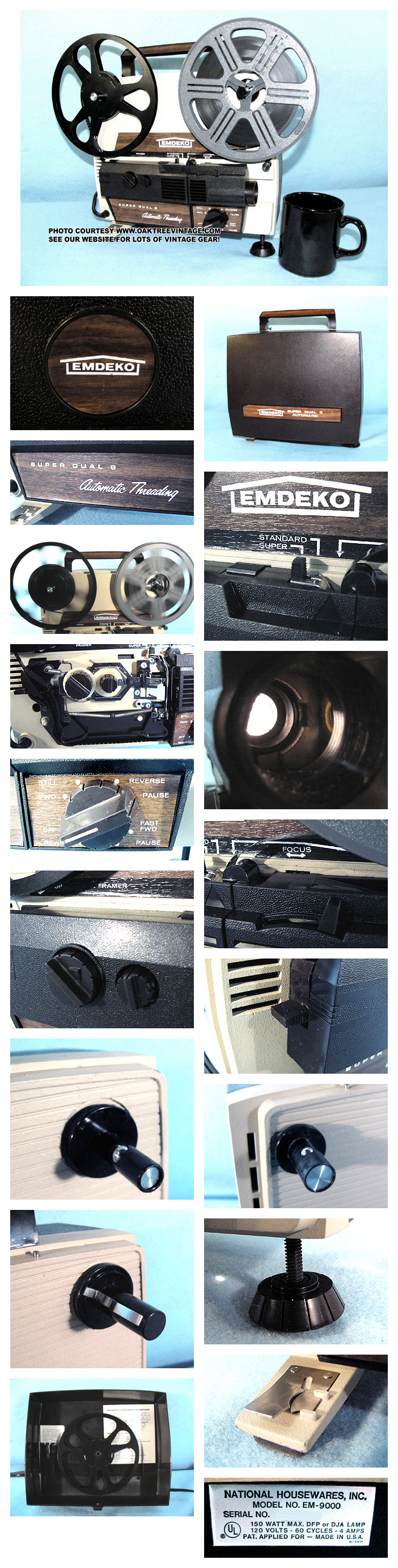

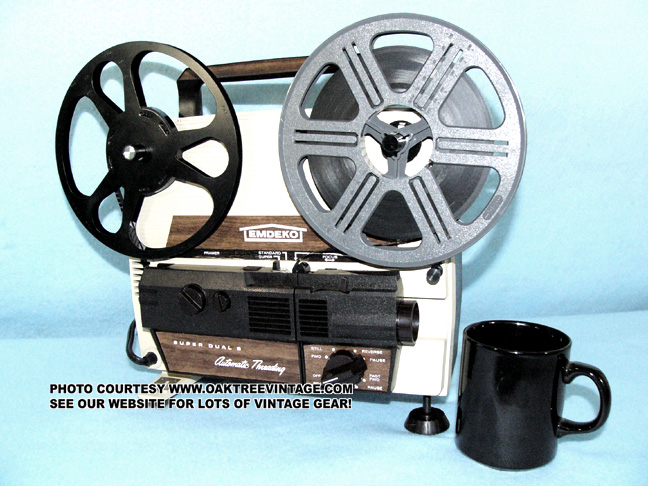

photos) GAF / EMDEKO EM-9000 SILENT FILM PROJECTOR
SOLD
12/21/05
|
Need your 8mm movie-film projector
repaired? Try this page...
|
NEW ADDITION
(click on above thumbnails to enlarge photos)

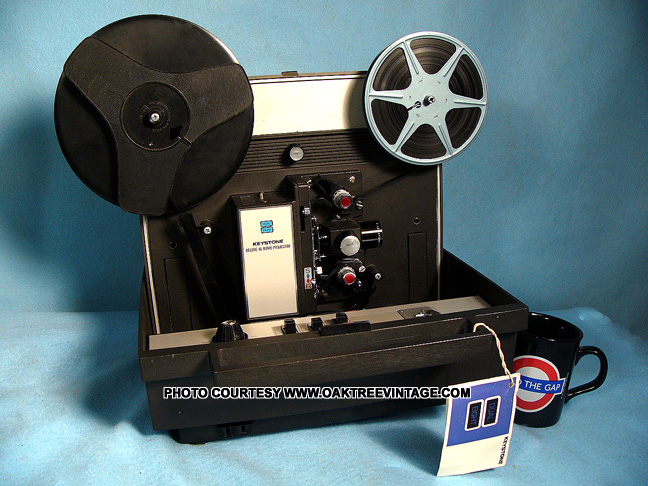

KEYSTONE MODEL
95
SUPER / REGULAR 8mm FILM
PROJECTOR
SOLD
11/5/07
WITH VARIABLE SPEED AS-IS
Selling for use with Regular 8-mm playback that
needs work. Unit does run, but frame "rolls" and flickers
intermittently. Internal drive systems all good. Chain type drive belts.
Comes with Regular 8mm sprockets only. Utilizes a KP-GT projector
bulb / lamp. Working original lamp is included, but remaining hours
unknown. AS-IS
$49.
SOLD
11/5/07
|
|
|
NEW ADDITION 8/31/05 (click on above thumbnails to enlarge photos)

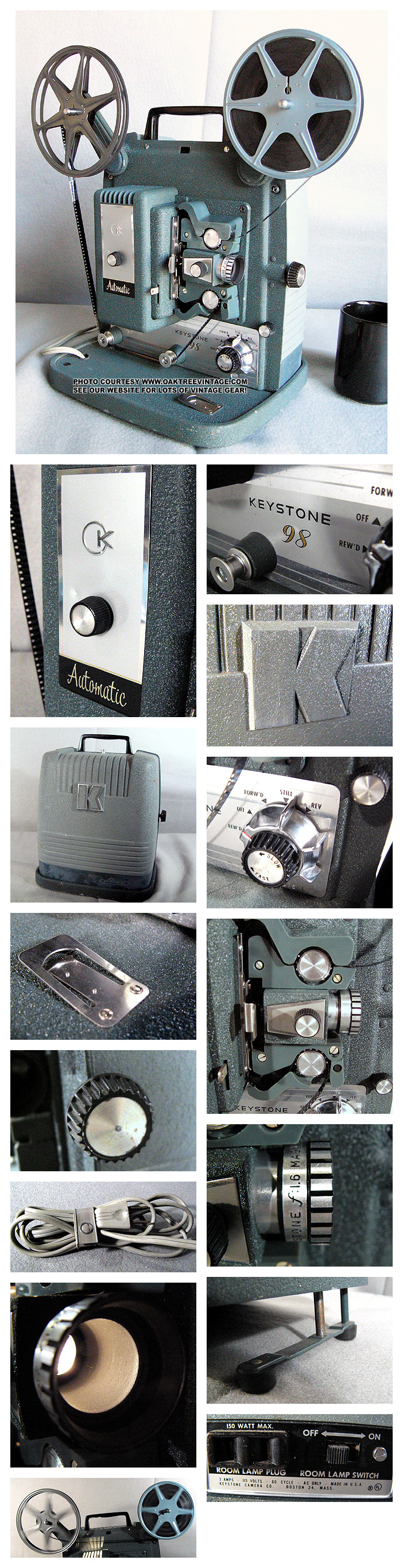

KEYSTONE Model 98
STANDARD 8mm SILENT FILM PROJECTOR WITH VARIABLE SPEED & REVERSE PLAY Great for copying / converting film to video / dvd transfers
SOLD 9/29/05
|
NEW ADDITION
11/13/07
(click on above thumbnails to enlarge photos)
KEYSTONE Model 98
STANDARD 8mm SILENT FILM PROJECTOR WITH
VARIABLE SPEED & REVERSE PLAY Great for copying / converting film to video / dvd transfers
SOLD
11/25/07
|
NEW ADDITION 3/3/05 (click on above thumbnails to enlarge photos)

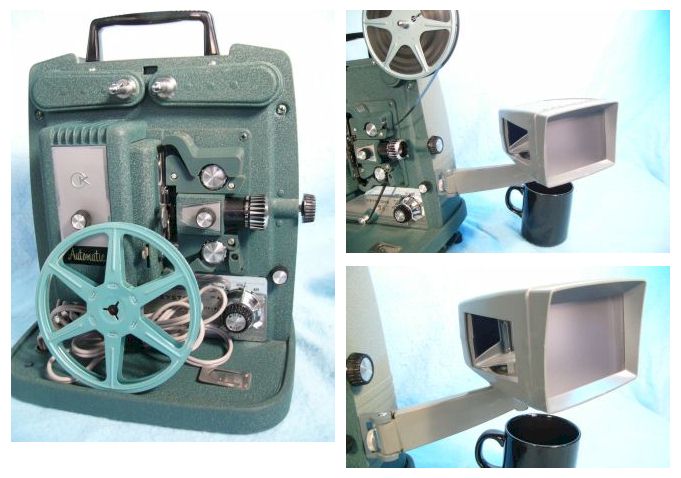

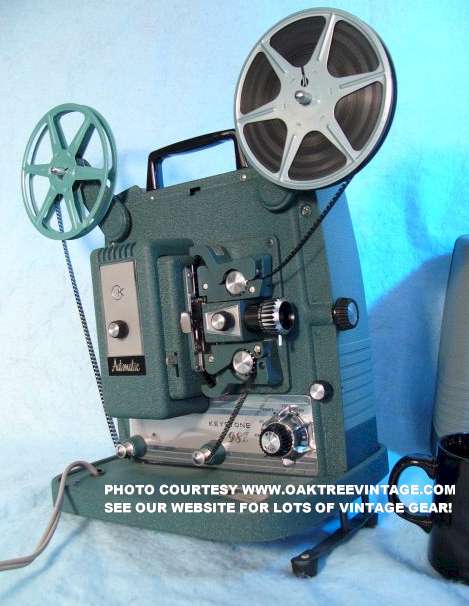

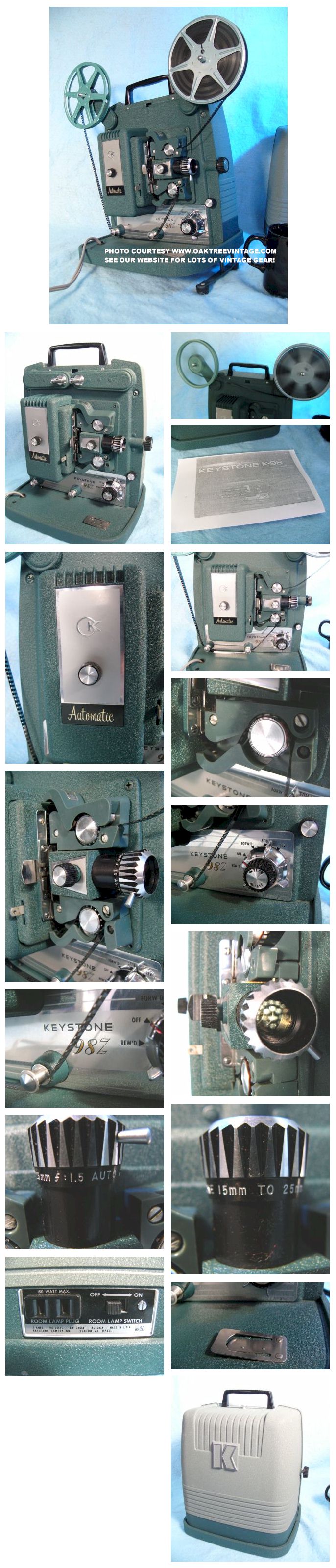

KEYSTONE Model 98Z STANDARD 8mm SILENT FILM PROJECTOR WITH VARIABLE SPEED, ZOOM LENS & REVERSE PLAY Great for copying / converting film to video / dvd transfers
SOLD 3/3/05
|
NEW ADDITION
8/23/11
(click
on above thumbnails to enlarge photos) ANTIQUE KEYSTONE 8MM FILM / MOVIE SILENT FILM PROJECTOR
C-18
C18
"Regular 8mm" Made in USA "As-Found" Condition
SELLING FOR HOME THEATER / MEDIA ROOM 'PROP' OR TO
RESTORE. CIRCA ~ 1939 SOLD TO MARC IN THE NETHERLANDS 5/10/12
This is a
great looking "Antique" 8mm film projector by Keystone. The model "C-18"
is likely from the WWII era.
(Sometimes referred to as 'Reel to Reel Film' projectors).
As it is only a
Regular-8mm projector, and is so early, we did not do any restoration on it
and are currently selling it for display / prop use in
'as-found'
condition. While this is in "As-Found" condition, we did fire it up and
the motor runs well
(not with the lamp on the entire time so as not to deduct from it's
remaining life, but the bulb is currently working).
It plays forward
with or without the lamp fine. When running it is
very precision sounding, and quiet.
Both original 'spring' belts in great shape with good tension
(this
projector actually only uses one belt and it is designed to have the belt
moved to either the forward or reverse pulley, depending on which direction
you need to go).
Now we realize that it has old lubes inside that should likely be
cleaned out and replaced, but it is surprisingly "spry" for a
70+ year old projector.
Could potentially work fine for many more years without doing anything to

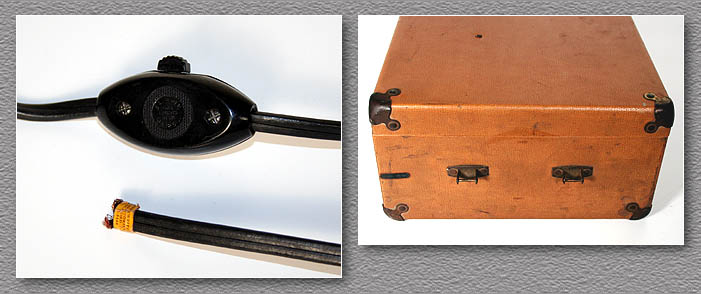

it. Even the original AC cord is still supple and not cracking apart
(we have removed the plug, to encourage restoration prior to use).
Utilizes,
CLS 120 volt, 300 watt
projection
bulb / lamp
(can utilize other lamps as well, such as a CMV bulb).
Base has built-in "Tilt" adjustment. Very well built metal
construction with greyish 'crinkle' finish.
Looks great!
Measures 15"
tall x
11" wide and weighs ~ 15 lbs
w/ case but unpacked. Comes with a 'take-up' reel, but
Film shown in
photos not included, but may sometimes be available
separately @ $40 ea. Keystone "C-18" 8mm
Film Projector. Great Prop
for your 'home theater' room, or to restore to use. Comes with case
shown in photos. Cosmetic Condition 8.5+ As-Is, but currently functioning "As-Found"
SOLD TO MARC IN THE NETHERLANDS 5/10/12
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|

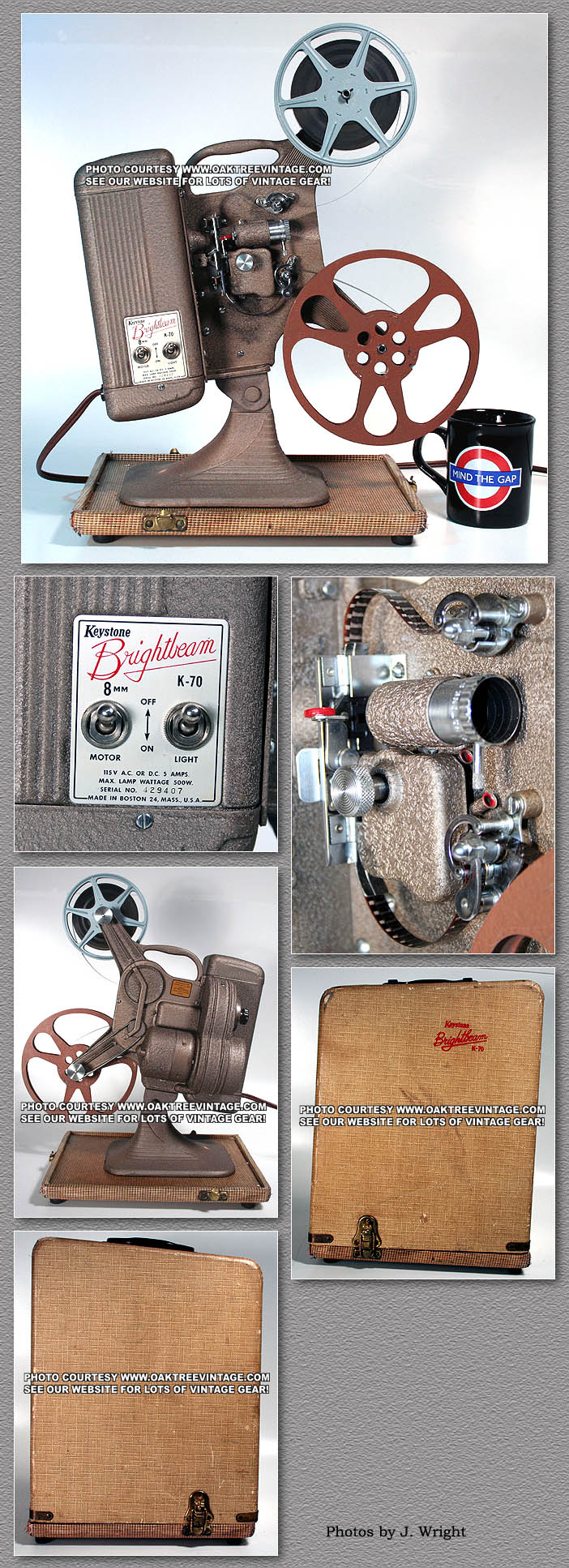

(click
on above thumbnails to enlarge photos) KEYSTONE
VINTAGE SILENT FILM PROJECTOR K-70
K70
"Regular 8mm" VARIABLE SPEED #...9407 Made in USA "As-Found" Condition
SELLING FOR HOME THEATER / MEDIA ROOM 'PROP' OR TO RESTORE.
CIRCA ~ 1950 SOLD TO MARC IN THE NETHERLANDS 5/10/12
This is a
great looking "Antique" 8mm film projector by
Keystone. The model "K-70"
is likely from the WWII era.
(Sometimes referred to as 'Reel to Reel Film' projectors).
As it is only a
Regular-8mm projector, and is so early, we did not do any restoration on
it and are currently selling it for display / prop use
in 'as found'
condition. While this is in "As-Found" condition, we did fire it up
(not with the lamp on the entire time so as not to deduct from it's
remaining life) and
the motor runs well. It plays
forward with or with-out the lamp fine. The variable speed control has
the most range we have ever seen on a projector going from VERY slow to
VERY fast which would actually make this a good candidate for doing film
to video transfers. When running it is very precision sounding, and
quiet. It will need a new 'spring' belt as it is a
bit stretched for 'forward' motion (this projector actually only uses
one belt and it is designed to have the belt moved to either the forward
or reverse pulley, depending on which direction you need to go)
Now we realize that it has old lubes inside that should likely be
cleaned out and replaced, but it is surprisingly "spry" for a 60 year
old projector. Could potentially work fine for many more years without
doing anything to it. Even the original AC cord is still supple and not
cracking apart. Lens specs as follows: 'Somco' brand,
f:1.6, 1 inch. Utilizes, 120 volt, 500 watt projection
bulb / lamp. Base
has built-in "Tilt" adjustment. Very well built metal
construction with bronze 'crinkle' finish.
Looks great! Once restored (or at least given a
'clean bill of health) would be great for doing Super 8mm film to video transfers as it has
variable speed and the speed on this one is adjustable over a VERY
wide range! Measures 12" tall x 8" wide and weighs ~ 15 lbs unpacked.
Comes with a 'take-up' reel, but Film shown in photos not included, but may
sometimes be available separately @ $40 ea. Keystone "K-70" 8mm
Film Projector. Great Prop
for your 'home theater' room, or to restore to use. Cosmetic Condition
8.5+ As-Is, but currently functioning "As-Found"
SOLD TO MARC IN THE NETHERLANDS 5/10/12
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
NEW ADDITION
3/9/11
(click
on above thumbnails to enlarge photos)
warranty

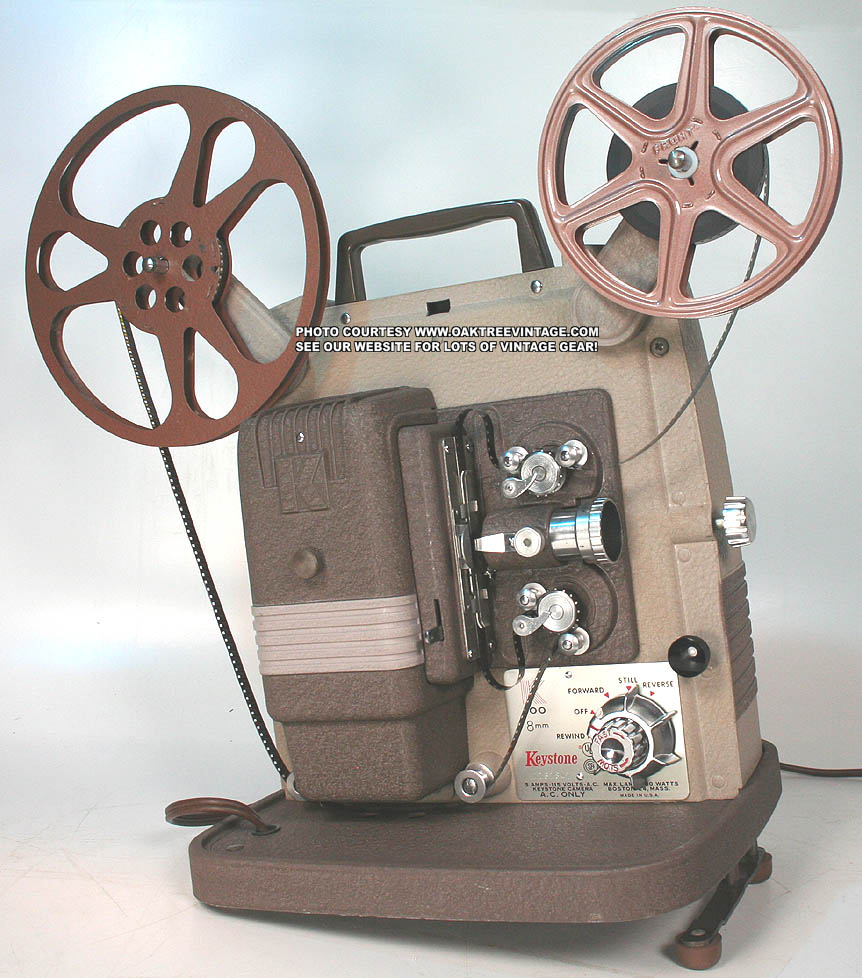

KEYSTONE
8mm FILM
PROJECTOR SILENT

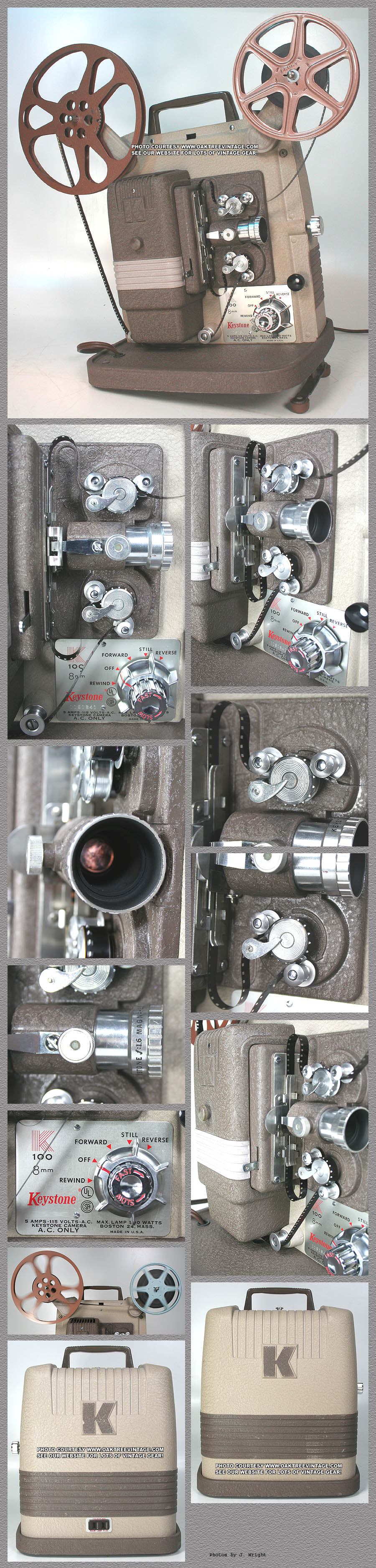

KEYSTONE K-100 / K100 #...1841 VARIABLE SPEED STANDARD 8mm
MANUAL
LOADING Made in USA
SOLD 4/12/11
|
(click on above thumbnails to enlarge photos)
warranty
KEYSTONE SILENT FILM
PROJECTOR
Model
K-540
ARCHIVAL PHOTO
ONLY
|
NEW ADDITION 9/14/12 (click on
above thumbnails to enlarge photos)
warranty

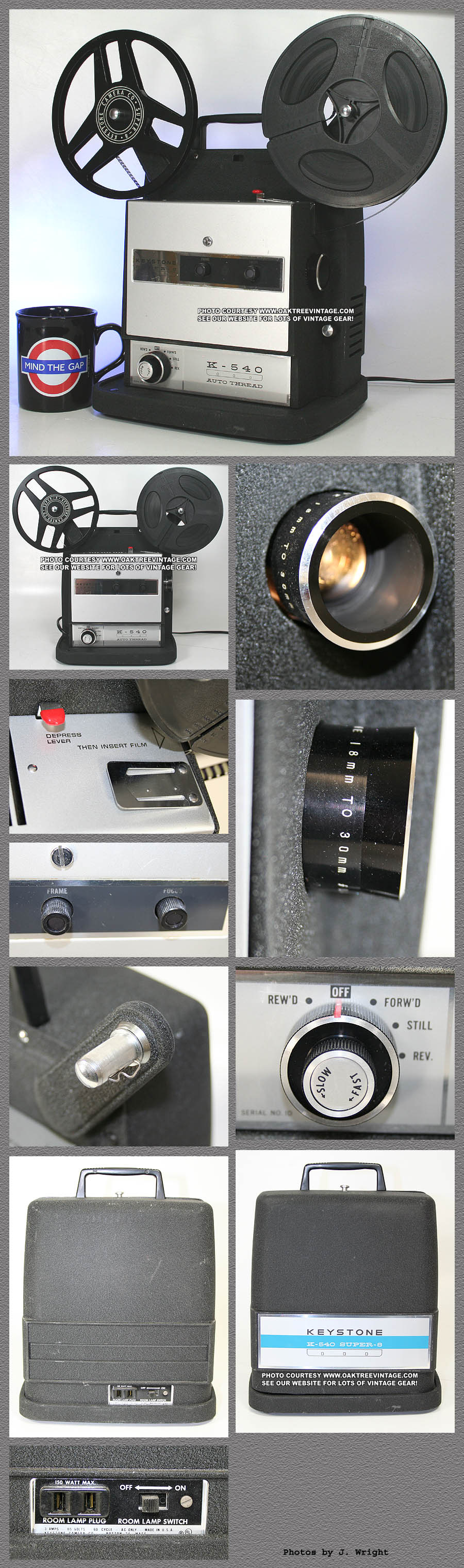

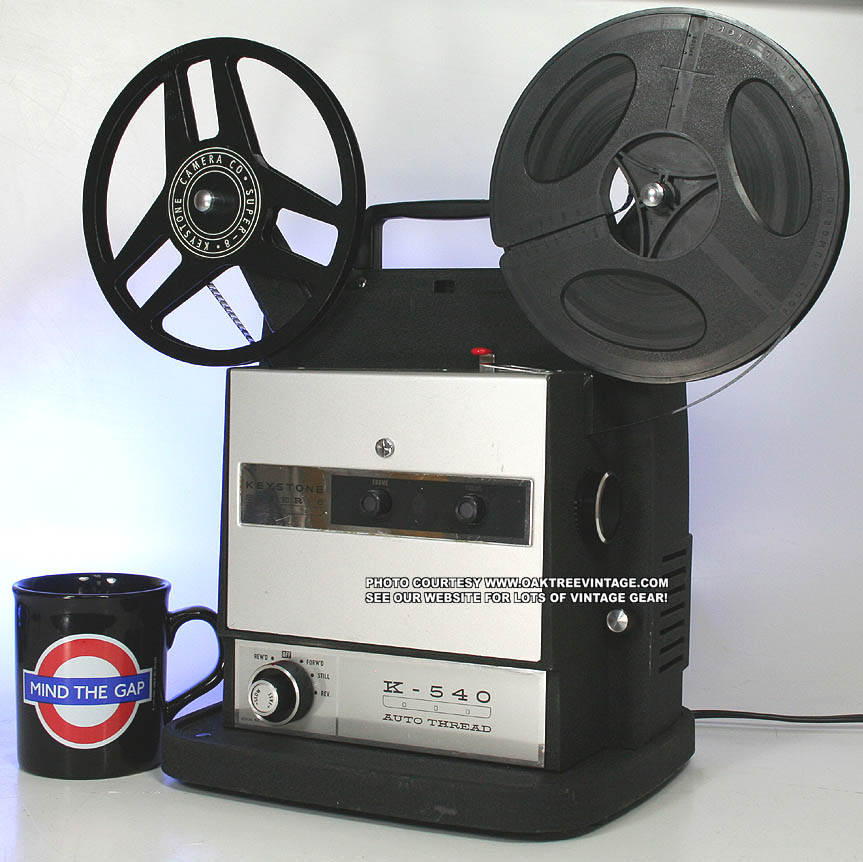

KEYSTONE 8mm FILM PROJECTOR VARIABLE SPEED SUPER-8mm KEYSTONE K-540 / K540 #...2209 SILENT MANUAL LOADING Made in USA
SOLD 9/17/12 SHIPPED TO TEXAS VERY
WELL BUILT, all metal construction, Keystone, model K-540
Super-8mm, Variable Speed
movie film / cine projector. We love working on Keystone projectors as they
are generally...
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
Fully Manual Loading!... Also very importantly, features...
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
Variable Speed projection rate for
flicker-free video transfers!
...
model DFG 120 volt,
150 watt projection lamp. One installed prior to
shipment. Front adjustment foot allows for ~1.5" of height angle adjustment.
Very well built all metal construction. We have completely gone through this
projector. It was approximately 70% disassembled internally for restoration,
including both reel arms and their internal transmissions. Both hub
drive clutches had the shafts pulled, cleaned and
re-lubed (prior to that they are almost always frozen due to "varnished"
lube). This particular model utilizes very smartly designed clutches which
is about the best design and virtually trouble-free with their fresh
cleaning and lube. Motor bushings lubed. Surface of the shutter wheel
cleaned of old rubber residue. Both drive chains removed, 'soak'
cleaned and re-lubed w/ silicone grease.
We also disassembled both reel arms completely, removed, cleaned and
re-lubed all 6 arm gears. All main drive chain
gears cleaned and re-lubed. We checked out all functions and made any
necessary adjustments and lubed internal drive assembly including all
internal 'worm' drive gears with silicon lube. New main,
cloth drive drive belt ordered and installed.
New & fresh shutter flywheel belt installed.
Balance of projector is "chain drive" with no rubber parts to fail. The
motor in this unit does not utilize a...
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
...Again, this unit had
extensive restoration (about 8 hours)
and came out GREAT!!! This unit is ready to go. Looks decent, with minor finish scuffs
and works great! This would be a
good "work horse" for a film transfer house. Comes with a metal take-up
reel as well as projection lamp. Also includes our standard 30 day
limited warranty (excluding lamps / bulbs). Measures 8.25" wide x 8.5" deep
x 14" tall (with film arms folded) and weighs 13 lbs unpacked.
Film shown in photos not
included. KEYSTONE K-540 Super-8mm Film Projector
SOLD 9/17/12 SHIPPED TO TEXAS
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|
NEW ADDITION
09/26/08
(click on above thumbnails to enlarge photos)
warranty
KEYSTONE SILENT FILM
PROJECTOR
Model
K-980S
K980S
#...7671 STANDARD
8mm
WITH VARIABLE SPEED
&
ZOOM LENS
Great for copying / converting film to video / dvd transfers SOLD 12/9/08
|
NEW ADDITION
12/15/08
(click on above thumbnails to enlarge photos)
warranty
KEYSTONE SILENT FILM
PROJECTOR
Model
K-980S
K980S
#...4814N STANDARD
8mm
WITH VARIABLE SPEED
&
ZOOM LENS
Great for copying / converting film to video / dvd transfers SOLD 12/19/08
|
NEW ADDITION
2/5/07 (click on above thumbnails to enlarge photos)
warranty
KEYSTONE Model 980
STANDARD 8mm SILENT FILM PROJECTOR WITH VARIABLE SPEED & REVERSE PLAY
Great for copying / converting film to video / dvd transfers
SOLD 2/7/07
|
-
|
NEW ADDITION
11/17/04 (click on above thumbnails to enlarge photos)
KODAK "SHOWTIME-8" STANDARD 8mm SILENT FILM PROJECTOR
SOLD
11/17/04
|
NEW ADDITION (click on above thumbnails to enlarge photos)
warranty
KODAK DU-ALL EIGHT
"INSTAMATIC" M110 SOLD 1/30/06
|
NEW ADDITION 3/1/06 (click on above thumbnails to enlarge photos)
KODAK "MOVIEDECK" MODEL 475
SOLD 3/17/06
DUAL-8
PLAYS STANDARD & SUPER 8mm FILM
PROJECTOR
Selling As-Is for restoration, repair or parts.
Typical of "running-eb_y" units. Not up to our standards.
Lamp / projector bulb
and
motor works and spindles turn. Original main projector belt intact, and
currently working, but unknown for 'how long'. Seems complicated to use. Was not worth our
time to research. Might be a fine projector, but we have "bigger fish to
fry". AS-IS
$45.*
SOLD 3/17/06
*Price will increase
following any additional work / research / testing.
|
(click on above thumbnails to enlarge photos)
KODAK "EKTASOUND" MODEL 245B
DUAL-8
PLAYS STANDARD & SUPER 8mm FILM
PROJECTOR
SOLD 9/26/08
Selling As-Is for restoration, repair or parts. Typical of "running"
fleeeeb_y
units.
Definitely has run issues. Not up to our standards.
Lamp / projector bulb and motor works and spindles turn.
Original main projector belt intact, and
currently working, but unknown for 'how long'.
Seems to need frame adjustment.
AS-IS
$45.*
SOLD 9/26/08
*Price will increase
following any additional work / research / testing.
|
NEW
ADDITION
9/9/11
(click
on above thumbnails to enlarge photos)
warranty
KODAK DUAL-8 SILENT FILM PROJECTOR SUPER-8mm & REGULAR 8mm
M77 #...9090 AUTO LOADING GREAT 'PREVIEW' PROJECTOR Made in USA
SOLD 9/10/11
|
KODAK
INSTAMATIC M50 8mm SILENT FILM PROJECTOR
REFERENCE PHOTOS ONLY.
(NOT
WORTH OUR RESTORATION TIME)
|
NEW
ADDITION
6/18/10
FUNCTIONING /
"As-Found"
KODAK
INSTAMATIC M65A "DUAL-8"
PLAYS STANDARD & SUPER 8mm SILENT FILM PROJECTOR
SOLD 12/2/11 NORMALLY,
all of our film projectors are restored to a condition that they should work
for the 'long haul'. We
made an exception on this one at this point, due to it having a film / reel
capacity of only 200 feet / 5" diameter. This drastically reduces it's
potential market. We have ran a couple reels of each regular 8mm and
Super-8mm film through it (with the lamp removed to conserve lamp life). It
ran those reels perfectly well. It is an 'Auto-Load' unit that loads well.
The belt seemed to be reliable upon initial observation. We did not open the
unit further than allowing access to the lamp. Utilizes model
DJL
/ DFN / DFC / DFG / DFA 120V
/ 150W
projection bulb / lamp. Will play Regular & Super-8mm
films. Will project at normal 18fps. Projects 'Forward'
only and always with lamp 'ON'. Very easy to use and works well.
Again, we have NOT restored this unit for the reasons
mentioned above, but are offering it at 2 different price levels*.
As-Is / As-Found, but functioning or with our normal restoration.
Looks and currently projects film well!
Comes with 1, permanently attached, 200' / 5"
take-up reel, 1 reel hub adaptor for your Super 8mm reels, if you use them.
Has original and working (prior to shipping) lamp
already installed. Includes lid / front cover.
Measures 12.5" long x 6" deep x 13" tall and
weighs 7 lbs unpacked.
Film shown in photos not
included. KODAK 'Instamatic' M65A Cond.
"Unrestored"
If
we restore / refurbish - $329.*
OR
As-Is,
currently functioning - $159.
SOLD 12/2/11
*Restoration would take up to 30 days from time
of order.
|
|
(click on above thumbnails to enlarge
photos)
warranty
MINOLTA "SOUND" 6000
SUPER-8mm MAGNETIC SOUND / FILM / MOVIE PROJECTOR WITH ZOOM &
MODIFIED FOR VARIABLE SPEED!!! Great for copying / converting film to video / dvd transfers
SOLD 2/7/07
|
|
|
NEW
ADDITION
7/20/09
(click on
above thumbnails to enlarge photos)
REVERE
VINTAGE 1945 SILENT FILM PROJECTOR "Regular 8mm"
VARIABLE SPEED #...1068 Made in
USA "As-Found" Condition SOLD 10/26/09
|
NEW ADDITION
8/23/11
(click
on above thumbnails to enlarge photos)
ANTIQUE
REVERE SILENT FILM PROJECTOR "Regular 8mm"
MODEL 'EIGHT' / 85 VARIABLE SPEED
#...0297 Made in USA "As-Found" Condition
SELLING FOR HOME THEATER / MEDIA ROOM 'PROP' OR TO
RESTORE. CIRCA 1945-47 SOLD TO MARC IN THE NETHERLANDS 5/10/12
This is a
great looking "Antique" 8mm film projector by Revere. The model
"85" and this one is just "post war" and dates from 1945. As it is only
a Regular-8mm projector, and is so early, we did not do any restoration
on it and are currently selling it for display / prop use with unknown
condition. While this is in "As-Found" condition, we did fire it up and
run a 200' reel of film through it
(not with the lamp on
the entire time so as not to deduct from it's remaining life). It
plays forward with or with-out the lamp fine. The variable speed control
has the most range we have ever seen on a projector going from VERY slow
to VERY fast which would actually make this a good candidate for doing
film to video transfers. When running it is very precision sounding, and
quiet. Now we realize that it has old lubes inside that should likely be
cleaned out and replaced, but it is surprisingly "spry" for a 60 year
old projector. Could potentially work fine for many more years without
doing anything to it. Even the original AC cord is still supple and not
cracking apart. Lens specs as follows: f:1.6, 1 inch
and is clear. Utilizes model CZX, 120
volt, 500 watt projection lamp. Base has built-in "Tilt" adjustment.
Very well built metal
construction. Looks great! Great for doing Super 8mm film to video
transfers as it has variable speed and the speed on this one is
adjustable over a VERY wide range! Comes with original, lamp installed, a copy of
the users manual and it's original case. Measures 12" tall x 8" wide
and weighs ~ 15 lbs unpacked.
Comes with a 'take-up' reel, but Film shown in
photos not included, but may sometimes be available
separately @ $40 ea. REVERE "85" 8mm Film Projector for Prop Cosmetic Condition
8.5+++ As-Is, but currently functioning "As-Found"
SOLD TO MARC IN THE NETHERLANDS 5/10/12
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|
NEW ADDITION
12/21/08
(click on above
thumbnails to enlarge photos)
warranty
SANKYO
"DUALUX-8" VARIABLE SPEED SUPER*
8mm SILENT FILM PROJECTOR W/ AUTO LOADING
Made in Japan
SOLD 1/7/09
|
NEW
ADDITION 7/20/09
(click on
above thumbnails to enlarge photos)
warranty
SANKYO "DUALUX-1000"
VARIABLE SPEED REGULAR AND SUPER 8mm SILENT FILM PROJECTOR W/ AUTO LOADING AND ZOOM LENS
#...6612 Made in Japan
SOLD 9/8/09
|
|
NEW ADDITION ((click on above thumbnails to enlarge
photos) SANKYO SOUND 500 SOLD 9/28/05
|
(click on above thumbnails to enlarge
photos) SANKYO SOUND 500
SOLD 8/16/04
|
NEW ADDITION
((click on above thumbnails to enlarge
photos) SANKYO SOUND 500 SOLD 10/6/05
|
NEW ADDITION 8/30/07 (click on above thumbnails to enlarge
photos)
warranty
SANKYO SOUND 600 SUPER 8mm / SINGLE 8mm MAGNETIC
SOUND / FILM PROJECTOR
SOLD
9/7/07
|
-
|
(click on above thumbnails to enlarge
photos) SANKYO SOUND 600
SOLD 8/9/04
|
NEW ADDITION (click on above thumbnails to enlarge photos)
SEARS DU-ALL EIGHT Model 584-92040 SUPER / STANDARD
DUAL 8mm SILENT FILM PROJECTOR WITH ZOOM LENS
SOLD 12/20/04
|
NEW
ADDITION 5/21/07 (click on above thumbnails to enlarge photos)
warranty
SEARS "SUPER AUTOMATIC" Model 584.92880
VARIABLE SPEED!!! STANDARD-REGULAR
8mm SILENT FILM PROJECTOR
WITH ZOOM LENS
SOLD 6/21/07
|
NEW ADDITION
(click on above thumbnails to enlarge photos)
warranty
SEARS
SUPER 8mm SILENT FILM PROJECTOR
MODEL 813.92220 SOLD 1/2/08
(Again for the technically minded, one interesting
design feature about this unit is that the motor and lamp are both 120
volts and wired independently, so it would be possible for a tech to
install a variable speed control or variable speed control access for
doing better film to video transfers! (only recommended for a qualified
tech to do)
|
NEW ADDITION
08/06/08
(click on above thumbnails to enlarge photos)
warranty
GAF
/ SEARS "DU-ALL" 9230 #4974
DUAL-8
PLAYS STANDARD & SUPER 8mm SILENT FILM PROJECTOR
WITH ZOOM LENS MADE IN
USA
SOLD 9/18/08 To University of Central Florida
If variable speed is needed, this projector could be used with our
Vari-Ac, shown above.
(above collage
photos to right are of the GAF 2388Z. Same machine labeled for a different
market.)
|
|
|
SEKONIC REGULAR-8 30-J FILM PROJECTOR
|
NEW ADDITION 9/13/11 (click on above
thumbnails to enlarge photos)
warranty
SEKONIC 8mm REGULAR-8 FILM PROJECTOR MODEL
SEKONIC 30-J SILENT VARIABLE SPEED STANDARD 8mm ZOOM LENS MANUAL / SEMI-AUTO LOADING #...0414 "WORLD AC
POWER" ™ Made in Japan SEKONIC 30 J Cond. 9
SOLD 10/11/11
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
NEW
LISTING
4/1/16 (click
on above thumbnails to enlarge photos)
warranty
THIS PROJECTOR IS LIKE NEW!!!!!!!!!!!
RESTORED AND READY TO GO SEKONIC
8mm REGULAR-8 FILM PROJECTOR MODEL SEKONIC 30-J SILENT
VARIABLE SPEED
ZOOM LENS
MANUAL / SEMI-AUTO LOADING #...0414 "WORLD AC POWER"
™ Made in Japan
SOLD 12/2/16
SHIPPED
TO NEW YORK VERY
WELL BUILT, all metal construction, Sekonic, model '30-J', Regular 8mm
movie film / cine projector. This is a very...
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
Utilizes model DCA 21.5 volt, 80
watt projection lamp
(Fresh one installed prior to shipment). Sekonic 30-J
Features:
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT? Front adjustment foot allows for ~1.5" of height angle adjustment. Very
well built, 'all metal' construction. We have completely gone
through this projector. It was approximately 80% disassembled internally
for restoration including the drive motor for re-lubing. Both hubs had
the shafts pulled, cleaned and re-lubed (prior to that they are almost
always frozen due to "varnished" lube). Hub clutch, completely
dismantled, cleaned and re-lubed. This particular model utilizes very
smartly designed clutches which is about the best design and virtually
trouble-free with their fresh cleaning and lube. Motor disassembled,
cleaned and bushings lubed. Main drive belt and both hub drive belts
replaced with new. The main drive worm / cog gears cleaned and re-lubed.
We checked out all functions and made any necessary adjustments. Only
minor issue with unit is that when 'rewinding' longer films, it get's a
bit sluggish towards the end and may need to be 'helped' along with
larger reels (fairly common issue with a variety of machines,
regardless of restoration).
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
Again, this
unit had extensive restoration (about 7 hours) and came out
GREAT!!! This unit is ready to go. Looks and works great! This would be
a good "work horse" for a film transfer house. This one includes the
original case, box and accessories. Comes with a metal take-up reel,
a copy of the instruction manual, an EXTRA
projection lamp / bulb (DCA), as well as a
NEW / FRESH DCA 21.5V / 150 Watt projection lamp. Also
includes our standard 30 day limited warranty (excluding lamps / bulbs).
Measures 10" wide x 7" deep x 11" tall (with film arms folded) and
weighs ~13 lbs unpacked. Film shown in photos not included. SEKONIC 30 J Cond. 9
(C)
F.W.C.
SOLD 12/2/16
SHIPPED
TO NEW YORK
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
NEW ADDITION
10/01/08
(click on above thumbnails to enlarge photos)
warranty
VERNON SUPER-8 FILM PROJECTOR
Model
S-500
S-500 Super
8mm SILENT FILM
PROJECTOR
WITH VARIABLE SPEED
&
ZOOM LENS
SOLD 10/6/08
|
|
|
NEW ADDITION
5/25/07
(click on above thumbnails to enlarge photos)
warranty
VIVITAR MODEL 733A
/ 733 A DUAL 8mm SILENT FILM PROJECTOR WITH VARIABLE SPEED! ZOOM LENS & REVERSE PLAY
"FILM TO VIDEO MONSTER"!
SOLD 5/26/07
|
NEW
ADDITION 2/7/12 (click
on above thumbnails to enlarge photos)
warranty
VIVITAR DUAL - SUPER / REGULAR 8mm SILENT FILM PROJECTOR MODEL 733A #...4966 WITH ZOOM LENS & VARIABLE SPEED! GREAT FOR FILM TO DVD / COMPUTER TRANSFERS & MEDIA TRANSFER BUSINESS MADE IN JAPAN
for sale
SOLD 3/5/12
We have
completely checked through this unit! Cleaned inside and out (this
machine had been meticulously cared for throughout it's life, so was
very clean to start with). Internal worm gear, main drive
mechanism was completely cleaned of old lube and re-lubed with silicon
gel, as well as both nylon gears. A fresh, new main drive belt was
installed. Both hub mechanisms disassembled, cleaned of old lube and
re-lubed, only in the correct spots so as not to interfere with the hub
'cam / catch' mechanism, then checked for proper function. A new clutch
guide installed on the 'take-up' reel spindle. Hub metal 'chain' belts,
cleaned and re-lubed. Primary chain belt re-tensioned (not an easy
task). Speed control filament windings in great shape with no worn /
dead spots. Film gate cleaned as well as track. Auto-load mechanism
works well when used correctly. Lens is clean with no cloudiness, fungus
or loose elements. We then checked out all functions and made any
necessary adjustments and extensively tested with both Super 8 and
Regular 8mm film. Unit loads, runs both forward and reverse very smoothly with great
precision. No clunky-ness. Great for doing film to video transfers since
it has a nice, sharp lens and variable speed. Appears to have been built
by Sankyo, one of our favorite projector manufacturers and was likely
based on a 'Dualex' model. Freshly refurbished, Vivitar 733A Regular / Super-8mm film / cine
projector with...
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
...Detachable AC cord is included.
Comes with Metal, 'Auto-Load'
take-up reel and a spare projection lamp. Also includes our standard 30
day limited warranty (excluding lamps / bulbs). Measures 12.5" long x
7" deep x 11.5" tall (when un-folded) and weighs
~15 lbs unpacked. Film
in photos not included. VIVITAR 733A REGULAR / SUPER-8MM FILM PROJECTOR Cond. 8.5
SOLD 3/5/12
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
NEW
ADDITION 8/21/14 (click
on above thumbnails to enlarge photos)
warranty
VIVITAR DUAL 8mm (SUPER & REGULAR 8mm) SILENT FILM PROJECTOR MODEL 733A
#...5138 WITH ZOOM LENS & VARIABLE SPEED! GREAT FOR FILM TO DVD / COMPUTER TRANSFERS & MEDIA TRANSFER BUSINESS MADE IN JAPAN
SOLD 11/9/15 SHIPPED TO MASSACHUSETTS
We have
completely checked through this unit! Cleaned inside and out
(this
machine had been meticulously cared for throughout it's life, so was
very clean to start with). Internal worm gear, main drive
mechanism was completely cleaned of old lube and re-lubed with silicon
gel, as well as both nylon gears. A fresh, new main drive belt was
installed. Unit, cleaned of old lube and
re-lubed, only in the correct spots so as not to interfere with the hub
'cam / catch' mechanism, then checked for proper function. A new clutch
guide installed on the 'take-up' reel spindle. Hub metal 'chain' belts,
removed,
cleaned in thinner bath and re-lubed. Speed control filament windings in great shape with no worn /
dead spots. Film gate cleaned as well as track. Auto-load mechanism
works well when used correctly. Lens is clean with no cloudiness, fungus
or loose elements. We then checked out all functions and made any
necessary adjustments and extensively tested with both Super 8 and
Regular 8mm film.
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT? Freshly refurbished, Vivitar 733A Regular / Super-8mm film / cine
projector with...
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
Features:
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT? ...model KP-GT / CXL / CXR 8 volt, 50 watt projection
lamp. Front adjustment foot allows for 2" of height angle adjustment.
This unit is ready to use. Looks great and works well. Detachable AC
cord is included. It would make a...
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
Comes with 'Original
Vivitar'
take-up reel and a spare projection lamp and a copy
of the Vivitar 733A Dual 8mm Projector Owners / Users / Instruction
manual. Also includes our standard 30 day limited warranty (excluding lamps / bulbs). Measures 12.5" long x
7" deep x 11.5" tall (when un-folded) and weighs
~15 lbs unpacked. Film
in photos not included. VIVITAR 733A REGULAR / SUPER-8MM FILM PROJECTOR Cond.
9
SOLD 11/9/15 SHIPPED TO MASSACHUSETTS
w/ Original Box
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
NEW
ADDITION
7/5/12
(click
on above thumbnails to enlarge photos)
warranty
REFURBISHED WARDS / GAF DUAL 8MM MOVIE / FILM PROJECTOR WARDS 805
(aka:
GAF 2388, GAF 1333) DUAL-8 PLAYS STANDARD & SUPER 8mm SILENT FILM PROJECTOR WITH ZOOM LENS
MADE IN AMERICA
SOLD 10/31/12 SHIPPED TO VERMONT We have completely gone through this unit! Internal mechanism was cleaned of
old lube and re-lubed with silicon gel and a new main drive belt and new
'serpentine' hub drive belt were installed. Both hub mechanisms checked for
proper function. All 'free wheels' removed, cleaned and re-lubed. Rear hub
tire reconditioned. Front hub pinch roller
replaced. Lens track mechanism cleaned and re-lubed with silicone gel lube.
Lens cleaned front and back as well. 'Shuttle' mechanism and associated cam
cleaned and re-lubed, as well as the eccentric framer mechanism. Projector
stabilizer replaced with factory original. Film gate cleaned as well as film
track. Following mechanical work, entire unit was
cosmetically detailed inside and out. Then checked out all functions and made any necessary adjustments and
extensively tested with both Super 8 and Regular 8mm film.
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
Restored to run and work flawlessly...
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
...model DGB / DMD 30 volt, 80 watt projection lamp. Front
adjustment foot allows for ~1" of height angle adjustment.
... Comes
with take-up reel, 1 reel hub adaptor for your Super 8mm reels, if you use
them. Includes an extra / spare projector bulb /
lamp.
Also comes with a copy of the GAF / Wards 805 owners /
users manual. Also includes our standard 30 day limited warranty
(excluding lamps / bulbs). Measures 11" long x 6.5" deep x 9" tall and
weighs 10 lbs unpacked.
Film shown in photos not
included. GAF / WARDS 805 DUAL 8MM FILM PROJECTOR Cond. 8.5
SOLD 10/31/12 SHIPPED TO VERMONT
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
NEW LISTING
3/1/18
(Click on above thumbnails to enlarge photos)
warranty
SERVICED / REFURBISHED AND READY TO GO WARDS
8mm FILM / MOVIE PROJECTOR WARDS /
GAF
805 (GAF model 2388Z built for Wards) DUAL-8
PLAYS STANDARD & SUPER 8mm
WITH
'FILM LOADED' REWIND SILENT FILM PROJECTOR
MADE IN AMERICA
SOLD 8/29/18 SHIPPING TO JORGE IN MARYLAND
ü
Our technician has completely gone through and 'Certified' this
unit.
ü We
have
completely and extensively gone through the
mechanicals of this projector.
ü It
was disassembled internally for restoration including
all the drive
for cleaning and re-lubing
prior to disassembly.
ü Main
drive belt in perfect shape, and 'serpentine'
hub drive belt reconditioned for trouble-free
service.
ü Both
hub mechanisms checked for proper function. All 'free wheels' removed,
cleaned and re-lubed.
ü Rear
and Front hub tires
reconditioned.
ü Lens
track mechanism cleaned and re-lubed with silicone gel lube.
ü Lens
cleaned front and back as well.
ü 'Shuttle'
mechanism and associated cam cleaned and re-lubed, as well as the
eccentric framer mechanism.
ü Film
gate cleaned as well as film track.
ü Take-Up
reel clutch tension adjusted to not allow film to 'spill' during PB, but
TO allow Fast Re-Wind while film is still loaded thru film track.
ü Following
mechanical work, entire unit was cosmetically detailed inside and out.
ü Then
checked out all functions and made any necessary adjustments and
extensively tested with both Super 8 and Regular 8mm film. ____________________________
Another great performing, Dual-8 projector. The Wards 805
Regular/Standard 8mm / Super-8mm silent movie film / cine projector.
Restored to run and work flawlessly. Will play Regular & Super-8mm
films.
Following about
3.5 hours of tech time, it now
projects
silent film at 18fps Runs and works flawlessly. Features
very...
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
Wards / GAF 805 Projector Features:
- Regular and...
HEY, WHY ALL THE 'X'd' (...) OUT /
OMITTED SPECS AND TEXT?
...That is a HUGE
plus with the "Forward Only" GAF designs (again from this period).
This unit is ready to go. Looks and works great! Comes with take-up
reel,
lid / front cover
1 reel hub adaptor for your Super 8mm reels, if you use them.
Includes an extra / spare projector bulb / lamp. Also comes with a copy of the GAF / Wards 805 owners / users manual.
Also includes our standard 30 day limited warranty (excluding lamps /
bulbs). Measures 11" long x 6.5" deep x 9" tall and weighs 10 lbs
unpacked. Film shown in
photos not included. GAF / WARDS 805 DUAL 8MM FILM PROJECTOR Cond. 8
SOLD 8/29/18 SHIPPING TO JORGE IN MARYLAND
(Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|
NEW
LISTING
4/1/16
(click on above thumbnails to enlarge photos)
warranty
SERVICED / REFURBISHED AND READY TO GO WARDS
8mm FILM / MOVIE PROJECTOR
TRI-8 (REGULAR-8mm
/ SUPER-8mm / SINGLE-8mm) FILM PROJECTOR MODEL
WARDS 812 SILENT VARIABLE SPEED
& ZOOM
LENS SEMI-AUTO LOADING #...8255 Made
in Japan
|
Regular-8 images
Super-8 images
NEW LISTING
12/14/17
(click on above thumbnails to enlarge photos)
warranty
SERVICED / REFURBISHED AND READY TO GO WARDS
8mm FILM / MOVIE PROJECTOR
TRI-8 (REGULAR-8mm
/ SUPER-8mm / SINGLE-8mm) FILM PROJECTOR MODEL
WARDS 812 SILENT VARIABLE SPEED
& ZOOM
LENS SEMI-AUTO LOADING #...8255
MADE IN JAPAN
SOLD
9/7/18 SHIPPING TO HARRY IN WISCONSIN
(Above text, in it's entirety, property of
www.oaktreevintage.com /
Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
NEW
LISTING 11/27/18 (click
on above thumbnails to enlarge photos)
warranty
FULLY SERVICED / REFURBISHED AND READY TO GO WARDS
8mm FILM / MOVIE PROJECTOR TRI-8 (REGULAR-8mm / SUPER-8mm / SINGLE-8mm) FILM PROJECTOR MODEL WARDS 812 SILENT VARIABLE SPEED & ZOOM LENS
SEMI-AUTO LOADING #...9580 MADE IN JAPAN
SOLD 1/23/19
SHIPPING TO ARTHUR IN VIRGINIA
ü
Our technician has completely gone through and 'Certified' this unit.
ü We
have completely and extensively gone through the
mechanicals and electrics of this projector. ü It
was disassembled internally for restoration including the drive motor
for re-lubing. ü Motor
commutator gaps cleaned, and plates burnished ü Main
drive belt replaced with new. ü Hub
drive chains cleaned and re-lubed w/ synthetic grease ü The
main drive worm / cog gears cleaned and re-lubed. ü Speed
rheostat control limits 're-positioned' to move speed range 'up' to more
useable range than stock, especially for film to video transfers ü We
checked out all functions and made any necessary adjustments. There are
no rubber drive tires / wheels to crack, glaze or deteriorate, so no
need to worry about one failing down the road. ü Take-Up
reel clutch tension adjusted to not allow film to 'spill' during PB, but
to allow Fast Forward or Re-Wind (while 'OUT' of 'film path') you'll
want to have your left hand ready as a 'reel brake' if you stop
rewinding 'mid-stream'. Should service be required in the future (probably not for quite a few
years), this unit is designed to be very 'serviceable'. Speed control is
via the built-in rheostat. A very durable design. Again, this unit had
extensive restoration (about 5 hours) and came out GREAT!!!
VERY
WELL BUILT, metal construction, Japanese made, Wards 812, Dual-8mm movie
film / cine projector. This is a very well designed projector, that in
'hindsight', was built to last. Since it has variable speed (widely
ranging), and a zoom-lens it is well suited for doing 'film to video
transfers'. Original Japanese made, Zoom Lens; specs F1:1.4 w/ 20-32mm
zoom range. Lens is 'cloud free', clean and is quality enough to project
a crisp, clean, clear and focused image. Projector will play forwards or
backwards (no still and film must 'play thru to end' to enable 'fast
wind' mode). Has frame-adjust lever for fine tuning frame position.
Utilizes model KP-GT/CXL/CXR 8V/50W projection lamp
(Fresh one installed prior to shipment). Wards 812 Projector Features: - Regular / Standard 8mm / Single 8mm, silent film Projector - Electric (non-mechanical!),Variable Speed - 'Semi-Auto / Manual Loading' (that works great) - Zoom Lens - F=/1.4, Zoom 20-32mm
- Forward or Reverse Projection - Frame Adjustor - Can be run without lamp (useful for 'playing out reel' without
burning lamp life) - Accommodates up to 400' reels - KP-GT/CXL/CXR 8V/50W Bulb - 'Take-up' Reel included - Built-in Film Trimmer - Adjustable 'Front Tilt / Angle' Foot - 'Swing-Out' gate plates for easy film gate cleaning - All metal housing - High Power, cooling fan protects and prolongs film life
as well as venting lamp heat away - Semi “WORLD AC POWER"™ as it will work on both 50 or 60 Hz AC. Front adjustment foot allows for ~1.5" of height angle adjustment.
Very well built, 'all metal' construction. Again, following the above
service / restoration, this unit is ready to go. Looks and works great!
This would be a good "work horse" for a film transfer house.
This one
includes the original lid, both sets of film sprockets, and a take-up
reel. Comes an good / working projection
lamp / bulb. Also includes our standard 30 day limited warranty
(excluding lamps / bulbs). Measures 11" wide x 6" deep x 10" tall (with
film arms folded and lid removed) and weighs ~13 lbs unpacked. Film
shown in photos not included. WARDS 812 TRI-8 FILM PROJECTOR Cond. 8.5
SOLD 1/23/19
SHIPPING TO ARTHUR IN VIRGINIA (Above
text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
NEW ADDITION
11/10/10
(click
on above thumbnails to enlarge photos)
warranty
WARDS DUAL -
SUPER / REGULAR 8mm
SILENT FILM
PROJECTOR MODEL
877 / DUO-8
#...A6500
WITH ZOOM LENS
&
VARIABLE SPEED!
GREAT FOR FILM TRANSFER
BUSINESS MADE IN
USA SOLD 11/12/10
|
|
|
(click on above thumbnails to enlarge photos)
WOLLENSAK MODEL 715 STANDARD / REGULAR
8mm FILM PROJECTOR
WITH VARIABLE SPEED!
SOLD 12/20/06
|
|
Metal 16mm Motion Picture Film Projector Empty Take-Up reels
for sale
1600 ft - $25. ea. 400 & 800 ft -
$20. ea. -SOLD OUT
|
|
|
|
NEW ADDITION
12/4/07
(click on above thumbnails to enlarge photos)
10-AMP Vari-AC PROJECTOR SPEED ADJUSTER
SOLD OUT / NLA
|
PORTABLE PROJECTION SCREENS for sale
SOLD OUT
We usually have pre-owned projection screens available in various sizes
and material types. Current Stock:
Radiant brand, "Colormaster" "Silver-Stripe
tripod stand screen. Viewing area "67"
Diagonal.
46" wide x 49" tall screen size. 59"
packed length. Cond.
8.5. - $99.
SOLD
Unknown brand. "Silver-Stripe"
tripod stand screen. Viewing area 67" Diagonal, 46"
wide x 49" tall screen size.
58"
packed length. Has small tear
near top of screen (see photo to right of main photo). Gray Tray. Cond. 8.
- $79. SOLD
"Brilliant", White Radiant / Glass Bead tripod stand
screen. Viewing area 46" Diagonal, 38.5"
wide x 29" tall and 45"
packed length. . Cond.
8.5 - $69. SOLD
Apollo, White Radiant tripod stand screen. 77" Diagonal,
57"
wide x 51" tall and 67"
packed length. . Cond.
8.5 - $99. SOLD
Due to oversize nature of screens, they generally run
$38.50 for S, H & I to any of the lower 48 states. Other locations can be calculated separately.
|
8mm Film / Movie Projectors
available for sale
|
