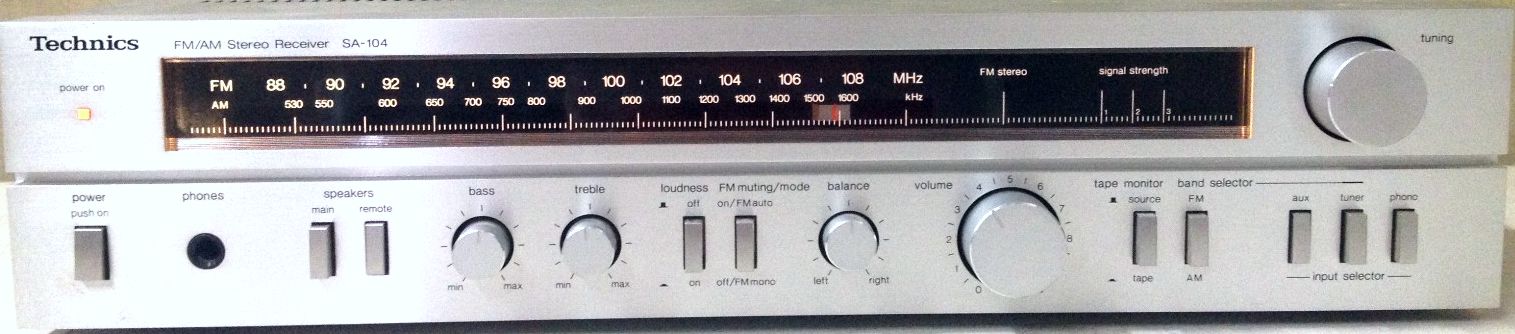

TECHNICS SA-104 / SA104 STEREO RECEIVER PARTS / SPARES
for sale
Some parts
MAY also fit other
Technics SA Stereo Receiver but we have no definitive info.
Bonnet / Top Plate / Panel / Cover / Lid,
–
SOLD (Cases,
covers and side plate / panels, etc. do not include mounting screws as
those are sold separately)
Panel,
Face panel with glass and plastic end caps. Good condition - $35.
Pointer, Dial pointer - $18.
Knobs / Caps / Buttons / Covers / Covers, Volume knob - $25.
Knobs /
Caps / Buttons / Covers / Covers,
Tuning knob - $25.
Knobs /
Caps / Buttons / Covers / Covers, Round Bass, Treble, Tone / Balance - $20. ea.
Knobs / Caps / Buttons / Covers / Covers, Rectangle 'push' caps for Speakers
/ ‘FM Muting’, ‘Loudness’, ‘Tape Monitor’, 'AUX',
'TUNER', 'PHONO' Push switch caps
- $12.50 ea.
Knobs / Caps / Buttons / Covers / Covers, Rectangle 'push' caps for ‘Power’
Push switch caps - $20. ea.
TECHNICS
SA-104 / SA104 STEREO RECEIVER PARTS / SPARES
Switches /
Selectors, 'Power' Push switch S-3 TV-3, 3A250VAC, ESB90604T. w/
‘clamping capacitor’ 103P - $30.
Switches / Selectors, Push switches for
Speakers Main & Remote or FM Mute & Loudness - $20. ea
pair
Switches / Selectors, 'INPUT SELECTOR' Push switch / Triple,
Self-Canceling Push button switches for AUX/Tuner/Phono
AND 'Tape Monitor' AND 'Band selector' - $35.
for set of 5 switches
Potentiometer /
Control pot, Volume Pot
- $30.
SOLD
Potentiometer / Controls, Bass pot - $20. ea.
Potentiometer / Controls, Treble pot - $20. ea.
Potentiometer /
Controls, 'Balance' pot -
$30.
Flywheel, Dial Shaft / Flywheel / Tuning control assembly
(knob sold separately) - $30.
transistors / Outputs / Power Amp, Output STK Power Pack, Original
*STK4833. Good
condition - $30. ea.
Circuit Boards, Main Tuner / Power Supply / Amp / pre-amp
/ 'everything' Circuit board SUP24110A, with
variable / tuning capacitor; ECV-5MD34X71G and with IC chips; JRC 4562DD,
Mitsubishi AN278, Mitsubishi AN7273, NEC UPC11613C, original / OEM
transistors 2SA1015,
2SC1675, 2SC1685, Bridge Rectifier S4VB, Voltage Regulator
/ transistors 2SD880 (X2),
0.22 Ohm, 470 Ohm, 680 Ohm, 56 Ohm precision resistors and more UPC1161C
(less switches, pots, controls, filter caps, heatsink,
output chip, jacks, RCA / Antenna jacks) - $45.
Circuit Boards,
LED Signal Strength / FM Stereo LED indicator
Circuit board
SUP24110B / GCMK-97X w/ 3x Red LED's and 1x Green
LED
- $25.
Transformer,
Power supply Transformer SLT5M185
(ETP66PU18B) (MAL66A15) North American version ONLY
- $35.
Capacitors, Power supply filter Caps 35V / 6800 uf - $18. ea.
TECHNICS
SA-104 / SA104 STEREO RECEIVER PARTS / SPARES
Jacks / Terminals, Speaker Outputs / clips / terminals
(yes, those 'stupid' Technics, rotating, 'POS'
speaker terminals) All
working - $35.
SOLD
for
A&B speakers
Jacks,
Headphone Jack with circuit board
SUP24110C - $25. ea.
Jacks,
RCA I/O Jacks / Terminals, with, DIN antenna terminals and ground
connectors - $35. complete assembly
SOLD
AM
Ferrite-Bar Antenna
- $25.
Jacks,
AC Convenience Outlets - $20. ea.
Panel / Plate, Rear sheet metal panel, less components.
– $25.
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB, S. / SW. Center, Brown Hon Cab, Top
Drawer
- Revised
3/18/19
|
(Click on above thumbnails to enlarge photos)
TECHNICS SA-222 / SA222 STEREO RECEIVER PARTS / SPARES
for sale
Some parts
MAY also fit other
Technics SA Stereo Receiver but we have no definitive info.
Top Plate / Panel / Cover / Lid, Gray Sheet Metal –
SOLD (Cases,
covers and side plate / panels, etc. do not include mounting screws as
those are sold separately)
Panel,
Face panel with glass. Good condition, with only minor ‘scratches’ on
plastic display window (less ‘Power’, ‘AUX’, ‘Tuner’ & ‘Phono buttons).
Minor corrosion on integrated ‘push’ caps - $35.
TECHNICS
SA-222 / SA222
STEREO RECEIVER PARTS / SPARES
Knobs / Caps / Buttons / Covers / Covers, Volume knob - $25. SOLD
Knobs / Caps / Buttons / Covers / Covers, Round Bass, Treble, Tone / Balance,
Selector knobs - $20. ea.
Knobs / Caps / Buttons / Covers / Covers, Rectangle 'push' caps for Speakers
/ ‘Auto Scan’, ‘FM Muting’, ‘Loudness’, ‘Tape Monitor’, Push switch caps
- $12.50 ea.
Knobs / Caps / Buttons / Covers / Covers, Rectangle 'push' caps for ‘Power’, ‘AUX’,
‘Tuner’ & ‘Phono Push switch caps - $18.50 ea.
Switches /
Selectors, 'Power' Push switch S-3 TV-3, 3A250VAC, ESB90144T112. w/
‘clamping capacitor’ 103P - $30.
Switches / Selectors, Push switches for Auto Scan / FM Mute / Sub
Filter/ Loudness/ Tape 1/ Tape 2 - $20. ea.
Switches / Selectors, 'INPUT SELECTOR' Push switch / Triple,
Self-Canceling Push button switches on circuit board
Circuit board SUP20610B
for AUX
/ Tuner /
Phono selector - $30.
for set of 3 switches
SOLD
Switches / Selectors, ‘FM/AM Allocation’ switch / SUP20650C -
$20. ea.
Switches / Selectors,
‘Speaker Main’ ‘Speaker Remote’ Push switches - $20. ea.
Potentiometer /
Control pot, Volume Pot M250KΩB
- $30.
Potentiometer / Controls, Bass pot 14 T - $20. ea.
Potentiometer / Controls, Treble pot M 100k, 1 3 L - $20. ea.
Potentiometer /
Controls, 'Balance' pot M200KG
- $30.
Meters, AM/ FM Tuning / Signal Meter SSM173-1
- $45.
TECHNICS
SA-222 / SA222
STEREO RECEIVER PARTS / SPARES
Circuit Boards, Display / Readout Circuit board SUP20650A and SUP20650B Circuit boards,
with Fluorescent display / readout, and momentary switches for FM / AM,
‘Down / UP’, Memory / Presets. Contains IC chips: NEC D4011C / UOY517,
LED Signal Strength Display - $45.
Circuit Boards, 'Power
Supply' / 'Power Amplifier / Driver Boards' Circuit board SUP20590A w/
Rectifier Diodes & balance of components including ‘Pre-Drivers, and
power amp output chip; STK2028*, and
2SD880 Voltage Regulator.
(less switches, jacks, speaker terminals, and large filter
capacitors)
- $55.
OR
Transistors / Outputs / Power Amp, Output STK Power Pack, Original
*STK2028. Good
condition - $30. ea.
Circuit Boards, Tuner Circuit board SUP20610A, with IC
chips; Sanyo A1231N, NEC UPC1018C & UPC1161C
(less switches, RCA
/ Antenna jacks)
- $45.
Circuit Boards,
Pre-Amp / Selector Circuit board SUP20610B
(less pots & switches)
-
$35.
SOLD
Circuit
Boards, Tone Control Circuit board SUP20610C
(less pots)
- $25.
Transformer,
Power supply Transformer SLT5M135 North American version ONLY
(also may fit Technics SA-800)
- $75. SOLD
Capacitors, Power supply filter Caps 45V / 6800 uf - $20. ea.
TECHNICS
SA-222 / SA222
STEREO RECEIVER PARTS / SPARES
Jacks / Terminals, Speaker Outputs / clips / terminals - $45.
Jacks,
Headphone Jack with circuit board SUP20590B - $25. ea.
Jacks,
RCA I/O Jacks / Terminals, with, DIN antenna terminals and ground
connectors - $45. complete assembly
AM Ferrite-Bar Antenna
- $25.
Jacks,
AC Convenience Outlets - $20. ea.
Panel / Plate, Rear sheet metal panel, less components.– $25.
Battery Compartment,
From rear plate for 3 “AA” Batteries.
-SOLD
Panel / Plate, Bottom Panel. Masonite.
Less feet.
SOLD
Feet, Set of 4 feet - $20.
SOLD.
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
- Revised
3/18/19
|
(Click on above thumbnails to enlarge photos)

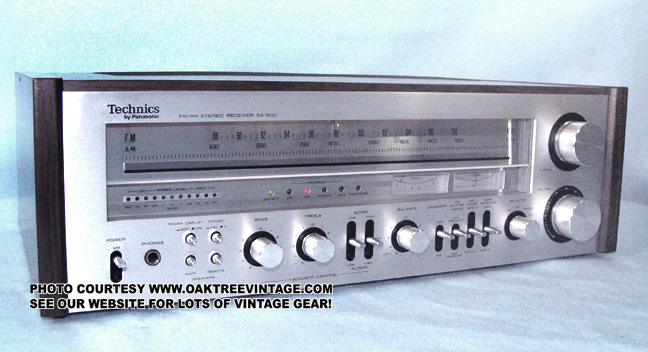

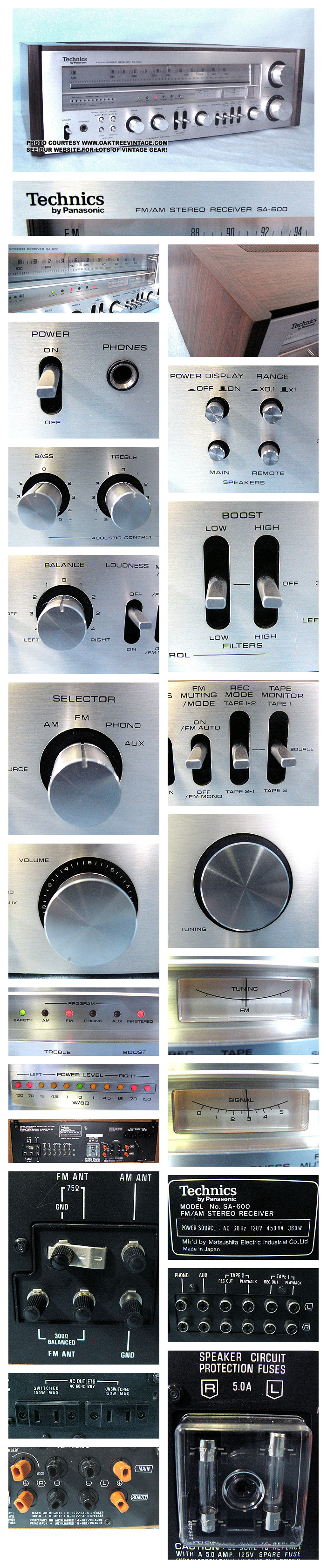

TECHNICS SA-600 / SA600
STEREO RECEIVER
PARTS / SPARES
for sale
Some parts
MAY* also fit other
Technics SA Stereo Receiver models such as the SA-200, SA-300,
SA-400, SA-500, SA-600, SA-700, & possibly the
SA-800 & SA-1000. If we haven't included "See Also" or "Also
Fits" information that we have gotten by comparing service manual
parts lists, then you'll need to do your own research. We can say
that many of the parts, such as switches & potentiometers do not fit
units above the "SA-600" unless stated.
Top Plate / Panel / Cover / Lid, Wood Top cover Plate,
Wood grain, vinyl. Good condition, minor dings, with metal ventilation
screen. Measures 17.75" wide on 'finished top' x 11
3/8" deep. - $40.
(Cases,
covers and side plate / panels, etc. do not include mounting screws as
those are sold separately)
Panel,
Face panel with glass. Good condition, with only minor ‘scuff’ near
upper, right corner of window on aluminum. Glass perfect. (less knobs /
buttons) - $45. SOLD
Dial Light ‘Diffuser’, Plexi-glass lamp diffuser - $30.
Sockets, Dial Light / Lamp Socket - $12.50 ea.
Panel / Plate / End Caps, Wood grain, vinyl wrapped side panels.
Good condition, with only minor dings. 5 13/16" tall
x 11.75" deep (also fits Technics SA-500 and SA-600) - $20. ea.
(left {looking at front of unit} / 'Starboard' side SOLD)
TECHNICS
SA-600 / SA600
STEREO RECEIVER PARTS / SPARES
Knobs / Caps / Buttons / Covers / Covers, Tuning knob
(35mm diameter x 23mm in height)
#SBN757
(see also Technics SA-300, SA-400, SA-500 & SA-600 {NOT the SA-700,
SA-800 or SA-1000})
- $35.
Knobs / Caps / Buttons / Covers / Covers, Volume knob
#SBN753
(see also Technics SA-300, SA-400, SA-500 & SA-600 {NOT the SA-700,
SA-800 or SA-1000}) - $35. SOLD
Knobs / Caps / Buttons / Covers / Covers, Round Bass, Treble, Tone / Balance,
Selector knobs
#SBN755
(see also Technics SA-300, SA-400, SA-500 & SA-600 {NOT the SA-700,
SA-800 or SA-1000})
- $25. ea.
Knobs / Caps / Buttons /
Covers /
Covers, Round 'push' caps for 'Power Display’ /
Speakers / ‘Range’, Push switch caps w/ spring
#SBC193
(see also Technics SA-300, SA-400, SA-500 & SA-600)- $18.50 ea.
Knobs / Caps / Buttons / Covers / Covers, Toggle switch caps
#SBD7-2 for 'Power’, ‘Boost’,
‘Loudness’, ‘FM Muting / Mode’, ‘Rec Mode’ & ‘Tape Monitor’.
(see also Technics SA-200, SA-300, SA-400, SA-500, SA-600.
Possibly also; Technics SA-700, SA-800 and SA-1000, but they
designate "SBD7" without the "2") - $20. ea.
4 Remaining in stock
Switches / Selectors, 'Power' toggle / ‘snap’ switch
#SSLG1
/ SSL81.
w/
‘clamping capacitor’ 103M
(Appears to ONLY fit Technics receiver model SA-600)
- $35.
SOLD
Switches / Selectors, Push switches for 'Power Display’ /
Speakers / ‘Range’
#SSH219S
(see also Technics SA-500 & SA-600)
- $35. pair
Switches / Selectors, 'INPUT SELECTOR' Rotary switch / selector
#ESRM164F25E (see also Technics
SA-300, SA-400, SA-500 & SA-600) - $45.
SOLD
Switches / Selectors, ‘Boost-Low-High’ toggle switches /
#SLL1 / SSL119
(see also Technics SA-500 & SA-600) - $25.
ea.
SOLD / MIA?
Switches / Selectors, ‘FM Mute / Loudness’ toggle switches /
#SSL123 (see also Technics
SA-300, SA-400, SA-500 & SA-600)
- $25. ea.
SOLD
Switches / Selectors, ‘Record Mode’ toggle switch /
#SSL115 (see also Technics
SA-400, SA-500 & SA-600)
- $30.
ea.
1 in stock
Switches / Selectors, ‘Tape monitor’ toggle switch /
#SSL117 (see also Technics
SA-400, SA-500 & SA-600)
-
$30. ea. SOLD
TECHNICS
SA-600 / SA600
STEREO RECEIVER PARTS / SPARES
Potentiometer / Control pot, Volume Pot Alps 2-Gang unit.
#ewf2f25bf5s 974B
2x 250kΩ
(see also Technics SA-500 & SA-600)
- $40. SOLD
Potentiometer / Controls, Bass or Treble pot
#ewD32f25C15s
974R / 2x
100k Ohms
(see also Technics
SA-500 & SA-600)
- $35. ea.
Potentiometer / Controls, 'Balance' pot 891G
#EVH63F25G25S
(see also Technics SA-500 & SA-600)
- $35.
Meters, AM/ FM Tuning / Signal Meter pair
#SSM133
(see also Technics SA-400, SA-500 {SSM133N} & SA-600, SA-700 and
possibly others)
- $45.
Meters, LED Power Meter pair on circuit board
#SUP14170D
-
$35. SOLD
LED indicators, ‘Program’ indicators, ie; AM, FM, PHONO, AUX, FM
STEREO - $35. entire bank
LED indicators, ‘Safety’ indicator - $18.50
Flywheel, Dial Shaft / Flywheel / Tuning
shaft control assembly
#SDT8043-2
(see also Technics SA-300, SA-400, SA-500 & SA-600)
(knob sold separately) - $45.
Pulley / String-wheel, plastic string wheel for tuning
capacitor #SDD47-1
(see also Technics SA-300, SA-400, SA-500 & SA-600)
- $35.
Pointer, Dial Pointer
#SDP1129
(see also Technics SA-500 & SA-600) - $25.
Circuit Boards, ' Tuner / Main' Circuit board
#SUP14210A Circuit board WITH tuning
capacitor, and AM ‘Stick’ antenna attached. Contains IC chips:
Mitsubishi AN217P, AN363N, AN377 and 2SC1398 W/ 5-Gang Tuning
Capacitor
(less pots & switches,
jacks, string wheel)
- $45.
Circuit Boards, 'Power
Supply' / 'Power Amplifier / Driver Boards' Circuit board w/ bridge
Rectifier & balance of components including ‘Pre-Driver’ original /
OEM transistors,
Mitsubishi 2SA913 & 2SC1913
(less pots & switches,
jacks, Relay, and large filter capacitors)
- $55.
Circuit Boards, Circuit board
#SUP14170C
(less switches)
- $35.
Circuit Boards, Circuit board
#SUP14170F - $30.
Circuit Boards, Circuit board
#SUP14190 - $30.
ea.
Coupler / Connector,
Circuit Board bridge coupler SJS5611 - $18.50
TECHNICS
SA-600 / SA600
STEREO RECEIVER PARTS / SPARES
Transistors / Outputs /
Power Amp, Output original / OEM transistors, Metal Cased TO-3 style, 2SD665 &
2SB645 Originals, Good condition - $20. ea.
SOLD OUT
Heat Sink, (less original / OEM transistors) - $25.
Relay,
#AP39312, 7A / 125-250 VAC, 3A / 30VDC / DC24V - $25.
Transformer, Power supply Transformer
#SLT5Q75
North American
version - $75.
SOLD
Capacitors, Power supply filter Caps 55V / 15,000 uf - $30. ea.
Jacks / Terminals, Speaker Outputs clips / terminals / speaker
posts #SJF8013
(see also Technics {SA-300, SA-400 & SA-500 SJF8013-1} & SA-600)
- $35.
ea. bank of 4
Jacks,
Headphone Jack
#XCJ621B-A
(see also Technics SA-300, SA-400, SA-500,SA-600, SA-700 & SA-800.
May also fit SA-1000?)
- $30.
Jacks,
RCA Input / Output Jacks & Antenna Input Jacks - $45. complete assembly
Jacks,
AC Convenience Outlets
#SJS9205-1
(see also Technics SA-300, SA-400, SA-500,SA-600, & SA-700)
- $20. ea.
Fuse Block / cover, Speaker protection fuse block complete with fuse cover
#SUV337
(see also Technics SA-600, SA-700 and possibly others)- $25.
Panel / Plate, Rear sheet metal panel, less components.– $35.
Panel / Plate, Bottom Panel. Masonite. Less feet. – $35.
Feet, Set of 4 feet
#SKX245-1
(see also Technics SA-300, SA-400, SA-500, & SA-600)
- $30.
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB, East, Inside Island, 1st Gray Cab, Top Drawer. -
Revised
8/28/2024
|
(Click
on above thumbnails to enlarge photos)
TECHNICS SA-5070 / SA5070 STEREO RECEIVER
PARTS / SPARES
for sale
Receiver was
parted out due to weak FM tuner. Pre-amp and power amp sections
functioned fine.
Some parts
MAY
also fit other Technics SA Stereo Receiver but we have no definitive
info.
Bonnet / Top Plate / Panel / Cover / Lid, Wood grain vinyl /
Formica covered, minor corner chips - $35. (Cases,
covers and side plate / panels, etc. do not include mounting screws as
those are sold separately)
Panel,
Face panel with glass and plastic end caps. Good condition - $35.
Pointer, Dial pointer - $18.
Knobs / Caps / Buttons / Covers / Covers, Volume knob - $25.
Knobs / Caps / Buttons / Covers / Covers, Tuning knob - $25.
Knobs / Caps / Buttons / Covers / Covers, Round Bass, Treble, Tone / Balance,
Selector - $20. ea.
Knobs /
Caps / Buttons / Covers / Covers, Round 'push' caps ‘Loudness’, ‘Tape
Monitor’, Push switch caps - $12.50 ea.
Knobs / Caps / Buttons / Covers / Covers, Round 'push' caps for ‘Power’ Push switch
caps - $20. ea.
TECHNICS SA-5070/ SA5070 STEREO RECEIVER PARTS / SPARES
Switches / Selectors,
'Power' Push switch, Matsushita S-3 TV-3, 3A250VAC, ESB-7086T-671 - $30.
Switches / Selectors, Selector Switch ‘Loudness’ or ‘Tape
Monitor’ push switches - $20. ea.
Switches / Selectors,
Input Source Selector Switch “Rack and Pinion Slide Switch”/ ‘FM’, ‘AM’, ‘Auto
Muting’, ‘Phono’, ‘Aux’ “SSR57-1 - $45. SOLD
4/25/2024
Potentiometer /
Control pot,
Volume Pot 673M1 250K Ohms X2 - $30.
Potentiometer / Controls, Bass pot / Treble pot 673M1 100K Ohms
X2 - $20. ea.
Potentiometer /
Controls,
'Balance' pot -
$30.
Flywheel, Dial Shaft / Flywheel / Tuning control assembly
(knob sold separately) - $30.
String wheel, Tuning string wheel - $20.
Capacitor, Tuning capacitor ECVC751KI44A - $30.
Meter, FM ‘Signal Strength’ meter with spring attachment - $20.
ea.
Lamp Holder, Dial lamp / bulb clip / holder - $15. ea
(lamps / bulbs on included)
Fuse Holders,
Fuse clip / holder on circuit board SUP 10890C - $20.
Transistors / Outputs / Power Amp, Output STK Power Pack / Chip,
Original STK-043 “Stereo Amplifier”. Works fine - $30.
Heatsink, Output heatsink - $25.
Circuit Boards, Main Tuner / Power Supply / Amp / pre-amp /
equalizer / Tuner ‘Front end’ / 'everything' Circuit board SUP 10890A,
IC chips; AN217, AN363, AN373, 2SA721, 2SC828, 2SC1047, 2SC1383,
K83/R176, TA7129P, Rectifier Toshiba ID261, ID2Z1, (less
switches, pots, controls, filter caps, heatsink, output chip, jacks, RCA
/ Antenna jacks)
- $45.
Transformer, Power supply Transformer SL5N187 (ETP76BU(7B)) North
American version ONLY - $35.
Capacitors, Power supply filter Caps 35V / 3300 uf - $18. ea.
TECHNICS SA-5070/ SA5070 STEREO RECEIVER PARTS / SPARES
Jacks / Terminals, Speaker Outputs / clips / terminals /
Binding posts combined with speaker protection fuse holder / clip - $35.
complete section
Jacks,
Headphone Jack - $25. ea.
Jacks,
RCA I/O Jacks / Terminals, with antenna terminals and ground connectors
- $35. complete assembly
Jacks, AC Convenience Outlets - $20. ea.
Reflector,
Aluminum dial light reflector - $20.
Panel / Plate, Rear sheet metal panel, less components. – $25.
Panel / Plate, Bottom plate / cover w/ feet - $20.
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB, South, Right of Center cab,
Black, 4th drawer
- Revised
3/18/19
|
photo of SA-5360, a model a couple
steps up for reference.
TECHNICS SA-5170
STEREO RECEIVER PARTS / SPARES
for sale
Some parts
MAY*
also fit other Technics SA
models such as the SA-5270 or SA-5360, but we have no definitive info.
Panel, Face panel with glass.
Good condition, with only minor wear. Glass perfect. (less knobs / buttons) - $45.
Knobs / Caps / Buttons / Covers / Covers,
Tuning knob - $25. SOLD
5/16/2023
Knobs / Caps / Buttons / Covers / Covers, Round
Bass, Treble, Tone / Balance,
Volume knobs - $20.
ea.
Knobs / Caps / Buttons / Covers / Covers,
Round 'push' caps for
'Power / Speakers /
Loudness / FM Muting / Mode / Tape Monitor 'Push' switch caps w/ spring - $12.50 ea.
Switches / Selectors,
'Power' Push switch. Matsushita S-3-TV35
type
3A250VAC ESB-7086T 572 - $30.
Switches / Selectors, 'Speaker Selector' Push switches / selector
- $30. pair
Switches / Selectors, Push switches for 'Loudness', 'Tape Monitor',
'FM Muting'- $35. for all 3 on bank
Switches / Selectors, 'INPUT SELECTOR' Rotary switch / selector
DMS SSR67 MODEL SRL
- $40.
SOLD
TECHNICS SA-5170 SA5170 PARTS / SPARES
Potentiometer / Control pot,
Volume Pot Alps 4-Gang unit. 871M1
2x 250kΩ -
$35. SOLD
Potentiometer / Controls, Bass or Treble pot
772M1 or 871M1 2x 100k Ohms - $35. ea
Potentiometer / Controls, 'Balance' pot
7731 - $25.
SOLD
Meters, AM/ FM Tuning VU Meter
trio
- $30.
Flywheel, Dial Shaft / Flywheel / Tuning
control assembly (knob sold separately) - $30.
Pulley / String-wheel, plastic string wheel for tuning capacitor - $25.
Capacitor / Tuning Capacitor, Tuning Capacitor ECVC751K144A - $25.
SOLD
Pointer, Lighted Dial Pointer - $15.
TECHNICS SA-5170 SA5170 PARTS / SPARES
Circuit Boards, ' Tuner / Main' Circuit board SUP10850A Circuit
board. Contains IC chips: Mitsubishi AN217P, AN363, AN377 and
original / OEM transistors 2SA721, 2SC828, 2SC1047,
2SC1398, 2SC1675, (less pots & switches, jacks, string wheel &
Tuning Capacitor) - $45.
Circuit Boards, 'Power Supply' / 'Power Amplifier / Driver Boards' Circuit board
w/ bridge Rectifier S4VB, with 'small' transistors; 2SA798, 2SC945,
2SA954, Mitsubishi 2SC828, 2SC1940, 2SC2003,
power resistors; 2W 0.022 Ohm, and balance of diodes, resistors,
capacitors, chokes / coils
(less output transistors, pots & switches, and jacks) - $45.
Transformer, Power supply Transformer
SLT5N167-W-A
- $45.
Capacitors, Power supply filter Caps
35V / 6,800 uf - $20
ea.
TECHNICS SA-5170 SA5170 PARTS / SPARES
Jacks, Speaker Outputs / Fuse Holders - $35.
complete
Jacks, Headphone Jacks - $25.
ea.
Jacks, RCA
Input / Output Jacks & Antenna Input Jacks - $30. complete
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB, West, Middle-Tan cab, 3rd drawer
(W/Teac 6010)
- Revised
3/18/19
|
(Click on above thumbnails to enlarge photos)
TECHNICS STEREO RECEIVER
TECHNICS SA-8500X
Circa 1970'S
Very clean 4-Channel unit, the works, unfortunately no dial or indicator
lamps will light. Unit looks near new inside and out. Selling for repair or
parts
As-Is
SOLD
|
|
NEW LISTING 9/4/07
(Click on above thumbnails to enlarge photos)
TECHNICS SA-GX670
TECHNICS STEREO RECEIVER
Looks great. Unfortunately the receiver tested with squared sine waves. Unit
looks nearly new inside and out. Selling for repair or parts
As-Is
SOLD
|
-
|
|
|
|
(Click on above thumbnails to enlarge photos)
TECHNICS
RS-M68 CASSETTE DECK PARTS
Parting Out
Great looking deck. Lights up. Motors all run. Transport engages, but does
not rewind. Tape was playing, but needs transport adjustment in addition
to rewind problem as door won't close completely with a tape in upon
re-assembly while on the bench.
Knobs / Caps / Buttons / Covers / Covers,
'Input Select' Silver, plastic toggle cap - $25.
Potentiometer / Control, Input /
Record Level potentiometers,
Ganged, 50k Ohms x2 - $30.
SOLD
Potentiometer / Control, Output
Level Input potentiometer. Ganged, 10k Ohms x2 - $30.
Switches / Selectors, Input
Selector Switch assembly for "Line" or "Mic" -
$30.
Selling for parts. Email or phone for part
needed.
Transport sold, but motor and most other parts still in stock.
|
(Click on above thumbnails to enlarge photos)
TECHNICS
RS-M205 CASSETTE DECK PARTS
Parting Out
Great looking deck. Lights up. Motors all run. Transport problems and has
been partially disassembled internally. Parting out. Email or phone for part
needed.
SOLD COMPLETE DECK
|
|
NEW LISTING 2/10/18
(Click on above thumbnails to enlarge
photos)
TECHNICS RS-M228X
/ RSM228X CASSETTE DECK PARTS / SPARES
#...8257
- PARTING OUT -
Panel,
'Red' Plexi lens for VU meter display - $20.
Panel,
Front
/ Face plate
with transport control buttons intact. Meter / counter
plastic cover / window good with light
surface scratches to plexi, and minor nicks around the edges of aluminum
but nothing distracting. - $55.
OR
Controls,
Transport
control buttons ONLY as a set. - $35.
Knobs / Caps / Buttons / Covers / Covers,
Tape Transport / Control / Function buttons
- (see listing above under "Controls"
Knobs / Caps / Buttons /
Covers /
Covers,
'Power' Silver, plastic button on
black, plastic, 'push' rod - $25.
Knobs / Caps / Buttons / Covers / Covers,
'Rec Mute' Silver, plastic button on black,
plastic, 'push' rod - $25.
Knobs / Caps / Buttons / Covers / Covers,
'Input Select' Silver, plastic button on
black, plastic, 'push' rod - $25.
Knobs / Caps / Buttons / Covers / Covers,
Noise Reduction Selector Knob -
$25.
Knobs / Caps / Buttons / Covers / Covers,
Input Level Knob set (front and back) -
$20. SOLD Surface
scuffs / striations
Knobs / Caps / Buttons / Covers / Covers,
Output Level Knob - $20.
Knobs / Caps / Buttons / Covers / Covers,
Eject button -
$20.
Potentiometer / Control, Input Level Input potentiometer,
20k X2 - $30.
Potentiometer / Control, Output
Level Input potentiometer, ALPS #QWKGTAO24A14A 10k X2 - $30.
Switches / Selectors, Power Switch
ALPS TV-3 SDL1P / QSW1117AU -
$30.
Switches / Selectors,
Record Mute, 'Momentary', 'Push' Switch
- $30.
Switches / Selectors,
'Input / Source' Selector Switch
- $35.
Switches / Selectors,
Noise Reduction Selector Switch
- $40.
Rod / Wire, Record Switch 'Actuator'
rod / wire - $20.
Well window, Cassette 'well' plastic
cover / window. Light surface scratches to plexi, but nothing
distracting. Lower 2/3 Aluminum plate clean as is 'silk screening'
- $30.
Frame, Door Frame, with 'rack and pinion gear damper' and spring
(part that holds the tape and 'hinges' down)
- $35.
Meters / Display, VU /
Rec / PB level meters fluorescent tube mounted to circuit board;
QJIM0146NNP IC CHIP: AN6870N, and balance of transistors, resistors,
capacitors, diodes etc. - $45.
Counter, Tape Counter - $35.
TECHNICS RS-M228X
/ RSM228X
PARTS / SPARES
Motor,
Main capstan
Drive motor MMI-6A2LKPA
Mitsubishi MMI-6A2LKPA DC 12V
(see also Panasonic RS-B10, Panasonic
RX-5085,
Technics RS-M6, RS-B14, RS-B48R, RS-M205, RS-M218, RS-M226, RS-M228X,
RS-M234X, RS-245X, RS-M255X, RS-M263?, and likely many others) -
$35. SOLD /
MIA??? 1/19/2021
Transport mechanism,
(less heads, Supply and Take-Up reel 'tip' assemblies,
including tape reel caps / springs, well door frame, pinch roller
mechanism, counter & motors) - $45.
(some other parts available individually until
transport sells) SOLD / MIA??? 1/19/2021
Hub Caps / Spindle Caps,
Supply Spindle 'upper' parts - $30.
ea. set SOLD / MIA??? 1/19/2021
Hub Caps / Spindle Caps,
Take-up reel / Spindle 'upper' parts - $30.
ea. set
SOLD /
MIA??? 1/19/2021
Heads,
"MX" PB/
REC Head / Head-Stack / Head stack
QWY4122ZB - $40.
(Avg wear. Still many miles left))
SOLD / MIA??? 1/19/2021
Heads, Erase Head
/ Head-Stack / Head stack - $40.
(Like new)
SOLD /
MIA??? 1/19/2021
Pinch
Rollers / Arms,
Pinch roller / arm assembly w/ spring. -
$25. SOLD / MIA??? 1/19/2021
Transformer,
Power transformer QLPW23ELE / TKP0228-30, on Circuit board - $45.
Circuit Boards,
'Main' Circuit board, with Playback Amp, Record Amp, Bias
Circuits, Dolby circuits, Gain adjustments, Power Supply
'Filter' components, Record Switch and much more. Includes
IC chips; Dolby NE646N, AN6256, M5218L, M5219L, and transistors;
2SA886, 2SA999, 2SC1847, 2SD592, 2SD965, 2SK104, and balance of
other transistors, capacitors, resistors, diodes, PC mount
'trim' pots etc. (does not include user switches / selectors,
user control pots, I/O jacks). - $55.
Circuit Boards, 'dbx
NR' Circuit board, QJIM0144NNP. Includes IC chips; dbx
146732, 146742, and transistors; 2SC949, 2SD51010, and balance
of other transistors, capacitors, resistors, diodes, PC mount
'trim' pots etc. - $45.
Jacks / Terminals / Connectors, Mic Input Jacks
- $25.
pair
Feet,
Rubber feet / pods w/ screws
(There's only 2 on the 'right' side of the
unit that are 'removable')
- $20. set of 2
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location:
PB, SW group, 3rd cab from center, Black, 4th drawer, right side. -
Revised
3/18/19
|
(Click on above thumbnails to enlarge photos)
TECHNICS
RS-M234X
/
RSM234X PARTS / SPARES
SOME PARTS MAY BE
INTERCHANGEABLE WITH OTHER PIONEER "RS-M" SERIES, BUT YOU'LL
NEED TO DO YOUR OWN RESEARCH
PART NUMBER / CROSS
REFERENCE INFORMATION
ONLY!!!!
NO parts DIRECTLY available from a 'Salvaged' / 'Scrapped'
Technics RS-M234X currently
Switch, Power Push
Switch, SDL1P / TV-3 -
Reference info ONLY. Not currently available from this menu.
Circuit Board,
Input / Balance Potentiometer Circuit board QJIM0182NNP
-
Reference info ONLY. Not currently available from this menu.
Circuit Board,
Main
Circuit board QJIM0177NNP, w/ transistors; 2SB941, 2SD1265 & IC; Dolby Chip
NE635N / K8309, Dolby Chip NE654N, M5220L, M5218L
- Reference info ONLY. Not currently available from this menu.
Circuit Board,
Circuit board QJIM0174NNP w/ transistors & IC; dbx Chip AN6391,
M5218L - Reference info ONLY. Not currently available from this menu.
Circuit Board,
Power
Supply Circuit board QJIM0173NNP -
Reference info ONLY. Not currently available from this menu.
Transformer,
Power
Supply Transformer, QLPW26EKC / 48A-024NP -
Reference info ONLY. Not currently available from this menu.
Motor, Mitsubishi motor
MMI-6A2LKPA DC 12V (see also Panasonic RS-B10, Panasonic
RX-5085,
Technics RS-M6, RS-B14, RS-B48R, RS-M205, RS-M218, RS-M226, RS-M228X,
RS-M234X, RS-245X, RS-M255X, RS-M263?, and likely many others) -
Reference info ONLY. Not currently available from this menu.-
Jack / Circuit Board,
Headphone Jack / Circuit board QJIM0176NNP
-
Reference info ONLY. Not currently available from this menu.
|
(Click on above thumbnails to enlarge photos)
TECHNICS
RS-M255X CASSETTE DECK FOR REPAIR OR PARTS
W/ DBX
#...4839
SOLD 8/8/11
Great looking deck. Lights up. Motors all run. Transport problems in that
a tape will run, with some internal manipulation, but as soon as you go to
stop and try and start again the tape won't travel, unless you again
manually start it inside. Problem unknown. Features Dolby, DBX, Digital
counter, Fluorescent meters, IC Logic tape controls and much more. Selling
as is and complete for repair or parts.
Looks great!
Selling as-is
$45.
SOLD 8/8/11
|
|
NEW LISTING 1/22/15
TECHNICS RS-B48R / RSB48R CASSETTE RECORDER SALVAGE PARTS / SPARES
Bonnet / Cover,
Sheet metal, silver, clean
(attachment
screws sold separately) - SOLD
Panel,
‘Front / Face panel’, w/ display / meter window. Minor scuffs, small edge
dings
(less
transport, controls, meters, buttons, switches, jacks / plugs, sold
separately)
-$35.
Panel,
Aluminum ‘Transport’ function panel / overlay
-$25.
Panel, Aluminum end trim / cap for right side of face panel (minor
scuffs)
-
$20.
SOLD
Panel / Display,
Futaba QSIFL013F Fluorescent tube readout ‘record level’ display on circuit
board#QJIM0214NNP PWB-D with transistors 2S115, 2SC2320, IC
AN6870N and balance of board mounted capacitors, resistor, diodes - $45.
Circuit Board, ‘Main’ Circuit Board, PWB-A, #QJIM0211NNP with
transistors: 2SA124, 2SA933, 2SA1309, Mitsubishi 2SB941,
2SC114, 2SC945, 2SD1225, Mitsubishi 2SD1265, 2SD1275,
2SD1468,2SJ40, 2SK3ZA, 2SK81, 2SM21,
Mitsubishi 2SA921, Mitsubishi 2SD1011, horizontal package
Mitsubishi M5218L, Mitsubishi M5220L, IC AN6270, AN6271, dbx AN6291,TEA0665
Dolby chip, MN1405RMS with balance of board mounted resistors, capacitors,
diodes, small variable resistors, adjustable core transformers
(less jacks / connectors, slide pots, switches / selectors, headphone and
microphone jacks / connectors
-
$65.
Circuit Board, ‘Control’ circuit board, PWB – C #QJIM0213NNP,
includes transistor 2SM11, LEDs green, red, yellow, white, momentary
switches with other board mounted resistors,
(counter sold separately)
- $40.
Circuit Board, ‘Forward’, ‘Reverse’ switching circuit board
#QMIM0216NNP .OWB-E
(switches sold separately) - $30.
TECHNICS RS-B48R
CASSETTE DECK SALVAGE PARTS / SPARES
Counter,
3 digit with pulley
-
$20.
Knobs / Caps / Buttons / Covers / Covers, ‘Power’ cap
(switch,
switch extension sold separately)
- $20.
Knobs / Caps / Buttons / Covers / Covers, ‘Input’, ’Balance’ slider / linear fader pot cap
(input slider
pot sold separately)
- $18. ea.
Knobs / Caps / Buttons / Covers / Covers, ‘Timer’ slider switch cap
(input
slider pot sold separately)
- $18. ea.
Knobs / Caps / Buttons / Covers / Covers, ‘Power switch ‘extension’, plastic
(power
switch sold separately)
- $15.
Extensions,
‘Tape selector’ / NR / DOLBY / DBX switch ‘extensions
(less
switches & caps sold separately)
- $15. ea.
Knobs / Caps / Buttons / Covers / Covers, ‘Transport Mode’ switch caps, gray plastic
- $15. ea.
Knobs / Caps / Buttons / Covers / Covers, ‘Eject’ button- $20.
Knobs
/ Caps / Buttons / Covers / Covers, ‘Transport’ buttons / caps (charcoal, red,
orange) - $12. ea.
TECHNICS RS-B48R
CASSETTE DECK SALVAGE PARTS / SPARES
Switches / Selectors,
‘Power’ push switch SDL1P TV-3 4A/32A250V
(cap /
button, extension sold separately)
-
$25.
Switches / Selectors,
‘Reverse Mode’ Forward / Reverse push switches
(selectors,
caps / buttons sold separately)
- $25. ea.
Switches / Selectors,
‘Noise Reduction’ locking push switches, set of 4
(less circuit
board)
- $35. set of 4
Switches / Selectors,
‘Timer slide switch
(less cap /
button)
- $20.
Switches / Selectors,
‘Tape Select’ locking push switches, set of 3 - $25. set of 3
Potentiometer / Controls,
‘Record level’, linear fader potentiometer 50Ka
(less
extensions, cap sold separately)
- $25.
Potentiometer / Controls,
‘Balance’ linear fader potentiometer, 40t 100kw
(less
extensions, cap sold separately)
- $20.
TECHNICS RS-B48R
CASSETTE DECK SALVAGE PARTS / SPARES
Transformer, Power Transformer, HIKARI MUM052-2 QLPP61ELX
with circuit board #QJIM0212NNP PWB-B - $45.
Heads / Headstack, (INCLUDED W/
TRANSPORT, SHOWN BELOW)
Transport, ‘Transport’ w/ heads (less motors) - $45.
Motor, Capstan Motor Mitsubishi MMI-6A2RK, DC 12V, CW -
$35. SOLD
Motor, ‘Fast Wind’ Motor Mitsubishi MMI-6C2LKE, DC 10V - $35.
Motor, ‘Transport’ Motor Mitsubishi MMI-6C2LKC, DC 8V - $35.
Jack
/ Connector, RCA Input / Output connectors / jacks 2 pair
set
- $ 25.
Jack
/ Connector, ‘Microphone’ ¼ inch jack - $25. ea.
Jack
/ Connector, ‘Headphones’ ¼ inch jack - $25.
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB, South, 3rd cab / pink, 3rd
drawer, left-half -
Revised 3/18/19
|
NEW LISTING 1/22/15
TECHNICS RS-TR157, RSTR157 CASSETTE RECORDER SALVAGE PARTS / SPARES
Bonnet / Cover,
Sheet metal, brown, scratched
(attachment
screws sold separately) - SOLD
Bonnet / Cover,
‘Attachment’ screws
(bonnet sold
separately) - $20.
set
Panel,
‘Front / Face panel’, plastic, matte black / black
(less
transport, controls, counter, meters, buttons / caps, switches, bay doors
all sold separately)
-$35.
Panel / Door,
Cassette ‘Bay / Well Door’ ‘Deck 1’ or ‘Deck 2’ - $20. ea.
Dampers / gears,
Cassette ‘Bay / Well Door’ dampers - $15. ea.
Counter, Tape counter - $25.
Knobs / Caps / Buttons / Covers / Covers, ‘Power’ cap
(switch,
switch extension sold separately)
- $20.
Knobs / Caps / Buttons / Covers / Covers, ‘Record level’ caps / knobs
(pots sold
separately)
-
$15. ea.
Knobs / Caps / Buttons / Covers / Covers, Plastic ‘Transport Buttons’
(molded as
sets) - $20. per set / side
Knobs / Caps /
Buttons / Covers / Covers, Black, Plastic ‘Eject Buttons’ - $15. ea.
TECHNICS RS-TR157,
RSTR157 CASSETTE RECORDER SALVAGE PARTS / SPARES
Switches / Selectors,
‘Timer’ Record / Off / Play ‘slide switch’ on circuit board #RJBOO36AD
( buttons /
caps sold separately)
- $20.
Switch / Selectors,
‘Power’ locking push switch on circuit board #RJBOO36AE
(less button
/ cap)
- $20.
Switches / Selectors,
‘Eject’ mechanism, 2 deck metal levers on chassis w/ nylon extensions
(black, plastic buttons sold separately)
- $20. for both
TECHNICS RS-TR157,
RSTR157 CASSETTE RECORDER SALVAGE PARTS / SPARES
Circuit Board, ‘Main’ Circuit Board, #RJBO138B with
transistors: 2SA114, 2SA1309, 2SB1357, 2SB621,
2SB1030, 2SC114, 2SC3311, 2SD592, 2SD1450,
2SD2037, 2SJ164, IC AN7351K, AN7384, Mitsubishi M50746-145SP,
Philips TEA0657 / DOLBY NR chip, with balance of other board mounted
resistors, variable resistors, adjustment transformers, capacitors, diodes
(less filter capacitors,
jacks / connector, voltage adjuster, AC socket)
-
$55.
Circuit Board, ‘Display’ / ‘Record Level’ circuit board #
RJBOO36AA with #LN261478PH-90 LEDS for record level, tape direction, DOLBY,
deck 1 / 2 and transistors: 2SA114, IC AN6888 and balance of board
mounted capacitors, diodes, and resistors
(switches sold separately)
- $35.
Circuit Board, Deck-2 ‘Control’ circuit board, #RJB0036AB with
transport controls / tactile / momentary switches; ‘Play’. ’Stop’, ‘Cue /
Rewind’, ’Pause’, ‘ Record’, ’Reverse Mode’, ‘DOLBY’, ‘Record Level’ pots
(less front / display panel, buttons / caps, bay
doors) - $45.
Circuit Board, Deck-1 ‘Control’ circuit board, #RJB0036AC with
transport controls / tactile / momentary switches; ‘Play’. ’Stop’, ‘Cue /
Rewind’, ‘Record Level’ pots
(less front / display panel, buttons / caps, bay doors)
- $25.
Transformer, SLT5K254K KK II3 adjustable voltage with
connection pins - $35.
Heads, ‘Playback’ head #H4C 35GYA 91210 - $30.
Head, ‘Record / Playback head #003 - $35.
Transport / motor,
MMIM-5B2LWNI DC 12V - $35. ea.
Transport assembly, Less motors / heads - $35. ea.
TECHNICS RS-TR157,
RSTR157 CASSETTE RECORDER SALVAGE PARTS / SPARES
Jack
/ Connector, RCA Input / Output connectors / jacks 2 pair
panel
- $ 25.
Jack
/ Connector, ‘Remote’ / ‘Syncro-Edit’ 1/8” jack / connector
- $15. ea.
Panel,
‘Rear’, sheet metal
(less
connectors, outlets)
- $20.
Panel,
‘Bottom’ sheet metal – SOLD
Socket
/ Jack, ‘AC’ socket / jack /connector 2 pin input to main circuit board
-
$25.
CORD, ‘AC’ molded 2 pin, black ‘Figure-8 / Infinity’-
$20.
Call or Email for
"SHOWN and NOT marked 'SOLD'
" part you need.
Location: PB, East, Inside Island, Simplicity, Drawer 1, Middle. - REVISED
9/18/19
|
TECHNICS SL-B3 TURNTABLE PARTS / SPARES
SOME PARTS MAY BE
INTERCHANGEABLE WITH OTHER TECHNICS "
SL" SERIES SUCH AS;
(SL-B1, SL-B2, SL-B3 ETC.)
PART NUMBER / CROSS
REVERENCE INFORMATION ONLY!!!!
NO parts DIRECTLY available from a 'Salvaged' / 'Scrapped'
TECHNICS SL-B3 currently
Motor,
Motor, Mitsubishi DC12V, MMX-3H2RPA
-
Reference info ONLY. Not currently available from this menu.
|
Unless specifically noted, we do not typically sell 'component level' parts
such as resistors, diodes, transistors, semiconductors, ic's / integrated
circuit chips, ceramic capacitors, led's, bulbs, lamps, belts, etc. We do
commonly sell circuit boards / cards which will likely come with those parts
attached.
|
MAY*
*When we say "some parts "MAY" also
fit", that does NOT mean ALL the parts listed 'WILL' fit, and unless we show
specific info that a particular part DOES 'cross-pollinate', do not infer
that it does or will fit. Only careful research and comparisons, on YOUR
part with service
manuals, service bulletins, other comparable units, etc., MAY indicate a POSSIBLE substitution. If your situation is
'critical', do not base your decision on information found on this or any
other page of this web site and do your own research.
|
|
HERE ARE SOME ADDITIONAL RESOURCES FOR REPAIR / RESTORATION
__________________________________________________________________________________________________________
|
SERVICE NOTES:
WARNING:
Electronic equipment carries dangerous and potentially lethal electrical
currents. You should never open any electronic unit without proper
knowledge of electronics and the hazards of electricity!
Any repair / restoration should be undertaken
ONLY by a QUALIFIED
ELECTRONICS TECHNICIAN!
Random Service
Notes on Technics units we have serviced:
Technics RS-B68R
& RS-B78R
Cassette Tape Deck; Both use same
power transformer and motors. Many other parts are likely
interchangeable. Significant parts: Power Transformer: HIKARI
MUM052-5 / QLPP64ELX. Capstan motor: MM1-6A2RK & Reel Motor:
MMN-6C2LKE
Technics RS-M255X
Cassette Tape Deck; The one we
serviced came out great, but was not one of the easier cassette decks to
service. Fairly involved and most serviceable assemblies 'buried'. To remove
the tape well door / window, grasp at the bottom edge and pull. It is firmly
held in by two 'horizontal' plastic 'barbs' (most tape door / windows simple
'push-up' to remove).
We were not able to 'readily' obtain a main capstan belt, however the
currently installed belt was in very serviceable stated, so we
'reconditioned' it. We completely removed the tape transport to access the
belt.
We also removed the first couple of 'layers' from the front of the transport
to gain access to the reel / hub drive tires. The tires were removed from
their wheels, and reconditioned. This also allowed access to clean most of
the moving parts of the transport of old lubes, and re-lube. At this time we
also reconditioned the pinch rollers, prior to reinstalling the transport
assembly.
There are two ways to access the input fader / pots for cleaning. Either by
removing the entire front panel and 'meter / switch section' or by removing
the bottom sheet metal, then lowering the main circuit board. The latter is
probably the easiest in hindsight.
Meter level adjustment pots are VR-301 & 302.
The face panel must be removed to access the capstan motor speed control
which is in the rear of the motor, but since they designed the transport
'stupidly' with the motor facing 'backwards', you can't get to the
adjustment without removing the face plate.
The entire service took about 8 hours including completing the balance of
what we typically do
to cassette decks. That could probably be reduced by a couple of hours
knowing the above 'tricks and tips'.
Significant parts: Capstan motor = MM1-6A2LKPA
(also used in RS-M245X)
|
|
