GARRARD TYPE-A TURNTABLE
SOLD
3/18/04
|
|
|

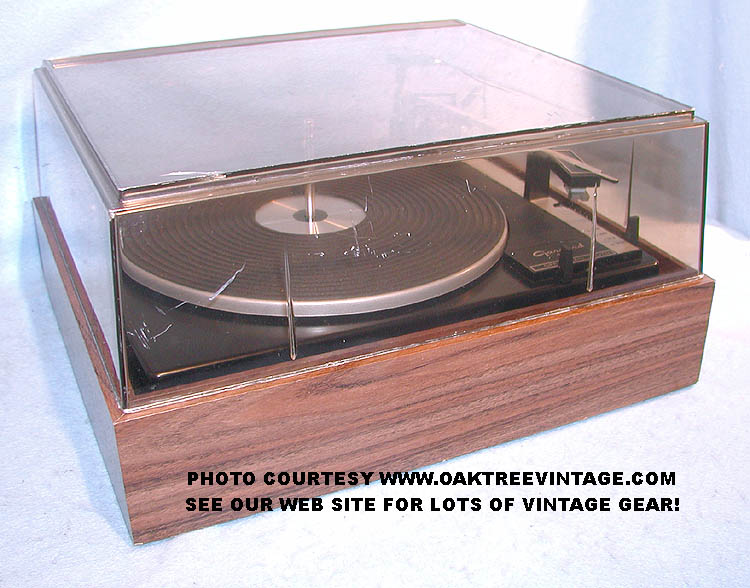

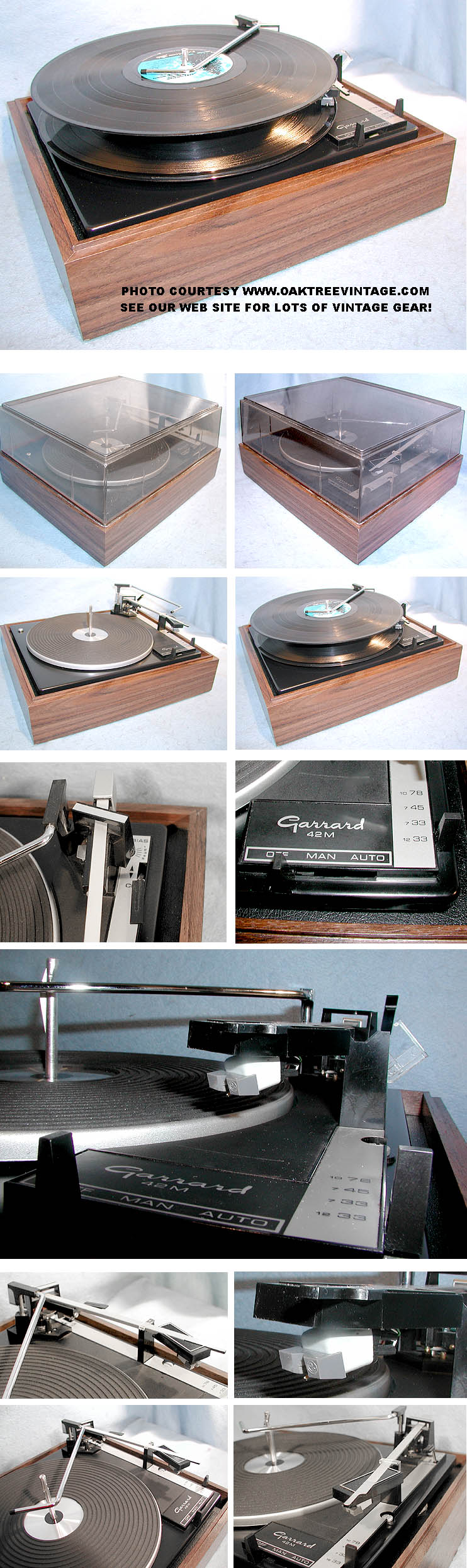

GARRARD MODEL 42M TURNTABLE
SOLD 10/19/04
|
|

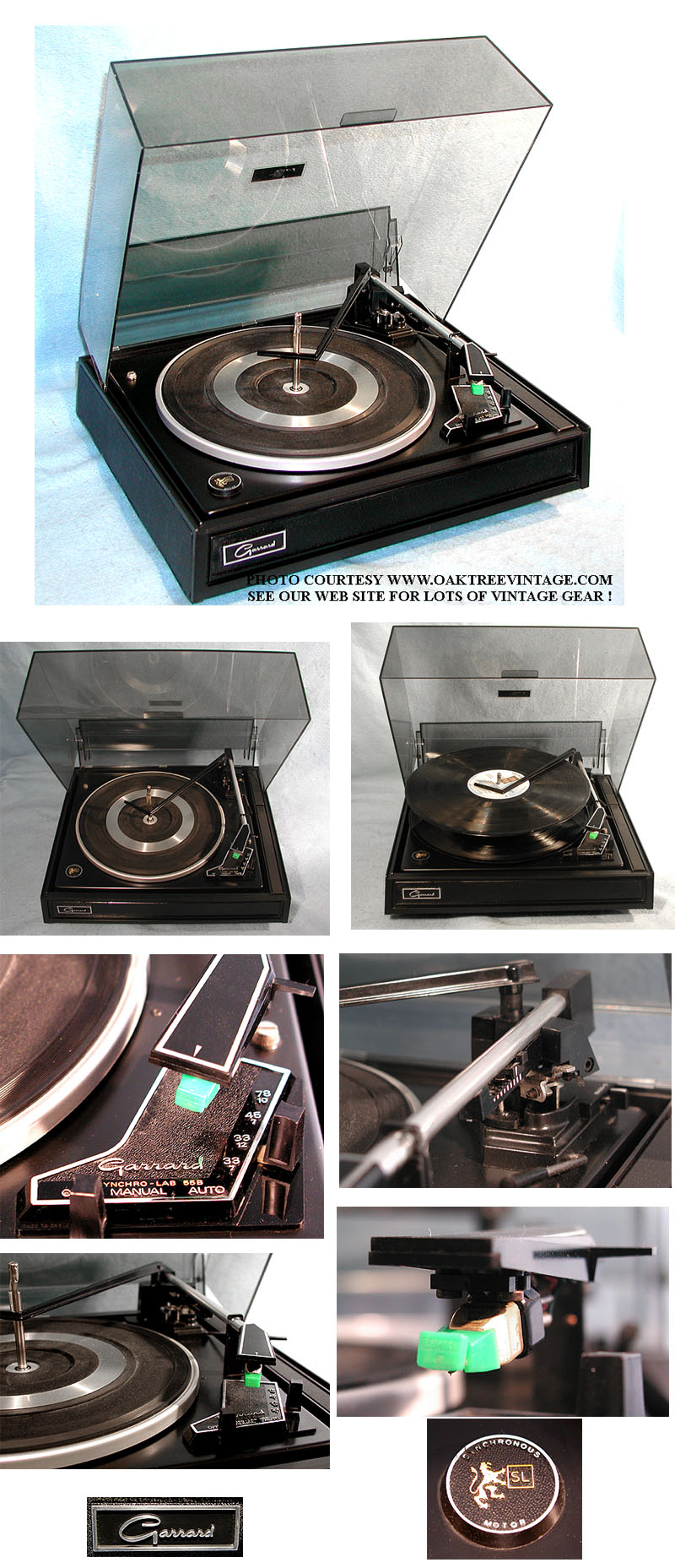

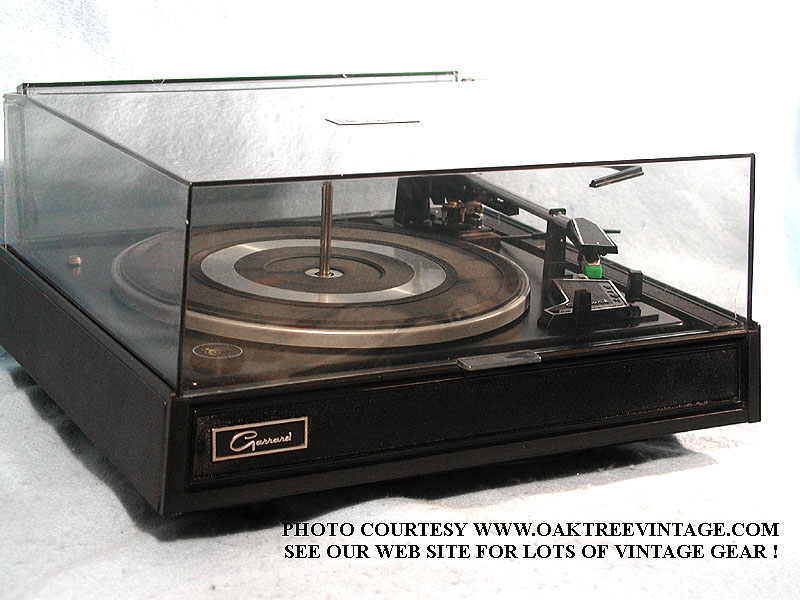

GARRARD STACKER / CHANGER
TURNTABLE SL-55B
SOLD 12/10/03
|
GARRARD SL-72B "SYNCRO-LAB
72B" TURNTABLE
SOLD 5/17/06
|
GARRARD STACKER / CHANGER TURNTABLE MODEL
72B
SOLD 6/8/06
C.B.S |
NEW ADDITION
4/2/12
(Click
on above thumbnails to enlarge photos)
warranty

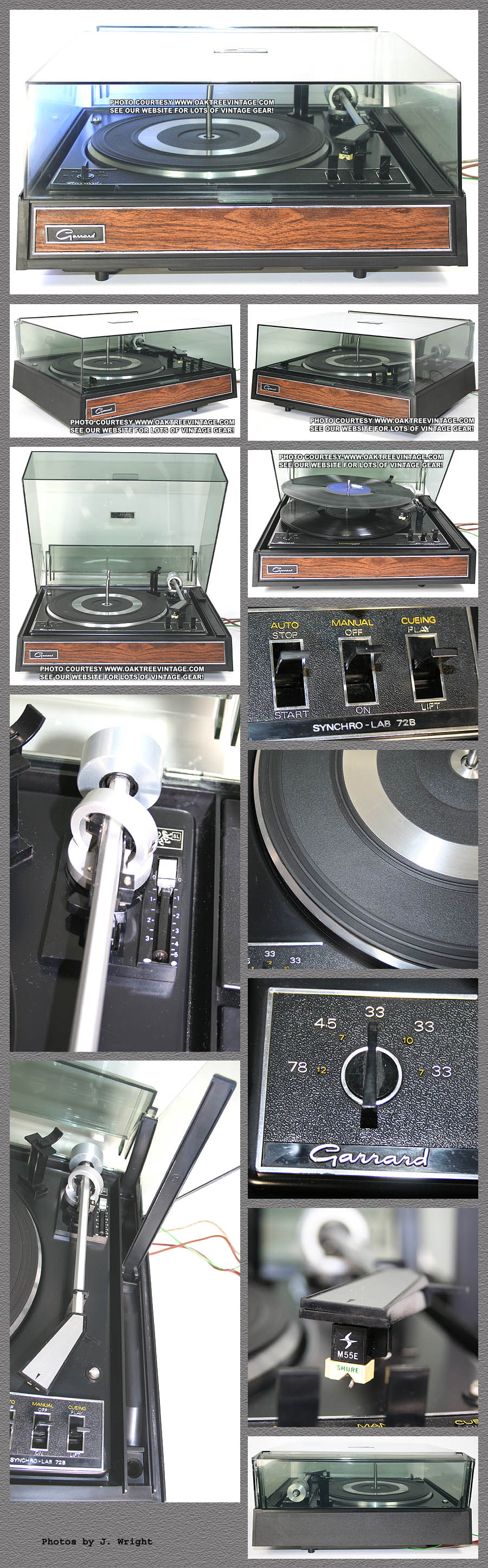

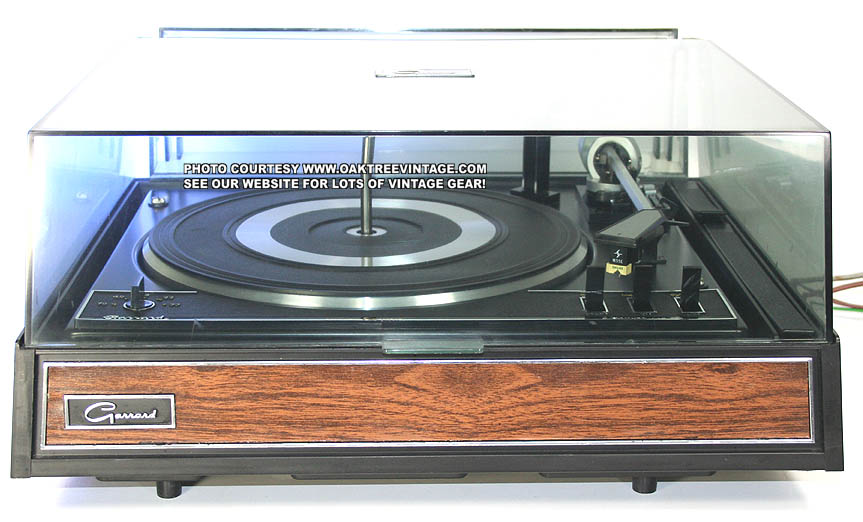

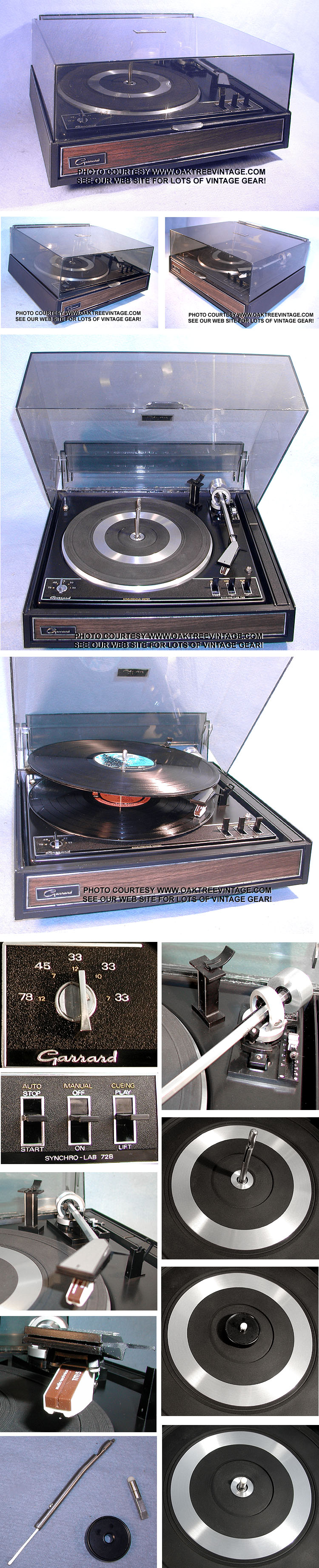

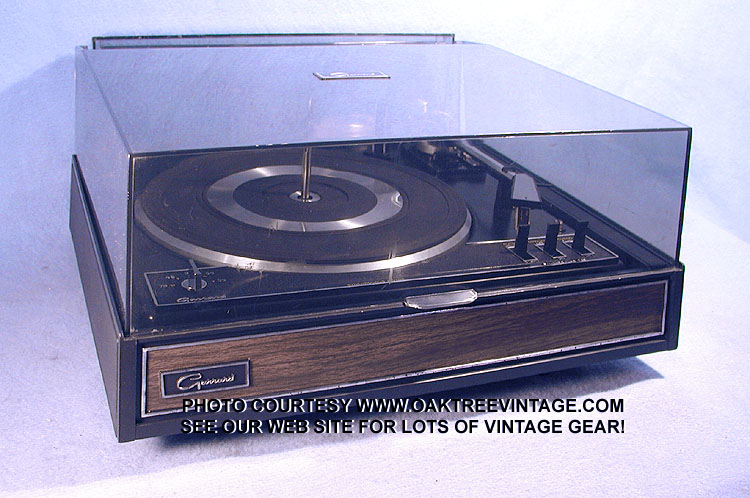

GARRARD STACKER / CHANGER TURNTABLE
"SYNCRO-LAB 72B"
FULLY AUTOMATIC
CHANGER TURNTABLE
PLAYS 78'S TOO!
Circa 1970-'74
BRITISH MADE
SOLD
2/4/13
SHIPPED
TO MICHIGAN
We have just had the table completely gone through by our turntable
technician, cleaning inside and out. Entire automatic mechanism was
disassembled, cleaned of lubrications that had turned to 'glue', and
re-lubed, including: the 'Actuating Slide and Pawl', and both plates,
reconditioned all rubber parts including the 'intermediate' idler wheel,
motor disassembled, cleaned and re-lubed, 'main cam', 'thrust washer and
ball race', 'cushion ring' all disassembled, cleaned and re-lubed, 'trip
pawl' cleaned for 'smooth end of album cycle, then he re-set "lead-in &
lead-out" tone arm adjustment. Cartridge carrier contacts burnished. Test
played and successfully stacked and dropped 6 LP's! All 'auto' functions
work great too! Original dust cover just had fresh buff and looks fabulous.
Includes standard 1/2" mount head shell, with a Shure M55E, magnetic
cartridge, with an 'inspected' elliptically cut diamond stylus, already
installed. (If you prefer an up-grade you may also choose from our
selection of new Audio Technica cartridges that we can also set up and ship
with it for the additional cartridge cost.) Again, this table looks
near new and works great!
Beautiful and Super quality British made Garrard Syncro-Lab 72 table. These
are true classics. Table is in great shape and has been functionally
restored to fine working condition! Fully automatic operation.
Features include:
...TEXT OMITTED / ARCHIVED
Shure M55E Cartridge specs:
Type:
Moving Magnet / standard 1/2" mount
Stylus:
Elliptical, 0.2
x 0.7mil Diamond
Output: A monstrous 6.2mV
Optimum
Stylus Pressure:
.75-2g
Frequency Response:
20Hz-20,000Hz
Channel Separation:
20dB @ 1kHz
Channel Balance:
within 2dB
Again, our turntable tech has completely gone through this Garrard, Syncro-Lab
72B, turntable. Original 'Smoked Plexi', Dust cover is in overall good
structural shape and as it just had a fairly 'labor intensive' buff, looks
incredible, not even accounting for it's 40 year age. All functions work
great! While it does not have the 'single play' spindle included, it does
come with the tall 'multi-play' / 'stacker' spindle. Includes our standard
30 day limited warranty. Measures 16.75" wide x 15.25" deep x 8" tall and
weighs 15 lbs.
GARRARD STACKER /
CHANGER TURNTABLE SL-72B
Cond. 8.5
SOLD
2/4/13
SHIPPED
TO MICHIGAN
|

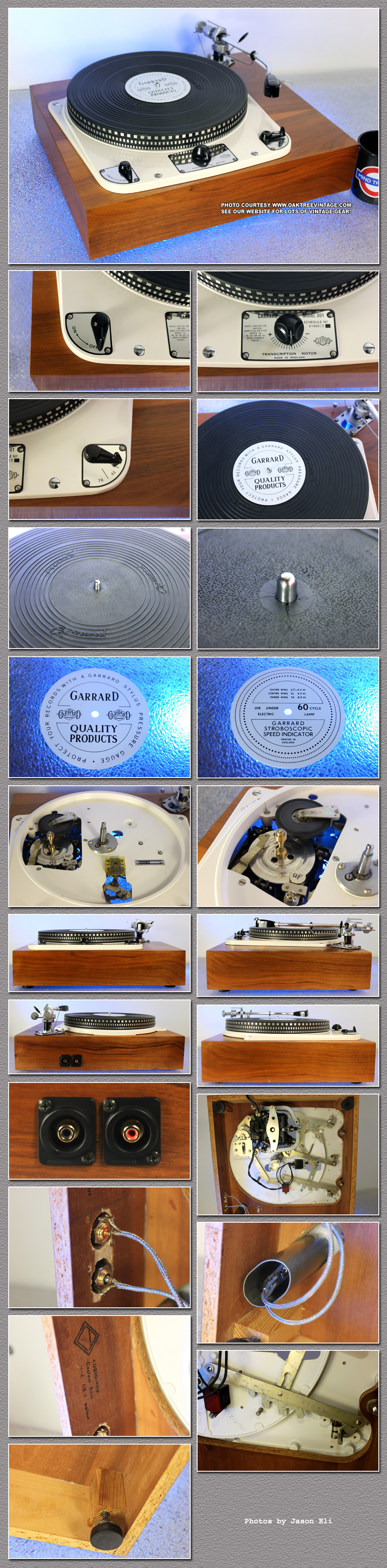

GARRARD 301 TRANSCRIPTION
TURNTABLE
SOLD 2/2/04
|
NEW LISTING
12/14/16
(Click
on above thumbnails to enlarge photos)
warranty
ONE OWNER, PRIVATELY USED
RESTORED / REFURBISHED

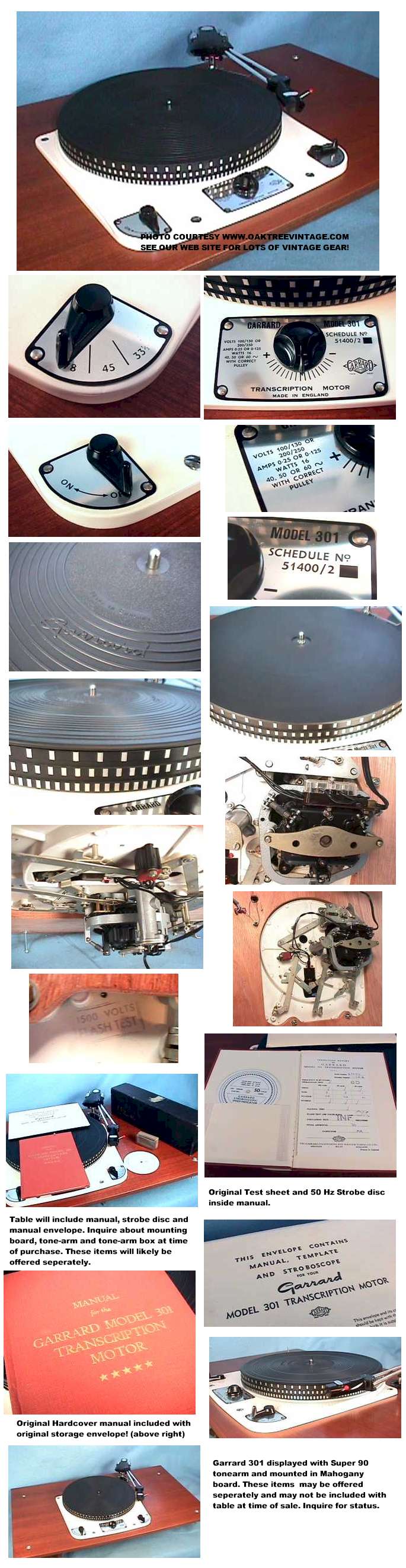

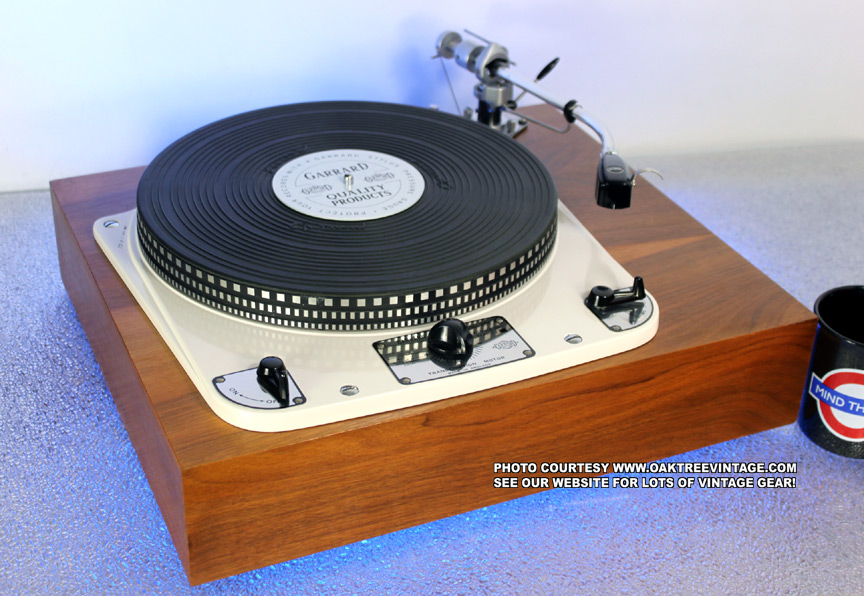

VINTAGE GARRARD 301 TURNTABLE

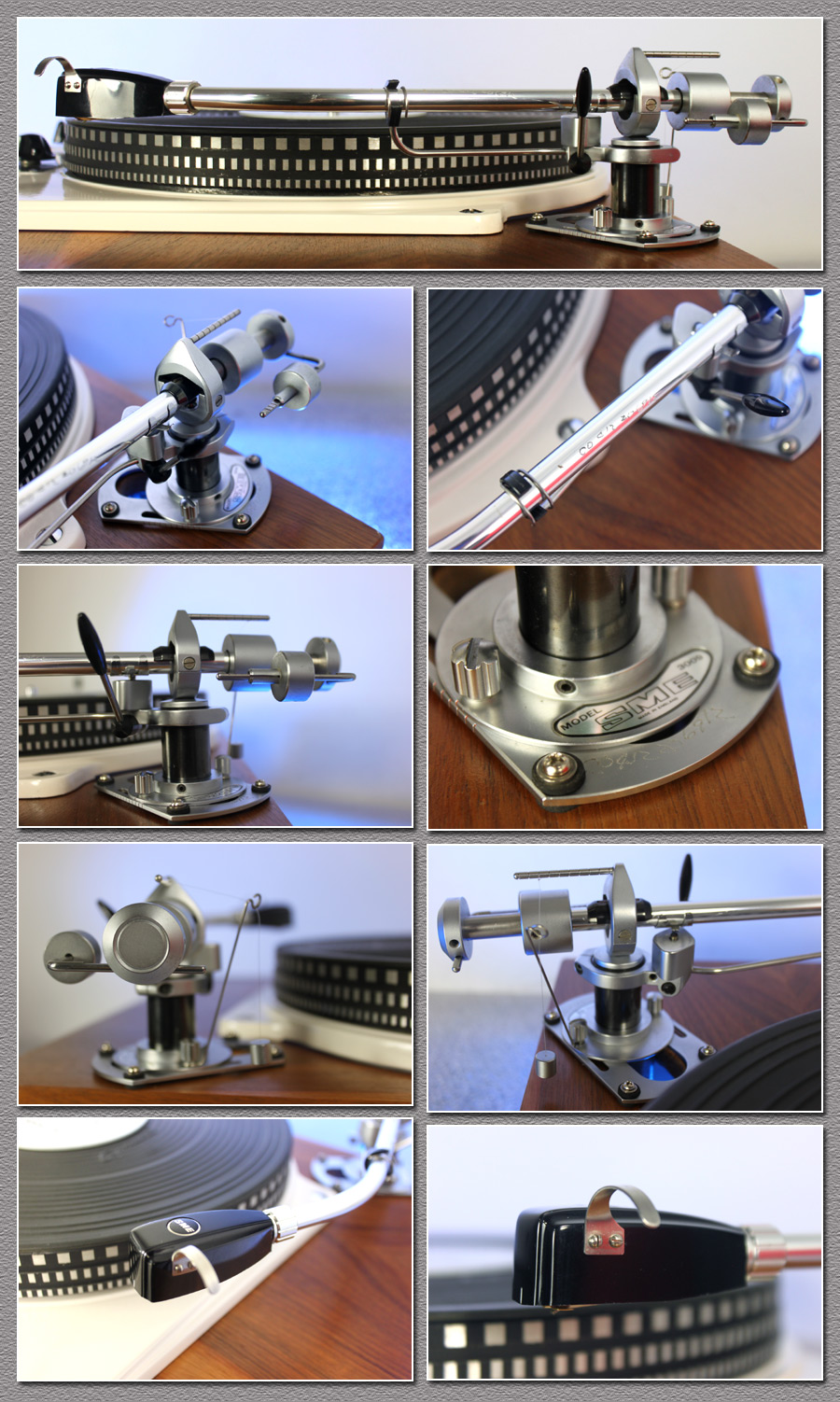

SME 3009 MK II TONE-ARM
Transcription Turntable / Schedule 51400/2
#63128
3-SPEEDS
Made in England
Circa 1954-1964 (this one is likely 1961-63)
SOLD 6/1/18
SHIPPED TO BEAU IN CALIFORNIA
This
is pretty much the 'Holy Grail' for vintage turntables, and only the
second we have had thru the shop in 19 years. This one is also a much
better example than the first one we had back in '04. This one has the
much coveted SME 3009 MK II tone arm (at the time advertised as; "THE
BEST PICK-UP ARM IN THE WORLD"! and was the tone arm that was also typically spec'd for Connoisseur '2-spd' and Thorens TD-124 tables), and an optional, factory made wooden
base. It also comes with an original ADC, Model ONE cartridge. It also
has the typically optional, 'strobe marked' platter. It's pretty much
got 'ALL THE NUTS'! FINALLY, our
current senior technician was up to the task, and refurbished this one
beautifully and CORRECTLY! (he actually owns the same version Garrard
301, with the exact same tone-arm. He loves restoring / working on these
old British Machines!)
ü
Our technician has completely and
EXTENSIVELY gone through and 'Certified' this unit
which involves disassembly (not an easy task on
this table), cleaning
inside and out, COMPLETELY DISASSEMBLING, cleaning and re-lubricating
internal mechanisms and the
balance of efforts listed below. Total technician time to restore
29 HOURS!
ü

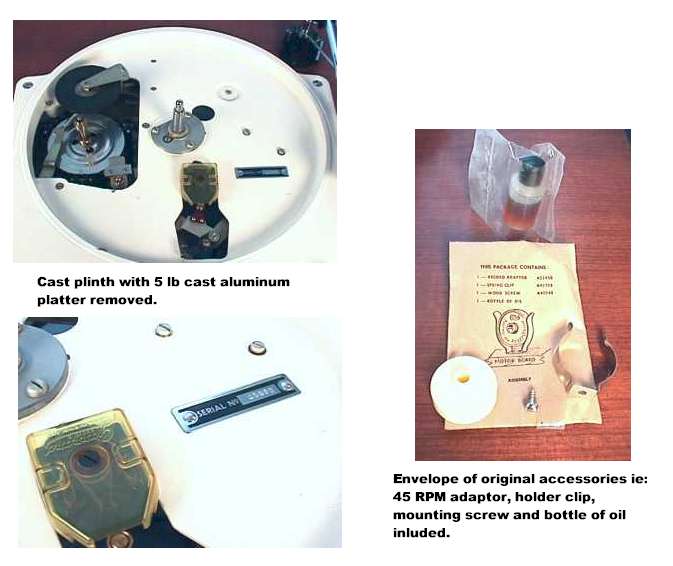

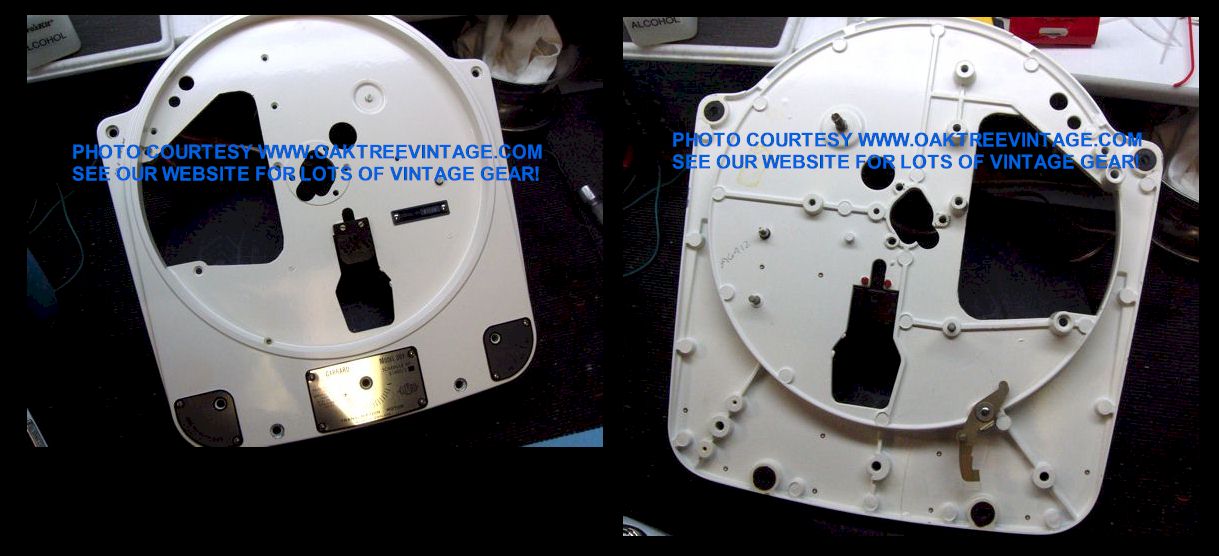

Table was completely disassembled down to the plinth
-
ü

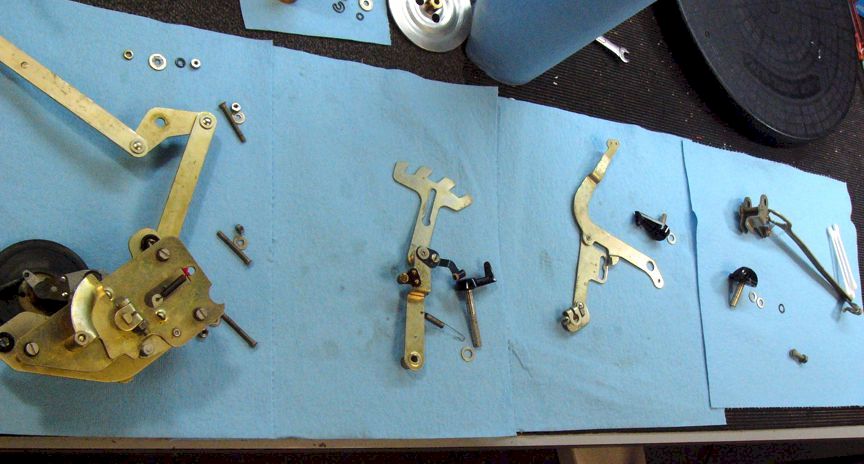

Internal mechanisms removed, disassembled, cleaned,
inspected, refurbished as necessary, re-lubed as necessary and
ultimately re-assembled
ü

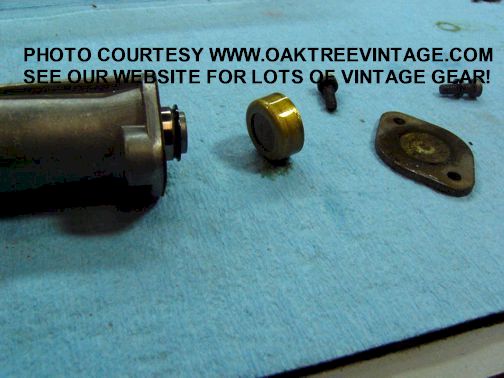

Platter spindle bearing disassembled, cleaned, inspected and re-lubed.
ü
Same was also done with the sintered, bronze bearing, which was still in
fine shape.
-
ü
Eddy brake actuator arm had all three iso springs replaced
ü
Arm lift inspected / tested
ü
Tone-Arm
'Bed Plate' has NEW, custom manufactured isolation / mounting rubber
installed
ü

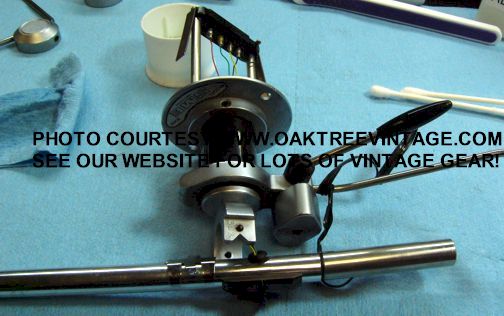

SME 3009 MK II tone arm 'knife edge' bearing disassembled, inspected and
cleaned
-
ü
Rubber mat
still supple and flexible with no
hardening (does have a few of the typical, short,
radial cracks from the spindle hole).
ü

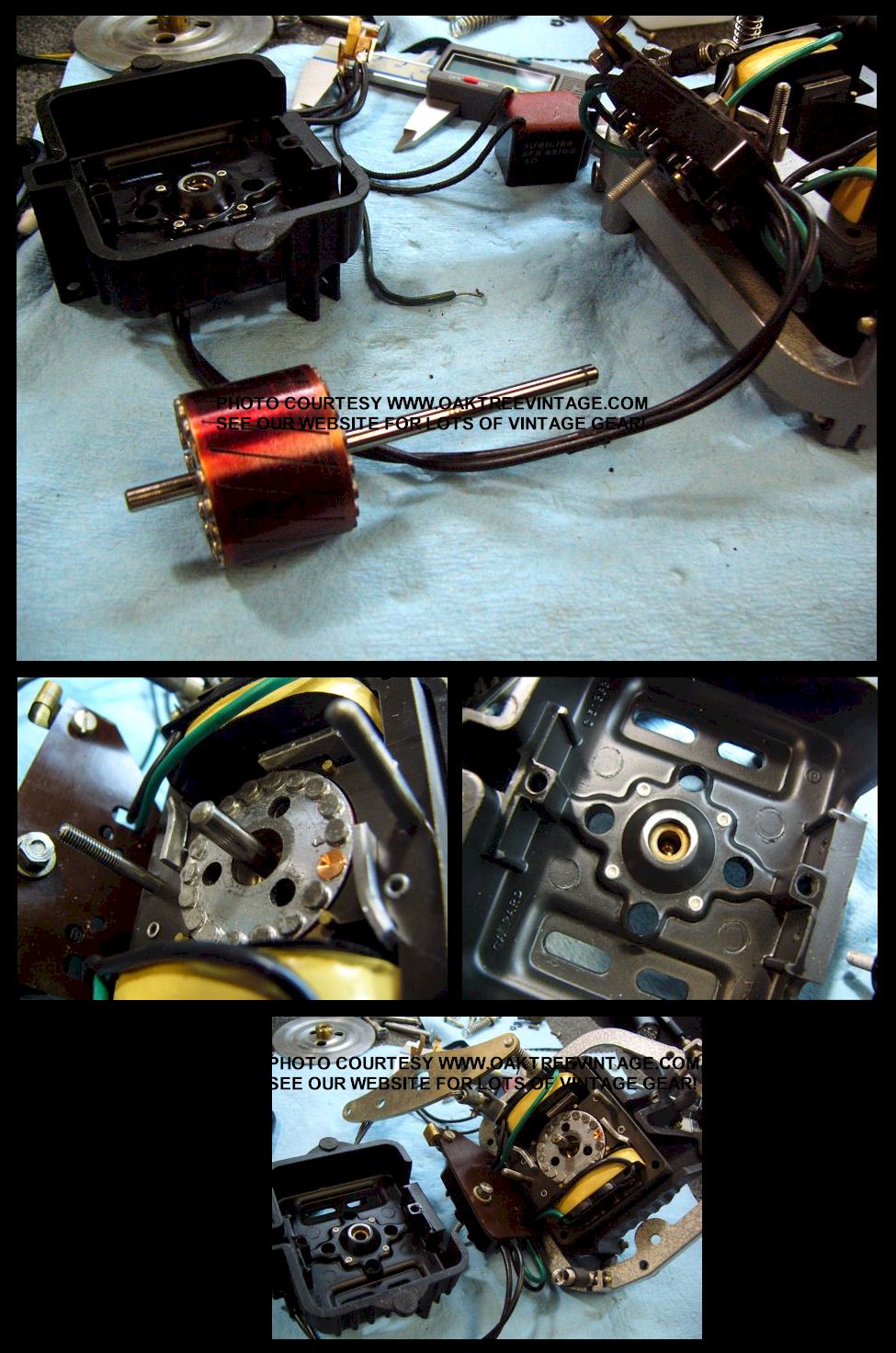

Platter
drive motor disassembled, cleaned, re-lubed and reassembled
-
ü

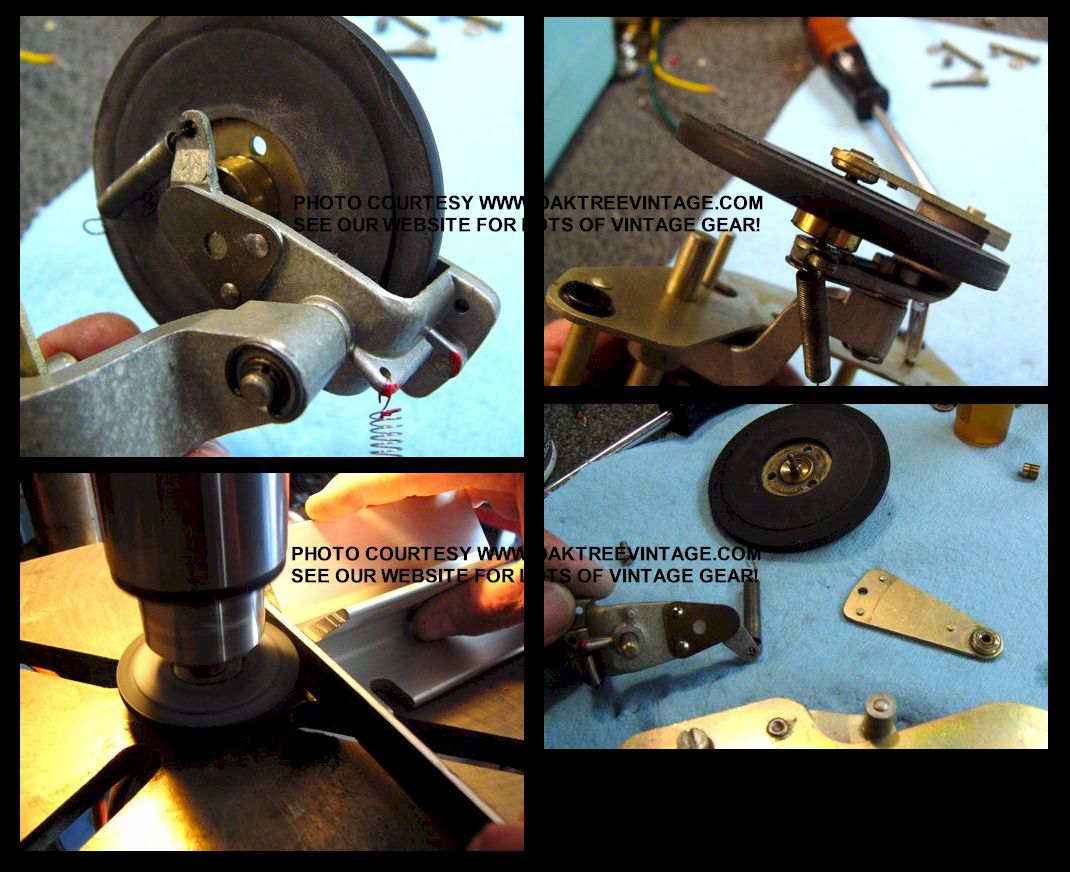

Idler tire was 'crack free' and only required our normal 're-surfacing'
-
ü
While the platter speed was 100% 'spot on', it was at the end of the
speed control's travel. We corrected this by adding to the original
magnetics so that it's now 100% when the control is positioned in the
'CENTER' of it's range.
ü
Platter speed checked and verified for
100%
accuracy with our factory test strobe disc following
above work.
ü
Platter
tested for 'true flat' and no 'run-out'.
ü
We
installed 24kt gold plated RCA jacks on the rear panel, and are
including a pair of much better quality RCA interlinks (as opposed to
the original and 'fixed' anemic cables)
ü
We
installed 24kt Gold Cartridge / head-shell leads instead of the 'as
found' 'soldered-on' wires that were connecting the cartridge to
facilitate cartridge changes / up-grades in the future.
ü
AC
line / Power cord was replaced
ü
Tested / analyzed and passed for motor noise and 60Hz hum.
ü
Aftermarket, Audio-Vox, GB-3 'Walnut' (but looks more 'Teak') wood veneer case lemon oiled and looks
great
ü
We also
reinstalled and optimized
the tone arm for the originally purchased / installed ADC, Model One,
magnetic cartridge.
You can readily connect this table to any receiver, Integrated amplifier
with a standard magnetic phono input, or a Pre-amp. To connect to
computer for burning CD's just order one of our inexpensive Phono
Pre-Amps and cable kits.
ü
Cartridge / head
shell ‘overhang’ adjusted
using shop calibration scale.
ü
Unit
tested with our myriad of test records, one of
which included; Shures' 'Cartridge Obstacle Course' record
ü
Unit
test
cycled through MANY LP’s
flawlessly
This was a 'one owner / consumer / audiophile' owned unit and was not
used commercially. The only issues that we did not correct for was the
single owner inscribed his id info on the plinth top (left, rear corner
mounting 'ear') and underneath and
laterally on the tone-arm (see photos above).
GARRARD
301 SCHEDULE TURNTABLE SPECIFICATIONS:
Turntable Motor: Shaded Pole Induction in heavy cast casing,
suspended on six tensioned springs. Magnetically screened.
Turntable Drive System: Idler Tire
Platter: 12", 6lbs, Die-cast, Accurately Balanced', 3-Speed
Stroboscopically engraved (this was originally an upgrade for additional
cost)
Speeds: 33 1/3, 45 & 78 RPM (adjustable)
Plinth Construction: Diecast Aluminum
Platter 'Spool-Up' time: 4-6 sec.
Pitch Control Range: +/- 3.5-4%
Wow: <0.2% WRMS
Flutter: <0.05% WRMS
S/N - Rumble:
"Almost non-existent"
Platter Spindle Bearing:
Oil on Sintered Bronze bearing surface
SME 3009 SERIES-II SPECIFICATIONS:
Tone arm Type:
Angled Aluminum Pipe, 'Wood Lined' to reduce
resonance. Tone-Arm on 'Knife Edge' vertical bearing mechanism. Lateral
/ Pillar bearings are "high precision" and totally enclosed against
dust.
Effective Arm Length: 9"
Bias Adjusment: via 'hanging weight'
Tone-Arm Bearing Friction: 0.020g
Cartridge / headshell type: Standard 1/2" mount
Cartridge weight range: 5-20 grammes
Tracking Force Range: .25 to 5 grammes
Arm Lift: Fluid Damped Mechanism
ADC-1 CARTRIDGE SPECIFICATIONS:
Cartridge Design: Moving Magnet, Standard 1/2" mount design
-
Stylus Type: Diamond Stylus
Output voltage:
7 mV
Recommended loading impedance: 47K ohms (standard, requires only
standard phono pre-amp built-into most gear).
(sorry, no more avail info at this time on the ADC-1
cartridge)
If you're
looking at this then there's not much we can tell you that you
likely don't
already know. It is the "Oil Bearing" version, with
the originally, optional / upgrade, strobe marked
(60Hz), 5 lb
aluminum platter. And again, it just had
the above itemized restoration and is ready to go. In
BEAUTIFUL condition all around. Original White Enamel finish on
chassis in great shape. The
VERY SOUGHT AFTER SME 3009 Mark II tone arm is in equally great
performing shape. The tone arm includes 'one'
of the "Rider Weights". For excessively heavy cartridges, you may need
to source an additional "Rider Weight" (not sure why anyone would want
to run and 'excessively heavy' cartridge). Table
comes up to speed in about 3-4 revolutions (very heavy 5 lb cast
aluminum platter) and stays on. Motor runs perfectly and is "Dead"
silent for noise. This table is likely from 1961-63,
based on it's serial, and production quantities over the years this
model spanned, and the edition of the manual. Based on the condition of the
idler and the bronze bearing, it has
seen little use in it's life. Owner took
immaculate care of it and the entire system. Comes
with all of it's original paperwork, including the 'brown, hard cover
Garrard 301 Transcription Turntable Owners / Users manual, original
Motor inspection report, the SME 3009
mk II owners manual and alignment protractor, and the owners manual for the ADC Model One Cartridge
and more!
Measures overall 17.5" wide
x 15." front to back. Table has our standard
30 day limited warranty.
Garrard
301
Transcription table
Schedule
51400/2 Oil
Bearing w/ SME 3009 MK-II
Cond.
9.0++
SOLD 6/1/18
SHIPPED TO BEAU IN CALIFORNIA
(Cons.) R.R.
-
(Above text, in it's entirety, property of
www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright
Information' page for details)
|
|
|
NEW LISTING
4/28/10
(Click on above thumbnails to enlarge photos)
warranty

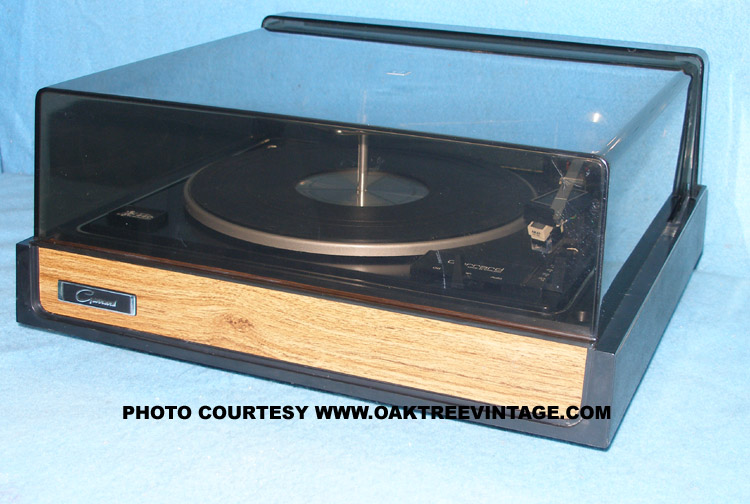

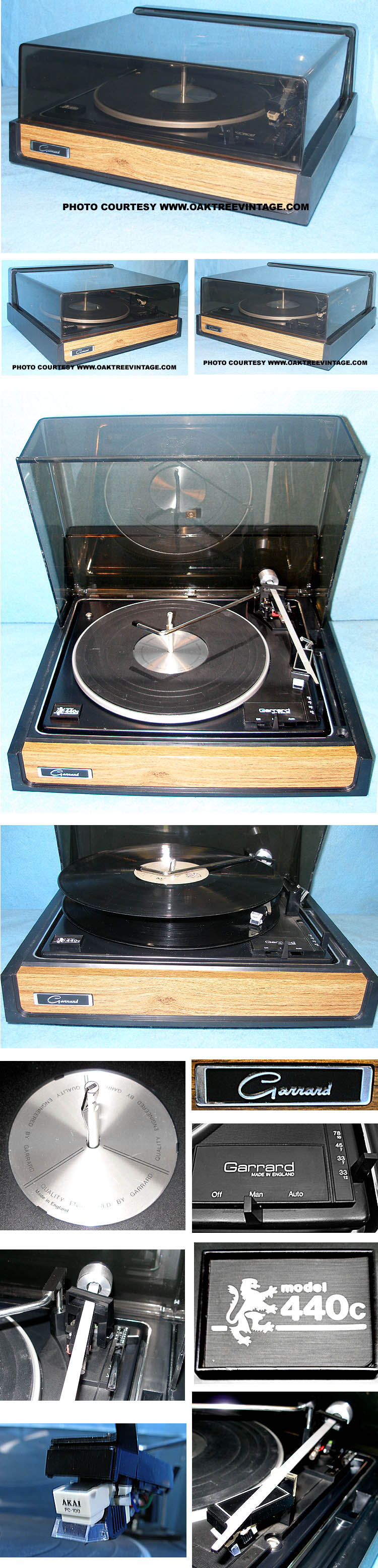

GARRARD STEREO
TURNTABLE 440 MODEL 440c / 440m Converted to 440m FULLY AUTOMATIC GARRARD
CHANGER / STACKER PHONOGRAPH
PLAYS 33, 45's & 78'S*
TOO!
RPM
Circa 1977
MADE IN GREAT
BRITAIN
SOLD 11/13/10
W/ DUST
COVER and Shure M91E magnetic cartridge.
*This
cartridge / stylus is designed for 33 1/3 & 45 RPM records and while it
will function at a minimum level, would not be optimum for 78's RPM
records. If the intended use is for 78's a cartridge / stylus specific
to that use should be installed. For info on that
click here and take a
look at our AT-2XPNOT cartridge. We can supply
it as a substitution on this table for it's additional charge.
|
NEW LISTING
11/24/07
(Click on above thumbnails to enlarge photos)
warranty

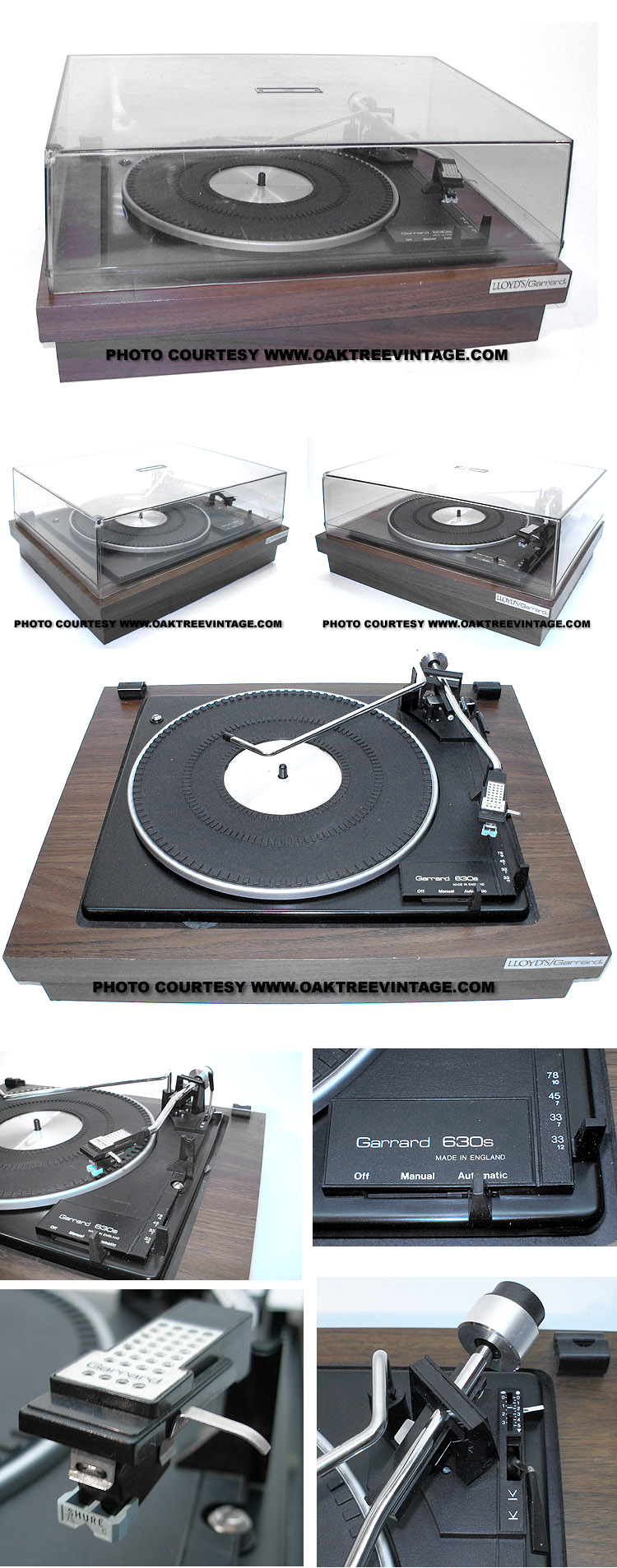

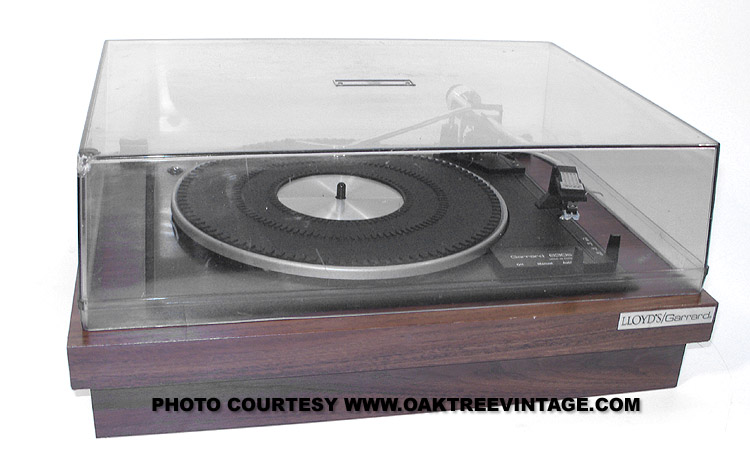

GARRARD
STEREO TURNTABLE
MODEL 630s
FULLY AUTOMATIC
STEREO TURNTABLE / PHONOGRAPH
PLAYS
33, 45's & 78'S TOO!
RPM
Circa
1978
MADE IN GREAT
BRITAIN
SOLD 2/13/09
|

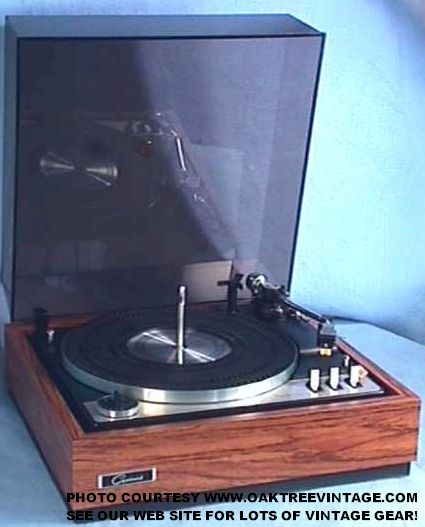

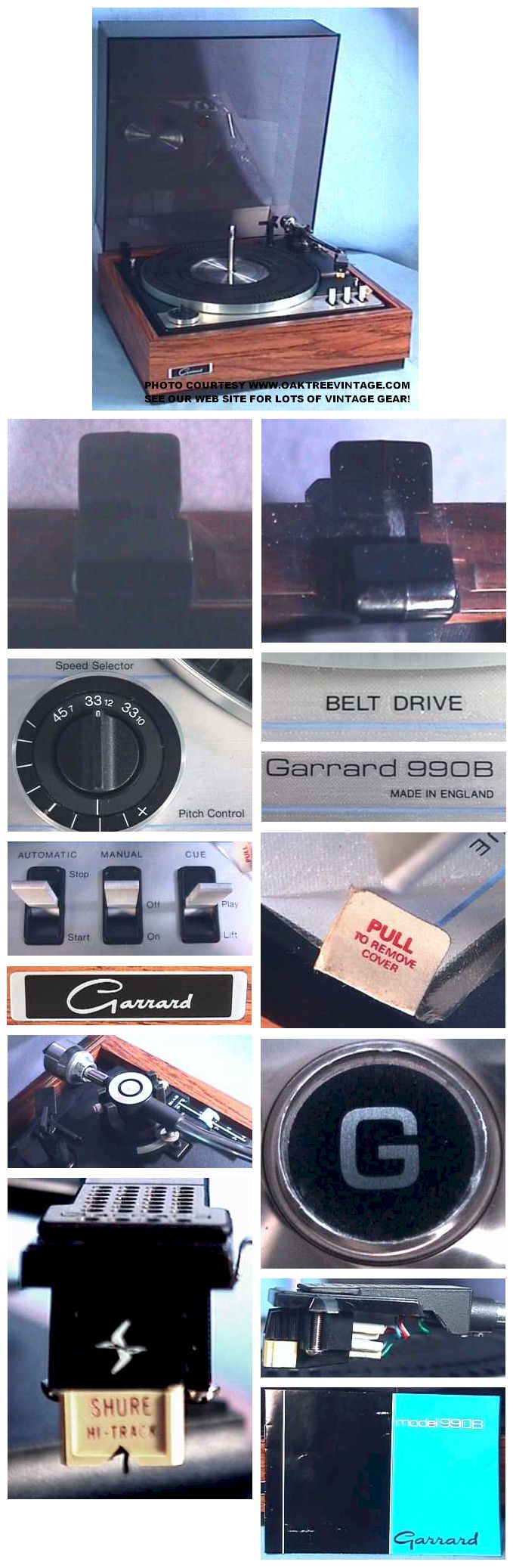

GARRARD 990B FULLY
AUTOMATIC CHANGER TURNTABLE
SOLD
|
|
|
|
|
|

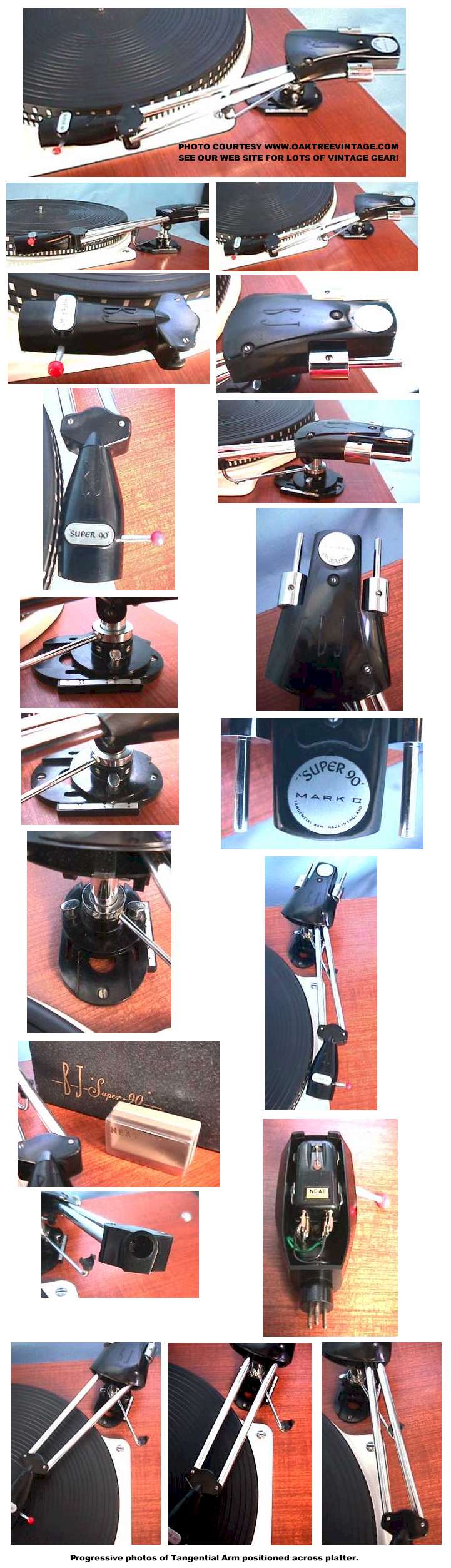

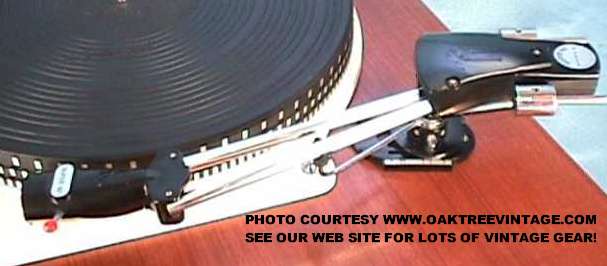

B J Burne-Jones "SUPER 90"
Mark II TANGENTIAL TONE ARM
SOLD 2/2/04
|
NEW
LISTING
4/8/11
(Click on above thumbnails to enlarge photos)
warranty

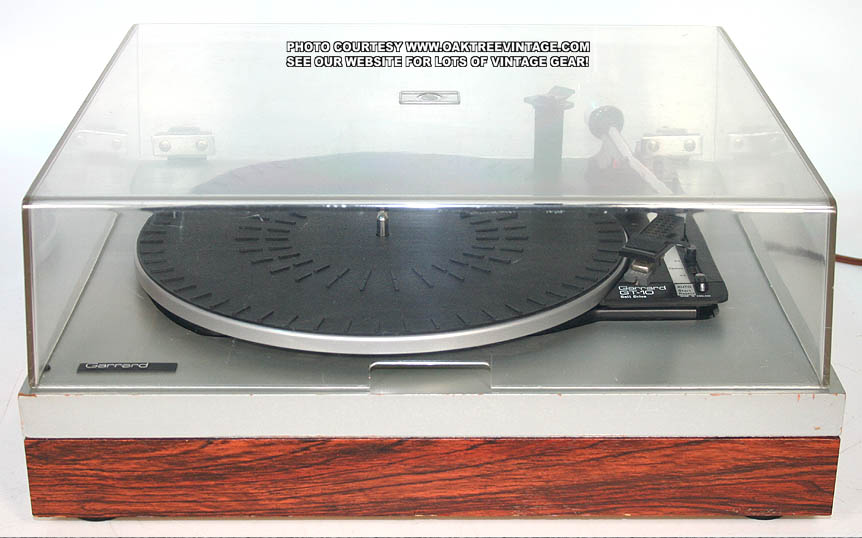

VINTAGE STEREO TURNTABLE
GARRARD
MODEL GT-10
BELT DRIVEN
FULLY AUTOMATIC
CHANGER / STACKER
STEREO TURNTABLE
Circa 1977-82
Made in the England
SOLD 4/4/12
We have just had the table completely gone through cleaning inside and
out. Extensive service to the internal mechanism taking about 4 tech
hours. Entire 'Auto' mechanism disassembled, cleaned and re-lubed.
Platter bearing completely disassembled, cleaned of old varnished lube
and re-lubed for trouble-free service. New main drive belt installed.
'Toothed' changer belt cleaned and reconditioned. Lead-in / Lead-out
adjusted for typical albums. Unfortunately we don't have a 'Long /
Changer / stacker' spindle for this one, only the short 'single play'.
Speed checked and verified for accuracy with our factory strobe disc.
Gimbal bearing, counter weight and anti-skating all adjusted and
verified for accuracy. Stop mechanism adjusted and tested. All 'Auto'
functions work great! We also installed new RCA patch cords and
're-sprung' the cartridge carrier contacts. Unfortunately while the

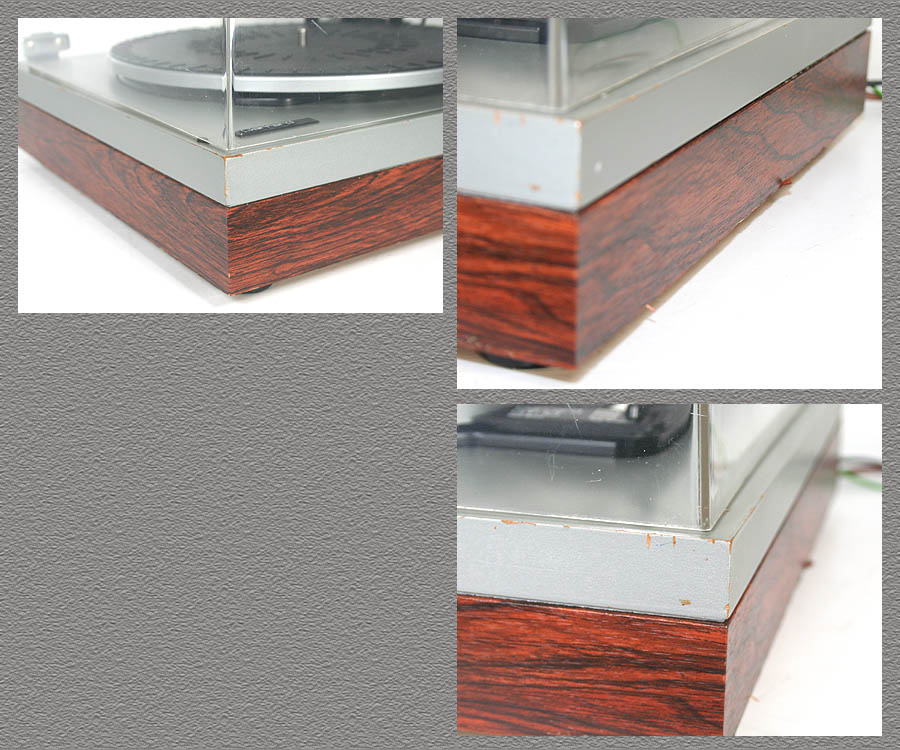

original dust cover is not in 'banner' cosmetic condition due to typical
scuffing, it is intact, crack free, and did have a light buff. Both
cover hinges do function fine. We also re-installed and optimized the
existing Pickering V-15, magnetic cartridge with it's, elliptically cut
diamond stylus. (If you prefer an up-grade you may also choose from
our selection of new Audio Technica cartridges that we can also set up
and ship with it for the additional cartridge cost.) You can readily
connect this table to any receiver, Integrated amplifier with a standard
magnetic phono input, or a Pre-amp. To connect to computer for burning
CD's just order one of our inexpensive Phono Pre-Amps and cable kits.......
Again, our tech has completely gone through it disassembling, cleaning,
re-lubing, testing for speed accuracy, rumble, wow-flutter, noise
isolation and function of internal mechanism. ......
Comes
with our standard 30 day limited warranty.

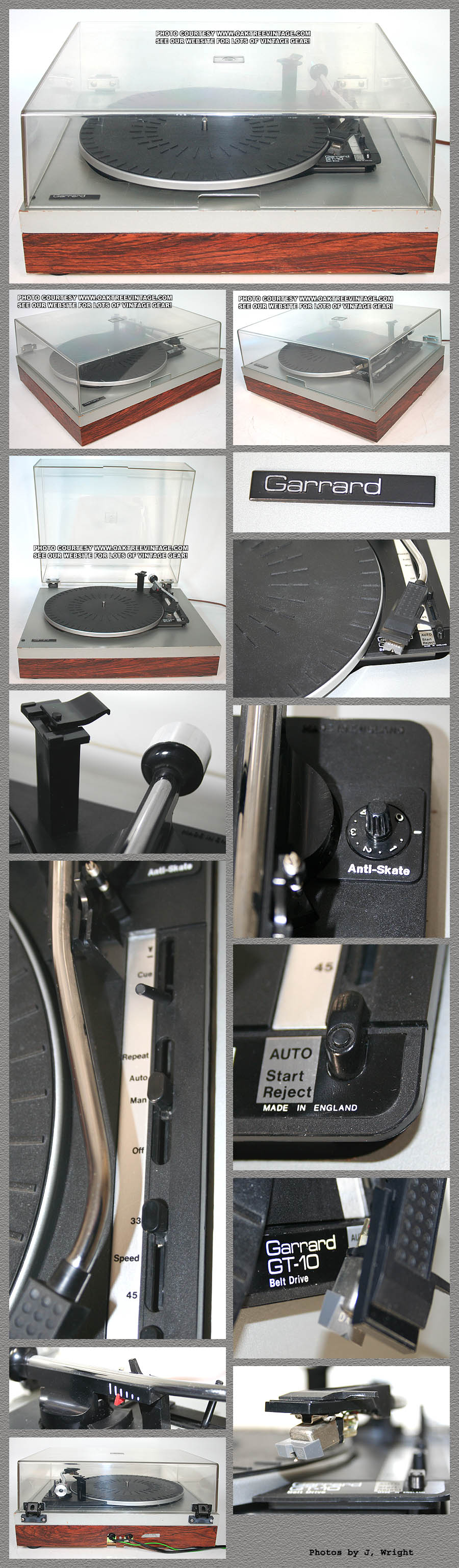

Garrard GT-10 STEREO TURNTABLE
Cond. 8
SOLD 4/4/12
W/ DUST
COVER
&
w/ Pickering V-15 Elliptical Diamond
stylus
cartridge installed
|
|
|
GARRARD

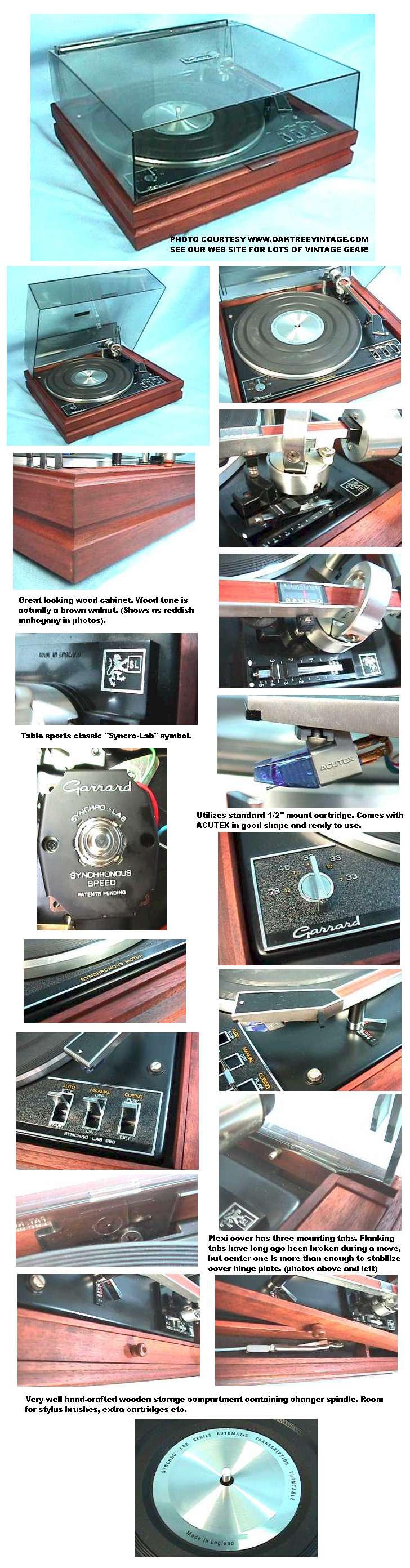

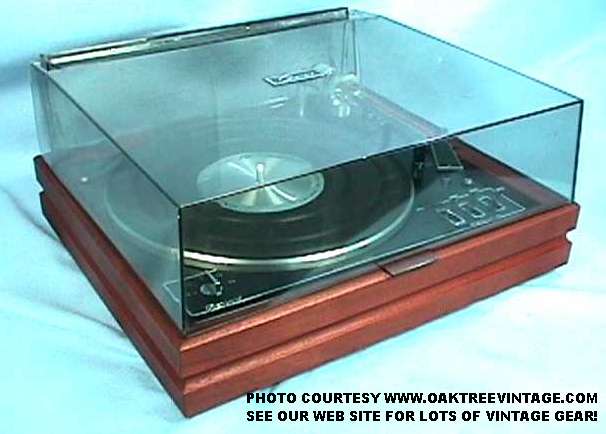

GARRARD STACKER / CHANGER TURNTABLE
SL95B
SOLD
|
|
|

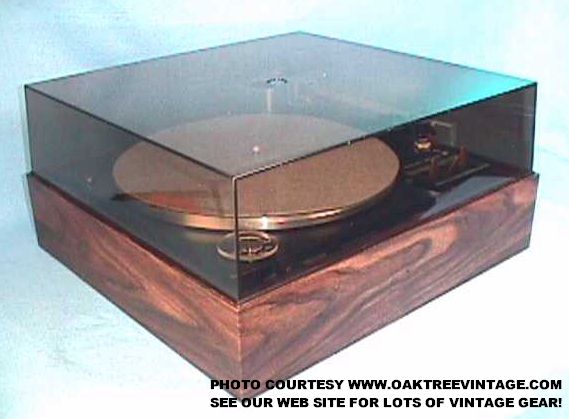

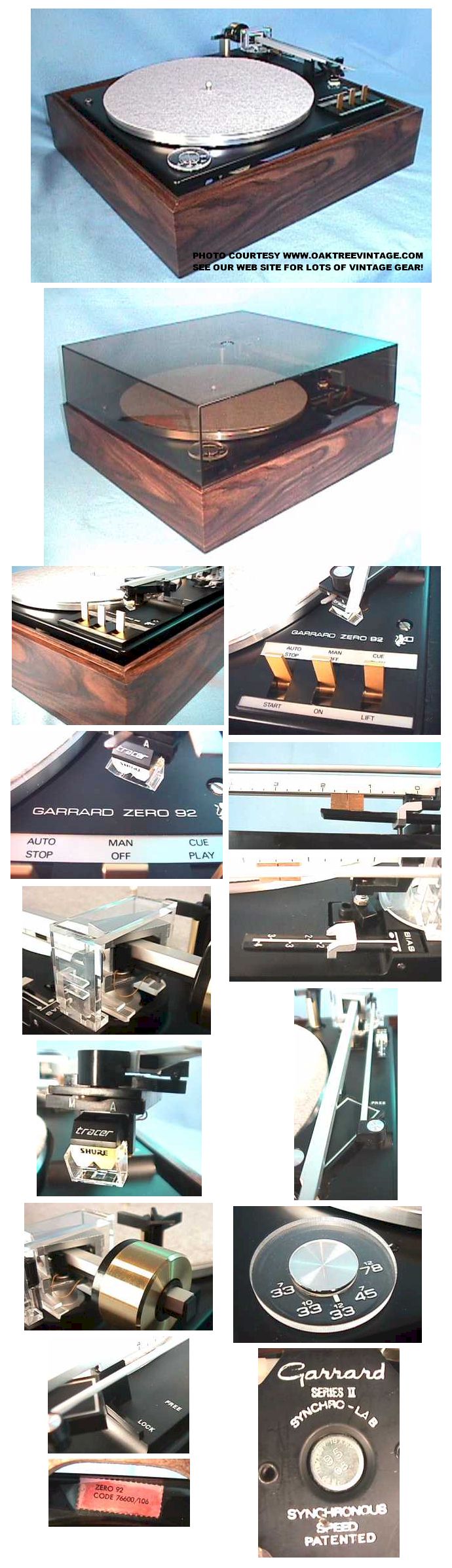

GARRARD ZERO 92 TURNTABLE
SOLD 12/22/03
|

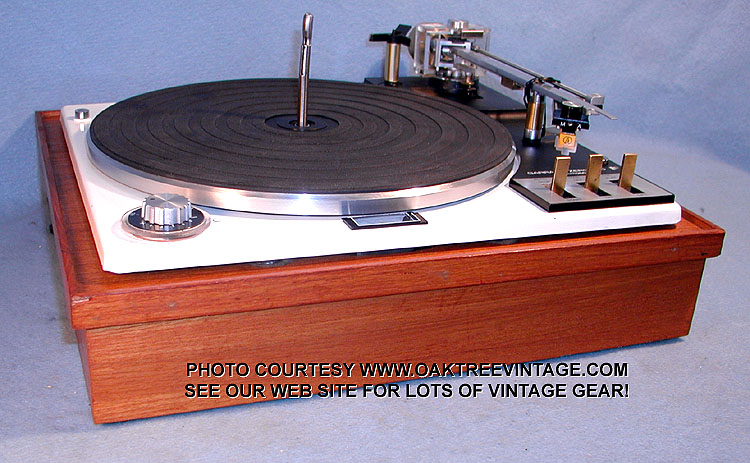

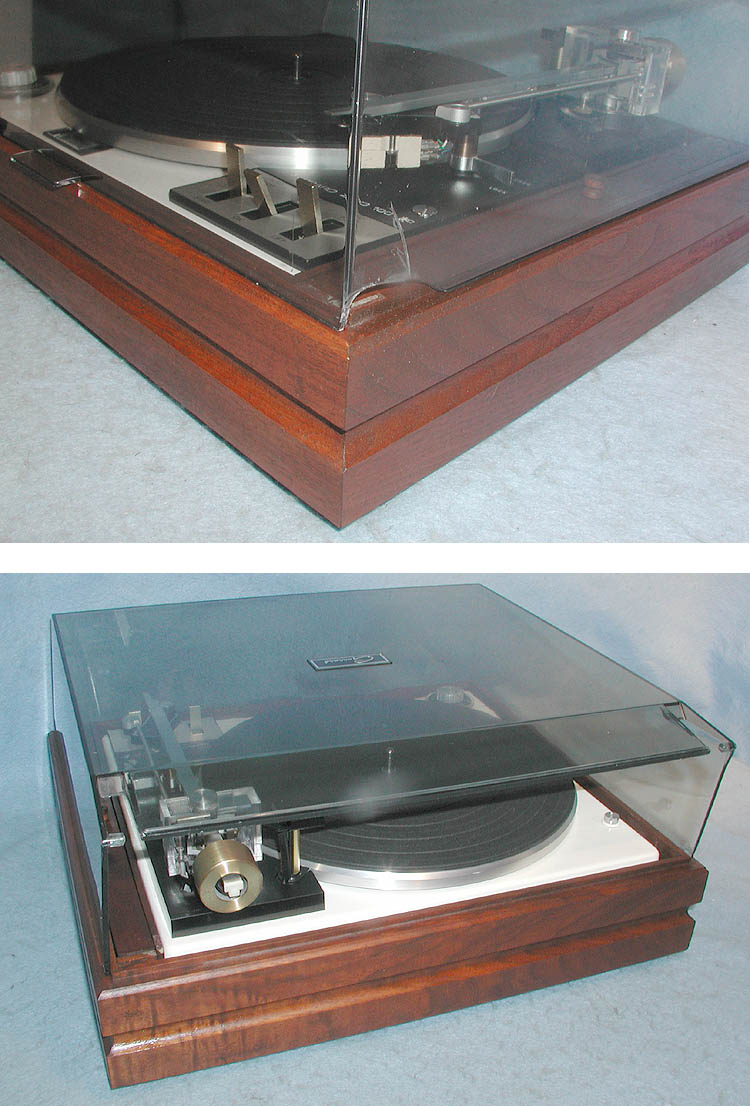

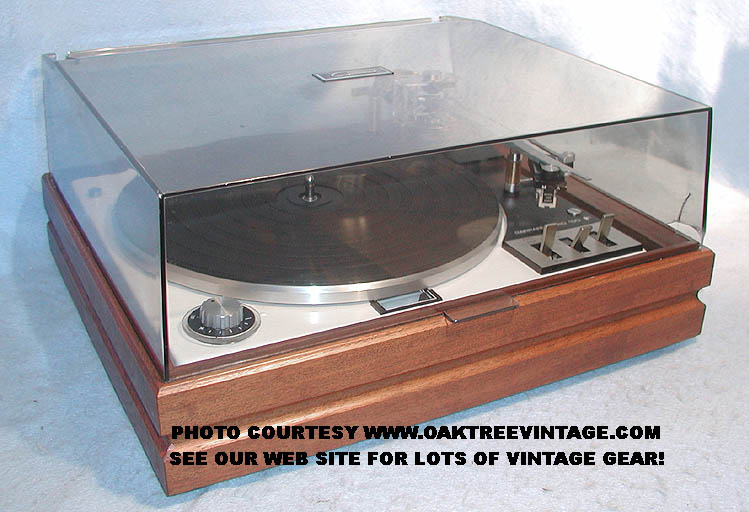

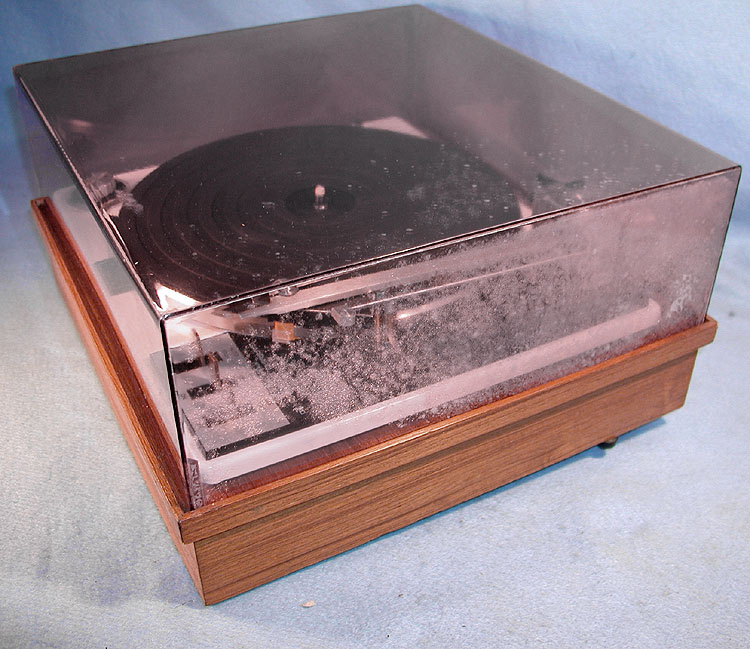

GARRARD ZERO 100 TURNTABLE
SOLD 2/6/07
|
GARRARD ZERO 100 TURNTABLE
SOLD 10/21/05
|
CLICK HERE
TO SEE OUR TURNTABLES
CURRENTLY FOR SALE!
|
